Project Source EVALIN TL-7650E-WL-PS Manual page 7

ASSEMBLY INSTRUCTIONS

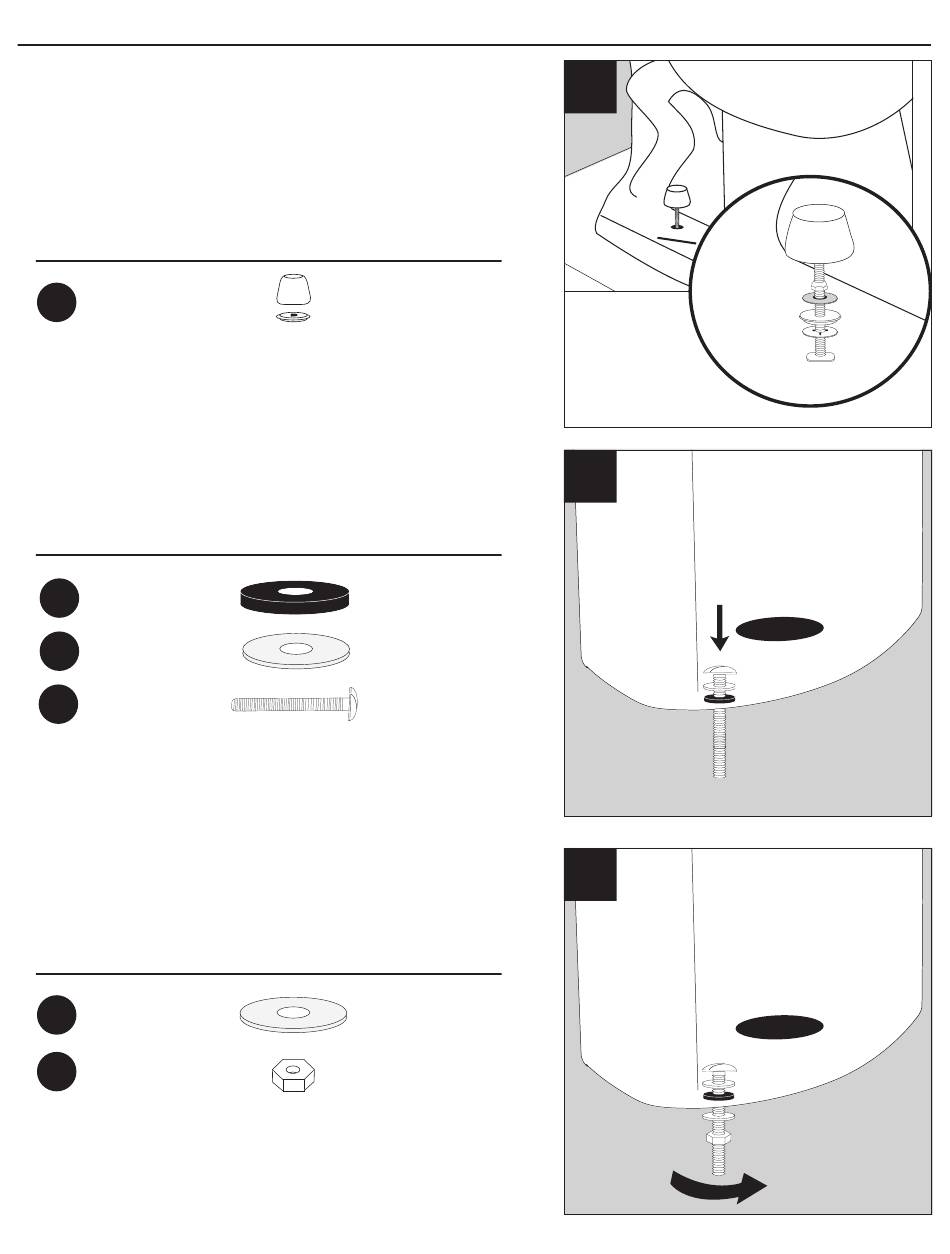

4. Install plastic cap washers, followed by metal washers and
nuts onto the floor bolts. Tighten the bolts alternately until
toilet is firmly seated on the floor. Install the flange bolt
caps.
CAUTION: DO NOT OVERTIGHTEN NUTS, SEVERE
DAMAGE MAY OCCUR
Hardware Used
II Plastic Cap Washers
5. Insert tank bolts inside the tank. Use the metal and rubber
washers supplied to create a seal.
Hardware Used
BB Rubber Washers
CC Brass Washers
DD Brass Tank Bolts
6. Install the metal nut and washers on the bolts under the
tank. Tighten the nuts until the rubber washers in the tank
create a proper and secure seal.
Hardware Used
CC Brass Washers
EE
Brass Nuts
FIG 4
x 2
FIG 5
x 2
x 2
x 2
FIG 6
x 2
x 2
