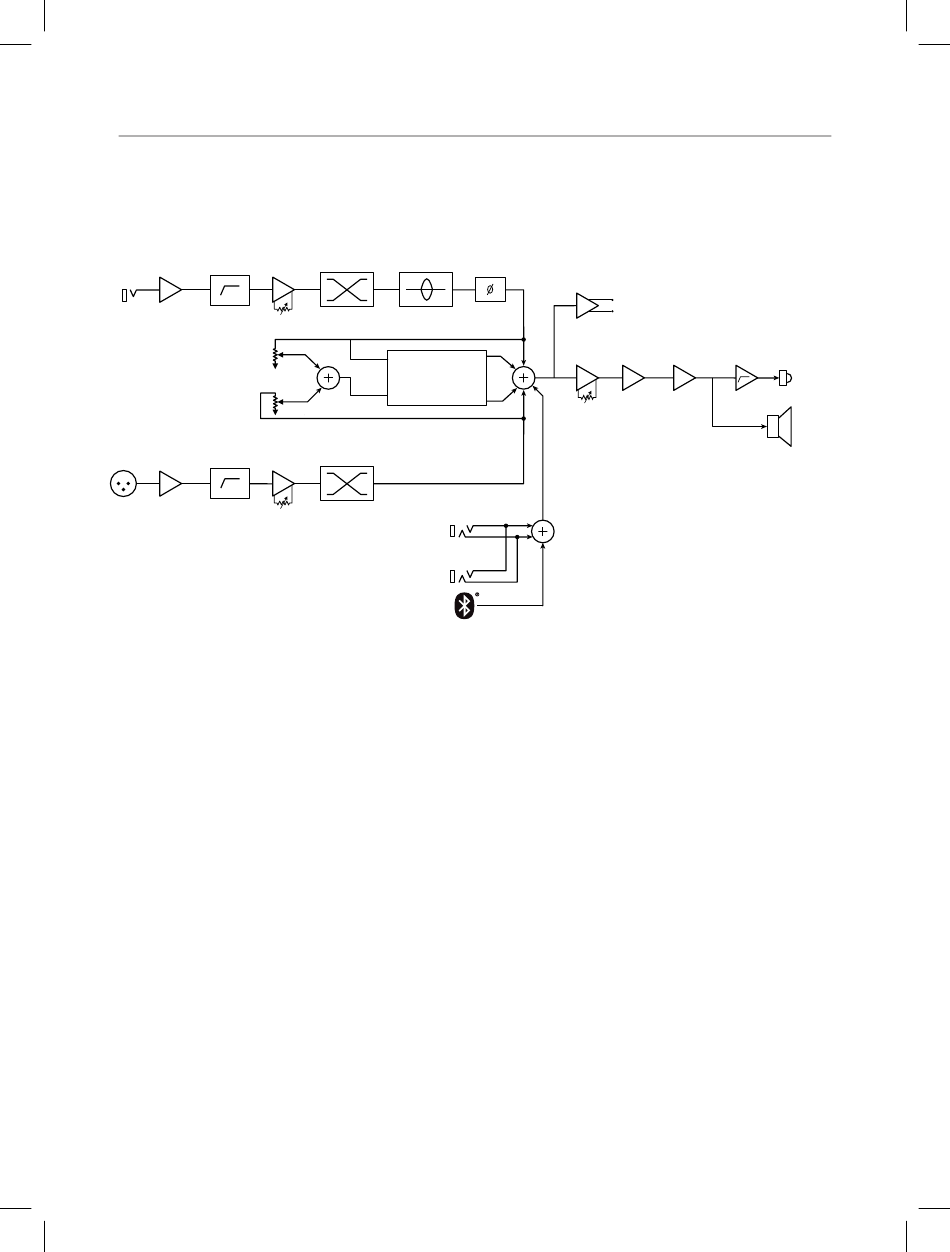

Block Diagram

Instrument
Class-A
Hi-pass
Gain
Input
Buffer
Filter
Instrument
Reverb Level
Mic
Reverb Level
Mic
Mic
Hi-Pass
Gain
Input
Preamp
Filter
Low, High
Middle
Phase
Chorus In
Digital
Effects
Reverb In
Low, High
Stereo Aux
Inputs
1/4"
Tip = Left
Ring = Right
1/8"
Bluetooth
®
13
Mix D.I. Output
(mic level)
Master
60Watt
Limiter
Crossover
Volume
Power Amp
Tweeter
Woofer
