www.fishman.com
USER GUIDE
LoUDbox PERfoRmER

Advertisement

Table of Contents
loading

Related Manuals for Fishman Loudbox Performer

Summary of Contents for Fishman Loudbox Performer

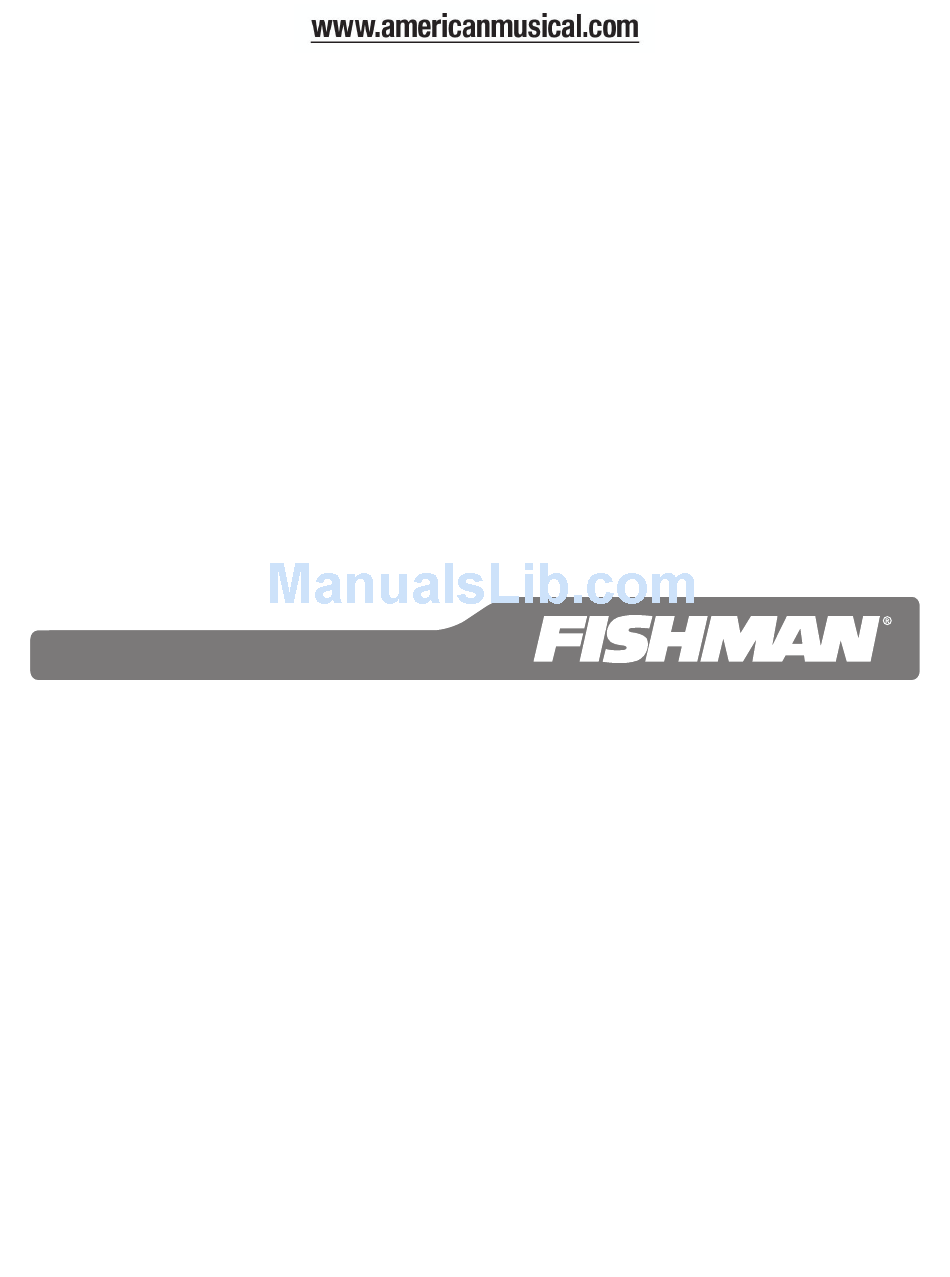

  • Page 1 USER GUIDE LoUDbox PERfoRmER...

  • Page 2: Important Safety Instructions

    The apparatus should be connected to mains outlet with a protective earthing connection. Disconnect device is Mains Plug, which should remain readily operable. Copyright © 2012 FISHMAN TRANSDUCERS, INC. All rights reserved. No part of this document may be reproduced in any form without the...
  • Page 3 WARNING: INFORMATIONS IMPORTANTES DE SECURITE • Lisez attentivement ces instructions. • Veuillez conserver ces instructions. • Observez tous les avertissements. • Suivez toutes les consignes à la lettre. • N’utilisez jamais cet appareil dans un endroit humide ni à proximité d’eau.
  • Page 4 Save Your Packing materials The box and packing materials were specially designed to protect the amplifier during shipping. Save it all in case you need to re-ship the Loudbox Performer. Hear This! The Loudbox Performer amplifier is capable of cleanly reproducing the sound of your instrument at very high volume levels.
  • Page 6 Welcome Thank you for making Fishman a part of your acoustic experience. We are proud to offer the finest acoustic amplification products available; high-quality professional-grade tools which empower you to sound your very best.

  • Page 7: Getting Started

    1. Locate the Power switch (above the rear panel power cord terminal) and switch it off (down position), then connect the power cord. 2. Plug the Loudbox Performer into an electrical outlet with the appropriate AC voltage. 3. Turn down the Master Volume control and turn on the Power switch.

  • Page 8: Front Panel

    front Panel Controls 1 through 10 are identical for both channels. 1. Channel 1 Input The 1/4” input accepts all types of passive or active acoustic pickups. Plug a balanced mic into the XLR input for vocal or instrument use. 2.
  • Page 9 front Panel (cont.) 7. Anti-feedback If you encounter low-frequency feedback, sweep this control to isolate and eliminate it. To learn more about acoustic feedback, see page 15. 8. Phase Use the Phase switch in conjunction with the Anti-Feedback filter to eliminate acoustic feedback.

  • Page 10: Master Volume

    16. master Volume Set the overall level of the Loudbox Performer with the Master Volume. In gen- eral put the Master Volume as high as possible (2 o’clock to 5 o’clock) to achieve the cleanest sound.

  • Page 12: Rear Panel

    Disconnect device is AC inlet or power switch. 3. mute foot Switch Plug a Fishman dual foot switch into this jack for remote access to Channel Mute and Effect B Mute. 4. Aux Input - 1/4” & 1/8”...
  • Page 13 Rear Panel (cont.) 6. Channel 2 Effects Loop (serial) Patch an external effect through these jacks. Use a standard ¼” shielded instrument cable to connect the Channel 2 Send to the input of the effect. Connect the Channel 2 Return jack to the output of the effect. The Channel 2 loop is located post-EQ and is compatible with battery-operated stompbox- style effects processors.

  • Page 14: Tone Tips

    Tone Tips Set up For reference, start with the tone controls flat (straight-up, twelve o’clock). In this position, there is no equalization applied to your sound. Begin at a very low volume and work your way up. As you turn up, try adjusting the Loudbox Per- former’s tone controls as recommended below.

  • Page 15: About Acoustic Feedback

    We have found that it is effective to tune out an instrument’s cavity resonance feedback with the Anti-Feedback (notch filter) in the Loudbox Performer. For acoustic guitar this occurs at G# on the low E-string, or at about 100Hz. Turn the Anti-Feedback knob to about 11 o’clock to dial out this resonance.

  • Page 16: Block Diagram

    block Diagram...

  • Page 18: Technical Specifications

    Technical Specifications Input Impedance: 1/4” Input 5MOhm XLR Input 2.4kOhm Balanced Aux Input (stereo) 10kOhm Phantom Power XLR Input 24VDC / 1.2kOhm DC source impedance per pin Tone Controls and Anti-feedback: ±12.5dB @ 50Hz (resonant) ±10.5dB @ 750Hz (resonant) High ±12.5dB @ 10kHz (shelving) Anti Feedback range -14dB @ 15Hz –...

  • Page 19: Speaker System

    Technical Specifications (cont.) Speaker System: Woofer 8” paper cone, acoustic suspension Midrange 5” poly cone, acoustic suspension Tweeter 1” cloth dome,neodymium magnet Tweeter Level Up to 6dB cut @ 10kHz Crossover Bi-amplified with active/passive hybrid crossover 500Hz, active; 3.5kHz, passive Baffle Angle 10 Degrees Rated Power:...
  • Page 20 Fishman and Fishman Transducers are trademarks or tradenames of FISHMAN TRANSDUCERS 513-300-195 Rev 1 2-13...
