- Page 1 USER GUIDE LOUDBOX MINI...
- Page 2 WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like. CAUTION: Danger of explosion if battery is incorrectly replaced. To replace battery use Fishman’s approved battery kit only at Certified Service Centers No naked flame sources, such as lighted candles, should be placed on the apparatus.
- Page 3 WARNING: INFORMATIONS IMPORTANTES DE SECURITE • Lisez attentivement ces instructions. • Veuillez conserver ces instructions. • Observez tous les avertissements. • Suivez toutes les consignes à la lettre. • N’utilisez jamais cet appareil dans un endroit humide ni à proximité d’eau.
- Page 4 Hear This! The Loudbox Mini amplifier is capable of cleanly reproducing the sound of your instrument at very high volume levels. Prolonged repeated exposure to high sound pressure levels (SPLs) without protection can cause permanent hearing loss. OSHA has set guidelines and specified permissible sound-exposure limits for those who work in high SPL environments.
- Page 5 2. This device must accept any interference received, including interference that may cause undesired operation. EU Declaration of Conformity CE: Hereby, Fishman declares that this Loudbox Mini is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU, 2014/30/EU, 2014/35/EU.
- Page 6 Welcome Thank you for making Fishman a part of your acoustic experience. We are proud to offer the finest acoustic amplification products available; high-quality professional-grade tools which empower you to sound your very best.
- Page 7 1. Locate the Power switch (next to the rear panel power cord terminal) and switch it off, then connect the power cord. 2. Plug the Loudbox Mini into an electrical outlet with the appropriate AC voltage. 3. Turn down the Master Volume control and turn on the Power switch. The Power Indicator should illuminate.

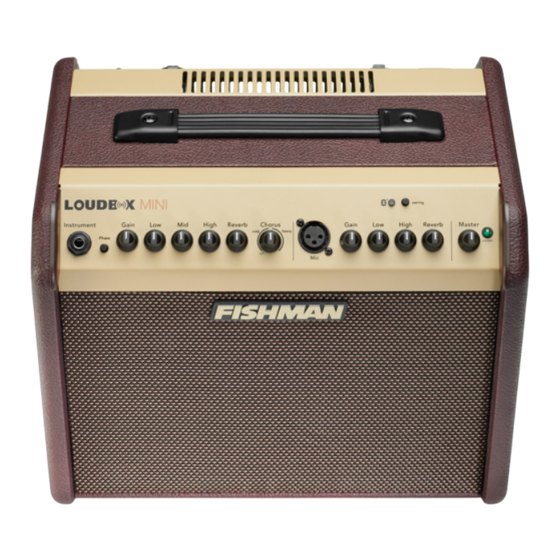

- Page 8 Front Panel 1. Instrument Input This 1/4” input accepts all types of passive or active acoustic pickups. 2. Phase Use the Phase switch to improve bass at low volume and suppress feedback at high volumes. 3. Gain Use the Gain knob to set the signal level for the instrument input. 4.
- Page 9 Controls the amount of digital reverb in the Microphone channel. 14. Master Volume Set the overall level of the Loudbox Mini with the Master Volume. In general, put the Master Volume as high as possible using less Gain (2 o’clock to 5 o’clock) to achieve the cleanest sound.
- Page 10 Front Panel (cont.) 16. Bluetooth Indicator ® This green indicator will display a medium flash indicating the Bluetooth mod- ® ule is ready for pairing. It will display a slow flash indicating the module is ready for reconnection with a previously paired device. The indicator will be on when playback is active and display a fast flash when playback is paused.
- Page 11 Rear Panel 1. AC power Operate the amplifier only at the voltage indicated on the rear panel. For 120V amplifiers purchased in the USA, Canada and Mexico, plug in the supplied detachable AC power cable. For 100V and 230V amplifiers purchased outside the USA and Canada, you will need to supply your own detachable AC cable.
- Page 12 Begin at a very low volume and work your way up. As you turn up, try adjusting the Loudbox Mini’s tone controls as recommended below. 1. Low volume At a low volume (just above conversation level) our ears are not very sensitive to bass and treble, so give the Low and High controls a good boost.
- Page 13 Block Diagram Instrument Class-A Hi-pass Gain Low, High Middle Phase Input Buffer Filter Mix D.I. Output (mic level) Master 60Watt Instrument Limiter Crossover Volume Power Amp Reverb Level Chorus In Digital Tweeter Effects Reverb In Reverb Level Woofer Hi-Pass Gain Low, High Input Preamp...
- Page 14 Technical Specifications Output rating: SPL @ 1 meter 108 dB (measured) Frequency Response 80 Hz – 20 kHz Power rating: 60 W Input impedance: Ch. 1 10 MΩ Ch. 2 2 kΩ Aux Input (stereo) 10 kΩ Tone controls: ±12 dB @ 80 Hz (resonant) ±10.5 dB @ 750 Hz (resonant) High ±12.5 dB @ 15 kHz (shelving)
- Page 16 Fishman and Fishman Transducers are trademarks or tradenames of Fishman Transducers Inc. 513-300-170 rev 5...
