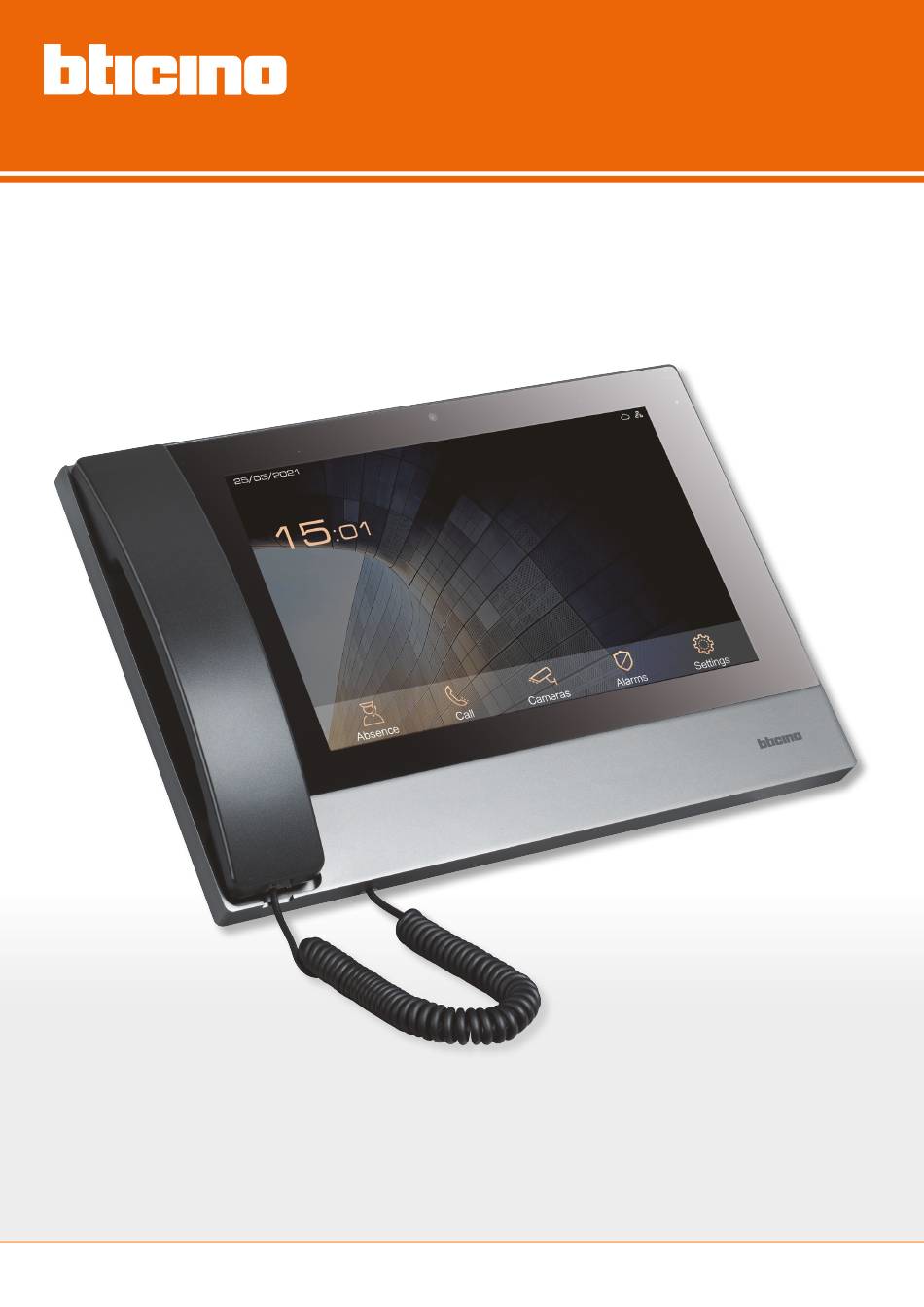

Guard station IP DES
375000
User and installation manual
RA00192AC-01/24-PC
www.bticino.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 373001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bticino 373001

  • Page 1 Guard station IP DES 375000 User and installation manual RA00192AC-01/24-PC www.bticino.com...
  • Page 2 Guard station IP DES User and installation manual...
  • Page 3: Table Of Contents

    Guard station IP DES User and installation manual Contents General information Warnings and recommendations Warnings and consumer rights Fundamental concepts Naming of the devices Community Call addressing procedures Numeric call (using the standard address of the community) Alphanumeric call (using Alias) Call using alphanumeric alias Contacts Configuration...
  • Page 4 Guard station IP DES User and installation manual Call IU or GS Contacts Edit a contact and/or include it in your favorites Call history Camera Monitoring history Alarms Alarm management User settings Ringtone Display Language setting Transfer setting Device information User guide Advanced settings (Installation settings) Password setting...
  • Page 5: General Information

    Guard station IP DES User and installation manual General information Warnings and recommendations It is important to read this manual carefully before proceeding with the installation. The warranty becomes automatically void in case of negligence, improper use, tampering by unauthorised personnel. The Guard Station must only be installed indoors;...
  • Page 6: Fundamental Concepts

    Guard station IP DES User and installation manual Fundamental concepts The device cannot be activated individually but must follow a general configuration found on the DES Server. The DES Server is configured using a PC connected to the same LAN. Once configured and activated, the DES Server makes available the configuration of local devices (Internal Unit, Entrance Panel, Guard Station, etc.) When switched on, the device searches for a configuration (address book) on the DES Server and...
  • Page 7: Call Addressing Procedures

    Guard station IP DES User and installation manual Call addressing procedures On the basis of data recorded in the AB and the Community structure the calls can be made using various methods: – numeric call (using the standard address of the community);...
  • Page 8: Alphanumeric Call (Using Alias)

    Guard station IP DES User and installation manual Alphanumeric call (using Alias) The Alias is an alphanumeric code that replaces the community address created through the software. The default alias is the same as the address in the Community*. However, this can be changed using the SW and can be of two types: alias ALPHANUMERIC 1 1 01 04 02...
  • Page 9: Lift Function

    The Lift Control function consists of the ability to interact with the lift system through calls and commands from the DES IP video door entry system. The operating mode of the lift depends on its control system (BTicino cannot operate the lift but only send commands, which are interpreted and executed).
  • Page 10: Alphanumeric Call (Using Alphanumeric Alias)

    Fire-fighting OnVif IP Alphanumeric call Alphanumeric call Function cameras (using alphanumeric (using contact alias in alias) the address book) ✓ ✓ ✓ ✗ ✓ 373001 ✓ ✓ ✓ ✗ ✓ 373002 ✓ ✓ ✓ ✗ ✓ 373003 ✓ ✓ ✓...
  • Page 11: Front And Rear View

    Guard station IP DES User and installation manual Front and rear view 1. Handset 2. Camera 3. Display 10" (touch screen) 4. Microphone 5. Notification LED – Red led: alarm not processed – Blue led: missed call – Purple LED: unprocessed alarm + missed call 6.
  • Page 12: Dimensional Data

    Guard station IP DES User and installation manual Dimensional data 308 mm 211 mm 165 mm 170 mm Attention: to ensure correct operation, the GS must be installed indoors, in a position protected from rain and away from heat sources.
  • Page 13: Installation

    Guard station IP DES User and installation manual Installation Attention: place the GS on a flat surface, making sure not to damage the display. Attention: The wrong wiring of the Ethernet cable connecting the device to the Poe Switch 375002 could damage the device itself..
  • Page 14: Activation

    Guard station IP DES User and installation manual Activation After configuring the MAC address of the device in the SD, when switched on, the device searches for a configuration (address book) on the DES Server and acquires it. NOTE: if the device were already configured in the past, it must be reset. After rebooting, the device will configure itself If the automatic activation of the device is unsuccessful, warning messages and manual activation modes may appear.
  • Page 15 Guard station IP DES User and installation manual IP address Server IP address DEFAULT CONFIGURATION ABC OK Installation code Installation code Server IP address DEFAULT CONFIGURATION ABC OK 1A. Enter the IP address of the server. 1B. Enter the installation code...
  • Page 16: Example Diagrams

    Guard station IP DES User and installation manual Example diagrams A - Diagram with power supply by BTicino PoE Switch CABLES LEGEND LAN PoE Standard LAN PoE BTicino LAN Ethernet Copper cables 2 x Copper cables It is possible to use two different types of connection according to installation situation:...
  • Page 17 User and installation manual B - Diagram with local power supply CABLES LEGEND LAN PoE Standard LAN PoE BTicino LAN Ethernet Copper cables 2 x Copper cables It is possible to use two different types of connection according to installation situation:...
  • Page 18: Ethernet Connection

    Guard station IP DES User and installation manual Ethernet connection CABLES LEGEND LAN PoE Standard LAN PoE BTicino LAN Ethernet Copper cables 2 x Copper cables FLOOR 3 APARTMENT 5 APARTMENT APARTMENT APARTMENT 374004 RJ45 373001 RJ45 373001 RJ45 373001...
  • Page 19: Ethernet Connection To The Standard Poe Switch

    Guard station IP DES User and installation manual Ethernet connection to the Standard PoE switch CABLES LEGEND LAN PoE Standard LAN PoE BTicino LAN Ethernet Copper cables n° 2 Copper cables FLOOR 3 373008 373008 373008 373008 APARTMENT RJ45 RJ45...
  • Page 20: Fiber Optic Riser Connection (Case Of Higher Bandwidth Demand)

    Guard station IP DES User and installation manual Fiber optic riser connection (case of higher bandwidth demand) LAN PoE Standard LAN PoE BTicino LAN Ethernet Optical fiber Copper cables n° 2 Copper cables CABLES LEGEND FLOOR 3 APARTMENT 5 374004...
  • Page 21: Intercom Function

    User and installation manual Intercom function Audio intercom between internal unit: - of different apartments (same building or different building) - inside the same apartment. CABLES LEGEND LAN PoE Standard LAN PoE BTicino LAN Ethernet Copper cables 373008 373008 373008 APARTMENT 1...
  • Page 22: Lift Control 1 - Lift Control With Protocol Interface 375010, 1 Riser, 1 Entrance Panel

    Guard station IP DES User and installation manual Lift control 1 - Lift control with protocol interface 375010, 1 riser, 1 entrance panel CABLES LEGEND LAN PoE Standard LAN PoE BTicino LAN Ethernet Copper cables n° 2 Copper cables 373008...
  • Page 23: Lift Control 2 - Lift Control With Protocol Interface 375010, More Risers, 1 Entrance Panel

    Guard station IP DES User and installation manual Lift control 2 - Lift control with protocol interface 375010, more risers, 1 entrance panel CABLES LEGEND LAN PoE Standard LAN PoE BTicino LAN Ethernet Copper cables n° 2 Copper cables MONTANTE 1...
  • Page 24: Lift Control 3 - Lift Control With Protocol Interface 375010, 1 Riser, More Entrance Panels

    Guard station IP DES User and installation manual Lift control 3 - Lift control with protocol interface 375010, 1 riser, more entrance panels CABLES LEGEND LAN PoE Standard LAN PoE BTicino LAN Ethernet Copper cables n° 2 Copper cables FLOOR 3...
  • Page 25: Lift Control 1 - Lift Control With Lift Control Interface With Relay 375013, 1 Riser, 1 Entrance Panel

    Guard station IP DES User and installation manual Lift control 1 - Lift control with lift control interface with relay 375013, 1 riser, 1 entrance panel CABLES LEGEND LAN PoE Standard LAN PoE BTicino LAN Ethernet Copper cables n° 2 Copper cables 373008...
  • Page 26: Lift Control 2 - Lift Control With Lift Control Interface With Relay 375013, More Risers, 1 Entrance Panel

    User and installation manual Lift control 2 - Lift control with lift control interface with relay 375013, more risers, 1 entrance panel CABLES LEGEND LAN PoE Standard LAN PoE BTicino LAN Ethernet Copper cables n° 2 Copper cables MONTANTE 1...
  • Page 27: Lift Control 3 - Lift Control With Lift Control Interface With Relay 375013, 1 Riser, More Entrance Panels

    User and installation manual Lift control 3 - Lift control with lift control interface with relay 375013, 1 riser, more entrance panels CABLES LEGEND LAN PoE Standard LAN PoE BTicino LAN Ethernet Copper cables n° 2 Copper cables FLOOR 3...
  • Page 28: Use Of The Device

    Guard station IP DES User and installation manual Use of the device After installing the IP DES Indoor Unit it is possible to: – Receive a call from – Transfer a call from the EP to an – Receive a call from IU or Set an absence;...
  • Page 29: Introduction

    Guard station IP DES User and installation manual Introduction After the installation and connection of the device, it is necessary to configure it and create the Community structure. For details see Server DES Software manual. Step Community VLAN network creation Step Community structure definition Step...
  • Page 30: Home Page

    Guard station IP DES User and installation manual Home page This page may show different content according to the configuration modes and systems connected to the device. The Home Page, with all the functions enabled, is shown below. A Current date and time Notifications section It displays currently active alarms yet to be managed.
  • Page 31: Video Door Entry Functions

    Guard station IP DES User and installation manual Video door entry functions To receive or make a call, it is possible to use the function keys or, for increased privacy, the handset provided. In the first case, the audio will be transmitted through the loudspeaker, while in the second through the handset.
  • Page 32: Receive A Call From Ep

    Guard station IP DES User and installation manual Receive a call from EP When a call comes in, the display of the GS is activated, showing the image taken. Note: if the Absence function is active, the call will be transferred as per the scheduling. A It answers the call It rejects the call or ends the communication C It captures an image...
  • Page 33 Guard station IP DES User and installation manual A confirmation message appears, the image will be saved in Call/call history 3. Touch to open the EP door lock A confirmation message appears Note: it is possible to open the door lock even without answering the call 4.
  • Page 34: Transfer A Call From The Ep To An Iu

    Guard station IP DES User and installation manual Transfer a call from the EP to an IU Calls can be answered and if necessary transferred to an IU. Note: if the Absence function is active, the call will be transferred as per the scheduling. A It answers the call It rejects the call or ends the communication C It captures an image...
  • Page 35 Guard station IP DES User and installation manual address or alias 3. Enter the of the IU to which you wish to transfer the call 4. Touch to send the call to the IU Wait for the IU to answer A It ends the communication Calling time C Address of the device to which the call is made...
  • Page 36 Guard station IP DES User and installation manual When the IU answers, it sees the images recorded by the EP and the following screen appears on the GS: 5. Touch to transfer the call to the IU, establishing direct communication between the same and the EP The Home Page appears on the GS...
  • Page 37: Receive A Call From Iu Or Gs

    Guard station IP DES User and installation manual Receive a call from IU or GS A It answers the call It rejects the call or ends the communication C Calling time D Address or alias of the device from which the call comes It adjusts the volume 1.
  • Page 38: Absence

    Guard station IP DES User and installation manual Absence In this section it is possible to set the way the call is managed when absent: – Quick Absence in case of temporary absence, calls will be transferred according to the scheduling.
  • Page 39 Guard station IP DES User and installation manual 3. Alternatively, select the GS to which the call will be transferred in your absence The GS to which you want to transfer the calls has 30 seconds to confirm The GS to which you want to transfer the calls receives a message and must confirm...
  • Page 40 Guard station IP DES User and installation manual 4. If the GS confirms, the GS transferring the call shows the transfer active screen. Touch to stop the transfer Scheduled absence The function can be enabled with 3 different modes: – Always absent (default): the call is always transferred Always present: the call is not transferred –...
  • Page 41 Guard station IP DES User and installation manual The default setting is Always present and therefore the call is not transferred 2. Touch Always absent if you need to permanently transfer the call 3. Touch to confirm...
  • Page 42 Guard station IP DES User and installation manual 4. Touch not to transfer the call directly to the IU 5. Calls will now be transferred directly to the IUs, touch to stop the transfer of calls...
  • Page 43 Guard station IP DES User and installation manual 6. Alternatively, select the GS to which the call will be transferred in your absence The GS to which you want to transfer the calls has 30 seconds to confirm The GS to which you want to transfer the calls receives a message and must confirm...
  • Page 44 Guard station IP DES User and installation manual 7. If the GS confirms, the GS transferring the call shows the transfer active screen. Touch to stop the transfer 8. Touch to transfer the call for a set period...
  • Page 45 Guard station IP DES User and installation manual 9. Touch to confirm 10. Select the days of the week when you will be absent 11. Select the absence start time 12. Select the absence end time 13. Touch to directly transfer the call to the IU to which the call was originally directed (see item 4) 14.
  • Page 46 Guard station IP DES User and installation manual 15. The tick indicates to whom the call was transferred Active transfers can be seen in the Transfer list status page Transfer list status This page can be used to display active transfers and if necessary to stop them. A GS name Type of transfer (quick or scheduled) C Delete transfer...
  • Page 47 Guard station IP DES User and installation manual 2. Touch to stop the transfer The GS object to the active transfer has 30 seconds to confirm. A notification message appears after the confirmation A cancellation completed message appears after the confirmation...
  • Page 48: Call Iu Or Gs

    Guard station IP DES User and installation manual Call IU or GS In this section it is possible to communicate with other IU or other GS. It is possible to call an IU or GS in different ways: call using the address in the Community;...
  • Page 49 The IU being called can decide whether to activate an audio only or audio&video communication. Note: the video communication is active only for IU item 373001/02 with enabled camera or GS. *Note: the caller display depends on how the community has been configured using the software. For...
  • Page 50: Contacts

    Guard station IP DES User and installation manual Contacts In this section it is possible to manage and call the contacts (IU and GS). Often called contacts may also be included in the favorites. A Contact filter: if details are entered in the filter, the relevant list of contacts will only show contacts meeting the filter settings: for example, when entering 1203, only contacts with address Area=1 Building=2 and Riser=03 will be displayed Favourite contacts area...
  • Page 51: Edit A Contact And/Or Include It In Your Favorites

    Guard station IP DES User and installation manual The call is sent immediately; see the Call IU or GS using the address in the Community or alphanumeric code (alias) section for details. Edit a contact and/or include it in your favorites 1.
  • Page 52 Guard station IP DES User and installation manual 2. Touch to enter a contact name 3. Select the contact type icon 4. If necessary, touch to add the contact to the favourites 5. Touch to save...
  • Page 53: Call History

    Guard station IP DES User and installation manual Call history In this section it is possible to display the list of received, sent or missed calls, in chronological order. A Type of caller Caller address C Missed call D Call filters Date and time of the call Type of call missed...
  • Page 54: Camera

    Guard station IP DES User and installation manual Camera In this section it is possible to view the EPs and the public OnVif IP cameras of the Community. It is also possible to view the monitoring log. The cameras to be monitored are split into: –...
  • Page 55: Monitoring History

    Guard station IP DES User and installation manual The display shows the image taken by the EP camera. Receive a call The controls are the same as described in the section Monitoring history A Type of monitoring Camera address C Camera filter: If details are entered in the filter, only those meeting its requirements are displayed D Monitoring date and time 1.
  • Page 56: Alarms

    Guard station IP DES User and installation manual Alarms In this section it is possible to manage alarms from IUs and EPs under your responsibility. IU alarms Smoke Infrared Door contact Others EP alarms Tamper alarm Panic alarm...
  • Page 57: Alarm Management

    Guard station IP DES User and installation manual Alarm management A warning message appears following an alarm 1. Touch to silence the alarm 2. Touch to open the alarm section to manage it...
  • Page 58 Guard station IP DES User and installation manual 3. View the alarm details (origin, date, time and type) and if necessary call the IU to check (see step 5) 4. Touch to directly process the alarm (see item 7) 5. View the alarm details (origin, date, time and type) and if necessary touch to call the IU to check...
  • Page 59 Guard station IP DES User and installation manual 6. Touch to end the call 7. Touch to continue the management by entering a process comment...
  • Page 60 Guard station IP DES User and installation manual 8. Enter the name of the operator who initiated the management 9. Touch to indicate the alarm status 10. Touch to confirm The alarm is moved to the Processed section If the alarm changes status: 11.
  • Page 61 13. View the alarm status and add another process comment 14. Enter the processor name 15. Touch to indicate the new alarm status 16. Touch to confirm Note: the video communication is active only for IU item 373001/02 with enabled camera or GS.
  • Page 62: User Settings

    Guard station IP DES User and installation manual User settings In this section it is possible to perform a wide range of customisations that will enable you to make the most of your GS. There are further configurations in the Installation section (installer access), accessed by means of the installer password.
  • Page 63: Ringtone

    Guard station IP DES User and installation manual Ringtone In this section it is possible to set the ringtone parameters for the incoming calls, based on the origin – Apartment EP – – – 1. Scroll to modify the volume Note: the volume adjustment is the same for all sources.
  • Page 64: Display

    Guard station IP DES User and installation manual Display In this section it is possible to set different display parameters 1. Touch to modify the display brightness 2. Scroll to set the screen saver activation time 3. Select the display background 4.
  • Page 65: Transfer Setting

    Guard station IP DES User and installation manual Transfer setting In this section it is possible to set the call transfer to other GSs. A Enable the transfer when you are in another conversation Enable the transfer when a call is received and you cannot answer C Set the time after which the call will be transferred if not answered D Indication of the GS receiving the call GSs to which to transfer the call...
  • Page 66: Device Information

    Guard station IP DES User and installation manual Device information In this section it is possible to display different device parameters User guide In this section it is possible to download this manual using the QR code 1. Using a smartphone, scan the QR Code Inside the site, search for the 375000 code and download the manual...
  • Page 67: Advanced Settings (Installation Settings)

    Guard station IP DES User and installation manual Advanced settings (Installation settings) In this section it is possible to set different parameters such as installer password, date and time and to perform tests and resets. 1. Touch to modify the advanced settings. Warning: access to the Advanced Settings should only be attempted by experienced people, as wrong actions could compromise the operation of the device 2.
  • Page 68: Password Setting

    Guard station IP DES User and installation manual 4. Touch the icon for the desired customisation, choosing among: It sets the installer password It performs a network test It restores the factory values of the device test calls It makes to test the system Password setting In this section it is possible to modify the installer password...
  • Page 69: Network Testing

    Guard station IP DES User and installation manual Network testing This function performs call tests of devices whose IP address is known. 1. Enter the IP address of the device to test the connection. 2. Touch to start the test If the test is successful, a confirmation message appears...
  • Page 70: Restore Factory Settings

    Guard station IP DES User and installation manual Restore factory settings In this section it is possible to restore the factory values of the device 1. Touch to start the procedure Warning: all settings will be deleted and the parameters will be restored to factory values 2.
  • Page 71: Calling Test

    Guard station IP DES User and installation manual Calling test This function performs call tests between devices configured in the AB 1. Select the address to make the test call If the communication is activated, the test has passed.
  • Page 72 BTicino SpA Viale Borri, 231 21100 Varese www.bticino.com BTicino SpA reserves the right to change at any time the content of this manual, and to communicate the changes made in any form, and in any way, deemed appropriate.
