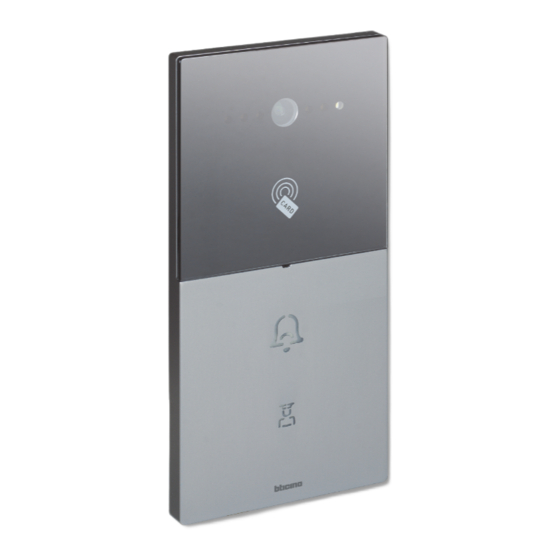

- Page 1 Small Entrance Panel 374004 User and installation manual RA00191AA-01/23-PC www.bticino.com...
- Page 2 Small Entrance Panel User and installation manual...
-
Page 3: Table Of Contents
Small Entrance Panel User and installation manual Contents General information Warnings and recommendations Warnings and consumer rights Fundamental concepts Naming of the devices Community Fire linkage CCTV cameras Front and rear view Dimensional data and installation heights Installation Uninstall Example diagrams Ethernet connection Fiber optic riser connection (case of higher bandwidth demand) Available functions... -
Page 4: General Information
Small Entrance Panel User and installation manual General information Warnings and recommendations It is important to read this manual carefully before proceeding with the installation. The warranty becomes automatically void in case of negligence, improper use, tampering by unauthorised personnel. The Entrance Panel must not be exposed to water drops or splashes;... -
Page 5: Fundamental Concepts
Small Entrance Panel User and installation manual Fundamental concepts Naming of the devices In this manual, for easy reading, the abbreviated device name is used as in the list: – IU: Indoor Unit – EP: Entrance Panel – GS: Guard Station –... -
Page 6: Fire Linkage
Small Entrance Panel User and installation manual Fire linkage It enables the door lock opening function in case of fire. The Fire linkage function allows the automatic opening of SEP door locks in the event of a fire. The use of this function requires a clean contact in the GND FIRE LINKAGE input clamp from the fire fighting system. - Page 7 Small Entrance Panel User and installation manual 9. RJ45 Connector (*) 10. Connection clamp 11. Mounting bracket 12. Locking screw 13. Tamper switch 14. Reset pushbutton (*) This device does not support standard POE power supplies, but only POE power supplies identified with item no.
- Page 8 Small Entrance Panel User and installation manual Sense Open Fire Linkage SENSE LOCK- DC24V LOCK+ OPEN RJ45 Fire Linkage +12V Connection clamps system common ground terminal SENSE / GND door lock status signal input electric door lock connection and control LOCK- / LOCK+ (12V - 4A impulsive on 3 Ohm maximum) OPEN / GND...
-
Page 9: Dimensional Data And Installation Heights
Small Entrance Panel User and installation manual Dimensional data and installation heights 60,6 mm 10 mm 94 mm 20,6 mm 34,6 mm 53 ° 80 ° 50 cm 50 cm (*) Recommended height, unless different regulations are specified. -
Page 10: Installation
Small Entrance Panel User and installation manual Installation Caution: Do not install the device outside in direct sunlight. Only install indoors, for example in stairwells or apartment landings. 375008 Attention: The wrong wiring of the Ethernet cable connecting the device to the Poe Switch 375002 could damage the device itself. - Page 11 Small Entrance Panel User and installation manual...
- Page 12 Small Entrance Panel User and installation manual 57 mm 2 mm...
- Page 13 Small Entrance Panel User and installation manual (*) Adjust the tamper screw so that it presses the tamper switch of the device and activates the anti-theft function in case of removal sending an alarm to the GS.
-
Page 14: Uninstall
Small Entrance Panel User and installation manual Uninstall... -
Page 15: Example Diagrams
Copper cables 2 x Copper cables It is possible to use two different types of connection according to installation situation: A - Diagram with power supply by BTicino PoE Switch B - Diagram with local power supply 374000 100 – 240 Vac... -
Page 16: Ethernet Connection
Small Entrance Panel User and installation manual Ethernet connection CABLES LEGEND LAN PoE Standard LAN PoE BTicino LAN Ethernet Copper cables 2 x Copper cables FLOOR 3 APARTMENT 5 374004 APARTMENT 1 APARTMENT 2 APARTMENT 3 RJ45 373001 RJ45 373001... -
Page 17: Fiber Optic Riser Connection (Case Of Higher Bandwidth Demand)
Small Entrance Panel User and installation manual Fiber optic riser connection (case of higher bandwidth demand) LAN PoE Standard LAN PoE BTicino LAN Ethernet Optical fiber Copper cables 2 x Copper cables CABLES LEGEND FLOOR 3 APARTMENT 5 374004 APARTMENT 1... -
Page 18: Available Functions
Small Entrance Panel User and installation manual Available functions CABLES LEGEND LAN PoE BTicino LAN Ethernet Copper cables 2 x Copper cables Door open Access Door lock Control Fire-fighting Door system Status 374004 RJ45 RJ45 3 4 5 6 375002 -V -V +V +V INPUT: 100 –... -
Page 19: Use Of The Device
Small Entrance Panel User and installation manual Use of the device After installing the SEP it is possible to: – Call an IU – Leave a message in the answering machine – Call a GS Access using badge or card; –... -
Page 20: Introduction
Small Entrance Panel User and installation manual Introduction After the installation and connection of the device, it is necessary to configure it and create the Community structure. For details see Server DES Software manual. Step Community VLAN network creation Step Community structure definition Step Community structure creation... -
Page 21: Functions
Small Entrance Panel User and installation manual Functions Call a IU Using the appropriate key, you can call: – The IU of the same apartment (if in the Community structure the SEP has been entered in the same apartment as the IU). –... -
Page 22: Answering Machine
Small Entrance Panel User and installation manual Answering machine If the IU does not answer within few seconds, it is possible to leave a photo with an audio message. 1. After the waiting time has elapsed, a voice message prompts to leave a message. 2. -
Page 23: Call A Gs
Small Entrance Panel User and installation manual Call a GS Using the appropriate key, it is possible to call the GS set in the software or the configuration web pages (see Other settin/call MC). 1. Touch to transfer the call 2. -
Page 24: Access Using Badge Or Card
Small Entrance Panel User and installation manual Access using badge or card Using this function you can access the building using a badge or a card. To use this function, the badge or card must be saved in the system via SW. 1. -
Page 25: Settings
Small Entrance Panel User and installation manual Settings Using the web pages, it is possible to apply some customisations or settings. 1. Open the browser and enter the http address of the Small Entrance Panel: https://SEP IP address Note: Ask the system manager for the IP address 2. - Page 26 Small Entrance Panel User and installation manual 5. Touch to select the page with the desired configurations Displays information regarding the device and allows to download this Device info manual using the QR code. Allows to send the configuration and restore the factory values of the Factory setting device Login setting...
-
Page 27: Device Info
In this section, it is possible to display information regarding the device and download this manual using the QR code. A Device address Network parameters C Versions of the different device components D Item code 1. Using a smartphone, scan the QR Code Inside the site, search for the 374004 code and download the manual... -
