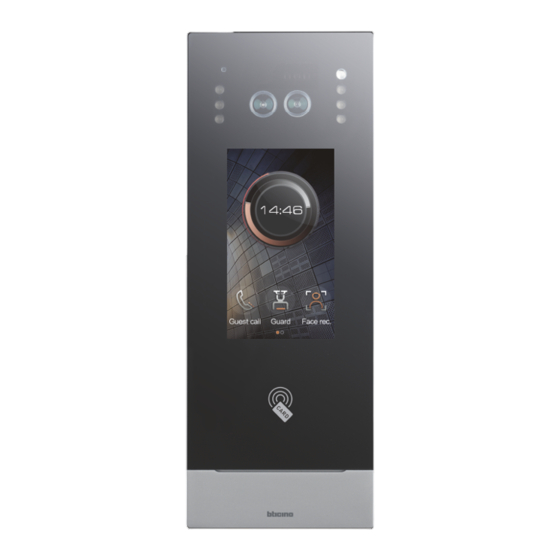

- Page 1 Small Entrance Panel Touch 374005 User and installation manual RA00190AB-01/23-PC www.bticino.com...
- Page 2 Small Entrance Panel Touch User and installation manual...
-
Page 3: Table Of Contents
Small Entrance Panel Touch User and installation manual Contents General information Warnings and recommendations Warnings and consumer rights Fundamental concepts Naming of the devices Community Call addressing procedures Call using the address in the Community Call using the Alias (alphanumeric code) Call using the Phonebook Lift control function Fire linkage... -
Page 4: General Information
Small Entrance Panel Touch User and installation manual General information Warnings and recommendations It is important to read this manual carefully before proceeding with the installation. The warranty becomes automatically void in case of negligence, improper use, tampering by unauthorised personnel. The Entrance Panel must not be exposed to water drops or splashes;... -
Page 5: Fundamental Concepts
Small Entrance Panel Touch User and installation manual Fundamental concepts Naming of the devices In this manual, for easy reading, the abbreviated device name is used as in the list: – IU: Indoor Unit – EP: Entrance Panel – GS: Guard Station –... -
Page 6: Call Addressing Procedures
Small Entrance Panel Touch User and installation manual Call addressing procedures On the basis of data recorded in the system phonebook and the Community structure the calls can be made using various methods: – call using the address in the Community;... -
Page 7: Call Using The Alias (Alphanumeric Code)
The Lift control function allows a command to be sent to the lift control centre to simulate a lift call. The lift action depends on the functions of the lift control unit (BTicino cannot define these functions. They depend on the lift manufacturers). -
Page 8: Front And Rear View
Small Entrance Panel Touch User and installation manual Front and rear view 1. Light sensor 2. LED for the shooting field lighting 3. Camera 4. Display 4.3" (touch screen) 5. Badge reader for door lock opening 6. Loudspeaker 7. Locking screw 8. - Page 9 Small Entrance Panel Touch User and installation manual 9. RJ45 Connector (*) 10. Not used 11. Connection clamp 12. Tamper switch 13. Mounting bracket 14. USB Connector (not used) 15. Reset the "local access code" and the "setting access code” to the factory values 16.
- Page 10 Small Entrance Panel Touch User and installation manual Connection clamps LOCK+ electric door lock connection and control (12V - 4A impulsive on 3 Ohm maximum) LOCK- SENSE door lock status signal input (dry contact) GND – +12V access control devices power supply OPEN third party access control signal input for door lock opening (+12Vdc pulse) system common ground terminal for third party connection...
-
Page 11: Dimensional Data And Installation Heights
Small Entrance Panel Touch User and installation manual Dimensional data and installation heights 64 mm 10 mm 92 mm 53 ° 80 ° 50 cm 50 cm (*) Recommended height, unless different regulations are specified. -
Page 12: Installation
Small Entrance Panel Touch User and installation manual Installation 375009 Attention: The wrong wiring of the Ethernet cable connecting the device to the Poe Switch 375002 could damage the device itself. The RJ45 cable must be at least 200 mm long. - Page 13 Small Entrance Panel Touch User and installation manual...
- Page 14 Small Entrance Panel Touch User and installation manual 60 mm 2 mm...
- Page 15 Small Entrance Panel Touch User and installation manual (*) Adjust the tamper screw so that it presses the tamper switch of the device and activates the anti-theft function in case of removal sending an alarm to the GS.
-
Page 16: Uninstall
Small Entrance Panel Touch User and installation manual Uninstall... -
Page 17: Example Diagrams
Copper cables 2 x Copper cables It is possible to use two different types of connection according to installation situation: A - Diagram with power supply by BTicino PoE Switch B - Diagram with local power supply 374000 100 – 240 Vac... -
Page 18: Ethernet Connection
Small Entrance Panel Touch User and installation manual Ethernet connection CABLES LEGEND LAN PoE Standard LAN PoE BTicino LAN Ethernet Copper cables 2 x Copper cables FLOOR 3 APARTMENT 5 374004 APARTMENT 1 APARTMENT 2 APARTMENT 3 RJ45 373001 RJ45... -
Page 19: Fiber Optic Riser Connection (Case Of Higher Bandwidth Demand)
Small Entrance Panel Touch User and installation manual Fiber optic riser connection (case of higher bandwidth demand) LAN PoE Standard LAN PoE BTicino LAN Ethernet Optical fiber Copper cables 2 x Copper cables CABLES LEGEND FLOOR 3 APARTMENT 5 374004... -
Page 20: Available Functions
Small Entrance Panel Touch User and installation manual Available functions CABLES LEGEND LAN PoE BTicino LAN Ethernet Copper cables 2 x Copper cables Access Door open Control Door Status Fire-fighting system Door lock 374005 RJ45 RJ45 3 4 5 6... -
Page 21: Lift Control 1 - Lift Control, 1 Riser, 1 Entrance Panel
Small Entrance Panel Touch User and installation manual Lift control 1 - Lift control, 1 riser, 1 entrance panel CABLES LEGEND LAN PoE BTicino LAN Ethernet Copper cables 2 x Copper cables 373001 373001 373001 373001 FLOOR 3 373002 373002... -
Page 22: Lift Control 2 - Lift Control, Multi Riser, 1 Entrance Panel
Small Entrance Panel Touch User and installation manual Lift control 2 - Lift control, multi riser, 1 entrance panel CABLES LEGEND LAN PoE BTicino LAN Ethernet Copper cables 2 x Copper cables RISER 1 RISER 2 FLOOR 3 FLOOR 3... -
Page 23: Lift Control 3 - Lift Control, 1 Riser, Multi Entrance Panel
Small Entrance Panel Touch User and installation manual Lift control 3 - Lift control, 1 riser, multi entrance panel CABLES LEGEND LAN PoE BTicino LAN Ethernet Copper cables 2 x Copper cables FLOOR 3 373001 373001 373001 373001 373002 373002... -
Page 24: Use Of The Device
Small Entrance Panel Touch User and installation manual Use of the device After installing the EP it is possible to: – Call a IU – Call a GS – Access using Access Code; – Access using badge or card; – Access using Face recognition;... -
Page 25: Introduction
Small Entrance Panel Touch User and installation manual Introduction After the installation and connection of the device, it is necessary to configure it and create the Community structure. For details see Server DES Software manual. Step Community VLAN network creation Step Community structure definition Step... -
Page 26: Home Page
Small Entrance Panel Touch User and installation manual Home page This page may show different content according to the configuration and systems connected to the device. The Home Page, with all the functions enabled, is shown below. A Current time Function keys Call a IU Call a GS... -
Page 27: Functions
Small Entrance Panel Touch User and installation manual Functions Call a IU It is possible to call an IU in different ways: call using the address in the Community; – call using the Alias (alphanumeric code); – call using the Phonebook. - Page 28 Small Entrance Panel Touch User and installation manual Call using the address in the Call using the Alias Community (alphanumeric code) A Delete typing Change the type of keypad (numbers/letters) C Send a call 2. Enter the address in the IU Community, 2.
- Page 29 Small Entrance Panel Touch User and installation manual Call using the Phonebook JJHONSMITH JHONSMITH JHONBLACK JIMMYWHITE JJADONTHOMPSON JJESSEWRIGHT JJACKWHITE JJALENTAYLOR 2. Enter the Alias saved in the AB (e.g. JOHNSMITH) directly. In this mode autocompletion is active 3. Touch the suggested contact to send the call 4.
- Page 30 Small Entrance Panel Touch User and installation manual A Call duration Address in the IU Community* *Note: the caller display depends on how the community has been configured using the software. For Fundamental concepts details see 6. Touch to end the call...
- Page 31 Small Entrance Panel Touch User and installation manual When the IU does not answer a message can be recorded (see Answering machine) A message indicates that the call is ended...
-
Page 32: Answering Machine
Small Entrance Panel Touch User and installation manual Answering machine If the IU does not answer within 30 seconds, it is possible to leave a photo with a voicemail. 1. Touch to record a photo message 2. You have 30 seconds to leave a message. The IU will receive your image and the voice messages 3. -
Page 33: Messages And Advertising
Small Entrance Panel Touch User and installation manual Messages and advertising When messages are sent to the community via SW, the device displays them when the screen saver is activated. Community message messages coming from the Facility manager about the Community Emergency notification emergency messages, coming from the Facility manager Messages displayed as screen saver... -
Page 34: Call A Gs
Small Entrance Panel Touch User and installation manual Call a GS This function allows to call the reference GS set in the Settings/Guard station section 1. Touch to select the function A GS address* *Note: the caller display depends on how the community has been configured using the software. For details see Fundamental concepts 2. -
Page 35: Accesses
Small Entrance Panel Touch User and installation manual Accesses It is possible to access the building in different ways: Access by entering a local code, an apartment personal code* or Access code a panic code Key card Access using a badge or card configured with SW Access by face recognition. - Page 36 Small Entrance Panel Touch User and installation manual 3. Enter the local access code (ask the plant manager for your code, available in the device parameters section of the SW) or the personal access code or panic code. 4. Touch to confirm Beeps and visual warnings will confirm that the code has been recognised and the door lock will open.
-
Page 37: Access Using Badge Or Card
Small Entrance Panel Touch User and installation manual Access using badge or card Using this function you can access the building using a badge or a card. To use this function, the badge or card must be saved in the system via SW. 1. -
Page 38: Access Using Face Recognition
Small Entrance Panel Touch User and installation manual Access using Face recognition Using this function, the EP camera will recognise your face and you can enter the building automatically without entering a code. To use this function, your face must be saved in the system via SW. If the proximity sensor is active the function will activate automatically, otherwise:... -
Page 39: Configurations Using The Device (Settings)
Small Entrance Panel Touch User and installation manual Configurations using the device (Settings) In this section, it is possible to perform a wide range of configurations that will enable you to make the most of your EP. Access to this section is protected by an installer password which can be set by the software 1. - Page 40 Small Entrance Panel Touch User and installation manual 5. Scroll to display all the functions 6. Touch the icon for the desired configuration, choosing among: It displays various device parameters and performs the reset Address command Setting It enables different functions It sets the menu access installer password Access code Settings and local access Code to open the gate...
-
Page 41: Address
Small Entrance Panel Touch User and installation manual Address In this section, it is possible to display the different device parameters. It is also possible to restore the factory settings of the device. 1. Touch to reset the device 2. Touch to confirm Warning: after confirmation, all customisations will be deleted and the parameters will be restored to factory values... -
Page 42: Setting
Small Entrance Panel Touch User and installation manual Setting In this section it is possible to enable different types of functions. 1. Touch to enable the function 2. Touch to save the setting It enables the Fire-fighting function Fire linkage Lift control enable It enables the Lift control Screen saver enable... -
Page 43: Access Code
Small Entrance Panel Touch User and installation manual Access code In this section it is possible to set the installer password to access the Settings menu and the access Code to enter the building Settings 1. Enter the old installer password 2. -
Page 44: Guard Station
Small Entrance Panel Touch User and installation manual Guard station In this section it is possible to set the EP reference GS. The reference GS intercepts and manages the calls to the IU or anyone called directly by pressing the pushbutton on the Home page (see the Call a GS section) -
Page 45: Door Lock
Small Entrance Panel Touch User and installation manual Door lock In this section it is possible to set different parameters of the EP door lock A It restores the factory settings 1. Door Status The Door Status function allows to receive door status notifications, and therefore a warning when the door is left open. -
Page 46: Display & Volume
Small Entrance Panel Touch User and installation manual Display & Volume In this section it is possible to set some display parameters and adjust the ringtone volume A It adjusts the brightness (backlighting) It adjusts the ringtone volume C It adjusts the call volume D It adjusts the tone volume when a key is pressed It adjusts the screen saver activation time It adjusts the activation time of the display switch off... -
Page 47: Lift Control
Small Entrance Panel Touch User and installation manual Lift Control Lift Control system In this section it is possible to set some parameters 1. Select the floor where the EP is located 2. Enter the IP address of the Master EP It is possible to display some wiring diagram examples in the lift control section... -
Page 48: Ringtone
Small Entrance Panel Touch User and installation manual Ringtone In this section it is possible to listen to the tones associated to the different types of ringtones or other. A Alarm tone Call in progress tone (ringback) C Confirmation key tone D Ringtone not used (future use) 1. -
Page 49: Face Settings
Small Entrance Panel Touch User and installation manual Face settings In this section it is possible to set some Face Recognition parameters A Camera operating modes: 2D - in this mode, the depth of the image is not checked, and so showing a photograph opens the EP lock 3D - in this mode, the depth of the image is checked, so recognition is only confirmed if someone is in front of the EP (DEFAULT) - Page 50 Small Entrance Panel Touch User and installation manual Enter the distance from the proximity to activate the recognition function Enter the time from when the Home Page appears to when the Face recognition function starts During the face recognition, any other operation is inhibited, even the call. This time is important if the Face recognition is unsuccessful.
-
Page 51: Background
Small Entrance Panel Touch User and installation manual Background In this section it is possible to set the interface background 1. Select the background 2. Touch to save the setting Note: it is possible to select other backgrounds or create new ones using the SW... -
Page 52: Information
Small Entrance Panel Touch User and installation manual Information In this section it is possible to display different information on the device A Device address Item code C Versions of the different device components... -
Page 53: Language
Small Entrance Panel Touch User and installation manual Language In this section it is possible to set the interface language 1. Touch to open the language selection panel 2. Select the language 3. Touch to save the setting... -
Page 54: User Guide
Small Entrance Panel Touch User and installation manual User guide In this section it is possible to download this manual using the QR code 1. Using a smartphone, scan the QR Code 2. Search for the 374000 374001 code 3. Download the manual... - Page 55 Small Entrance Panel Touch User and installation manual...
- Page 56 BTicino SpA Viale Borri, 231 21100 Varese www.bticino.com BTicino SpA reserves the right to change at any time the content of this manual, and to communicate the changes made in any form, and in any way, deemed appropriate.
