Related Manuals for Hotpoint C HD C92 WWGD UK
Summary of Contents for Hotpoint C HD C92 WWGD UK

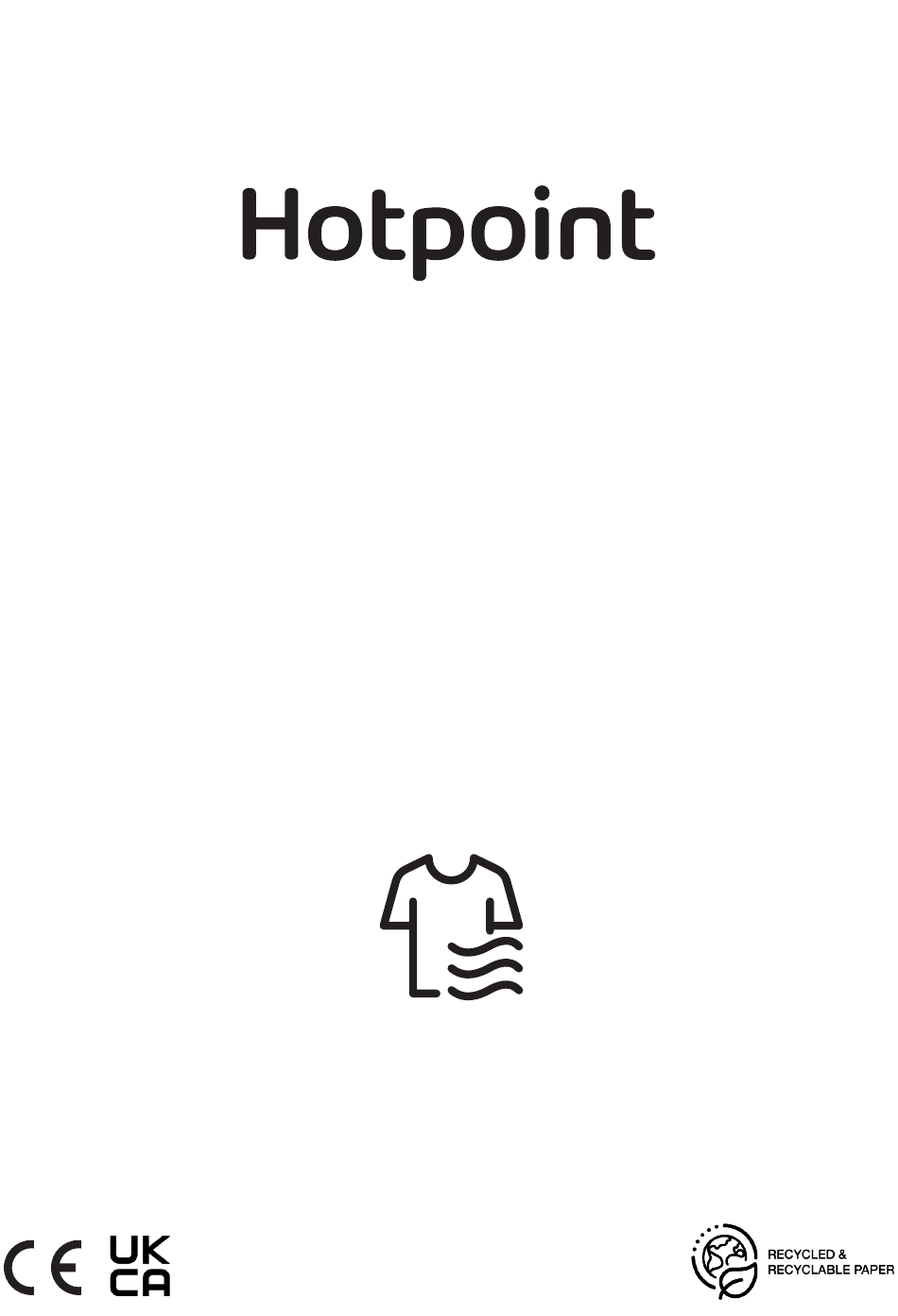

- Page 1 Dryer User Manual C HD C92 WWGD UK C HD C92 GGGD UK C HD C92 BBGD UK 2960314191_EN/120824.1422...
- Page 2 Please read these instructions first before using your appliance WARNING! Thank you for choosing an HOTPOINT appliance. • Warning for hazardous situations with regard Please take some time to read this user manual to life and property. before using your appliance, to ensure you...
- Page 3 This symbol reminds you to Items that have been soiled read this instruction manual. with substances such as cooking oil, Before using the appliance, read acetone, alcohol, petrol, kerosene, these safety instructions. Keep them spot removers, turpentine, waxes nearby for future reference. These and wax removers and items instructions and the appliance itself such as foam rubber (latex foam),...
-
Page 4: Installation
This appliance is not for Installation, including water professional use. Do not use the supply (if any), electrical connections appliance outdoors. and repairs must be carried out by a qualifi ed technician. Do not repair or replace any part of the appliance Do not store explosive or fl unless specifi cally stated in the user ammable substances (e.g. - Page 5 The stacking is only possible if the dryer is attached to the If the dryer is installed near to washing machine by means of the a gas or coal stove, provide a heat appropriate stacking kit available insulating plate (85 cm x 57 cm) through our After-Sales Service or in between, as the side facing the your specialist dealer.
-
Page 6: Cleaning And Maintenance
CLEANING AND MAINTENANCE DISPOSAL OF HOUSEHOLD APPLIANCES This appliance is manufactured with WARNING: Ensure that the recyclable or reusable materials. appliance is switched off and Dispose of it in accordance with disconnected from the power supply local waste disposal regulations. For before performing any maintenance further information on the treatment, operation. -
Page 7: Technical Specifications
Width 59,7 cm product information can be foundy by: Depth 60,1 cm Visiting our vebsite Capacity (max.) 9 kg** doscs.hotpoint.eu and parts-selfservice. Net weight (± %10) 34,5 kg europeanappliances. Voltage xxxxxxxxxxxx Using QR Code Rated power input See type label***... -
Page 8: Your Dryer
2 Your Dryer 2.2 Package Contents 2.1 Overview 1. Water 6. Water drain Filling hose * Container* 2. Filter drawer 7. Pure spare Water* sponge* 3. User Fragrance Manual Capsules Group* 1. Top panel 4. Drying 2. Control panel 9. Brush* basket* 3. -
Page 9: Appropriate Installation Location
3 Installation • The rear surface of the tumble dryer shall be placed against a wall. • This dryer is not able to be wall-mounted Before the calling the nearest Authorized as it would be too too heavy for the walls Service for the installation of the dryer, ensure that electrical installation and water drain is DANGER! - Page 10 3.3 Connecting to the drain 3.5 Transportation of the dryer Drain all water that has remained in the dryer. You can directly drain accumulated water If direct water drain connection is made, then through the water drain hose supplied with remove the hose connections.
-
Page 11: Laundry Not Suitable For Drying In The Dryer
4 Preparation • For models with a condenser unit: clean the condenser once in a month or after every 30 operations regularly. . 4.1 Laundry suitable for drying in the • Clean the filter periodically.Read the dryer Maintenance and cleaning of filters for Always obey the instructions given on the detalied information. -
Page 12: Operating The Product
5 Operating the product 5.1 Control Panel On/Off / Program selection button End Time button Start / Stand-by button Drying Level Button Buzzer volume / Time programs selection 5.2 Symbols button Filter Filter Start / Pause Tank Child-proof On/O Mute drawer / cleaning full... -
Page 13: Program Selection And Consumption Chart
5.4 Program selection and consumption chart Programmes Programme Description You may dry your cotton laundry to be ironed in Cotton Iron Dry this program to have them slightly damp for ease 1000 of ironing. (Shirt, T-shirt, tablecloth, etc.) It dries single layer, casual cotton textiles in the Cotton Eco 1000 most economical way. - Page 14 You can dry both cotton and synthetic laundry Mixed with this programme.Sports and fitness clothes 1000 may be dried with this program. It is a long-term program that you can use for the clothes (baby clothes, towels, underwear, etc. cotton) you require hygeine. Hygiene is provided Hygiene with high temperature.
-
Page 15: Warning Indicators
5.5 Auxiliary functions Changing the end time If you want to change the duration during the Buzzer / time countdown: Drying machine makes an audible warning Cancel the program by turning the On/Off/ when the program is completed. If you don’t Program selection knob. - Page 16 Adding and removing clothes during Press the Ending In and Buzzer buttons simultaneously for 3 seconds to activate the stand-by child lock. If you want to add or remove clothes to/from The child lock has to be deactivated to be the drying machine after the drying program able to start a new program after the current starts:...
-
Page 17: Cancelling The Program
5.10 Cancelling the program If you want to cancel the program and NOTE terminate the drying operation for any reason after the drying machine starts running, turn • The time shown in the display will change the On/Off/Cancel knob, the program will be depending on the type of laundry, the spin cancelled. -
Page 18: Maintenance And Cleaning
• Clean the entire inner surface of the 6 Maintenance and cleaning loading door and loading door gasket with a soft damp cloth. Service life of the product extends and frequently faced problems decrease if cleaned at regular intervals. 6.1 Lint Filter / Loading Door Inner Surface Lint and fiber released from the laundry to the air during the drying cycle are collected in the... -
Page 19: Draining The Water Tank
6.3 Draining the water tank 6.4 For the condenser; Dampness of the laundry is removed and condensed during drying process and the NOTE water that arise accumulates in the water tank. Drain the water tank after each drying cycle. • Clean the condenser after every 30 drying cycles or once a month. -
Page 20: Troubleshooting
7 Troubleshooting Filter cleaning warning symbol/LED is on/flashing. Fibre filter might not be cleaned. >>> Clean the filter. The filter slot might be clogged with lints. >>> Clean the filter slot. Drying operation takes too long. A layer of fluff might have accumulated clogging up the lint filter Fibre filter pores might be clogged. -
Page 21: Electrical Connection
8 Electrical Connection WARNING! Make sure that you have an earthed power Do not operate without the top cover fitted. outlet socket rated at 13 amps (minimum). Risk of injury. 8.1 Attention! When installed, the socket must be reachable after installation, or a separate switch (which IMPORTANT! can disconnect the two poles) must be used in the installation. - Page 22 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 HOTPOINT Supplier name or trademark CHDC92WWGDUK / 7182483700 Model name CHDC92GGGDUK / 7182483730 CHDC92BBGDUK / 7182483720 Rated capacity (kg) Air Vented Type of Tumble Dryer Condenser Energy efficiency class 616,6 Annual Energy Consumption (kWh)
Need help?
Do you have a question about the C HD C92 WWGD UK and is the answer not in the manual?
Questions and answers
how to reset hotpoint condencing tumble dryer that has no pin hole
The manual does not provide specific instructions on resetting the Hotpoint C HD C92 WWGD UK condensing tumble dryer without a pinhole. However, you can try the following general reset steps:
1. Turn Off the Dryer – Switch off the dryer using the control panel and unplug it from the power source.
2. Wait for a Few Minutes – Leave the dryer unplugged for at least 5-10 minutes to allow any residual power to discharge.
3. Plug It Back In – Reconnect the power supply and switch the dryer back on.
4. Check for Errors – If the dryer has an error code, consult the manual for troubleshooting steps.
5. Try Running a Program – Select a drying program and press the Start/Pause button to see if the issue is resolved.
If the problem persists, consider contacting Hotpoint customer support for further assistance.
This answer is automatically generated
