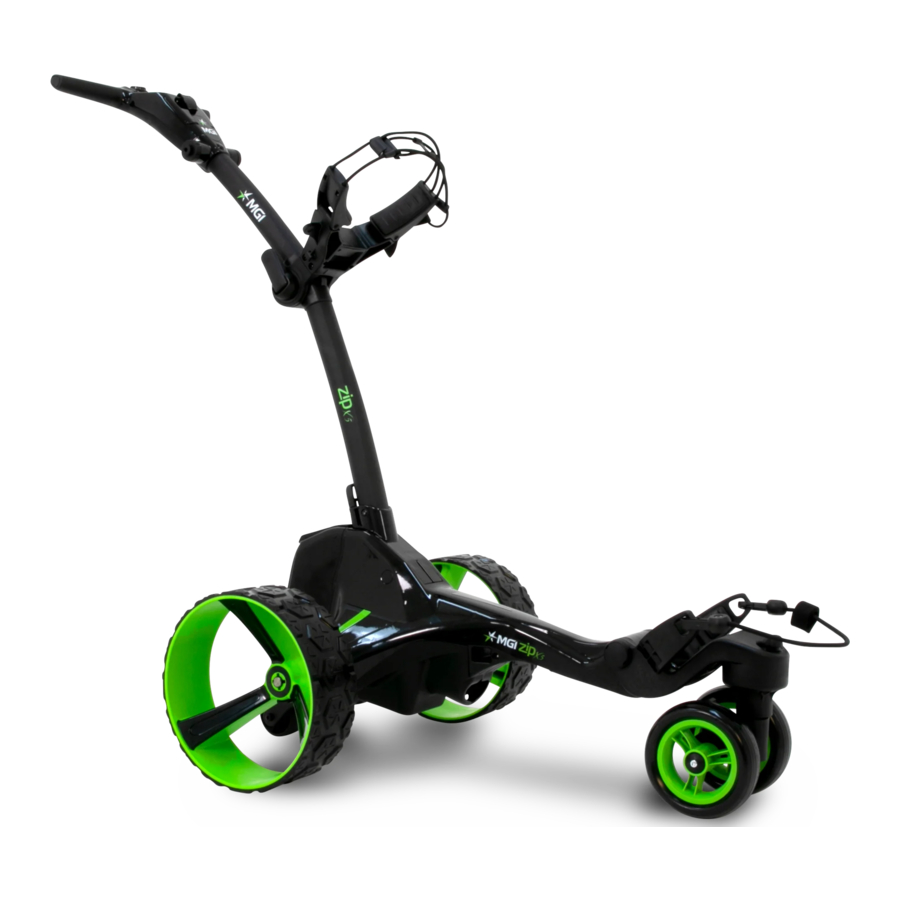

MGI Zip X5, Zip Series Manual

Registration

It is most important you register your MGI Zip X5 online immediately as registration:

• Records your Zip X5 for warranty purposes
• Speeds up any servicing required on your Zip X5
• Assist us to contact you with any updates to your Zip X5

To register your Zip X5, visit mgigolf.com
You will need to record your MGI serial number. This is found on the Zip X5 battery base or in the top box compartment. Please keep this user manual on file for your own reference and a copy of your serial number;
You may be required to show proof of purchase so we recommend you keep your receipt with this manual.

What's Included

• MGI Zip X5
• 24v Lithium Battery
• Battery Charger
• GPS Holder
• MGI Pouch with:
  • User Manual
  • Accessory Guide

Assembling Your Zip X5

Attaching the Rear Wheels

On the wheel, press the grey release button on the wheel hub. Place the wheel onto the axle. You will notice you need to match up the inner female groove on the axle and the male of the wheel. When placed in position simply release the button.

You will notice you hear a "click" when the wheel is properly secured. To check that the wheel is properly in position pull on the wheel. If it is properly in position it will not slide off. Repeat for the other wheel.

Rear Wheels Positions

The MGI Zip X5 is designed to allow the rear wheels to be in two positions. The position is determined by where the wheel is locked on the axle in either of the two grooves [see picture]. The drive position is used during the normal operation of the Zip X5. The free wheel position is used to freely push the Zip X5 should you experience battery or Zip X5 issues on the course.

1. Drive position – Lock the wheel onto the groove closest to the battery base. To do this, press the grey release button on the wheel hub, push the wheel on to the axle as far as possible. To test for drive position try rolling the wheel backwards. If you feel resistance then the wheel is now in drive position and ready to use. Repeat for both wheels.
2. Free wheel – Lock the wheel into the groove closest to the end of the axle. To do this, press the grey release button on the wheel hub, push the wheel on to the axle and release the release button onto the groove. To test for free wheel position try rolling the wheel backwards. The wheel should spin freely with no resistance. Repeat for both wheels.

Unfolding

Please see below the steps to unfold a Zip X5 Handle.

Step 1: Ensure both rear wheels are attached.

Step 2: Release Fold Lever.

Step 3: Move Top Bag Support away from front wheel assembly until you hear it click.

Step 4: The handle is now free to pull upwards. The handle will naturally unfold as you continue to pull until the handle is completely open.

Step 5: Ensure that the latch at the bottom of the handle clicks into place.

Step 6: Close the fold lever to lock the handle into place in one of three positions.

Step 7: Push the top bag support down to move it into position.

Folding

Step 1: Disconnect the battery by lifting the battery handle. It can be left on or removed from the Zip X5.

Step 2: Open the fold lever to release the handle.

Step 3: Pull up the latch at the bottom of the handle.

Step 4: Lower the handle down flat.

Step 5: Push the toggle down on the top bag support and then move the Top Bag Support down so that it locks over the front wheel assembly.

Step 6: Close the fold lever to lock the handle into place.

Fourth Foldable Rear Wheel

The MGI Zip X5 comes standard with a fourth foldable rear wheel. This wheel MUST be unfolded into position at all times when the Zip X5 is in use. This will reduce damaging the Zip X5, and provide the ultimate in stability across all terrains. This fourth wheel should be cleaned regularly with a cloth to ensure it can be folded as required for storage.

GPS Holder and Top Handle Compartment

In the top handle compartment there is a position for a GPS/mobile device holder. Open the compartment and connect the holder into position. To open the holder always press the button at the top of the holder. Place the GPS into the cradle, then close the holder by squeezing the two sides closer together.

Inverting Rear wheels

The rear wheels can be inverted on the axle to reduce the size of the Zip X5 when folded. To invert the rear wheels, press the grey release button on the wheels hub and remove from the axle. Invert the rear wheels so that the wheels hub protrudes away from the axles. Press the grey release button on the wheels hub and release once the wheel is fitted onto the axle.

Battery Charging & Connection

The Zip X5 is designed to take either Zip battery:

• MGI 24v 250Wh Lithium battery [Standard]
• MGI 24v 380Wh Lithium battery [Optional]

Initial Charge

• Before using your MGI Zip X5 for the first time you must fully charge the battery overnight.
• Plug the charger AC lead into a power point - the Green LED illuminates to indicate the charger is power on.
• Plug the charger output connection into the connector on the front of the battery - the Red LED illuminates to indicate charging.
• When the charging LED indicator has turned green, the battery is fully charged and ready to be used.

  Please refer to the battery charger user manual for further information.

Connecting the Battery onto the Zip X5

Position the battery on the Zip X5 and push the battery down to secure it.

Push the handle down to connect the battery to the Zip X5.

Your Zip X5 has been equipped with fail safe battery connection, so the Zip X5 will not move when you connect the battery. Your Zip X5 will only start once the speed control is switched on.

Charging the Battery after Use

• Disconnect the battery by lifting the handle.
• The battery can be left on or removed from the Zip X5 for charging.
• Plug the charger AC lead into a power point - the Green LED illuminates to indicate the charger is power on.
• Plug the charger output connection into the connector on the front of the battery - the Red LED illuminates to indicate charging.
• When the charging LED indicator has turned green, the battery is fully charged and ready to be used.

Fitting the Golf Bag

Ensure that the top bag support straps are disconnected. Position the golf bag on the Zip X5.

Secure the top bag support strap

• Select a good position for the elasticised straps to be put around the golf bag
• Stretch the longer end of the strap and loop the rounded plastic bar underneath the hook on the shorter end
• The top bag support straps should now be connected.

  Please ensure the top bag support straps are hooked in place securely before releasing. Failure to do so could result in injury to the user.

Adjusting the length of the top bag support strap

The rounded plastic bar on the longer strap can be adjusted to ensure the bag is secured properly in place.
Secure the lower bag strap
Pull the lower bag strap over the base of the golf bag

Front Wheel

Unlocking & Locking the Front Wheel
The front swivel wheel can be set in two positions.

1. Unlocked position to allow for 360˚ swivel for optimum turning ability.
   Move the knob, on top of the front wheel assembly, to the left hand side.

2. Locked position is best when using the Controlled Distance function.
   Move the knob, on top of the front wheel assembly, to the right hand side.


Operating the Digital Top Box

Top Box Display

1. Distance Mode Button
2. Unit Setting Button
3. ON / OFF Speed Control Button
4. Speed Setting Indicator
5. Battery Level Indicator
6. Distance Mode
7. Distance
8. Unit Measurement

Start / Stop the Zip X5

Zip X5 Speed Control
Please note the following points regarding the Zip X5 Speed Control.

1. To select the desired speed, rotate the speed control button. Turning the speed control button clockwise will increase the speed, whilst anti-clockwise will decrease speed.
2. The speed setting chosen is displayed in the centre of the coloured screen.
   Please note you will feel notches as you rotate the speed control. The notches do not indicate a change in speed. The speed will only increase or decrease as the number changes in the display.
3. To start the Zip X5 at this desired speed, tap the top of the speed control button.
4. Another tap will stop the Zip X5.
5. The desired speed can be altered up or down while the Zip X5 is moving.

Turn the Zip X5 Off

Zip X5 Battery

Please note the following points regarding the Zip X5 Battery.

Connecting the Battery onto the Zip X5

1. Position the battery on the Zip X5 and push the battery down to secure it. Push the battery handle down to connect the battery to the Zip X5.
2. To turn the Zip X5 Top Box Display off: Hold down the Start/Stop Speed Control Button and Left Hand Distance Mode Button for four seconds and the display will turn off thereby disabling the Top Box.
   Please note that the battery will still be connected to the Zip X5 and will continue to drain whilst connected.
3. Please note that the Zip X5 display will also turn off if the Speed Control is not operated for 30 minutes.
   Once again, please note that the battery will still be connected to the Zip X5 and will continue to drain whilst connected.
4. To reactivate the Top Box Display, whilst the battery is connected, hold down the Start/Stop Speed Control Button and Left Hand Distance Mode Button for four seconds and the display will turn on thereby enabling the Top Box.
5. To fully shut down the Zip X5 and prevent the battery from discharging, disconnect the battery by lifting its handle. The battery can be left on or removed from the Zip X5.

Battery Level Indicator

Battery indication is located on the left side of the top box screen. Four coloured bars are highlighted showing full charge. The lesser number of bars displayed, means there is less battery life available. You should always check the battery status before you play golf to ensure the four bars are there.

Unit Measurements

You can move from meters / kilometres to yards / miles simply by pressing the Unit Setting Button [on the right].

Distance Modes

There are three distance measurement modes. To move between the modes by pressing the Distance Mode Button [DM] [on the left].

Distance A and B: resettable distance measurements could be used to measure how far you hit your shot and to measure how far you have walked for the day. To reset, simply press the DM Button [left side] for 3 seconds until the reading displays "0".

Distance Total: cannot be reset as it is the Odometer for the life of the Zip X5. This feature will assist with service reminders which are recommended at each 500kms (310 miles) or 6 months periods.

Electronic Park Brake

The MGI Zip X5 has an Electronic Park Brake [EPB] which when activated, stops the Zip X5 from creeping forward on a hilly terrain.

To activate the Park Brake press and hold the right hand button for three seconds. The digital screen will display the word STOP.

Or once the Zip X5 has stopped, rotate the speed dial to speed setting one to activate the park brake. The digital screen will display the word STOP.

To release the Electronic Park Brake simply tap the speed control button and the Zip X5 will resume movement.

Control Distance Function

The Control Distance Function enables the MGI Zip X5 to be sent a preset distance before the Zip X5 auto stops. To use this function:

It is recommended that you lock the front wheel to ensure the Zip X5 tracks in a straight line.

Press and hold down Speed control button for 3-4 seconds until the speed setting changes to 5 [meters or yards] and "ADC MODE" will appear.

Turn the Speed control button clockwise to increase the distance or anti-clockwise to decrease the distance until the desired distance is achieved between 5-60 [meters or yards].

Always look ahead and assess the condition of the terrain of where you want to send the Zip X5 prior to doing so.

Once the desired distance is reached, press the Speed control button once to send the Zip X5 off to the desired distance.

Downhill Speed Control

The downhill speed control feature is activated automatically as the Zip X5 enters a downhill incline. This feature is due to the differential gearbox.

Tips on understanding the Downhill Speed Control

• It is best to turn the speed down to a low speed before entering the downhill terrain.
• The Zip X5 may gain some speed downhill but will not increase beyond control.

Competition Mode

In the unlikely event the club you are playing at does not allow the use of distance devices you will need to disable the distances feature on the MGI Zip X5.

To disable the distance recording feature, simply hold down the left and right buttons at the same time for 3 seconds and "COMP MODE" will appear on the screen.

In addition, the distance recording will be removed from the screen.

To exit COMP MODE hold down the left and right buttons at the same time.

Adjusting and Aligning the Front Wheel

Each Zip X5 is checked for straight tracking prior to leaving the factory. In the unlikely event the Zip X5 is not tracking straight, the front wheel can be adjusted to regain straight tracking as follows;

1. Lock the swivelling front wheel [6.0] and run the Zip X5 forward to see if the Zip X5 veers left or right.
2. Unlock the swivelling front wheel, swivel it to see the locking latch in the middle of the two front wheels, as below Picture on Left
3. Unlock the latch by pulling down
4. Adjust the direction by turning the thumb screws in the right hand Picture. Alternate between cogs when adjusting - suggest a quarter of a turn at a time
   • To make the Zip X5 go Right - L/H screw anticlockwise, R/H screw clockwise – [Up on both sides]
   • To make the Zip X5 go Left - L/H screw clockwise, R/H screw anticlockwise – [Down on both sides]
5. Lock the latch by pushing it up.

   Please note that there is a process in adjusting the tracking. It is suggested that the users should do a little bit of adjustment, test the tracking and then adjust again until the Zip X5 goes straight.

Preventative Maintenance Program

To properly provide for the continued operation of your MGI Zip X5, MGI has introduced its Preventative Maintenance Program [PMP]. The PMP consists of work to be carried out by both the owner and authorised service centres. To properly maintain the warranty of your MGI Zip X5, it is essential that this work is carried out. If the work carried out by the authorised service centre is to replace parts that are part of the maintenance schedule, the owner will be charged for the parts and labour. If the work to be carried out is part of warranty, MGI will bear the cost.

Cleaning Your Zip X5

[See Maintenance Schedule]

• For years of good operation, your Zip X5 requires care and attention.
• Keep your Zip X5 clean by using a cloth with warm water and a mild detergent.
• Do not hose down your Zip X5 under any circumstance, as the Zip X5 has electronic components.
• Ensure that the seat stem bracket is free from sand.
• Do not submerge your Zip X5 in water as it will cause irreparable damage.
• Clean the Zip X5 battery base when the battery is removed from the Zip X5.

Rear Wheel Axles Maintenance

[See Maintenance Schedule]

The rear wheel stub axles need to be lubricated regularly. Remove the rear wheels by depressing the spring clip and at the same time pull off the wheel. Apply Petroleum Jelly or light grease to the stub axles. Use a very small amount as the grease can attract sand. If you play in sandy conditions you should clean the axle and regrease fortnightly.

Upper and Lower Bag Strap Maintenance

[See Maintenance Schedule]

The bag straps should be replaced as per the Service Schedule. The upper bag strap can be replaced by:

• Removing the left and right hand straps form the upper bag support
• Undo and remove the screws holding the strap in position on the bag support
• Remove and replace both bag straps
• Insert bag strap securing screws.

MGI Service Schedule

It is the owner's responsibility to ensure that all periodical checks, necessary adjustments and services are carried out. If in doubt please contact the MGI service centre. (See "Customer Support" section).

Any work performed on your buggy should be recorded on your service record regardless of the work.

BO = Zip X5 owner can carry out this work
SC = Charged work to be carried by approved service centre
BO/SC = The six monthly service can be completed by either an authorised service centre or the owner of the Zip X5.

Service Record

6 month inspection	Date: Invoice #:	Serviced by: Signature:
1 year inspection	Date: Invoice #:	Serviced by: Signature:
1 ½ year inspection	Date: Invoice #:	Serviced by: Signature:
2 year inspection	Date: Invoice #:	Serviced by: Signature:
2 ½ year inspection	Date: Invoice #:	Serviced by: Signature:
3 year inspection	Date: Invoice #:	Serviced by: Signature:
3 ½ year inspection	Date: Invoice #:	Serviced by: Signature:
4 year inspection	Date: Invoice #:	Serviced by: Signature:
4 ½ year inspection	Date: Invoice #:	Serviced by: Signature:
5 year inspection	Date: Invoice #:	Serviced by: Signature:
5 ½ year inspection	Date: Invoice #:	Serviced by: Signature:
6 year inspection	Date: Invoice #:	Serviced by: Signature:

Service and Repair Centres

For all servicing, please do not go back to your place of purchase.
To find your nearest Service centre visit www.mgigolf.com

For warranty repairs to be authorised you MUST provide proof of purchase. Please keep this with you as well as your Serial number you can record in this manual. It is most important you register your MGI Zip X5 online for warranty purposes.

Purchasing Parts and Accessories

You are welcome to service your Zip X5 out of warranty, by purchasing parts direct from MGI. Please call or email to discuss the right parts and instructions.

Customer Support

For Customer Support, please contact MGI directly for immediate and professional advice.
mgigolf.com

MGI USA
Service Email: serviceusa@mgigolf.com
Live Chat: visit mgigolf.com
Telephone: 1800 617 2990

MGI GLOBAL
Sales Email: globalsales@mgigolf.com
Service Email: customerservice@mgigolf.com
Live Chat: visit mgigolf.com

Contacting Local Agent
Please refer to mgigolf.com to find the distributor in your country.

To get the most out of your Zip X5 please follow these quick steps before use.

• Register your Zip X5 online
• Assembling the Zip X5
• Charge the battery

FAQ

Q: My Zip X5 is not tracking straight.
A: You can do a simple realignment on the two front wheels. See Adjusting and aligning the front wheels section.

Q: I would like to have my MGI Zip X5 serviced. Who do I call?
A: MGI AUSTRALIA Visit mgigolf.com to find your nearest service centre using your postcode within Australian and New Zealand. You can also call MGI Head office using any of the contact details. See Customer Support Section for details.
Internationals please call your local agent.

Documents / Resources

References

• Electric Golf Buggy, Electric Golf Carts & Trolley For Sale
• Electric Golf Buggy, Electric Golf Carts & Trolley For Sale

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download MGI Zip X5, Zip Series Manual
