- Page 1 User Manual VERSION 4.2...

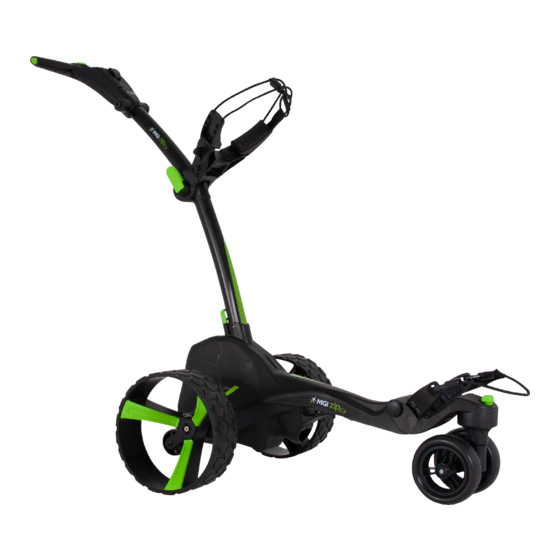

- Page 2 Thank you for purchasing the Game Changing MGI Zip X5. To get the most out of your Zip X5 please follow these quick steps before use. • Register your Zip X5 online [section 1.0] • Assembling the Zip X5 [section 3.0] •...
-
Page 3: Table Of Contents
10.2 Rear Wheel Axles Maintenance 10.3 Upper and Lower Bag Strap 10.4 MGI Service Schedule 10.5 Service Record 11.0 Service and Repair Centres 12.0 Purchasing Parts and Accessories 13.0 Contacting MGI 14.0 Contacting Local Agent 15.0 Frequently Asked Questions MGI Zip X5 User Manual... -
Page 4: Registration
• Assist us to contact you with any updates to your Zip X5 To register your Zip X5, visit mgigolf.com You will need to record your MGI serial number. This is found on the Zip X5 battery base or in the top box compartment. -
Page 5: Attaching The Rear Wheels
You will notice you hear a “click” when the wheel is properly secured. To check that the wheel is properly in position pull on the wheel. If it is properly in position it will not slide off. Repeat for the other wheel. MGI Zip X5 User Manual... -
Page 6: Rear Wheel Positions
3.2 Rear Wheels Positions The MGI Zip X5 is designed to allow the rear wheels to be in two positions. The position is determined by where the wheel is locked on the axle in either of the two grooves [see picture]. The drive position is used during the normal operation of the Zip X5. -
Page 7: Unfolding
Step 6: Close the fold lever to lock the the latch at the bottom of handle into place in one the handle clicks into place. of three positions. Step 7: Push the top bag support down to move it into position. MGI Zip X5 User Manual... -
Page 8: Folding
Top Bag Support down so that it locks over the front wheel assembly. Step 6: Close the fold lever to lock the handle into place. MGI Zip X5 User Manual... -
Page 9: Fourth Foldable Rear Wheel
3.5 Fourth Foldable Rear Wheel The MGI Zip X5 comes standard with a fourth foldable rear wheel. This wheel MUST be unfolded into position at all times when the Zip X5 is in use. This will reduce damaging the Zip X5, and provide the ultimate in stability across all terrains. -
Page 10: Battery Charging & Connection
• MGI 24v 380Wh Lithium battery [Optional] 4.1 Initial Charge • Before using your MGI Zip X5 for the first time you must fully charge the battery overnight. • Plug the charger AC lead into a power point - the Green LED illuminates to indicate the charger is power on. -
Page 11: Charging The Battery After Use
The rounded plastic bar on the longer strap can be adjusted to ensure the bag is secured properly in place. Secure the lower bag strap Pull the lower bag strap over the base of the golf bag MGI Zip X5 User Manual... -
Page 12: Front Wheel
7.1 Top Box Display 1. Distance Mode Button 2. Unit Setting Button 3. ON / OFF Speed Control Button 4. Speed Setting Indicator 5. Battery Level Indicator 6. Distance Mode 7. Distance 8. Unit Measurement MGI Zip X5 User Manual... -
Page 13: Start / Stop The Zip X5
Top Box. 5. To fully shut down the Zip X5 and prevent the battery from discharging, disconnect the battery by lifting its handle. The battery can be left on or removed from the Zip X5. MGI Zip X5 User Manual... -
Page 14: Battery Level Indicator
500kms (310 miles) or 6 months periods. 7.7 Electronic Park Brake The MGI Zip X5 has an Electronic Park Brake [EPB] which when activated, stops the Zip X5 from creeping forward on a hilly terrain. To activate the Park Brake press and hold the right hand button for three seconds. -
Page 15: Control Distance Function
7.8 Control Distance Function The Control Distance Function enables the MGI Zip X5 to be sent a preset distance before the Zip X5 auto stops. To use this function: It is recommended that you lock the front wheel to ensure the Zip X5 tracks in a straight line. -
Page 16: Competition Mode
R/H screw clockwise – [Up on both sides] – To make the Zip X5 go Left - L/H screw clockwise, R/H screw anticlockwise – [Down on both sides] 5. Lock the latch by pushing it up. MGI Zip X5 User Manual... -
Page 17: Warranty
Zip X5 goes straight. 9.0 Warranty 9.1 Warranty Policy The MGI Zip X5 is covered by a limited 3 year manufacturer’s warranty from the date of purchase. Duration of this warranty is: – 3 years on parts* –... -
Page 18: Warranty Exclusions
The following events will void warranty: • Any alteration performed by non-authorised people or companies. • Fitting of parts or accessories not recommended by MGI. • Any damage caused by continued operation of the product after it is known to be defective. -
Page 19: Parts Installed During Warranty
If the work to be carried out is part of warranty, MGI will bear the cost. -
Page 20: Upper And Lower Bag Strap
10.4 MGI Service Schedule It is the owner’s responsibility to ensure that all periodical checks, necessary adjustments and services are carried out. If in doubt please contact the MGI service centre: Australia 1300 644 523 USA 1800 617 2990 Any work performed on your buggy should be recorded on your service record (see page 21) regardless of the work. -
Page 21: Service Record
4 ½ year inspection Date: Serviced by: Invoice #: Signature: 5 year inspection Date: Serviced by: Invoice #: Signature: 5 ½ year inspection Date: Serviced by: Invoice #: Signature: 6 year inspection Date: Serviced by: Invoice #: Signature: MGI Zip X5 User Manual... -
Page 22: Service And Repair Centres
For warranty repairs to be authorised you MUST provide proof of purchase. Please keep this with you as well as your Serial number you can record in this manual. It is most important you register your MGI Zip X5 online for warranty purposes. -
Page 23: Contacting Local Agent
A: You can do a simple realignment on the two front wheels. See section 5.2 Adjusting and aligning the front wheels. Q: I would like to have my MGI Zip X5 serviced. Who do I call? A: MGI AUSTRALIA Visit mgigolf.com to find your nearest service centre using your postcode within Australian and New Zealand. - Page 24 MGI AUSTRALIA MGI HEAD OFFICE 11 Maurice Court Nunawading 3131 Victoria Australia T +61 3 8872 6700 E sales@mgigolf.com SERVICE customerservice@mgigolf.com MGI USA T 1800 617 2990 E salesusa@mgigolf.com SERVICE serviceusa@mgigolf.com MGI GLOBAL E globalsales@mgigolf.com Follow us on Absolute attention has been taken to ensure this manual is correct at time of printing.
