NB!
Tilting the appliance wheels can damage the floor when moving the appliance.
Using the appliance, plinth, drawers or doors as a seat or step can damage the appliance.
Contamination with oil or grease can cause plastic parts and door seals to become porous.
Parts in the device made of metal or with a metallic appearance may contain aluminum. Aluminum reacts when in contact with acidic foods.
If you clean equipment parts and accessories in the dishwasher, they may become deformed or discolored.
After unpacking, check all parts for transport damage and the completeness of the delivery.
If you have any complaints, please contact your dealer or our service department → Service department contact on.
The delivery consists of:
1 Depending on the device version.
2 Not in all countries
Risk of explosion!
If the appliance is located in a space that is too small, a flammable gas/air mixture may arise if there is a leak in the cooling circuit.
The weight of the device can be up to 120 depending on the model.
The surface must be stable enough to support the weight of the device.
Permissible room temperature
The permitted room temperature depends on the climate class of the device.
The climate class can be found on the type picture. → "Device", Fig.
Climateclass | Allowed spacetemperature |
S.N | 10°C...32°C |
N | 16°C...32°C |
ST | 16°C...38°C |
T | 16°C...43°C |
The device is fully functional within the permitted indoor temperature.
If you use a device of climate class SN at lower room temperatures, damage to the device can be ruled out up to a room temperature of 5°C.
Over-and-Under and Side-by-Side setup
If you want to install 2 cooling appliances above or next to each other, you must maintain a minimum distance of 150 mm between the appliances. For certain devices, a setup without minimum distance is possible. Please contact your dealer or kitchen installer for this.

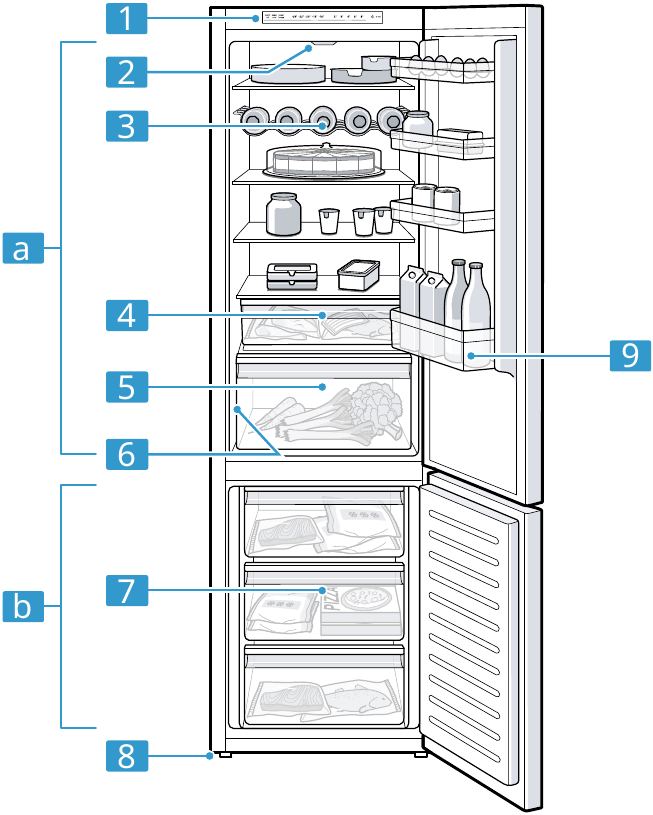

Here you will find an overview of the components of your device.
![]() | |||
![]() | Refrigerator compartment → Refrigerator compartment | ![]() | Vegetable and fruit drawer → Equipment |
![]() | Freezer compartment → Freezer compartment | ![]() | Type plate → Service department |
![]() | Equipment light → Control panel | ![]() | Freezer drawer → Remove frezer drawer |
![]() | Relief | ![]() | Leveling foot |
![]() | Bottle rack → Equipment | ![]() | Door rack for large bottles |
![]() | Storage drawer → Equipment |
Remark: Differences between your device and the images may occur due to equipment and size.
You can use the control panel to set all functions of your device and obtain information about its operating status.
![]() | |
![]() | slarm off switches the warning signal off. |
![]() | super freeze switches super freeze in or out. |
![]() | super cool switches super cool in or out. |
![]() | Shows the set temperature of the freezer compartment in °C. |
![]() | Shows the set temperature of the refrigerator compartment in °C. |
![]() | ![]() |
The equipment of your device depends on the model.

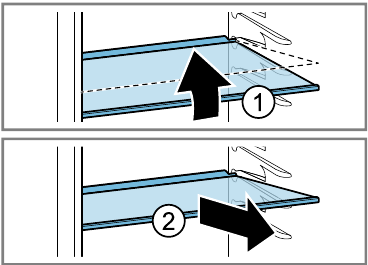

To vary the shelves as desired, you can remove the shelf and place it again in a different position.
→ "Remove platform"
Store bottles safely on the bottle rack.
To vary the bottle rack as desired, you can remove the bottle rack and put it back in a different location.
→ "Remove platform"
The storage drawer has lower temperatures than the refrigerator compartment. Temperatures below 0°C may occur temporarily.
To achieve temperatures close to 0°C in the storage drawers, set the refrigerator compartment temperature to 2°C. → Set temperature
Use the lower temperatures in the drawer to store quickly perishable food, e.g. fish, meat and sausage.
Store fresh fruit and vegetables wrapped in the fruit and vegetable drawer.
Store cut fruits and vegetables covered or in an airtight container.
Depending on the type and quantity of food, condensation water may form in the fruit and vegetable drawer.
Remove the condensation water with a dry cloth.
To ensure that the quality and aroma are preserved, store cold-sensitive fruits and vegetables outside the appliance at temperatures of approximately 8°C to 12°C, e.g. pineapple, bananas, citrus fruits, gherkins, zucchini, peppers, tomatoes and potatoes.

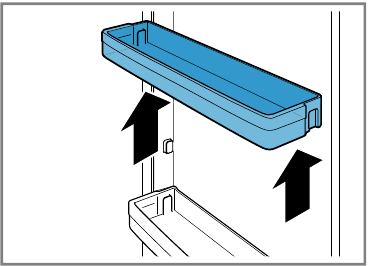

To vary the door rack as needed, you can remove the door rack and place it again in a different position.
→ "Remove door rack"
Use only original accessories. These are tailored to the device. The accessories of the device depend on the model.
Egg tray
Store eggs safely on the egg tray.
Ice cube tray
Use the ice cube tray to make ice cubes.
Making ice cubes
Only use drinking water to make ice cubes.
Set refrigerator compartment temperature
Set freezer compartment temperature
Find out which customizable additional functions your device has.
With Super cooling, the refrigerator compartment cools as cold as possible.
Switch on Super Cool before loading large quantities of food.
Remark: When Super Cooling is on, more noise may be produced.
Switch on super cooling
Remark: After approx. 6 hours the device switches to normal operation.
Switch off super cooling
With automatic Super Freezing, the freezer compartment cools significantly at a lower temperature than during normal operation. This causes the food to freeze to the core more quickly. The automatic Super Freezing switches on when you place fresh food in the bottom freezer drawer starting from the right.
The automatic Super Freezing is activated at the factory. You can deactivate automatic Super Freezing. When automatic Super Freezing is switched on, super freeze lights up and more sounds may arise. The appliance switches to normal operation after the automatic Super Freeze has expired.
Activate automatic super freezing
Deactivate automatic super freezing
Cancel Auto Super Freeze
With Super Freeze, the freezer compartment cools as cold as possible.
Switch on Super Freeze 4 to 6 hours before loading an amount of food weighing 2 kg or more into the freezer compartment.
To utilize the freezing power, use Super Freezing.
→ "Conditions for freezing capacity"
Remark: When Super Freeze is turned on, more noise may be produced.
Manual Super Freeze switch
Remark: After approx. 54 hours the device switches to normal operation.
Manual Super Freeze Switch off
So that you can also use the device on Sabbath, Sabbath mode disables all functions that are not absolutely necessary.
During Sabbath mode, the following features are disabled:
Remark: During Sabbath mode, the control panel lighting turns off. lights up with reduced brightness.
Enable Sabbath mode
Remark: After approx. 80 hours the device switches to normal operation.
Disable Sabbath mode
If the door of the appliance is open for a longer period of time, the door alarm will be activated.
A warning signal sounds, alarm off flashes and the set temperature of the relevant compartment flashes.
Switch off the door alarm
When it is too warm in the freezer compartment, the temperature alarm is activated.
A warning signal sounds, the set temperature (freezer) and alarm off flashing.
CAREFULLY
Risk of health hazard!
When defrosting, bacteria can multiply and the frozen food can spoil.
The temperature alarm can activate in the following cases:
Disable temperature alarm
You can store meat, sausage, fish, dairy products, eggs, prepared dishes, bread and pastries in the refrigerator compartment.
The temperature can be adjusted from 2°C to 8°C.
Cold storage also allows you to store slightly perishable food for the short or medium term. The lower the temperature selected, the longer the food stays fresh.
The air circulation in the refrigerator compartment creates different cold zones.
Coldest zone
The coldest zone is in the storage drawer.
Tip: Store quickly perishable food in the coldest zone, e.g. fish, sausage and meat.
Warmest zone The warmest zone is at the very top of the door. Tip: Store less sensitive foods in the warmest zone, e.g. hard cheese and butter. This allows the cheese's aroma to develop better and the butter remains spreadable.
In the freezer compartment you can store frozen food, freeze food and make ice cubes.
The temperature is from −16°C to − 24°C adjustable. Long-term storage of food should be at a temperature of -18°C or lower.
Freezing allows you to store perishable food for a long time. The low temperatures slow or stop spoilage.
The freezing capacity indicates how much food can be frozen to its core in how many hours.
Information about the freezing capacity can be found on the rating plate. → "Device", Fig.
Conditions for freezing capacity
Find out how to put the maximum amount of frozen food in the freezer compartment.
Packaging frozen foods
Suitable packaging material and the right type of packaging largely maintain product quality and prevent freezer burn.
Product | Retention time |
Fish, sausage, readymade dishes, bread and banquet | Up to 6 months |
Poultry, meat | Up to 8 months |
Vegetables fruit | Up to 12 months |
The printed freezing calendar indicates the maximum storage time in months at a constant temperature of -18°C.
CAREFULLY
Risk of health hazard! When defrosting, bacteria can multiply and the frozen food can spoil.
Defrosting in the freezer compartment
Thanks to the fully automatic "NoFrost" system, the freezer compartment remains frost-free. No need to defrost.
Clean and maintain your device carefully to ensure that it continues to function properly for a long time.
The cleaning of inaccessible places must be carried out by the service department. There may be costs associated with cleaning by the service department.
Risk of electric shock! Penetrating moisture can cause a shock.
Liquid in the lights, in the controls or in the internal ventilation openings can be dangerous.
NB!
Unsuitable cleaning agents can damage the surfaces of the device.
If you clean equipment parts and accessories in the dishwasher, they may become deformed or discolored.

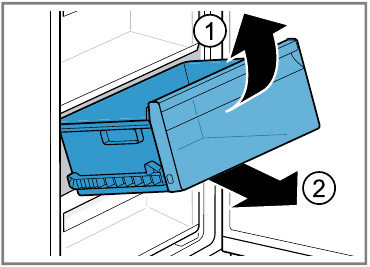

If you want to thoroughly clean the equipment parts, remove them from the device.

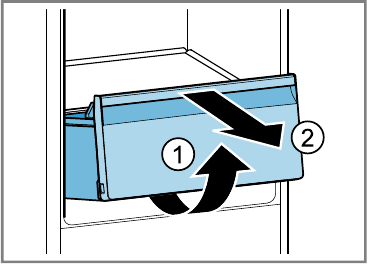

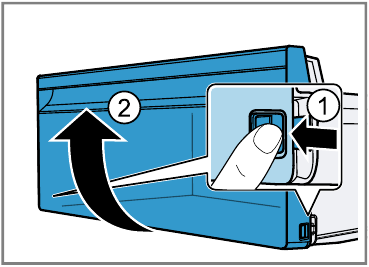

You can remove the drawer front of the fruit and vegetable drawer and the frozen food drawer for easier cleaning.
You can resolve minor faults with the device yourself. Before contacting customer service, please refer to the troubleshooting information. This way you avoid unnecessary costs.
Risk of electric shock! Improper repairs are dangerous.
Malfunction | Cause and troubleshooting |
Device does not cool, indications and lights are on. | The presentation light is turned on.
|
LED lighting does not function. | Various causes are possible.
|
Side panels of the device are warm. | No malfunction. Pipes run in the side walls which become warm during the cooling process. Furniture placed against the appliance will not be damaged by the heat. No action required. No action required. |
Temperature displays and alarm off to burn. | A sensor is defective.
|
A warning signal sounds, the set temperature ture (refrigerator compartment) and alarm off flashing. | Refrigerator compartment door is open.
|
A warning signal sounds, the set temperature (freezer) and flashing. | Various causes are possible.
|
Freezer door is open.
| |
External ventilation openings are covered.
| |
Larger quantities of fresh food have been stocked.
| |
Set temperature ture is not reached. Fully automatic dethawing doesn't work more. | The freezer door was open too long. There is a lot of ice on the evaporator (cold generator) in the NoFrost system. Required: The frozen food is well insulated and stored in a cool place.
|
Temperature varies a lot depends on the institution. | Various causes are possible.
|
Condensation water forms on the surface of the device and the shelves inside the device. | The water vapor in warm and humid air condenses on the colder surfaces of the device.
|
Collects in the fruit and vegetable drawer often a lot of condensation ter. | Depending on the storage quantity and the product, condensation water forms in the fruit and vegetable drawer.
|
The device hums, bubbles, buzzes, gurgles, clicks, or makes cracking noises. | No malfunction. A motor is running, e.g. cooling unit, fan. Refrigerant flows through the pipes. Motor, switches or solenoid valves switch on or off. The automatic defrosting system comes into operation. No action required. No action required. |
Device produces sounds. | The device is not level.
|
Device is not free-standing.
| |
Equipment parts wobble or stick.
| |
Bottles or containers touch each other.
| |
Super freeze is switched on. No action required. No action required. |
During a power outage, the temperature in the appliance rises, which shortens the storage time and reduces the quality of the frozen products.
On our website for your appliance you will find the storage time of the frozen products in the event of a malfunction in the technical data.
Comments
Your device has a device self-test, which displays faults that your service can resolve.
Taking the device out of use
Original replacement parts that are relevant for operation in accordance with the relevant Ecodesign Regulation can be obtained from our service department for a period of at least 10 years from the moment the device is placed on the market within the European Economic Area.
Remark: Calling the service department is free of charge in accordance with the locally applicable manufacturer's warranty conditions. The minimum duration of the warranty (manufacturer's warranty for private users) in the European Economic Area is 2 years in accordance with the applicable local warranty conditions. The warranty conditions do not affect any other rights or claims you may have under local law.
Detailed information about the warranty period and warranty conditions in your country can be obtained from our service department, your dealer or on our website.
When you contact the service department, you will need the product number (E-Nr.) and the production number (FD) of the device. The contact details of the service department can be found in the supplied service department list or on our website.
Product number (E no.) and production number (FD)
The product number (E-No.) and the production number (FD) can be found on the rating plate of the device.
→ "Device", Fig.
To quickly find your device information and service telephone numbers, you can write down the information.
Refrigerant, net content and other technical data can be found on the rating plate.
→ "Device", Fig.
This product contains a light source of energy class G. The light source is available as a spare part and may only be replaced by a trained technician.
You can find more information about your model on the Internet at https://eprel.ec.europa.eu/1. This web address refers to the official EU product database EPREL. Then follow the instructions when searching for the model. The model identification consists of the slash character of the E number (E-Nr.) on the type plate. Alternatively, you will also find the model identification in the first line of the EU energy label.
Please observe the following safety precautions.
Only use the device:
This appliance can be operated by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and have understood the resulting hazards. understood. Children are not allowed to play with the device.
Cleaning and user maintenance shall not be carried out by children unless they are supervised.
Children from 3 years and younger than 8 years may fill and empty the refrigerator/freezer.
Risk of injury!
The high weight of the device can cause injuries when lifting.
Risk of electric shock! Improper installations are dangerous.
Damaged insulation of the power cord is dangerous.
Risk of explosion!
If the ventilation openings of the device are closed, a flammable gas-air mixture may be created if there is a leak in the cold circuit.
Risk of fire!
Using an extended power cord and unauthorized adapters is dangerous.
Portable mobile multiple sockets or portable power supplies can overheat and cause a fire.
Risk of electric shock! Penetrating moisture can cause an electric shock.
Risk of suffocation!
Children can pull packaging material over their heads and become entangled and suffocate.
Risk of explosion!
Damage to the refrigerant circuit can cause flammable refrigerant to leak and explode.
Products containing flammable propellants and explosive substances can explode, e.g. aerosol cans.
Risk of fire!
Electrical appliances inside the appliance can cause a fire, e.g. heaters or electric ice makers.
Risk of injury!
Bottles or cans containing carbonated drinks may burst.
Eye injuries due to leaking flammable refrigerant and harmful gases.
The device may tip over.
Risk of burns! Parts on the back of the device become hot during use.
Risk of cold burns! Contact with frozen food and cold surfaces can lead to cold burns.
Risk of health hazard! Observe the following instructions to prevent food contamination.
Parts in the device made of metal or with a metallic appearance may contain aluminum. When acidic foods come into contact with aluminum, aluminum ions can transfer to the food.
Risk of electric shock!
A damaged device or power cord is dangerous.
Risk of fire!
If the pipes are damaged, flammable refrigerant and harmful gases can escape and ignite.
www.bosch-home.com/service
Contact data of all countries are listed in the attached service directory.
BSH Hausgeräte GmbH
Carl-Wery-Strasse 34
81739 Munich, GERMANY
www.bosch-home.com
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Advertisement
Need help?
Do you have a question about the KGN Series and is the answer not in the manual?
Questions and answers
