Preventing material damage

ATTENTION!
Using the base, runners or appliance doors as a seat surface or climbing surface may damage the appliance.

• Do not stand or support yourself on the base, runners or doors.

Contamination with oil or fat may cause plastic parts and door seals to become porous.

• Keep plastic parts and door seals free of oil and grease.

Saving energy

If you follow these instructions, your appliance will use less power.

Selecting the installation location

• Keep the appliance out of direct sunlight.
• Install the appliance as far away as possible from heating elements, cookers and other heat sources:
  • Maintain a 30 mm clearance to electric or gas cookers.
  • Maintain a 300 mm clearance to oil or solid-fuel cookers.
• Never cover or block the exterior ventilation grilles.

Saving energy during use
Note: The arrangement of the fittings does not affect the energy consumption of the appliance.

• Open the appliance only briefly and then close it carefully.
• Never cover or block the interior ventilation openings or the exterior ventilation grilles.
• Transport purchased food in a cool bag and place in the appliance quickly.
• Allow warm food and drinks to cool down before storing them.
• Always leave some space between the food and to the back panel.
• Defrost the freezer compartment regularly.

Installation and connection

Scope of delivery

After unpacking all parts, check for any transport damage and for completeness of delivery.
If you have any complaints, contact your dealer or our after-sales service → "Customer Service"

The delivery consists of the following:

• Built-under appliance
• Equipment and accessories¹
• Installation instructions
• User manual
• Customer service directory
• Warranty enclosure²
• Energy label
• Information on energy consumption and noises

¹ Depending on the appliance specifications
² Not in all countries

Criteria for the installation location

Risk of explosion!
If the appliance is in a space that is too small, a leak in the refrigeration circuit may result in a flammable mixture of gas and air.

• Only install the appliance in a space with a volume of at least 1 m³ per 8 g refrigerant. The volume of refrigerant is indicated on the rating plate. → "Appliance", Fig.

The weight of the appliance ex works may be up to 40 kg depending on the model.
The subfloor must be sufficiently stable to bear the weight of the appliance.

Permitted room temperature
The permitted room temperature depends on the appliance's climate class.
The climate class can be found on the rating plate. → "Appliance", Fig.

Climate class	Permitted room temperature
SN	10°C to 32°C
N	16°C to 32°C
ST	16°C to 38°C
T	16°C to 43°C

The appliance is fully functional within the permitted room temperature.
If an appliance with climate class SN is operated at colder room temperatures, the appliance will not be damaged up to a room temperature of 5°C.

Over-and-under and side-by-side installation
If you want to install 2 refrigerating appliances one over the other or side by side, you must maintain a clearance of at least 150 mm between the appliances. Selected appliances can be installed without a minimum clearance. Ask your dealer or kitchen planner about this.

Built-under
Attachment under certain worktops, e.g. stone, glass or stainless steel, is frequently not possible. You can order accessories from customer service for installation on the side walls.
→ "Customer Service"

Installing the appliance

• Install the appliance in accordance with the enclosed installation instructions.

Preparing the appliance for the first time

1. Remove the informative material.
2. Remove the protective foil and transit bolts, e.g. remove the adhesive strips and carton.
3. Clean the appliance for the first time.
   → "Cleaning the appliance"

Connecting the appliance to the electricity supply

1. Insert the mains plug of the appliance's power cable in a socket nearby.
   The connection data of the appliance can be found on the rating plate.
   → "Appliance", Fig.
2. Check the mains plug is inserted properly.
   • The appliance is now ready for use.

Familiarising yourself with your appliance

Appliance

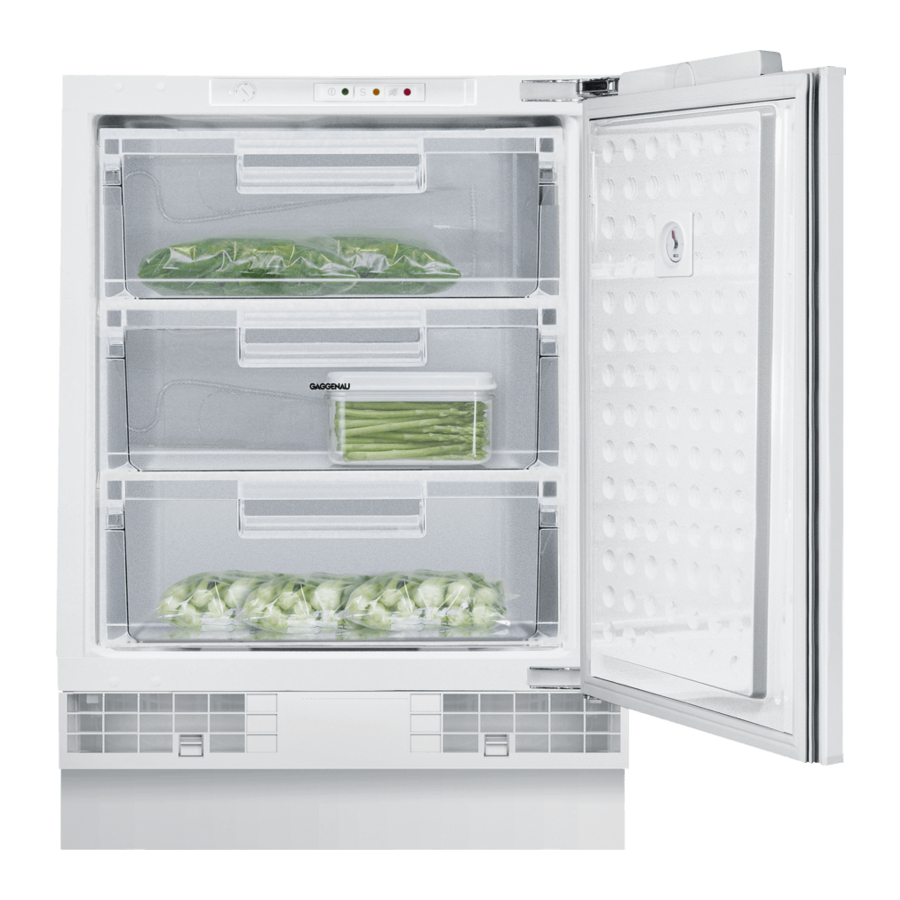

You can find an overview of the parts of your appliance here.

	Control panel → "Control panel"		Rating plate → "Technical data"
	Freezer shelf → "Setting the temperature"		Exterior ventilation grille → "Cleaning the ventilation grille"
	Frozen food container → "Removing the fittings"

Note: Deviations between your appliance and the diagrams may differ with regard to their features and size.

Control panel

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

	The temperature controller sets the temperature.
	switches the appliance on or off.
	S switches Fast freezing on or off.
	switches the warning signal off.

Features

The features of your appliance depend on the model.

Accessories
Use original accessories. These have been made especially for your appliance.
The accessories for your appliance depend on the model.

Ice pack
Use the ice pack for temporarily keeping food cool, e.g. in a cool bag.
Tip: If a power failure or malfunction occurs, the ice pack can be used to slow down the thawing process for the stored frozen food.

Ice cube tray
Use the ice cube tray to make ice cubes.

Making ice cubes
Use only drinking water to make ice cubes.

1. Fill the ice cube tray with drinking water up to ³/₄ and place in the freezer compartment.
   If the ice cube tray is stuck to the freezer compartment, loosen it with a blunt implement only (e.g. spoon handle).
2. To loosen the ice cubes, twist the ice cube tray slightly or hold it briefly under flowing water.

Basic operation

Switching on the appliance

1. Press .
   • The appliance begins to cool.
2. Switch off the warning tone using .
   • goes out as soon as the set temperature has been reached.
3. Set the required temperature.
   → "Setting the temperature"

Operating tips

• Once you have switched on the appliance, the set temperature is only reached after several hours. Do not put any food in the appliance until the set temperature has been reached.
• The front panels of the housing are temporarily heated slightly. This prevents condensation in the area of the door seal. operation
• When you close the door, a vacuum may be created. The door is then difficult to open again. Wait a moment until the vacuum is offset.
• The refrigeration system may cause several areas of the freezer shelves to frost quickly. The frost has no effect on the function or the energy consumption of the appliance. If frost or ice thicker than 5 mm has formed on the entire surface of the freezer shelf, the appliance must be defrosted.

Switching off the appliance

• Press .

Setting the temperature

Setting the freezer compartment temperature

• Use a coin to set the temperature at the temperature controller.
  The higher the number, the lower the temperature.
  The middle setting is recommended by the factory.

Fast freezing

With Fast freezing, the freezer compartment cools as cold as possible. Switch on Fast freezing four to six hours before placing food weighing 2 kg or more into the freezer compartment.
In order to utilise the freezer capacity, use Fast freezing.
→ "Prerequisites for freezing capacity"
Note: When Fast freezing is switched on, increased noise may occur.

Switching on Fast freezing

• Press .
  • lights up.

Note: After approx. 60 hours, the appliance switches to normal operation.

Switching off Fast freezing

• Press .

Temperature alarm

If the freezer compartment becomes too warm, the temperature alarm is switched on.

Risk of harm to health!
During the thawing process, bacteria may multiply and spoil the frozen food.

• Do not refreeze food after it has been defrosted or started to defrost.
• Refreeze food only after cooking.
• These items should no longer be stored for the maximum storage period.

The temperature alarm can be switched on in the following cases:

• The appliance is switched on. Do not store any food until the appliance has reached the set temperature.
• Large quantities of fresh food are being placed inside. Switch on Fast freezing before placing large quantities of food in the appliance.
• The freezer compartment door is open for too long.
  Check whether the frozen food has defrosted or thawed.

Switching off the temperature alarm

• Press .
  • The warning tone is switched off.

Freezer compartment

You can store frozen food, freeze food and make ice cubes in the freezer compartment.
The temperature can be set from level 1 to level 7.
Long-term storage of food should be at –18°C or lower.
The freezer compartment can be used to store perishable food longterm. The low temperatures slow down or stop the spoilage.

Freezing capacity

The freezing capacity indicates the quantity of food that can be frozen right through to the centre within a specific period of time. Information on freezing capacity can be found on the rating plate.
→ "Appliance", Fig.

Prerequisites for freezing capacity

1. Approx. 24 hours before placing fresh food in the appliance, switch on Fast freezing.
   →"Switching on Fast freezing"
2. Fill the rear area of the top compartment with food first.
3. If the rear area of the top compartment does not have enough space, store the remaining quantity in the compartment below.

Fully utilising the freezer compartment volume

Learn how to store the maximum amount of frozen food in the freezer compartment.

1. Remove all fittings from the freezer compartment.
   → "Removing the fittings"
2. Store food directly on the shelves and on the floor of the freezer compartment.

Tips for storing food in the freezer compartment

• Store food in air-tight packaging.
• Do not bring food which is to be frozen into contact with frozen food.
• Place the food over the whole area of the frozen food containers.
• To quickly and gently freeze larger quantities of fresh food, place this in the top frozen food container.
• To ensure that the air can circulate freely in the appliance, push the frozen food containers in as far as they will go.

Tips for freezing fresh food

• Freeze fresh and undamaged food only.
• Freeze food in portions.
• Cooked food is more suitable than food that can be eaten raw.
• Vegetables: Wash, chop up and blanch before freezing.
• Fruit: Wash, pit and perhaps peel, possibly add sugar or ascorbic acid solution.
• Food that is suitable for freezing includes baked items, fish and seafood, meat, game, poultry, eggs without shells, cheese, butter and quark, ready meals and leftovers.
• Food that is unsuitable for freezing includes lettuce, radishes, eggs in shells, grapes, raw apples and pears, yoghurt, sour cream, crème fraîche and mayonnaise.

Packing frozen food
If you select suitable packaging material and the correct type of packaging, you can determine the product quality and prevent freezer burn.

1. Place the food in the packaging.
2. Squeeze out the air.
3. Pack food airtight to prevent it from losing flavour and drying out.
4. Label the packaging with the contents and the date of freezing.

Shelf life of frozen food at −18°C

Food	Storage time
Fish, sausages, prepared meals and baked goods	up to 6 months
Poultry, meat	up to 8 months
Vegetables, fruit	up to 12 months

The imprinted freezer calendar indicates the maximum storage duration in months at a constant temperature of –18°C.

Defrosting methods for frozen food

Risk of harm to health!
During the thawing process, bacteria may multiply and spoil the frozen food.

• Do not refreeze food after it has been defrosted or started to defrost.
• Refreeze food only after cooking.
• These items should no longer be stored for the maximum storage period.

• Defrost animal-based food, such as fish, meat, cheese, quark, in the refrigerator compartment.
• Defrost bread at room temperature.
• Prepare food for immediate consumption in the microwave, in the oven or on the hob.

Defrosting

The freezer compartment does not defrost automatically. A layer of hoarfrost in the freezer compartment impairs refrigeration of the frozen food and increases power consumption.

Defrosting the freezer compartment
Regularly defrost the freezer compartment.

1. Switch on Fast freezing approx. four hours before defrosting.
   → "Switching on Fast freezing"
   This means that the food reaches very low temperatures and it can be stored for longer at room temperature.
2. Remove the frozen food container with the frozen food and temporarily place it in a cool location. Place ice packs (if available) on the frozen food.
3. Switch off the appliance.
   → "Switching off the appliance"
4. Disconnect the appliance from the power supply.
   Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
5. To accelerate the defrosting process, place a pan of hot water on a trivet in the freezer compartment.
6. Wipe up the condensation water with a soft cloth or sponge.
7. Rub the freezer compartment dry with a soft, dry cloth.
8. Electrically connect the appliance.
   → "Connecting the appliance to the electricity supply"
9. Switch on the appliance.
   → "Switching on the appliance"
10. Reinsert the frozen food containers with the frozen food.

Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully. Customer Service must clean inaccessible points. Cleaning by customer service can give rise to costs.

Preparing the appliance for cleaning

1. Switch off the appliance.
   → "Switching off the appliance"
2. Disconnect the appliance from the power supply.
   Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
3. Take out all of the food and store it in a cool place.
   Place ice packs (if available) onto the food.
4. If there is a layer of hoarfrost, allow this to defrost.
5. Remove all fittings and accessories from the appliance.
   → "Removing the fittings"

Cleaning the appliance

Risk of electric shock!
An ingress of moisture can cause an electric shock.

• Do not use steam- or high-pressure cleaners to clean the appliance.

Liquid in the lighting or in the controls can be dangerous.

• The rinsing water must not drip into the lighting or controls.

ATTENTION!
Unsuitable cleaning products may damage the surfaces of the appliance.

• Do not use hard scouring pads or cleaning sponges.
• Do not use harsh or abrasive detergents.
• Do not use cleaning products with a high alcohol content.

If you clean fittings and accessories in the dishwasher, this may cause them to become deformed or discolour.

• Never clean fittings and accessory in the dishwasher.

1. Prepare the appliance for cleaning.
   → "Preparing the appliance for cleaning"
2. Clean the appliance, the fittings, the accessories and the door seals with a dish cloth, lukewarm water and a little pH-neutral washing-up liquid.
3. Dry thoroughly with a soft, dry cloth.
4. Insert the fittings.
5. Electrically connect the appliance.
   → "Connecting the appliance to the electricity supply"
6. Switch on the appliance.
   → "Switching on the appliance"
7. Putting the food into the appliance.

Cleaning the ventilation grille

1. Remove the exterior ventilation grille for cleaning.
   • To do this, depress the clips in the ventilation openings and simultaneously remove the exterior ventilation grille forwards.

2. Clean the exterior ventilation grille with lukewarm soapy water and a dish cloth.
3. Let the exterior ventilation grille dry completely and insert it.

Removing the fittings

If you want to clean the fittings thoroughly, remove these from your appliance.

Removing the frozen food container

1. Take out the frozen food container as far as it will go.
2. Lift the frozen food container at the front and remove it ⁠.


Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

Risk of electric shock!
Incorrect repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
• Only use genuine spare parts when repairing the appliance.
• If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault	Cause and troubleshooting
A warning signal sounds and lights up.	Different causes are possible. Press . The alarm is switched off.
	The exterior ventilation grilles are blocked. Remove any obstructions from in front of the exterior ventilation grilles.
	Larger quantities of fresh food have been put in. Do not exceed the max. freezing capacity. → "Freezing capacity"
The appliance hums/bubbles/buzzes/gargles or clicks	Not a fault. A motor is running, e.g. refrigerating unit, fan. Refrigerant flows through the pipes. The motor, switches or solenoid valves are switching on or off. No action required.
The appliance makes noises	Fittings wobble or stick. Check the removable fittings and, if required, replace these.
	Containers are touching. Move the containers apart.
	Fast freezing is switched on. No action required.

Power failure

During a power failure, the temperature in the appliance rises; this reduces the storage time and the quality of the frozen food. On the website for your appliance, the technical data provides you with the storage times for frozen food in the event of a fault.

Notes

• Open the appliance as little as possible during a power failure and do not place any other food in the appliance.
• Check the quality of the food immediately after a power failure.
  • Dispose of any frozen food that has defrosted and is hotter than 5°C.
  • Cook or fry slightly thawed frozen food, and then either consume it or freeze it again.

Storage

Taking the appliance out of operation

1. Switch off the appliance.
   → "Switching off the appliance"
2. Disconnect the appliance from the power supply.
   Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
3. Remove all of the food.
4. Defrost the appliance.
   → "Defrosting"
5. Clean the appliance.
   → "Cleaning the appliance"
6. To guarantee the ventilation inside the appliance, leave the appliance open.

Customer Service

Function-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

Note: Under the terms of the manufacturer's warranty applicable to the location, the use of Customer Service is free of charge. The minimum duration of the warranty (manufacturer's warranty for private consumers) in the European Economic Area is 2 years according to the terms of warranty applicable to the location. The terms of warranty do not affect other rights or claims held by yourself under local legislation.

Detailed information on the warranty period and terms of warranty in your country is available from our aftersales service, your retailer or on our website.
If you contact Customer Service, you will require the product number (ENr.) and the production number (FD) of your appliance.
The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

Product number (E-Nr.) and production number (FD)
You can find the product number (ENr.) and the production number (FD) on the appliance's rating plate. → "Appliance", Fig.
Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

Technical data

Refrigerant, cubic capacity and further technical specifications can be found on the rating plate.
→ "Appliance", Fig.
You can find more information about your model online at https://eprel.ec.europa.eu/¹. This web address is linked to the official EU EPREL product database. Please then follow the instructions on searching for the model. The model identifier is made up of the characters before the slash in the product number (E-Nr.) on the rating plate. Alternatively, you can also find the model identifier in the first line of the EU energy label.

¹ Only applies to countries in the European Economic Area

Safety

Observe the following safety instructions.

General information

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
• Do not connect the appliance if it has been damaged in transit.

Intended use

Only use this appliance:

• for freezing food and making ice cubes.
• In private households and in enclosed spaces in a domestic environment.
• Up to an altitude of 2000 m above sea level.

Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.
Do not let children play with the appliance.
Cleaning and user maintenance must not be performed by children unless they are being supervised.
Children above the age of three years old and younger than eight years old may load and unload the the fridge-freezer.

Safe transport

Risk of injury!
The high weight of the appliance may result in injury when lifted.

• Do not lift the appliance on your own.

Safe installation

Risk of electric shock!
Incorrect installation is dangerous.

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.
• Never equip the appliance with an external switching device, e.g. a timer or remote control.
• When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent electrical installation according to the installation regulations.
• When installing the appliance, check that the power cable is not trapped or damaged.

If the insulation of the power cord is damaged, this is dangerous.

• Never let the power cord come into contact with heat sources.

Risk of explosion!
If the appliance's ventilation openings are sealed, a leak in the refrigeration circuit may result in a flammable mixture of gas and air.

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Risk of fire!
It is dangerous to use an extended power cord and non-approved adapters.

• Do not use extension cables or multiple socket strips.
• Only use adapters and power cords approved by the manufacturer.
• If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.

Portable multiple socket strips or portable power supply units may overheat and cause a fire.

• Do not place portable multiple socket strips or power supply units on the back of the appliance.

Safe use

Risk of electric shock!
An ingress of moisture can cause an electric shock.

• Only use the appliance in enclosed spaces.
• Never expose the appliance to intense heat or humidity.
• Do not use steam- or high-pressure cleaners to clean the appliance.

Risk of suffocation!
Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
• Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to suffocate.

• Keep small parts away from children.
• Do not let children play with small parts.

Risk of explosion!
If the cooling circuit is damaged, flammable refrigerant may escape and explode.

• To accelerate the defrosting process, do not use any other mechanical devices or means other than those recommended by the manufacturer.
• If food is stuck to the freezer compartment, loosen it with a blunt implement such as the handle of a wooden spoon.

Products which contain flammable propellants and explosive substances may explode, e.g. spray cans.

• Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.

Risk of fire!
Electrical devices within the appliance may cause a fire, e.g. heaters or electric ice makers.

• Do not operate electrical devices within the appliance.

Risk of injury!
Containers that contain carbonated drinks may burst.

• Do not store containers that contain carbonated drinks in the freezer compartment.

Injury to the eyes caused by escaping flammable refrigerant and hazardous gases.

• Do not damage the tubes of the refrigerant circuit or the insulation.

Risk of cold burns!
Contact with frozen food and cold surfaces may cause burns by refrigeration.

• Never put frozen food straight from the freezer compartment into your mouth.
• Avoid prolonged contact of the skin with frozen food, ice and surfaces in the freezer compartment.

Risk of harm to health!
To prevent food from being contaminated, you must observe the following instructions.

• If the door is open for an extended period of time, this may lead to a considerable temperature increase in the compartments of the appliance.
• Regularly clean the surfaces that may come into contact with food and accessible drain systems.
• If the fridge/freezer is empty for an extended period of time, switch off the appliance, defrost it, clean it and leave the door open to prevent the formation of mould.

Damaged appliance

Risk of electric shock!
If the appliance or the power cord is damaged, this is dangerous.

• Never operate a damaged appliance.
• Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
• If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
• Call customer services.
  → "Customer Service"

Incorrect repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
• Only use genuine spare parts when repairing the appliance.
• If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Risk of fire!
If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.

• Keep naked flames and ignition sources away from the appliance.
• Ventilate the room.
• Switch off the appliance.
  → "Switching off the appliance"
• Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
• Call after-sales service.
  → "Customer Service"

BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.gaggenau.com

Valid within Great Britain:
Imported to Great Britain by
BSH Home Appliances Ltd.
Grand Union House
Old Wolverton Road
Wolverton, Milton Keynes
MK12 5PT
United Kingdom

Documents / Resources

References

• EPREL Public website
• Select your region | Gaggenau

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Gaggenau RF 200 Manual
