Summary of Contents for Gaggenau RC 200

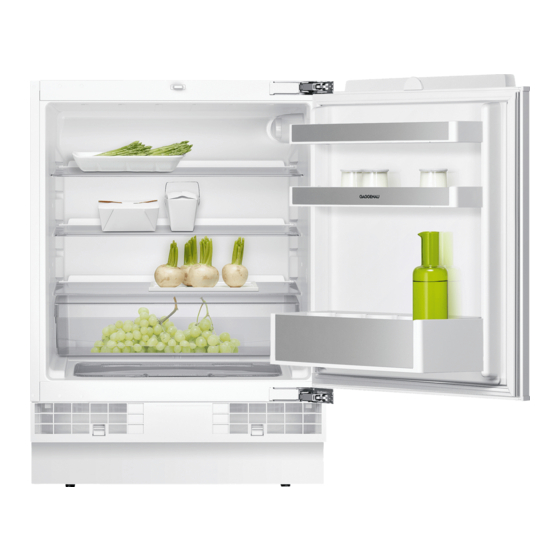

- Page 1 Gaggenau User manual RC 200 Refrigerator...
-
Page 2: Table Of Contents
Table of contents 1 Safety .......... 3 8 Refrigerator compartment .. 14 1.1 General information.... 3 8.1 Tips for storing food in the refrigerator compartment .. 14 1.2 Intended use....... 3 8.2 Chill zones in the refrigerator 1.3 Restriction on user group... 3 compartment ...... 14 1.4 Safe transport ...... 3 8.3 Cooling capacity....... 14... -
Page 3: Safety
Safety en 1 Safety Observe the following safety instructions. 1.1 General information Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe ¡ for future reference or for the next owner. Do not connect the appliance if it has been damaged in transit. ¡... -
Page 4: Safe Installation
en Safety 1.5 Safe installation WARNING ‒ Risk of electric shock! Improper installation is dangerous. Connect and operate the appliance only in accordance with the ▶ specifications on the rating plate. Connect the appliance to a power supply with alternating cur- ▶ rent only via a properly installed socket with earthing. The protective conductor system of the domestic electrical in- ▶... -
Page 5: Safe Use
Safety en 1.6 Safe use WARNING ‒ Risk of electric shock! An ingress of moisture can cause an electric shock. Only use the appliance in enclosed spaces. ▶ Never expose the appliance to intense heat or humidity. ▶ Do not use steam- or high-pressure cleaners to clean the appli- ▶... -
Page 6: Damaged Appliance
en Safety WARNING ‒ Risk of injury! Injury to the eyes caused by escaping flammable refrigerant and hazardous gases. Do not damage the tubes of the refrigerant circuit or the insula- ▶ tion. CAUTION ‒ Risk of harm to health! To prevent food from being contaminated, you must observe the following instructions. - Page 7 Safety en WARNING ‒ Risk of fire! If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite. Keep naked flames and ignition sources away from the appli- ▶ ance. Ventilate the room. ▶ Switch off the appliance. → Page 13 ▶ Unplug the appliance from the mains or switch off the circuit ▶...
-
Page 8: Preventing Material Damage
en Preventing material damage – Maintain a 30 mm clearance to Preventing material damage 2 Preventing material electric or gas cookers. – Maintain a 300 mm clearance to damage oil or solid-fuel cookers. Never cover or block the exterior ¡ Preventing material damage ATTENTION! ventilation grilles. -
Page 9: Criteria For The Installation Location
Installation and connection en Equipment and accessories ¡ Climate Permitted room tem- Installation material ¡ class perature Installation instructions ¡ 10 °C to 32 °C User manual ¡ 16 °C to 32 °C Customer service directory ¡ 16 °C to 38 °C Warranty enclosure ¡ Energy label ¡... -
Page 10: Connecting The Appliance To The Electricity Supply
en Installation and connection 4.5 Connecting the appliance to the electricity supply Insert the mains plug of the appli- ance's power cable in a socket nearby. The connection data of the appli- ance can be found on the rating plate. → "Appliance", Fig. Page 11 Check the mains plug is inserted properly. -
Page 11: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. Light switch Rating plate Control panel Fruit and vegetable container Pull-out container → Page 12 Exterior ventilation grille... -
Page 12: Control Panel
en Features Note: Deviations between your appli- Door storage compartment ance and the diagrams may differ for large bottles with regard to their features and size. 5.2 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. -
Page 13: Door Rack
Basic operation en To ensure that the quality and aroma Basic operation 7 Basic operation are retained, store fruit and veget- ables that are sensitive to cold out- Basic operation side of the appliance at temperatures 7.1 Switching on the appli- of approx. 8 °C to 12 °C, e.g. pine- ance apple, bananas, citrus fruits, cucum- bers, courgettes, peppers, tomatoes... -
Page 14: Refrigerator Compartment
en Refrigerator compartment Warmest zone Refrigerator compartment 8 Refrigerator compart- The warmest zone is at the very top ment of the door. Tip: Store food that does not spoil You can keep meat, sausage, fish, Refrigerator compartment easily in the warmest zone, e.g. hard dairy products, eggs, prepared meals cheese and butter. -
Page 15: Defrosting
Defrosting en Suitable cleaning agents and ¡ Defrosting 9 Defrosting cleaning cloths are available from our customer service, your dealer Defrosting or on our website. 9.1 Defrosting in the refriger- ator compartment 10.2 Preparing the appliance for cleaning When the appliance is operating, condensation droplets or frost form Switch off the appliance. -
Page 16: Cleaning The Condensation Channel And Drainage Hole
en Cleaning and servicing If liquid gets into the drainage hole, 10.5 Cleaning the ventilation the evaporation pan may overflow. grille The rinsing water must not get into ▶ the drainage hole. Remove the exterior ventilation If you clean fittings and accessories grille for cleaning. -
Page 17: Removing The Fittings
Cleaning and servicing en Removing pull-out containers 10.6 Removing the fittings Lift the pull-out container and re- ▶ If you want to clean the fittings thor- move it. oughly, remove these from your ap- pliance. Removing the shelf Lift the shelf, pull it forwards and ▶... -
Page 18: Troubleshooting
en Troubleshooting Troubleshooting 11 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 19 Troubleshooting en Fault Cause and troubleshooting The LED lighting does not work. The base of the refri- The condensation channel or drainage hole are gerator compartment blocked. is wet. Clean the condensation channel and the drainage ▶ hole. → Page 16 The appliance hums, Not a fault.
-
Page 20: Storage And Disposal
en Storage and disposal 11.1 Power failure 12.2 Disposing of old appli- ance During a power failure, the temperat- ure in the appliance rises; this re- Valuable raw materials can be re- duces the storage time and the qual- used by recycling. ity of the frozen food. The stored frozen food is cooled to WARNING the temperature increase time spe-... -
Page 21: Customer Service
Customer Service en 13.1 Product number (E-Nr.) Customer Service 13 Customer Service and production number If you have any queries, are unable to Customer Service (FD) rectify faults on the appliance your- You can find the product number (E- self or if your appliance needs to be Nr.) and the production number (FD) repaired, contact Customer Service. - Page 24 Gaggenau Hausgeräte GmbH Carl-Wery-Straße 34 81739 München GERMANY www.gaggenau.com...
