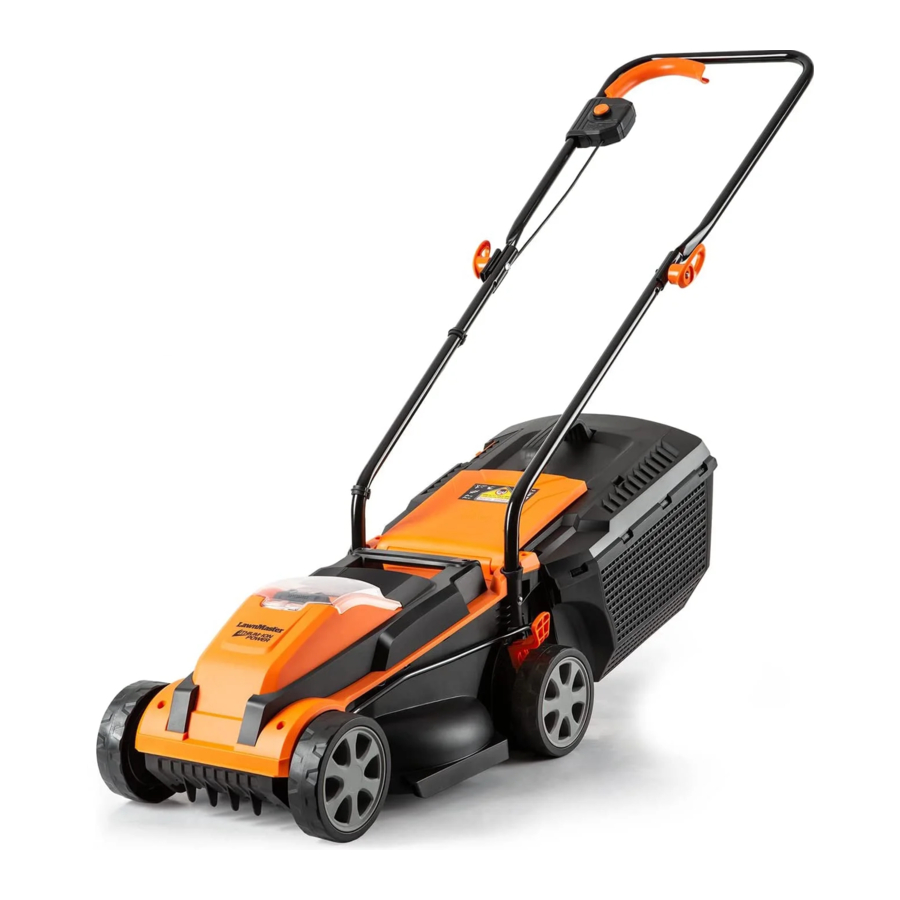

LawnMaster CLM2413A (20VMWGT) Manual

SPECIFICATIONS

24V MAX* CORDLESS MOWER

*Maximum initial battery workload voltage (measured without a workload) is 24 volts. Nominal voltage is 21.6 volts.

IMPORTANT SAFETY INSTRUCTIONS

• Use lawn mower for the correct purpose. Do not use lawn mower for any job except that for which it is intended.

OPERATION

• Only operate the equipment in daylight or good artificial light.
• Extinguish all cigarettes, cigars, pipes and other sources of ignition prior to operating the lawn mower.
• Avoid holes, ruts, bumps, rocks, or other hidden hazards. Uneven terrain could overturn the machine, or cause operator to lose their balance or footing.
• Do not put hands or feet near under rotating parts or the lawn mower. Keep clear of the discharge opening at all times. Always wear safety glasses with side shields. Everyday glasses have only impact resistant lenses.
• They are NOT safety glasses. Following this rule will reduce the risk of eye injury. Use face mask if operation is dusty. Wear safety glasses or goggles that are marked to comply with ANSI Z87.1 standard when operating this product. Do not leave a running lawn mower unattended.
• Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing. Stop the blade(s) when crossing gravel drives, walks, or roads.
• If the equipment should start to vibrate abnormally, stop the motor and check immediately for the cause. Vibration is generally a warning of trouble. Stop the motor and disconnect the battery whenever leaving the equipment, before cleaning the mower housing, and before making any repairs or inspections. Shut the motor off and wait until the blade comes to a complete stop before removing the grass collection bag or before unclogging the chute.
• Mow across the face of slopes, never up and down. Exercise extreme caution when changing direction on slopes. Do not mow excessively steep slopes.
• Always keep the equipment in gear when going down slopes. Do not coast downhill Avoid starting and stopping on slopes.
• Avoid making sudden changes in speed or direction. Make turns slowly and gradually. Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. Never assume that children will remain where you last saw them.
• Keep children out of the operating area and under the watchful care of a responsible adult other than the operator.
• Do not force lawn mower. It will do the job better and safer at the rate for which it was designed.
• Do not overreach. Keep proper footing and balance at all times.
• Stay alert. Watch what you are doing. Use common sense. Do not operate lawn mower when you are tired.
• Avoid mowing wet grass. Poor footing could cause a slip and fall accident.
• Use extra care while operating the equipment with a grass collection bag or other attachment(s). They can affect the stability of the machine.
• Thoroughly inspect the area where the equipment is to be used and remove all stones, sticks, wires, bones, and other foreign objects.

• Never attempt to make a wheel height adjustment while the motor is running.

MAINTENANCE AND STORAGE

• Use caution when servicing blades. Wrap the blade(s) or wear gloves. Replace damaged blades. Do not repair or alter blade(s).
• Disconnect lawn mower. Disconnect the battery when not in use, before servicing, when changing accessories such as blades.
• Store idle lawn mower indoors. When not in use, lawn mower should be stored in an indoor dry and locked-up place-out of reach of children.
• Maintain lawn mower with care. Keep cutting edges sharp and clean for best and safest performance. Check the blade and the engine mounting bolts at frequent intervals for proper tightness.
• Do not wash with a hose; avoid getting water in motor and electrical connections.
• Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.
• Check grass collection bag frequently for deterioration and wear, and replace worn bags. Check that replacement bags comply with the original manufacturer's recommendations or specifications.
• Replace the blade if it is bent or cracked. An unbalanced blade causes vibration that could damage the motor drive unit or cause personal injury.
• Clean the blade thoroughly and check its balance by supporting it horizontally on a thin nail through its center hole. The nail should also be in a horizontal position. If either end of the blade rotates downward, shave some metal from the heavy or lower end until the blade is balanced. It is balanced when neither end drops.
• Follow instructions for lubricating and changing accessories.
• Keep guards in place and in working order.
• Keep blades sharp.
• Keep hands and feet away from cutting area.
• Objects struck by the lawn mower blade can cause severe injuries to persons. The lawn should always be carefully examined and cleared of all objects prior to each mowing.
• If lawn mower strikes a foreign object, follow these steps:
  • Stop lawn mower. Release the switch.
  • Disconnect the battery.
  • Inspect for damage.
  • Repair any damage before restarting and operating the lawn mower
• When servicing use only identical replacement parts.
• Never pull the mower back toward you while you are walking. If you must back the mower away from a wall or an obstruction, first look down and behind in order to avoid tripping, and then follow these steps:
• Step back from the mower in order to fully extend your arms. Be sure that you are well balanced. Pull the mower back slowly.

BATTERY PACK

• The battery pack is only compatible with 24LFC14-ETL, 24LFC02-ETL or 24LSC01 -ETL chargers.
• Recharge only with the charger specified by the manufacturer and listed in this manual. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Do not charge battery in a damp or wet location. Following this rule will reduce the risk of electric shock.

• Do not place battery powered lawn mowers or their batteries near fire or heat. This will reduce the risk of explosion and possibly injury.
• Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed. Do not dispose of battery packs in fire. They will explode or leak and cause injury. Liquid ejected from the battery may cause irritation or burns.
• Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has been dropped or received a sharp blow. A damaged battery is subject to explosion. Properly dispose of a dropped or damaged battery immediately.
• Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open flame. An exploded battery can propel debris and chemicals. If exposed, flush with water immediately.
• Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water. If liquid gets into your eyes, flush them with clean water for at least 10 minutes, then seek immediate medical attention. Following this rule will reduce the risk of serious personal injury.
• When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Do not expose a battery pack or lawn mower to fire or excessive temperature. Exposure to fire or temperature above 2650F (1300C) may cause an explosion.
• Do not modify or attempt to repair the lawn mower or the battery pack (as applicable) except as indicated in the instructions for use and care.
• Follow all charging instructions and do not charge the battery pack or lawn mower outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire. All tool services should be performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

BATTERY CHARGER

• This charger is only compatible with 24LB4005-C, 24LB1304, 24LB2004, 24LB2605, or 24LB4005 lithium-ion batteries.
• To reduce the risk of injury, charge only the specified lithium-ion rechargeable batteries- Other types of batteries may burst, causing personal injury or damage.
• Keep cord and charger away from heat to prevent damage to housing or internal parts
• Do not operate charger with a damaged cord or plug, which could cause shorting and electric shock. If damaged, immediately discontinue use. Replace the charger with the identical unit as listed in the Parts List of this manual.
• Do not use a charger that has been dropped or received a sharp blow.
• Do not disassemble charger. Take it to a qualified service center for check or replacement. Incorrect reassembly may result in a risk of electric shock or fire.
• Do not abuse the charger cord. Never use the cord for carrying, pulling or unplugging.
• Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. If the charger cord is damaged, replace the charger with an identical model as listed in this manual.
• A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Charge the battery at the normal charging temperature between 40ºF (4ºC) and 100º F (38ºC).

SYMBOLS

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.

SYMBOL	NAME	DESIGNATION/EXPLANATION
	Volts	Voltage
	Direct Current	Type or a characteristic of current
A	Amperes	Current
Hz	Hertz	Frequency (cycles per second)
W	Watts	Power
hrs	Hours	Time
	Class II Construction	Double-insulated construction
	Safety Alert	Precautions that involve your safety.
	Read the Operator's Manual	To reduce the risk of injury, user must read and understand Operator's Manual before using this product.
	Do not mow up and down slopes!	To avoid the risk of injury do not mow up and down slopes. Always mow across slopes. (Angle S150)
	Keep all persons and pets at a safe distance from the mower while operating!	To avoid the risk of injury to bystanders keep all persons and pets at a safe distance from the mower while operating.
	Keep hands and feet clear of mower deck and discharge opening at all times!	Rotating blades can cause serious injury. Keep hands and feet clear of mower deck and discharge opening at all times. Always be sure blade has stopped after releasing switch lever and removing battery before removing and replacing collection bag, cleaning, servicing, transporting or lifting the mower.
	Stay behind the handle when the motor is running!	Objects struck by mower blade can cause serious injury. Stay behind the handle when the moto is running. Always ensure persons and pets are clear of the discharge from the mower while operating.
	Do not open or remove safety shields	Do not open or remove safety shields while the motor is running.
	Look behind while backing	Look behind while backing the mower in order to avoid tripping.
	Keep hands and feet away	Keep hands and feet away.
	Cutting Width	Cutting diameter.
	Lithium-Ion Battery Recycling	Designates that this tool is in compliance with lithium-ion battery recycling program requirements.
	Keep Away From Water	Do not dispose of battery packs in rivers or immerse in water.
	Keep From Fire	Do not dispose of battery packs in explode or leak and cause injury.
	Heat Alert	Do not expose battery packs to heat in excess of 600C (1400F).

The following signal words and meanings are intended to explain the levels of risk associated with this product.

SYMBOL	SIGNAL	MEANING
	DANGER	Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
	WARNING	Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
	CAUTION	Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
	NOTICE	(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

Components

1. Upper Handle
2. Locking Knob
3. Lower Handle
4. Grass Collection Bag Handle
5. Rear Safety Flap
6. Grass Collection Bag
7. Cutting Height Adjustment Lever
8. Wheel (x4)

KNOW YOUR LAWN MOWER
The safe use of this product requires an understanding of the information on the product and in this Operator's Manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.

ASSEMBLY

UNPACKING
This product requires assembly.

• Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included.
• Inspect the product carefully to make sure no breakage or damage occurred during shipping
• Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
• If any parts are damaged or missing, please call Customer Service (Toll free number 866-384-8432).

YOU WILL NEED (ITEMS NOT SUPPLIED)

• Suitable Personal Protective Equipment

PACKING LIST
(1) Mower
(1) Safety Key (Attached inside the Battery Pack Compartment of Mower)
(1) Grass Collection Bag Assembly
(1) Upper Handle Assembly
(2) Lower Handle Assembly
(2) Cable Clips
(2) Locking Knobs
(2) Bolts
(1) Operator's Manual
(1) 24V Lithium-ion Battery Charger
(2) 24V 4.0Ah Lithium-ion Battery Packs
NOTE: The safety key must be installed for mower to operate.
DO NOT FORCE IT!

If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to heed this warning could result in serious personal injury. Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury, and will void the warranty. Do not connect power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury. Never operate the mower without the proper safety devices in place and working. Never operate the mower with damaged safety devices. Failure to heed this warning can result in serious personal injury.

ASSEMBLING THE LOWER HANDLE

1. Insert the lower handles into the slots on the lawnmower housing. Ensure the handles are secured into place (Fig. 1).


ASSEMBLING THE UPPER HANDLE

1. Fix the upper handle using the bolts, cable guide (pre-installed on cable) and the locking knobs, and tum the locking knob clockwise till it tightens (Fig. 2). There are two possible positions.
   NOTE: Make sure the cable guide is installed correctly on one side of the upper handle as shown to avoid cable damage when the upper handle is folded up and down.

2. Secure the control cable with the cable clips (Fig. 3).


ASSEMBLING THE GRASS COLLECTION BAG

1. Check the grass collection bag before assembling to make sure there is no damage.
2. Insert the grass collection bag handle in the slots on the upper cover of grass collection bag Ensure the handle is securely 'clicks' into place (Fig. 4).

3. Align the cover and base of the grass collection bag at the front. Clip the two halves together, starting at the front and then moving to the sides (Fig. 5).

4. Slide the tongue into the front section of the grass collection bag and ensure it is securely placed (Fig. 6).

5. The completely assembled grass collection bag is as shown as below (Fig. 7).


INSTALLING AND REMOVING THE GRASS COLLECTION BAG
NOTE: The safety flap is spring operated. Ensure you have a firm grip when opening and closing to avoid personal injury.

Installing the grass collection bag:

1. Lift the rear safety flap and hold it in position (Fig. 8).

2. Lift the grass collection bag by its handle, and place the grass collection bag on the notches under rear safety flap (Fig. 9).

3. Release the rear safety flap.
4. Make sure the grass collection bag is firmly seated on the notches and the safety flap rests firmly against the top of the grass collection bag.

Removing the grass collection bag:

1. Lift the rear safety flap and hold it in position.
2. Lift the grass collection bag by its handle, and unhook the grass collection bag from the mower.
3. Release the rear safety flap.

To remove battery pack:

1. Stop the lawn mower. Lift the battery compartment cover and remove the safety key.
2. Press the release button on the battery pack (1), grasp the battery pack firmly and pull out (2) of the battery compartment (Fig. 12).

3. Close the battery compartment cover.

BATTERY PACK AND CHARGER

BATTERY CHARGING

1. Use only with 24V Lawn Master®' battery chargers. The battery charger supplied is specifically designed for the lithium-Ion battery used in this garden appliance.
2. Check the power voltage! Battery chargers operate on 120 V.
3. The battery is charged between 40ºF (4ºC) and 104ºF (40ºC). This ensures an optimum battery service life.
4. Protect the battery from heat, from continuous exposure to sun and keep away from radiation or other heat sources. Do not leave the battery in the mower in direct sunlight over long periods.
5. The battery is supplied partially charged. To ensure full capacity of the battery, charge the battery' before using your appliance for the first time. The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not affect the battery

LED CHARGER STATUS

1. If the battery is not inserted into the charger, a continuous red LED light indicates that the charger is plugged into a power supply socket and is now ready to begin charging.
2. Charging: A flashing green LED on the charger indicates that the battery is charging normally.
3. Charged: Continuous green LED on the charger indicates that the battery is ready for use.

The indicator lights on the charger show the charger status:

SYMBOL	INDICATOR	LIGHTS	STATUS
		Red, blinking	Charging paused. See Technical Issue.
		Red, continuous	Connected to power supply.
		Green, blinking	Charging.
		Green, continuous	Fully charged.

4. The intelligent charger ensures maximum battery life, because it measures the existing charge level of the battery and then charges with the required current and voltage. Charge battery fully before storage.
5. Technical Issue: A flashing red LED light on the charger indicates that battery pack has a charging problem or might be defective.
   1. One possible condition is the battery temperature is not within the charging temperature range of 40ºF (4ºC) and 104ºF(40ºC).As soon as the permitted temperature is reached, the battery charger will automatically switch to charging.
   2. If the temperature range is correct and flashing red LED light continues, then remove and reinstall the battery pack. If the LED status repeats a second time, try to charge another identical battery. If the battery charges normally, dispose of the defective battery pack (see Environmental Safe Battery Disposal section).
   3. If the flashing red light continues after installing the second battery (ensure the battery temperature is normal), the charger may be defective. Replace with a new one.

6. After continuous or repeated charging cycles without interruption, the charger may warm up. This is normal and does not indicate a technical defect of the battery charger.

BATTERY LED PANEL

LEDs on Battery (Continuous Lighting)	Battery Capacity
4 LEDs (inc 2 green)	Fully charged.
3 LEDs (inc 1 green)	50%
2 LEDs (orange & red)	25%
1 LED (red only)	<25% (Recharge required).

1. The panel consists of 4 LEDs on the battery Press and hold the button, then release it, the LEDs will show you the charge levels.
2. The battery's charge level can be checked either when the battery is attached on the machine or removed from the machine.

1. Align the slot of the battery pack with the rail on the charger. Slide the slot onto the rail until the battery pack secures into place (Fig. 13).

2. Connect the charger to the power supply.
3. Allow sufficient charging time (see Specifications), and then disconnect the charger from the power supply.
4. Press the release button on the battery pack and remove it from the charger.

NOTE: It is normal for the battery pack and the charger to become warm (but not hot) during charging process. If the battery does not charge properly, check to make sure the electrical outlet is operational. Always charge the battery before storage!

OPERATION

GRASS COLLECTION BAG FULL INDICATOR (FIG. 16)
The collection bag is equipped with a capacity indicator flap that indicates the filling volume during the mowing process.

1. When the grass collection bag full indicator is opened (during operation), the collection bag has efficient volume left to collect grass.
2. When the grass collection bag full indicator closes during the mowing operation, the collection bag needs to be emptied.

GENERAL OPERATION
Check the product, its power cord, and accessories for damage before each use. Before use, please ensure all power connections are in good working order prior to installing the power key and battery. If damage is present or observed, please stop, and have mower serviced before use. Do not use the product if it is damaged or shows wear.

1. Double-check that the blade is properly installed.
2. Always hold the product by its handles. Keep the handles dry to ensure safe support.
3. Switch the equipment off immediately if someone enters the work area. Always let the equipment come to complete stop before removing the grass collection bag.
4. Do not overwork yourself. Take regular breaks to ensure you can concentrate on the work and have full control over the product.

MOWING TIPS

1. Make sure the lawn is clear of stones, sticks, wires, and other objects that could damage the lawn mower blades or motor- Such objects could be accidentally thrown by the mower in any direction and cause serious personal injury to the operator and others.
2. For a healthy lawn, always cut off one-third or less of the total length of the grass.
3. When cutting heavy grass, reduce walking speed to allow for more effective cutting and a proper discharge of the clippings.
4. Do not cut wet grass. It will stick to the underside of the deck and prevent proper mulching of grass clippings.
5. New or thick grass may require a narrower cut.
6. Clean the underside of the mower deck after each use to remove grass clippings, leaves, dirt, and any other accumulated debris.
7. Mow in slight overlapping rows. The most effective pattern for mowing lawns is in straight lines along one of the sides. This will keep the rows even and ensure that the lawn is cut without missing any spots (Fig. 17).


MOWING ON A SLOPE (Fig. 18)

1. Slopes are a major factor related to slip and fall accidents that can result in severe injury. Mowing on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. For your safety, do not attempt to mow slopes greater than 15 degrees.
2. Mow across the face of slopes, not up and down. Exercise extreme caution when changing direction on slopes.
3. Watch for holes, ruts, rocks, hidden objects, or bumps which can cause you to slip or trip. Tall grass can hide obstacles. Remove all objects such as rocks, tree limbs, etc., which could be tripped over or thrown by the blade.
4. Always be sure of your footing. A slip and fall can cause serious personal injury. If you feel you are losing your balance, release the start/stop bale switch immediately.
5. Do not mow near drop-offs, ditches, or embankments; you could lose your footing or balance.

AFTER USE

1. Switch the product off, remove the battery pack and let it cool down.
2. Check, clean and store the product as described below.

STORING THE MOWER

1. Remove mower safety key and battery.
2. Turn mower on its side and clean grass clippings that have accumulated on the underside of the mower deck.
3. Wipe the mower clean with a dry cloth.
4. Check all nuts, bolts, knobs, screws, fasteners, etc., for tightness.
5. Inspect moving parts for damage, breakage, and wear. Have repairs made on any damaged or missing parts.
6. Store mower indoors in a clean, dry place out of the reach of children.
7. Do not store near corrosive materials such as fertilizer or rock salt. To lower the handle before storing:
   • Remove and clean the grass collection bag.
   • Fully loosen the handle locking knobs on the sides of the handle and fold the upper handle down (Fig. 23).

   • To save the space, the grass collection bag can be put on the mower.

PARTS LIST

Replacement parts highlighted in gray are available for after sales purchase. Replacement of repair or internal parts should only be done by a qualified service professional. Please contact your authorized service dealer or Customer Service at 866-384-8432.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download LawnMaster CLM2413A (20VMWGT) Manual
