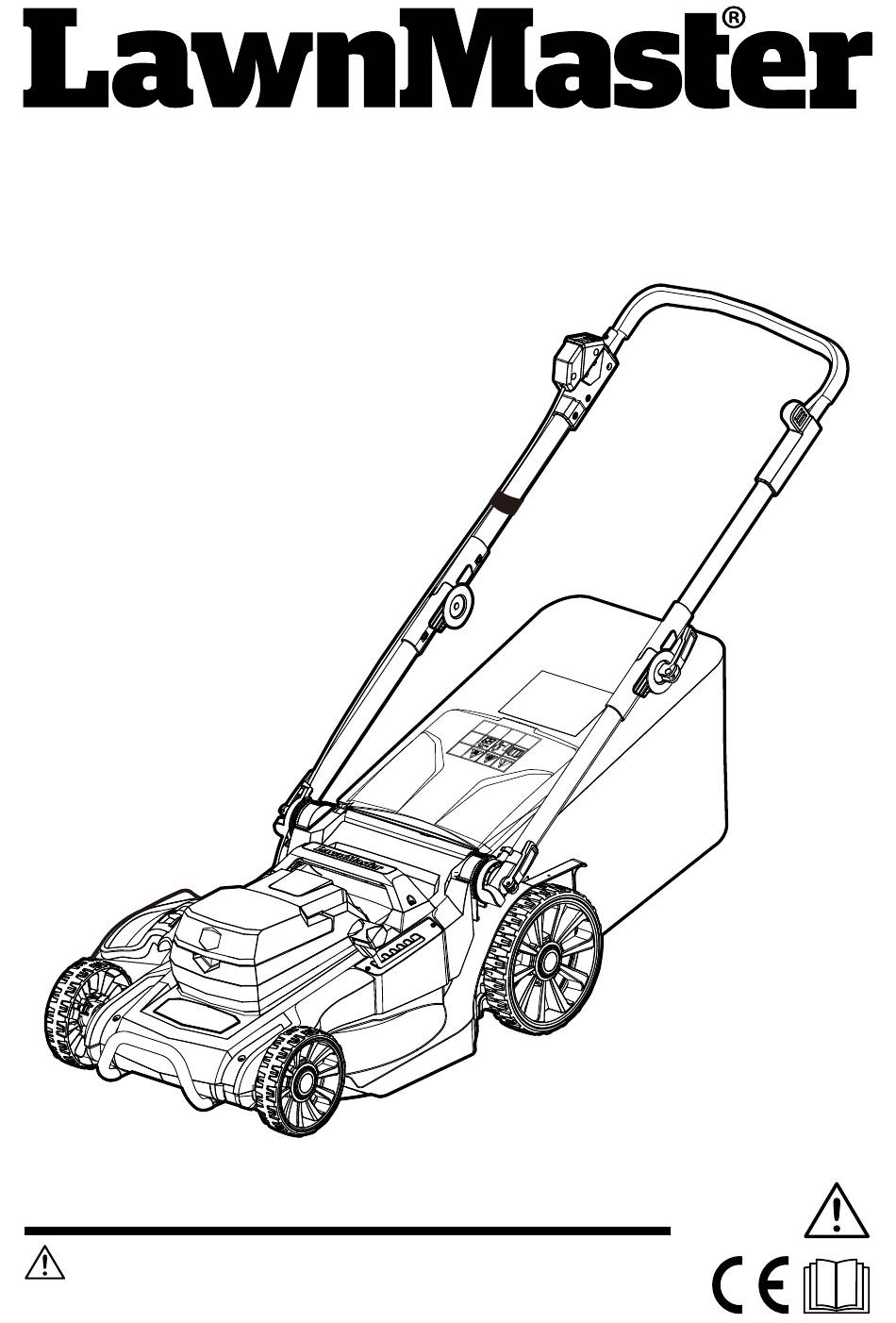

Instruction Manual

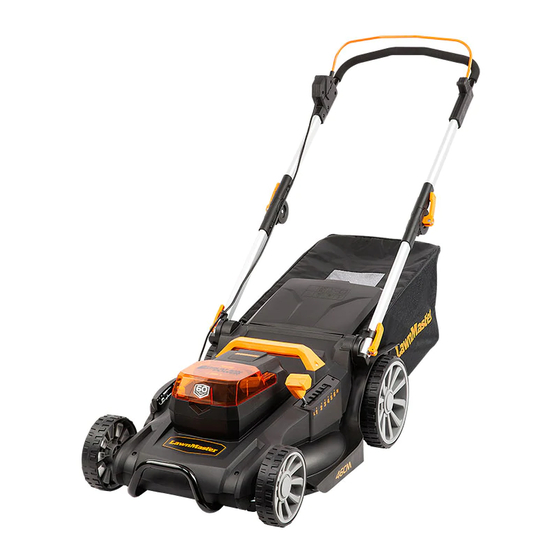

46cm 60V MAX* Lithium-Ion Cordless Mower CLMFR6046A
Original Instructions
WARNING:
Read all safety instructions carefully before assembling and operating
this machine. Ensure the machine has been assembled correctly and safely. Keep the
instructions safe and pass them on to any subsequent user so that the information is always
available.
Advertisement
Table of Contents
Related Manuals for LawnMaster CLMFR6046A
Summary of Contents for LawnMaster CLMFR6046A
-
Page 1: Instruction Manual
Instruction Manual 46cm 60V MAX* Lithium-Ion Cordless Mower CLMFR6046A Original Instructions WARNING: Read all safety instructions carefully before assembling and operating this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions safe and pass them on to any subsequent user so that the information is always... - Page 3 Fig.1 Fig.2 Fig.3 Fig.4 Fig.5 Fig.6 Fig.7 Fig.8...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Section Page Symbols Safety Information 7-16 In the Box Assembly 17-20 Operation 21-25 Maintenance 26-29 Troubleshooting 30-31 Specifications Recycling and Disposal... -
Page 5: Symbols
SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the appliance. SYMBOL DESIGNATION/EXPLANATION Caution Read instruction manual. Keep bystanders away. Beware of sharp blades. Blades may continue to rotate after the motor is switched off. - Page 6 SYMBOLS SYMBOL DESIGNATION/EXPLANATION Do not subject the battery to direct sunlight over long periods and do not leave it on or near a heat source (max. 60°C). Recycle electrical waste products in an environmentally safe way where facilities exist. WARNING To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the instruction manual.
-
Page 7: Safety Information
SAFETY INFORMATION IMPORTANT When using equipment, the following safety precautions must be followed to avoid injuries and damage: ■ Read all operating instructions carefully and comply with them. It is important to understand these instructions and to acquaint yourself with the machine, its correct usage and all safety requirements. - Page 8 SAFETY INFORMATION and remove the battery pack and isolator key. ■ Never operate the machine while people, especially children, or pets are nearby. ■ Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that may obscure your view of a child or animal that may run into the path of the mower.
- Page 9 SAFETY INFORMATION ■ Walk, never run. ■ Mow across the face of slopes, never up and down. ■ Exercise extreme caution when changing direction on slopes. ■ Use extreme caution when reversing or pulling the mower towards you. ■ Stay Alert: Do not operate the mower when you are tired. Pay attention to what you are doing.
- Page 10 SAFETY INFORMATION ■ Never pick up or carry the machine while the motor is running. ■ Do not carry the machine with your finger on the switch. ■ Do not overreach. Keep proper footing and balance at all times. ■ Do not use a machine if the switch does not turn it on and off.
- Page 11 SAFETY INFORMATION injury. ■ Do not hold on to the mower if you are falling. Release the handle immediately. ■ Do not use the mower for any job except that for which it is intended. Do not force the mower. ■...
- Page 12 SAFETY INFORMATION damaged safety devices. Doing so can result in injury. ■ Ensure that the isolator key is not installed when the mower is not in use. This prevents accidental starting of the machine. ■ Replace worn or damaged parts for safety. Use only genuine replacement parts and accessories.
- Page 13 SAFETY INFORMATION temperature between 0°C and 25°C. Battery Safety Information ■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
- Page 14 SAFETY INFORMATION skin, wash immediately with soap and water. If liquid gets into your eyes, flush them with clean water for at least 10 minutes, then seek immediate medical attention. ■ When the battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.
- Page 15 SAFETY INFORMATION manual. If the power cord for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a fully qualified personal in order to prevent hazards. ■ The plug of the charger must match the outlet. Never modify the plug in any way.
-
Page 16: In The Box
SAFETY INFORMATION Intended Use This lawnmower is designed for domestic use only: ■ This cordless lawnmower is intended for mowing lawns in domestic and hobby gardens. ■ This product is not to be used in wet weather conditions and may not be used to mow wet or unusually high grass. ■... -
Page 17: Assembly
ASSEMBLY Assembly Preparation ■ Carefully remove all contents from the product packaging. ■ Ensure you have all the accessories and tool(s) needed for assembly and operation. This also includes suitable personal protective equipment. WARNING If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to pay attention to this warning could result in serious personal injury. - Page 18 ASSEMBLY ■ To tighten the lever, rotate clockwise and lock into position by folding inwards towards the upper handle. Do not use excessive force; this may damage the levers (Fig. 4). ■ Ensure the cable is secured against the handle frame with the supplied cable fasten strap. Assembling the Grass Collection Bag (See Figs.
- Page 19 ASSEMBLY NOTE: The mulching plug MUST be removed if collection bag is used during mowing operation. This mulching plug prevents grass from being collected by blocking the collection chute. This allows the grass clippings to be deposited back on the lawn during cutting. This finely cut grass acts as a nutrient for the lawn.
- Page 20 ASSEMBLY To install the battery pack: ■ Open the battery compartment cover on top of the mower deck. ■ Align the support rails located within the battery chamber with the guides of the battery pack, and then insert the battery pack into the compartment. ■...
-
Page 21: Operation
Battery Pack Operation ■ Battery Charging ® • Use only with 60V Lawnmaster 60LFC03 battery charger. The battery charger supplied is specifically designed for the lithium-ion battery used in this garden appliance and may cause risk of fire if used with a non-compatible battery pack. - Page 22 OPERATION • Protect the battery from heat, from continuous exposure to sun and keep away from radiation or other heat sources. Do not leave the battery in the mower in direct sunlight over long periods. • The battery is supplied partially charged. To ensure full capacity of the battery, charge the battery before using your appliance for the first time.
- Page 23 OPERATION • Charged: continuous green LED on the charger indicates that the battery is ready for use. Wait until the cooling fan stops, remove the battery pack from the charger and disconnect the charger from the power supply. • Charging paused: a flashing red LED light on the charger indicates that charging is paused.
-
Page 24: General Operation
OPERATION iPower Mode Indicator (See Fig. 20) Push the press button repeatedly to cycle through the different motor power output levels (Fig. 20). By default, the mower power is set to “AUTO”. Motor Power Output Level Runtime Mode Indicator on Panel Automatically adjust to suit your lawn conditions. - Page 25 OPERATION Mowing (See Figs. 21-22) ■ Make sure the lawn is clear of stones, sticks, wires, and other objects that could damage the lawn mower blades or motor. Such objects could be accidentally thrown by the mower in any direction and cause serious personal injury to the operator and others. ■...
-
Page 26: Maintenance
MAINTENANCE WARNING Always switch the product off, disconnect the battery pack and isolator key and let the product cool down before performing inspection, maintenance and cleaning work! WARNING If a part becomes warn or damaged, use recommend manufacture replacement parts. Use of any other parts may create a hazard or cause product damage. - Page 27 MAINTENANCE Replacing the Mower Blade (See Figs. 23-24) NOTE: Remove the isolator key and battery before performing any maintenance! NOTE: If the blade is blunt, damaged or showing signs of imbalance, it must be replaced. Use recommended replacement blades. ■ Stop the motor and allow the blade to come to a complete stop. ■...
-
Page 28: Cleaning The Mower
MAINTENANCE To check the blade balance: ■ Clamp a screwdriver horizontally in a vise as shown. NOTE: If a vise is not available, a straight nail can also be used. ■ Place the centre hole of blade on the screwdriver (or nail) (Fig. 26). ■... - Page 29 MAINTENANCE The underside of mower deck should be cleaned after each use as grass clippings, leaves, dirt and other debris may accumulate causing rust and corrosion. ■ Remove any buildup of grass and leaves on or around the motor cover (do not use water). Wipe the mower clean with a dry cloth occasionally.
-
Page 30: Troubleshooting
TROUBLESHOOTING WARNING Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by a qualified specialist. Gloves and appropriate protective clothing must be worn when performing these instructions. Always turn off the machine and remove the battery pack and isolator key before making any adjustment. - Page 31 TROUBLESHOOTING Wet grass clippings are sticking Wait until the grass dries before to the underside of the deck. mowing. Mower does not mulch properly. Missing mulching plug. Install the mulching plug. Check underneath the mower and clear out as necessary Possible clogging.
-
Page 32: Specifications
SPECIFICATIONS 60V Cordless Mower CLMFR6046A Voltage 60V MAX* No Load Speed 3200-3300-3400 /min Cutting Width 46cm Cutting Height Adjustment 25/35/45/55/65/75mm (6 Positions) Grass Collection Box Capacity Functions 4-in-1: Mulch, Rear Bag, Rear Discharge, Side Discharge Wheel Size 170/235mm Degree of Protection... -
Page 33: Recycling And Disposal
RECYCLING AND DISPOSAL This marking indicates that this product should not be disposed with other household wastes throughout the EU. The machine must be delivered in rigid packaging to avoid damage during transportation. The packaging and the machine itself are manufactured from recyclable materials and should be disposed of accordingly. - Page 34 Fig.9 Fig.10 Fig.11 Fig.12 Fig.13 Fig.14 Fig.15 Fig.16 Fig.17 Fig.18 Fig.19 Fig.20 Fig.21 Fig.22 Fig.23 Fig.24 Fig.25 Fig.26 Fig.27 Fig.28...
