LawnMaster CLMB4016K - Cordless Mower Manual

Read all safety rules and instructions carefully before operating this tool.

SPECIFICATIONS

40V CORDLESS MOWER

Battery Type	40V MAX* Lithium-Ion
Charger Time	1.5 H
No-load Speed	3500 r/min
Cutting Width	16 Inch (40 cm)
Height Adjustments	6 Position (1"-3") (25-75mm)
Functions	2-in-1: Mulch, Rear Bag
Wheel Size	6.5" (Front) / 10" (Rear)
Unit Weight	40.8 Lbs (18.5Kg)

* Maximum initial battery workload voltage (measured without a workload) is 40 volts.
Nominal voltage is 36 volts

INTRODUCTION

This product has many features for making its use more pleasant and enjoyable.

Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate.

FEATURES

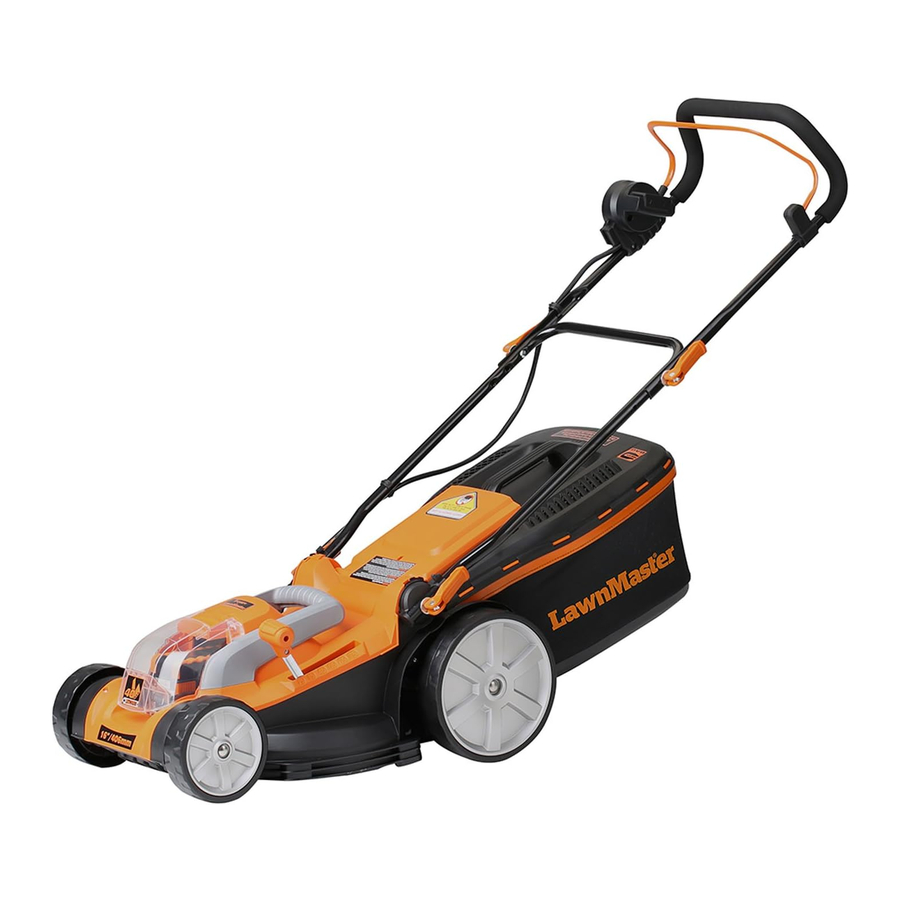

KNOW YOUR LAWN MOWER (See Fig 1)

The safe use of this product requires an understanding of the information on the product and in this operator's manual as well as a knowledge of the project you are attempting.

Before use of this product, familiarize yourself with all operating features and safety rules.

1. Start/stop Bale Switch
2. Safety Switch Button
3. Cord Clips
4. Locking Lever X4
5. Collection Bag Capacity Indicator
6. Lower Handle
7. Mower Carry Handle
8. Battery Compartment Cover
   1. Battery Compartment
   2. Electric Contact X2
9. Wheel
10. ipower Control Panel
    1. ipower Mower Mode Indicator
    2. ipower Battery Meter Indicator
11. Upper Handle
12. Safety Key
13. Collection Bag Handle
14. Safety Flap
15. Collection Bag
16. Cutting Height Adjustment Lever
17. Deck
18. Carriage Bolts X 2
19. Capacity Indicator Flap
20. Foam Grip
21. Washer (Large) X4
22. Mulching Plug
23. Attachment Plate Bolts (one on each side)
24. Tilt Adjustment Mechanism
25. Power Cord
    2. Battery Pack
    3. Charger

NOTE: the above parts and their associated number/letters will be used throughout this manual to identify parts.

Unpack

This product requires assembly.

• Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. Look under the interior bottom carton flaps for any missing small items.
• Inspect the product carefully to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
• If any parts are damaged or missing, please call 1 866-384-8432.
  DO NOT TAKE BACK TO WHERE PURCHASED

YOU WILL NEED (ITEMS NOT SUPPLIED)

• Screwdriver, crosshead
• Suitable personal protective equipment

PACKING LIST

Mower
Safety Key (must be installed for mower to work)
Mulch Plug - Comes installed from factory at rear of mower
Grass Collection Bag Assembly
Battery Charger
40V Lithium-Ion Battery
Hardware Pack
Operator's Manual

NOTE: The safety key must be installed for mower to operate. The safety key only fits into the switch in one direction. DO NOT FORCE IT!!!

ASSEMBLY

If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to heed this warning so could result in serious personal injury.
Do not attempt to modify this product or create accessories not recommended for use with this product.
Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.
Do not connect power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.
Never operate the mower without the proper safety devices in place and working. Never operate the mower with damaged safety devices. Failure to heed this warning can result in serious personal injury.

ASSEMBLING THE HANDLE (See Figs. 2-3)

• Insert lower handles (6) ONTO and over the exposed Attachment plate bolts at the rear of the motor housing. Make sure the power cord clips (3) on the handles are BOTH facing up. On each side, place washer (21) over bolt tip and thread locking lever (4) onto it. Fold locking lever (4) down to secure handle into position. (Fig. 2)

  NOTE: For ease of use, the overall handle pitch angle can be raised or lowered by choosing an attachment point that is higher or lower on the attachment plate. (Fig. 2)
• Attach the upper handle (11) to the lower handle (6) using attachment plate bolts (23), washer (21) and locking levers (4). There are three adjustment positions. Choose the position which is best for you. (Fig. 3)

• Secure the handle into position by turning the locking lever (4) to tighten and then folding the lever down. Do not apply excessive force to fold the lever down or it may break. Loosen the lever to the point where it will fold down without breaking. (Fig. 4)

• Secure the power cord (25) with the cord clips (3). (Fig. 5)


ASSEMBLING THE REDI BAG (COLLECTION BAG) (See Figs. 6)

• Your Lawnmaster mower comes with a tool-less collection bag (15). Your REDI-bag ships flat as shown.
• To assemble the REDI-bag straighten the hinged steel frame at opening of bag as shown.
• Pry open the long soft plastic tubular sleeve with you fingers and insert the steel frame into the tube as shown.
• You fully assembled REDI-bag as shown below.

INSTALLING THE COLLECTION BAG (See Fig. 7)

NOTE: When using the collection bag, do not install the mulch plug (22).

• Lift the rear safety flap (14).
• Lift the collection bag by its handle (13) and place under the rear safety flap (14) so that the hooks on the collection bag are seated on the door rod.
• Release the rear safety flap (14).
• Mulch plug (22) MUST be removed prior to installing collection bag.

INSTALL / REMOVE THE BATTERY PACK

TO INSTALL BATTERY:

• Open the plastic battery compartment cover (8) at front of mower.
• Install the battery pack (25b) into the battery compartment (8a) by aligning the battery and sliding battery until battery locks into place.
• The battery pack (25b) can only be installed in one direction. Ensure it slides smoothly along the support rails and make sure that the electric contacts (8b) are fully inserted into the battery pack (25b) and that it snaps into position (Fig. 8).

• Close the battery battery compartment cover (8).
• Your product is now ready to be used.
• Stop the machine. Remove the safety key (12).
• Open the battery compartment cover (8).
• Push on both release buttons on the battery pack (25b) (Fig. 9, STEP 1).

• Slide the battery pack (25b) off the electric contacts (8b) (Fig. 9, STEP 2).
• Close the battery compartment cover (8).

Do not connect the battery and/or the isolator key before the product is completely assembled.

INTENDED USE

This cordless lawnmower is designated with the LawnMaster 40V Lithium-Ion battery. The product is intended for mowing and mulching grass in domestic yards only. It must not be used to mow unusually high, dry or wet grass, e.g. pasture grass, or for shredding leaves.

This product is intended for private domestic use only, not for any commercial trade use. It must not be used for any purposes other than those described.

SETTING CUTTING HEIGHT (See Fig. 10)

When shipped, the wheels (9) on the mower are set to a low-cutting position. Before using the mower for the first time, adjust the cutting position to the height best suited for your lawn.

The average lawn should be between 1" to 3".

To set the cutting height: 6 is highest setting 1 is lowest.

• To raise the cutting height, grasp the cutting height adjustment lever (16) and move it toward the back of the mower.
• To lower the cutting height, grasp the cutting height adjustment lever (16) and move it toward the front of the mower.

COLLECTION BAG CAPACITY INDICATOR

• The Collection bag (15) is equipped with a capacity indicator flap (19) that indicates the filling volume during the mowing process.
• When the capacity indicator flap (19) is opened (during operation), the Collection bag (15) has efficient volume left to collect grass.
• When the capacity indicator flap (19) closes during the mowing operation, the Collection bag (15) is full and must be emptied (Fig. 11).


HANDLE TILT ADJUSTMENT

• The tilt of the handle can be adjusted.
• Secure the lower handle [6] with the locking lever [4] according to your preference (Fig. 12).


EMPTYING

Empty the collection bag (15) frequently during use. Do not wait until it is completely full. We recommend emptying it when it is half full.

INSTALLING THE MULCHING PLUG

The mulching insert prevents grass from being collected by blocking the collection chute. This allows the grass clippings to be deposited back on the lawn during cutting.

Do not attach the collection bag (15) and the mulching insert at the same time.

• To lift the safety flap (14) and detach the grass collection box.
• Open the safety flap (14), hold it in position and insert the mulching plug into the rear discharge chute (Fig. 13). Ensure the unlock button snaps into place, as picture shown (Fig. 14).

• Press the unlock button to release and remove the mulching plug (Fig. 15).


iPOWER MOWER MODE INDICATOR (10a) (See Fig. 16)

Located on upper mower handle

• By default, the motor power is set to "AUTO" and will automatically adjust to your lawn.
• Push the press button repeatedly to cycle through the different motor power levels.
  • Set the motor power to "1", if your lawn needs only light mowing.
  • Set it to "2", if you are going to mow taller and thicker grass.
  • Set it to "3" to utilize the maximum motor power for mowing the most stubborn grass.

iPOWER BATTERY METER INDICATOR (10b) (See Fig. 16)

• Push the press button to check on the battery status.
• The number of lights lit will depend on the condition of the battery.
• lights indicate a fully charged battery, 1 light indicates the battery needs to be charged.

A flashing LED on the cutting mode control panel indicates that the current is too high. A flashing LED on the battery indicates that the voltage is too low. In either case the motor will be shut down automatically. Do not continue to activate the On/Off switch if the motor has been shut down automatically. The battery may be damaged.

OPERATION

STARTING / STOPPING

• To switch on, insert the safety key (12), press and hold the safety switch button (2) and gently pull the Start/stop bale switch (1) (Fig. 17-19). Once started, release the safety safety switch button (2).

• To power off the mower, release the Start/stop bale switch (1). Pull out the safety key if the mower is not going to be used immediately (Fig. 20).


GENERAL OPERATION

Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear.

• Double check that the blade is properly fixed.
• Always hold the product by its handles. Keep the handles dry to ensure safe support.
• Ensure that the air vents are always unobstructed and clear. Clean them if necessary with a soft brush. Blocked air vents may lead to overheating and damage the product.
• Switch the product off immediately if you are disturbed while working by other people entering the working area. Always let the product come to complete stop before removing the grass collection box.
• Do not overwork yourself. Take regular breaks to ensure you can concentrate on the work and have full control over the product.

MOWING

• Make sure the lawn is clear of stones, sticks, wires, and other objects that could damage the lawn mower blades or motor. Such objects could be accidentally thrown by the mower in any direction and cause serious personal injury to the operator and others.
• To reduce the possibility of disconnecting the lawn mower from the extension cord, ensure that the cord retainer is used.
• For a healthy plot of grass, always cut off one-third or less of the total length of the grass.
• When cutting heavy grass; reduce walking speed to allow for more effective cutting and a proper discharge of the clippings.
• Do not cut wet grass. It will stick to the underside of the deck (17) and prevent proper mulching of grass clippings.
• New or thick grass may require a narrower cut.
• Clean the underside of the mower deck (17) after each use to remove grass clippings, leaves, dirt, and any other accumulated debris.

Mow in slight overlapping rows. The most effective pattern for mowing lawns is straight lines along one of the sides. This will keep the rows even and ensures that all the lawn is cut without missing any spots (Fig.21).

AFTER USE

• Switch the product off and let it cool down.
• Check, clean and store the product as described below.

BATTERY PACK AND CHARGER

BATTERY CHARGING

• Do not use other battery chargers. The battery charger supplied is specifically designed for the Lithium-Ion battery used in this garden appliance. This ISM device complies with Canadian ICES-001.
• Check the power voltage! Battery chargers operate on 120 V.
• The battery is charged between -5°C and 50°C. This ensures an optimum battery service life.
• Protect the battery from heat, from continuous exposure to sun and keep away from radiation or other heat sources. Do not leave the battery in the mower in direct sunlight over long periods.
• The battery is supplied partially charged. To ensure full capacity of the battery, charge the battery before using your appliance for the first time. The Lithium-Ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not affect the battery.
• Always leaves it fully charged if kept in the charger for storage.

CHARGER LEDS

• If the battery is not inserted, a continuous red LED light indicates that the mains plug is plugged into a mains socket and the battery charger is ready for operation.
• Charging: a flashing green LED on the charger indicates that the battery is charging normally.
• Charged: continuous green LED on the charger indicates that the battery is ready for use.
• A flashing red LED light on the charger indicates that the battery temperature is not within -5°C– 50°C or the charging current is too high.
• After continuous or repeated charging cycles without interruption, the charger may warm up. This is normal and does not indicate a technical defect of the battery charger.

BATTERY LED PANEL

• The panel consists of 4 LEDs on the battery. Press and hold the button, then release it, the LEDs will show you the charge levels. (Fig. 22)

• The battery's charge level can be checked either when the battery is attached on the machine or removed from the machine.

LEDs on battery (Continuous lighting)	Battery Capacity
4 LEDs (inc 2 green)	Fully charged
3 LEDs (inc 1 green)	≥ 50%
2 LEDs (orange & green)	≥ 25%
1 LEDs (red only)	≤ 25% Recharge required

MAINTENANCE

When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.

Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. If operation is dusty, also wear a dust mask.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

Periodically check all nuts and bolts for proper tightness to insure safe operation of the mower. Remove any buildup of grass and leaves on or around the motor cover. Wipe the mower clean with a dry cloth occasionally. Do not use water.

LUBRICATION

All of the bearings in this product are lubricated with a sufficient amount of high grade lubricant for the life of the unit under normal operating conditions. Therefore, no further bearing lubrication is required. At the beginning and end of each mowing season:

• Lubricate the springs on the rear discharge door with light oil.
• Lubricate the cutting height adjustment lever (16) and related hardware with light oil.
• Remove the wheels (9) and lubricate the surface of the axle bolt and the inner surface of the wheels (9) with light oil.
• Remove the blade and blade hub assembly and lubricate the motor shaft with light oil or engine oil. See Replacing the Cutting Blade for instructions on removing the blade.

Always protect hands by wearing heavy gloves and/or wrapping the cutting edges of the blade with rags and other material when performing blade maintenance. Failure to heed this warning could result in serious personal injury.

Before performing any maintenance, make sure the mower is unplugged from the power supply and battery has been removed. Failure to heed this warning could result in serious personal injury.

REPLACING THE MOWER BLADE (See Figs. 23, 24)

NOTE: Remove safety key and battery before performing any maintenance!!

NOTE: Only use identical replacement blades. LawnMaster mower blade replacement part #RMB4016K.

• Stop the motor and allow the blade to come to a complete stop.
• With blade stopped, remove SAFETY KEY and BATTERY from mower and store in safe location.
• Remove collection bag from mower if attached.
• Slowly turn the mower onto its side.
• Wedge a block of wood between the blade and the mower deck (17) in order to prevent blade from turning while the blade nut is being removed.
• Loosen the blade nut using a wrench or socket (not provided).
• Remove the blade nut clounterclockwise then remove the blade.
• Make certain the fan assembly is pushed completely against the motor shaft.
• Place the new blade on the shaft against the fan assembly. Make sure it is installed with the curved ends pointing up toward the mower deck (17) and not down toward the ground.
• Thread the blade nut on the shaft and finger tighten.
• Torque the blade nut down using a torque wrench (not provided) to 25NM (142-159 in.lbs) to ensure the bolt is properly tightened.

NOTE: Make certain all parts are replaced in the e act order in which they were removed.

SHARPENING THE BLADE (See Fig. 25)

For best mowing performance, the mower blade must be kept sharp. A dull blade does not cut grass evenly and overloads the motor. Under normal circumstances, sharpening the blade twice during the mowing season is usually sufficient. However, if your lawn has sandy soil, more frequent sharpenings may be required.

• Following the instructions in the Replacing the Cutting Blade section, remove the mower blade. DO NOT attempt to sharpen the blade while it is attached to the mower.
• Using a fine-tooth file or sharpening stone, sharpen cutting edges on both ends of the blade, removing equal amounts of material from both ends.


When removing, inspect the blade carefully. If blade is bent or damaged, replace immediately with a new blade. Failure to replace a bent or damaged blade could cause an accident resulting in possible serious injury.

BALANCING THE BLADE (See Fig. 26)

When sharpening, care should be taken to keep the blade balanced. An unbalanced blade will cause excessive vibration when the mower is running. This vibration will eventually cause damage to the mower, especially the motor.

To check the blade balance:

• Clamp a screwdriver horizontally in a vise as shown.

  NOTE: If a vise is not available, a straight nail can also be used.
• Place the center hole of blade on the screwdriver(or nail) shank.
• If blade is balanced, it will remain in a horizontal position. If either end of the blade drops downward, sharpen the heavy side until the blade is balanced.

REPLACING WHEELS (See Fig. 27)

To replace a wheel (9):

• Disconnect the mower from the power supply.
• Turn the mower on its side.
• Using a flat blade screwdriver, pry off the locking hubcap.
• Remove the wheel (9), replace with new wheel (9).
• Replace locking hubcap.

STORING THE MOWER (See Fig. 28-29)

• Remove mower power key and battery.
• Turn mower on its side and clean grass clippings that have accumulated on the underside of the mower deck (17).
• Wipe the mower clean with a dry cloth.
• Check all nuts, bolts, knobs, screws, fasteners, etc., for tightness.
• Inspect moving parts for damage, breakage, and wear. Have repairs made on any damaged or missing parts.
• Store mower indoors in a clean, dry place out of the reach of children.
• Do not store near corrosive materials such as fertilizer or rock salt. To lower the handle before storing:
• Fully loosen the handle locking levers (4) on the sides of the handle and fold the upper handle (11) down.
• Push inward on each side of the lower handle (6), and lift the sides of the lower handle (6) past the edges of the handle mounting brackets.
• Fold the lower handle (6) forward, making sure not to bend or kink the power cord.

CHARGER MAINTENANCE

• Keep the charger clean and clear of debris. Do not allow foreign material into the recessed cavity or on the contacts. Wipe with a dry cloth. Do not use solvents, water, or place in wet conditions.
• Always unplug the charger when there is no battery pack in it.
• Check that the charger contacts have not been shorted by debris or foreign material.

REPLACING THE BATTERY

The mower battery is designed for maximum life; however, like all batteries, will eventually need to be replaced.

Always charge new batteries before use.

To install a new battery:

• Remove the safety key (12).
• Carefully unlock and remove the battery pack (25b).
• Install the new battery pack (25b).
• Take the old battery pack to a recycling center that accepts lithium-ion batteries. Never dispose of battery in fire or regular household trash.

CLEAN THE MOWER

To reduce the risk of electric shock, do not expose the mower to water.

The underside of mower deck (17) should be cleaned after each use as grass clippings, leaves, dirt and other debris will accumulate causing rust and corrosion.

• Remove any buildup of grass and leaves on or around the motor cover (do not use water). Wipe the mower clean with a dry cloth occasionally.
• If debris build up on the underside of the unit while in use, stop the motor and disconnect it from the power supply. Tilt the mower forward, or on its side, and scrape it clean with an appropriate tool.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE	SOLUTION
The mower does not start.	The battery is not charged.	Charge the battery.
	The switch is defective.	Replace the switch (call the tollfree helpline, at 1-866-384-8432
	Grass jammed at blade.	Remove battery; check under deck for jams.
	The battery is not attached to the motor.	Check the connection between the motor connector and the battery
	Battery may require service or replacement.	Call toll free helpline, at 1-866-384-8432 or replace battery.
	Key is not installed.	Insert the key.
The mower cuts the grass unevenly.	The lawn is rough or uneven.	Check the mowing area.
	The cutting height is not set properly.	Move the wheels to a higher setting.
The mower does not mulch properly.	Wet grass clippings are sticking to the underside of the deck.	Wait until the grass dries before mowing.
	The mulching plug is missing.	Install the mulching plug.
The mower is hard to push.	The grass is too tall, or the cutting height is too low.	Raise the cutting height.
	The rear of the mower housing and the blade are dragging in thick grass.	Empty the grass clippings from the collection bag.
The mower is excessively noisy and vibrates.	The motor shaft is bent.	Stop the motor, and inspect for damage.
	The blade is unbalanced.	See Blade Balancing Section in this manual. OR replace using LawnMaster replacement mower part #CLMB4016K.

EXPLODED VIEW / PARTS LIST

GENERAL SAFETY RULES

This symbol indicates important safety instructions. If these instructions are not followed, it could endanger the personal safety and/or property of the operator and others. Read and understand all instructions in this manual before attempting to operate the mower. Failure to comply with these instructions may result in personal injury.

This mower was built to be operated according to the rules for safe operation that are contained in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This mower is capable of amputating body parts and throwing objects. Failure to observe the following safety rules could result in serious injury or death.

Basic safety precautions should always be followed when using electric lawn mowers, in order to reduce the risk of fire, electric shock, and personal injury.

Use of this mower should be restricted to individuals who have read and understoood and will follow the warnings and instructions that are printed in this manual and on the mower.

• Carefully read all instructions on the mower and in the manual before attempting to assemble and operate the mower. Keep this manual in a safe place for future reference, and consult it regularly.
• Do not use the lawn mower in damp or wet conditions or operate in the rain.
• Become familiar with all controls and their proper operation. Know how to stop the mower and how to disengage the power in an emergency.
• In order to avoid contact with the blade or injury caused by a thrown object, stay in the operating zone behind the handles, and keep children and bystanders at least 50' (15 m) away from the mower while it is in operation. Stop the motor immediately if someone enters the mowing area.
• Thoroughly inspect the area where the mower is to be used. Remove all stones, sticks, wire, bones, toys, and other objects that could be tripped over or thrown by the blade. Thrown objects can cause serious personal injury.
• Plan your mowing pattern in such a way as to avoid discharging material toward roads, sidewalks, bystanders, etc. Do not discharge material against a wall or obstruction. Doing so may cause the discharged material to ricochet back toward the operator.
• Always wear proper eye protection in order to protect your eyes while operating or performing any adjustment or repair. Thrown objects that ricochet can cause serious eye injury.
• Always wear safety glasses with side shields. Everyday glasses have only impact resistant lenses. They are NOT safety glasses. Following this rule will reduce the risk of eye injury. Use face mask if operation is dusty.
  Wear safety glasses or goggles that aremarked to comply with ANSI Z87.1 standard when operatiing this product.
• Always wear a face mask or a dust mask when operating the mower in a dusty environment.
• Dress properly. Do not wear loose clothing or jewellery that can get caught in moving parts. The wearing of protective gloves and safety footwear is recommended.
• Many injuries occur as a result of the mower being pulled over the operator's foot during a fall caused by slipping or tripping. Do not operate this mower in bare feet, or while wearing sandals or lightweight (e.g., canvas) shoes. Do not hold on to the mower if you are falling. Release the handle immediately.
• Never pull the mower back toward you while you are walking. If you must back the mower away from a wall or an obstruction, first look down and behind in order to avoid tripping, and then follow these steps:
  • Step back from the mower in order to fully extend your arms.
  • Be sure that you are well balanced.
  • Pull the mower back slowly.
• Do not use the mower for any job except that for which it is intended. Do not force the mower.
• Do not operate the mower while under the influence of alcohol or drugs.
• Stay Alert: Do not operate the mower when you are tired. Pay attention to what you are doing. Use common sense.
• Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade can amputate hands and feet.
• Keep hands and feet away from cutting area.
• Do not attempt to adjust the wheels or the cutting height while the motor is running.
• Avoid dangerous environments. Do not operate the mower in the rain or in wet or damp grass.
• Mow only in daylight or in good artificial light. Do not rush a mowing job.
• Stop the blade when crossing gravel driveways, walkways, or roads.
• If the mower starts to vibrate excessively, stop the motor and check for the cause immediately. Vibration is generally a warning of trouble.
• Stop the motor and wait until the blade comes to a complete stop before removing the collection bag or unclogging the chute. The cutting blade will continue to rotate for a few seconds after the motor is shut off. Do not place any part of your body in the blade area until you are sure that the blade has stopped rotating.
• Never operate mower without a proper trail shield, discharge cover, collection bag, switch control, or other safety device in place and in working order. Do not operate the mower with damaged safety devices. Doing so can result in injury.

CHILD SAFETY

Tragic accidents can occur if the operator is not aware of the presence of children.

• Keep children out of the mowing area and under the watchful care of a responsible adult.
• Do not allow children under the age of 14 to operate this mower. Children who are 14 years of age and older must read and understand the operating instructions and safety rules in this manual, and must be trained and supervised by a parent.
• Stay alert, and turn the mower off if a child or any other person enters the mowing area.
• Look behind and down for small children before and while moving backwards.
• Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that may obscure your view of a child who may run into the path of the mower.

USE ONLY LAWNMASTER APPROVED REPLACEMENT BATTERIES, OTHER BATTERIES MAY CAUSE INJURY OR DAMAGE TO THE MOWER.
Use with LAWNMASTER 40V Lithium-lon battery.

SPECIFIC SAFETY RULES

BATTERY SAFETY RULES

• Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards when not using your battery tool or when changing accessories. Following this rule will reduce the risk of electric shock, fire, or serious personal injury.
• Do not place battery tools or their batteries near fire or heat. This will reduce the risk of explosion and possibly injury.
• Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has been dropped or received a sharp blow. A damaged battery is subject to explosion. Properly dispose of a dropped or damaged battery immediately.
• Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open flame. An exploded battery can propel debris and chemicals. If exposed, flush with water immediately.
• Do not charge battery tool in a damp or wet location. Following this rule will reduce the risk of electric shock.
• For best results, your battery tool should be charged in a location where the temperature is more than 45°F but less than 104°F. To reduce the risk of serious personal injury, do not store outside or in vehicles.
• Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water. If liquid gets into your eyes, flush them with clean water for at least 10 minutes, then seek immediate medical attention. Following this rule will reduce the risk of serious personal injury.
• When battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause sparks, burns, or a fire.
• Always remove battery pack from your tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury.
• Always remove battery pack before storing the device. When battery becomes fully charged, unplug the charger from the power supply and remove the battery pack from the charger.
• Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing protection. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.
• Keep battery pack dry, clean, and free from oil and grease. Always use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum-based products, or any solvents to clean battery pack.

BATTERY & CHARGER

USE ONLY LAWNMASTER APPROVED REPLACEMENT BATTERIES, OTHER BATTERIES MAY CAUSE INJURY OR DAMAGE TO THE MOWER. Use with LAWNMASTER 40V Lithium-lon battery.

Ensure that the device is switched off before inserting the battery. Inserting a battery into a power tool that is switched on may result in accidents.

Recharge the batteries indoors only because the battery charger is designed for indoor use only. To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger.

Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion.

Allow a hot battery to cool before charging.

Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort.

Do not use non-rechargeable batteries!

The device must not be used by people (including children) with limited physical, sensory or mental faculties or who lack the necessary experience and/or knowledge - other than they are supervised by a person responsible for safety or are being instructed to operate the appliance by such a person.

Children must be supervised in order to ensure that they do not play with the equipment.

To charge the battery, use only the charger supplied. Risk of fire and explosion. This ensures that the safety of the device is maintained.

Before each use, check the charger, cable and plug and have them repaired by qualified professionals and only with original parts. Do not use a defective charger and do not open it up yourself. This ensures that the safety of the device is maintained.

Connect the charger only to a socket with an earth. Ensure that the mains voltage matches specifications on the charger rating plate. Risk of electric shock.

Disconnect the charger from the mains before closing or opening connection to the battery / power tool /device.

Keep the charger clean and away from wet and rain. Do not use the charger outdoors. Dirt and the entry of water increase the risk of electric shock.

Operate the charger only with the appropriate original batteries. Charging other batteries may result in injuries and risk of fire.

Avoid mechanical damage to the charger. This can result in internal short circuits.

Do not operate the charger on a combustible surface (e.g. paper, textiles). Risk of fire due to heating during charging.

If the power cord for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or qualified person in order to prevent hazards.

The battery of the appliance is not fully charged at the time of delivery. It therefore needs to be fully recharged before you use it for the first time. For the first recharge cycle we recommend that you charge the battery for about 3-5 hours. Slot the battery into the base and plug the battery charger into a mains outlet.

When the battery is fully charged, unplug the charger from the mains and from the appliance. Charging time is approx. 1.5 hours.

Do not charge the battery continuously since this may damage the battery cells.
Note: Repeatedly charging small capacities may damage the battery cells. Recharge the battery only if the appliance is becoming slow.

Do not use the charger to charge nonrechargeable batteries.

(PROPOSITION 65)

Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemical: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

SYMBOLS

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.

The following signal words and meanings are intended to explain the levels of risk associated with this product.

SYMBOL & SIGNAL	MEANING
	Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
	Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
	Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
CAUTION	(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

SERVICE

Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest SERVICE CENTER for repair. When servicing, use only identical replacement parts.

To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the operator's manual.
If you do not understand the warnings and instructions in the operator's manual, do not use this product. Call customer service for assistance.

The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and, when needed, a full face shield. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection which is marked to comply with ANSI Z87.1.

Distributed By Cleva North America 601 Regent Park Court Greenville, SC 29607 (866)-384-8432

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download LawnMaster CLMB4016K - Cordless Mower Manual
