Instruction Manual

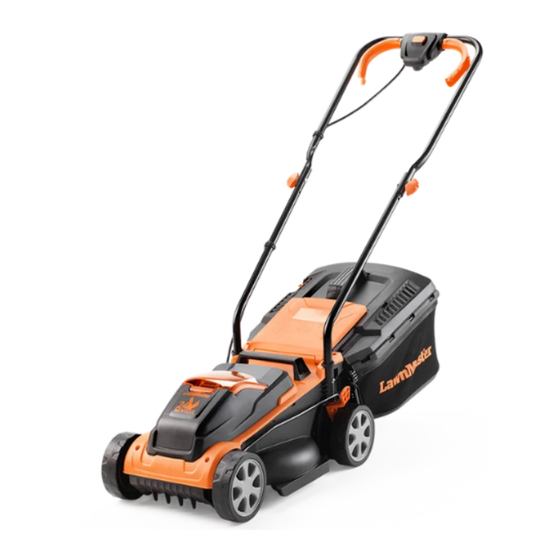

32cm 24V Lithium-Ion Cordless Mower CLM2432K
CLM2432K-01 (With Battery and Charger)
CLM2432K-BARE (Battery and Charger Not Included)
Original Instructions
WARNING:
Read all safety instructions carefully before assembling and operating
this machine. Ensure the machine has been assembled correctly and safely. Keep the
instructions safe and pass them on to any subsequent user so that the information is always
available.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLM2432K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LawnMaster CLM2432K

Summary of Contents for LawnMaster CLM2432K

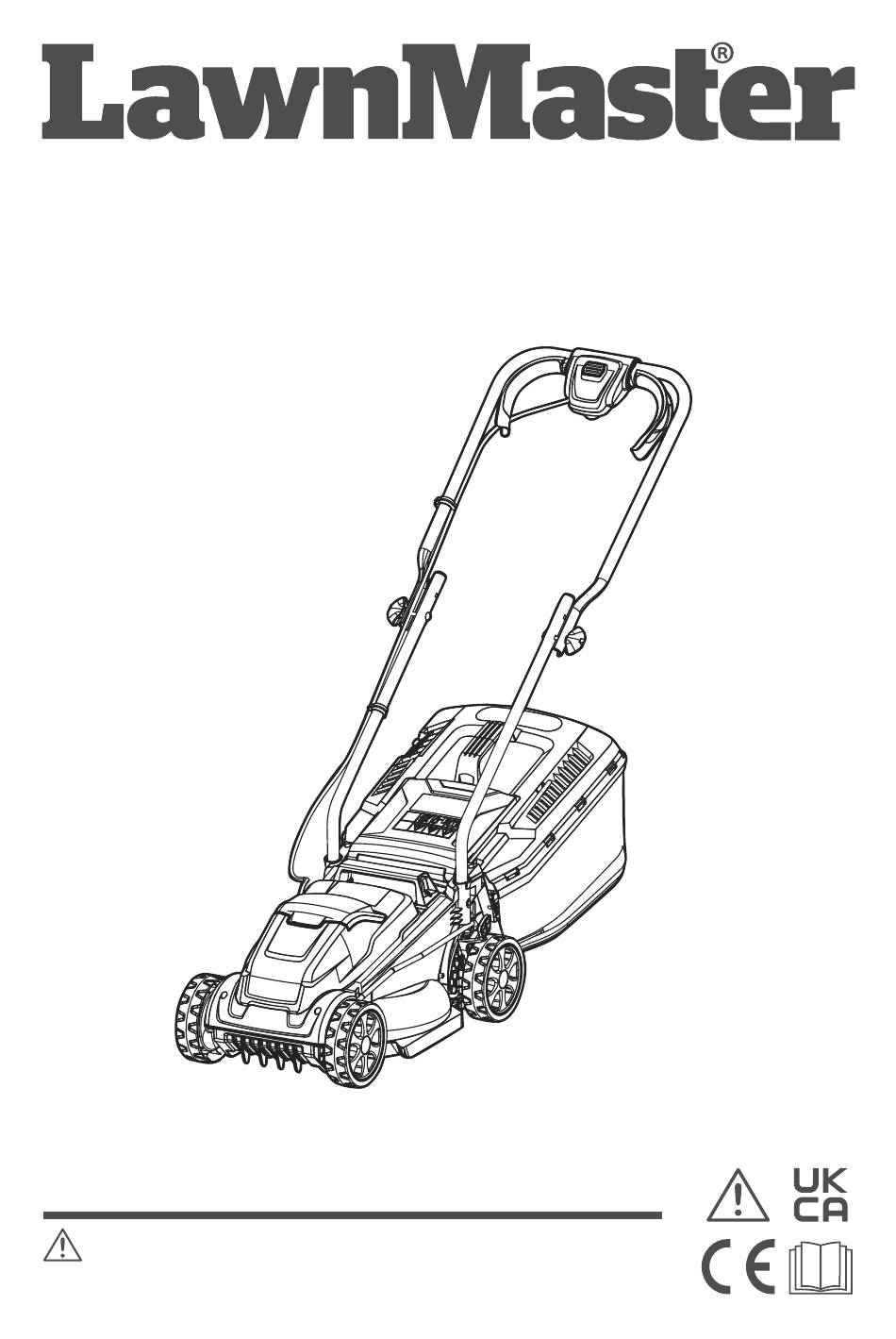

  • Page 1 Instruction Manual 32cm 24V Lithium-Ion Cordless Mower CLM2432K CLM2432K-01 (With Battery and Charger) CLM2432K-BARE (Battery and Charger Not Included) Original Instructions WARNING: Read all safety instructions carefully before assembling and operating this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions safe and pass them on to any subsequent user so that the information is always available.
  • Page 3 Not included with CLM2432K-BARE Fig.1 Fig.2 Fig.4 Fig.5 Fig.3...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Section Page Symbols Safety Information 8-17 In the Box Assembly 18-20 Operation 21-25 Maintenance 26-28 Troubleshooting 29-30 Technical data Recycling and Disposal...

  • Page 6: Symbols

    SYMBOLS The following warning symbols appear throughout this manual and indicate the appliance. SYMBOL DESIGNATION/EXPLANATION Caution Read instruction manual. Keep bystanders away. Beware of sharp blades. Blades may continue to rotate after the motor is leaving the product unattended for any period. 32cm Cutting diameter in dB(A)
  • Page 7 SYMBOLS SYMBOL DESIGNATION/EXPLANATION on or near a heat source (max. 60°C). Recycle electrical waste products in an environmentally safe way where facilities exist. WARNING understand completely the instruction manual. product.

  • Page 8: Safety Information

    SAFETY INFORMATION IMPORTANT them. It is important to understand these instructions and to all safety requirements. available to the operator at all times. these operating instructions as well. from non-compliance with these instructions. The device must not be used by people (including children) they are supervised by a person responsible for safety or are being instructed to operate the appliance by such a person.
  • Page 9 SAFETY INFORMATION your view of a child or animal that may run into the path of the mower. accidents or hazards occurring to other people or their property. footwear and long trousers. Do not operate the mower when barefoot or wearing open toed sandals. Avoid cords or ties.
  • Page 10 SAFETY INFORMATION slopes. towards you. Pay attention to what you are doing. alcohol or drugs. and when transporting the machine to and from areas to be mowed. with feet well away from the blade(s). necessary and tilt only the part which is furthest away from the operator.
  • Page 11 SAFETY INFORMATION running. times. is dangerous and must be repaired. the mower. immediately) away from the mower while it is in operation. Stop the motor immediately if someone enters the mowing area.
  • Page 12 SAFETY INFORMATION handle immediately. intended. Do not force the mower. while the motor is running. gases nearby. or roads. mower is in a safe condition for use. deterioration. parts of the machine. wait until the blade comes to a complete stop before removing the collection bag or carrying out maintenance.
  • Page 13 SAFETY INFORMATION mower is not in use. This prevents accidental starting of the machine. genuine replacement parts and accessories. again. WARNING! Even if you are operating the machine in - Health defects resulting from vibration emission if the machine is being used over long periods of time or not adequately managed and properly maintained.
  • Page 14 SAFETY INFORMATION Battery Safety Information manufacturer. A charger that is suitable for one type of battery. sources may cause an increased danger of explosion. explosion. Properly dispose of a dropped or damaged battery immediately. An exploded battery can propel debris and chemicals. If location where the temperature is more than 4°C but less than 40°C.
  • Page 15 SAFETY INFORMATION connection from one terminal to another. Shorting the the event of discomfort. the charger. Charger Safety Information cool and well-ventilated environment. immediately discontinue use. Replace the charger with the...
  • Page 16 SAFETY INFORMATION prevent hazards. not use a defective charger and do not disassemble the sharp blow. correspond to the voltage of the power source. Intended Use domestic and hobby gardens. and may not be used to mow wet or unusually high grass.

  • Page 17: In The Box

    SAFETY INFORMATION not for any commercial trade use. It must not be used for any purposes other than those described. Any use of the machine that deviates from its intended use will invalidate the warranty. IN THE BOX 1. Safety Switch Button 14.

  • Page 18: Assembly

    ASSEMBLY Assembly Preparation includes suitable personal protective equipment. WARNING If any parts are damaged or missing do not operate this product until the parts are replaced. WARNING Do not attempt to modify this product or create accessories not recommended for use with this WARNING WARNING operate the mower with damaged safety devices.
  • Page 19 ASSEMBLY power cable is not caught between the folding sections (Fig. 3). Assembling the Grass Collection Bag (See Figs. 4-5) Your mower comes with a tool free grass collection bag. Attaching/Removing the Grass Collection Bag (See Fig. 6) NOTE: installing the collection bag. NOTE: (Fig.
  • Page 20 ASSEMBLY WARNING To install the battery pack: NOTE: starting operation. To remove the battery pack: battery compartment (Fig. 10).

  • Page 21: Operation

    OPERATION WARNING WARNING Always wear safety goggles or safety glasses with side shields when operating this product. WARNING Do not use any attachments or accessories not recommended by the manufacturer of this product. Setting the Cutting Height (See Fig. 11) WARNING your lawn.
  • Page 22 OPERATION desired cutting height position (Fig. 11). that is too low in longer grass will use more power and reduce battery run time. It is recommended to cut longer grass in 2 passes or more. This method will also cause less stress to your grass for a healthier lawn.
  • Page 23 OPERATION Indicator Lights button green orange LED Indicators on Battery Capacity Battery(Continuous lighting) 4 LEDs (inc 2 green) Fully charged 3 LEDs (inc 1 green) 2 LEDs (orange & red) 1 LED (red only) Charger Operation (See Fig. 12) WARNING power supply.
  • Page 24 OPERATION The indicator lights on the charger show the charging status: Symbol Indicator Lights Status instructions below. Connected to power supply (Standby) Charging Fully charged continuous ensures maximum battery life. Charge the battery fully before storage. charging temperature range of 4 - 40 battery charger will automatically switch to charging.
  • Page 25 OPERATION General Operation damaged. have full control over the product. Mowing (See Fig. 16) proper discharge of the clippings. you should gradually cut it down to the desired length so as not to damage the grass. Cutting grass that is too long will result in poor collection performance and may overload the motor. clippings.

  • Page 26: Maintenance

    MAINTENANCE WARNING any other parts may create a hazard or cause product damage. WARNING WARNING Do not use any attachments or accessories not recommended by the manufacturer of this product. General Maintenance solvents when cleaning plastic parts. Most plastics are susceptible to damage from various with a dry cloth occasionally.
  • Page 27 MAINTENANCE Replacing the Blade (See Figs. 17-18) NOTE: NOTE: recommended replacement blade. ISOLATOR KEY and BATTERY from mower and store in a safe location. correctly (Fig. 18). tightened. NOTE: Sharpening the Blade (See Fig. 19) be required. NOT attempt to sharpen the blade while it is attached to the mower. removing equal amounts of material from both ends (Fig.
  • Page 28 MAINTENANCE Balancing the Blade (See Fig. 20) cause excessive vibration when the mower is running. This vibration will eventually cause damage To check the blade balance: NOTE: Storing the Mower Battery and Charger Maintenance wet conditions. sunlight.

  • Page 29: Troubleshooting

    TROUBLESHOOTING WARNING Gloves and appropriate protective clothing must be worn when performing these instructions. PROBLEM POSSIBLE CAUSE SOLUTION The battery is not installed Ensure the battery is correctly correctly. installed. The battery is not fully charged. Charge the battery. Possible clogging. clear as necessary (always wear gardening gloves).
  • Page 30 TROUBLESHOOTING Possible clogging. Poor cutting or motor clear out as necessary (always wear labours. gardening gloves). Height of cut is too low. slower. Area of cut (battery The grass is too high. slower. duration) is not large enough. The grass is wet or damp. slower.

  • Page 31: Technical Data

    TECHNICAL DATA 24V Cordless Mower CLM2432K No Load Speed Cutting Width 32cm Grass Collection Box Capacity Functions Rear Bag Wheel Size 140mm Degree of ingress protection IPX1 Sound Pressure Level (L 84dB(A) K=3dB Sound Power Level (L ) Guaranteed 96dB(A)

  • Page 32: Recycling And Disposal

    RECYCLING AND DISPOSAL materials and should be disposed of accordingly. This appliance contains Lithium-ion battery. Do not dispose of batteries in household where they will be recycled in an environmentally friendly manner. Li-ion...
