Western Digital WD Black SN850P Manual
![]()
WHAT YOU NEED TO BEGIN

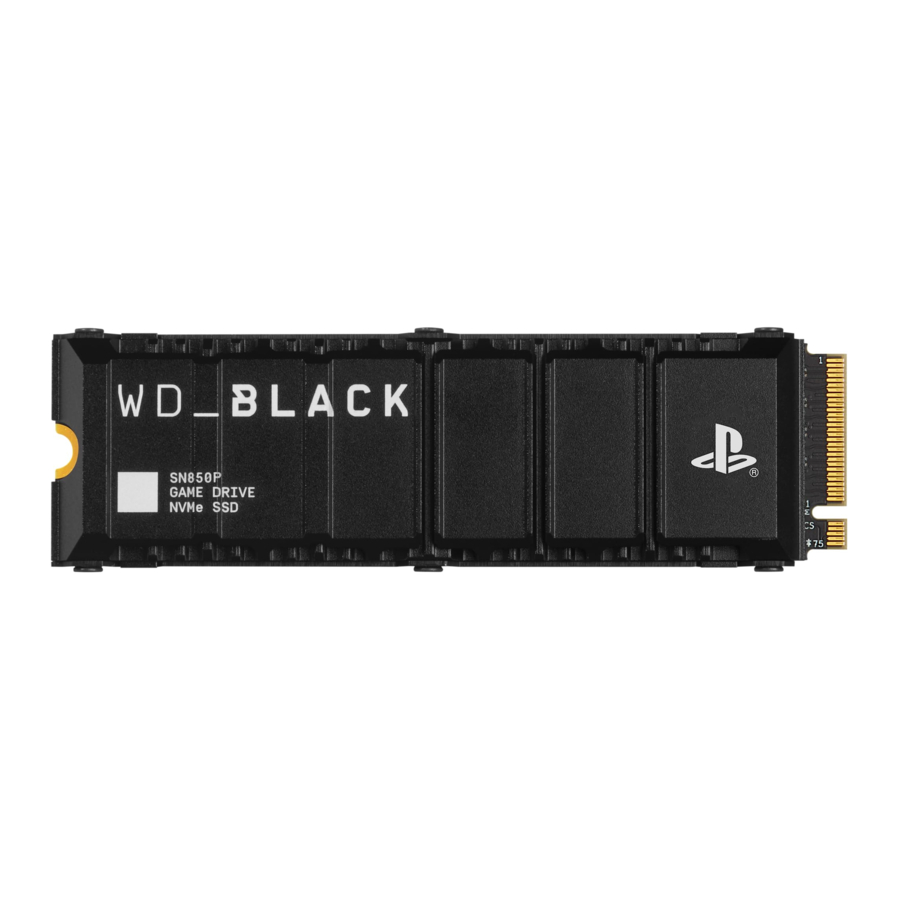

- Your officially licensed WD_BLACK SN850P SSD
- Well-lit room
- Table or secure flat surface
- #1 Philips or cross-head screwdriver
- Anti-static mat (optional)
- Small flashlight (optional)
HOW TO INSTALL
- TURN OFF YOUR CONSOLE
- Remove all cables and devices connected to your console
- Allow your console to cool down
- Place your console on a flat surface with a clean protective covering (or an anti-static mat if you have one)
- Position the console with the PS logo facing down and the back of the console facing you
- REMOVE THE CONSOLE COVER
- Slightly lift the triangle cover away from the console to detach its clips and remove it
- REMOVE EXPANSION SLOT COVER
- Locate the rectangular expansion slot cover
- Remove the screw, and then remove the cover
- REMOVE M.2 SSD SCREW AND SPACER
- Remove the screw and spacer from the 110 slot
- Then put the spacer in the 80 slot
- INSERT M.2 SSD
- Holding the edge of the WD_BLACK SN850P SSD, align it with the notch on the expansion connector
- Tilt the WD_BLACK SN850P SSD diagonally upward, and firmly insert it all the way into the expansion connector
- Carefully push the drive into the slot until you hear and feel a click
- Tilt the WD_BLACK SN850P SSD down and fasten it
- ATTACH EXPANSION SLOT COVER
- Attach the expansion slot cover and fasten the screw
Note: If the slot cover does not close properly, your cooling structure likely exceeds size requirements
- REPLACE CONSOLE COVER
- Attach the triangle cover by aligning the cover's clips with the corresponding holes on the console
- Push until you hear a click, then the cover is secured
- RECONNECT, REFORMAT, AND PLAY!
- Reattach the feet, AC power cord, and cables
- Turn on the power
- When your PS5 console turns on, the formatting guide appears. Follow the onscreen instructions and format the M.2 SSD.
- Store and play all your favorite games from your SSD!
FAQ
How is an M.2 SSD different from USB extended storage on PS5 consoles?
PS5 games can be downloaded, played, and updated directly on M.2 SSD storage. USB extended drives can only be used for storage.
Can I insert a SATA drive into the PS5 console?
No, M.2 SATA SSDs aren't supported.
Should I remove the M.2 SSD if I send my PS5 console for repair?
Yes. Please remove the M.2 SSD before sending it for repair.
Can I format part of the M.2 SSD for use on the PS5 console?
No, the entire M.2 SSD must be formatted.
Can I install a heatsink on an M.2 SSD with a built-in heatsink?
No. If your M.2 SSD has a built-in heatsink, PlayStation doesn't recommend adding any additional heatsinks––it may reduce the effectiveness of the built-in heatsink(s).
Is it possible to store a part of game data on console storage and the remaining data on M.2 SSD storage?
No. All game data for a particular game must be stored in the same place.
What should I do if I experience gameplay issues when I play games stored on M.2 SSD Storage?
- Press the PS button on your controller to go to the control center, and then select Downloads/Uploads. Pause any ongoing downloads.
- If you are trying to play a game on disc, please wait for the full installation to finish.
- If you are still having issues, PlayStation recommends moving the game from M.2 SSD storage to console storage.
Will installing the unit affect my warranty?
Generally, your manufacturer's warranty coverage should not be affected provided you install an M.2 drive that meets the required specifications and you follow the installation instructions properly. Failure to do so could result in damage to your console which will not be covered under warranty. PlayStation strongly encourages you to carefully review drive specifications prior to purchase and contact the vendor or manufacturer if you need further information. When installing the M.2 drive, you should closely reference the M.2 SSD installation instructions to help avoid any issues. Please read PlayStation's complete warranty terms for details of what is and isn't covered and your remedies.
Do PS5 consoles support Host Memory Buffer?
No. Some M.2 SSD devices may support Host Memory Buffer (HMB) but they may experience slower-thanexpected performance because the PS5 console does not support HMB.
