Delta IN2ITION 58498 Series, IN2ITION 58499 Series, IN2ITION 58498-SS,Manual

Installation

You may need:

1. Verify there is a gasket (1) in shower head (2). Hand tighten the shower head onto the existing shower arm (3) (shower arm and flange sold separately).

   Notice:
   Removal of or tampering with the flow restrictor may result in shower head failure and will void the warranty.
2. Place the hose gaskets (1) into the hose nuts on each end of the hose (2). Connect one end of the hose to the shower head and the other end to the hand shower. All connections should be able to be made by hand tightening.

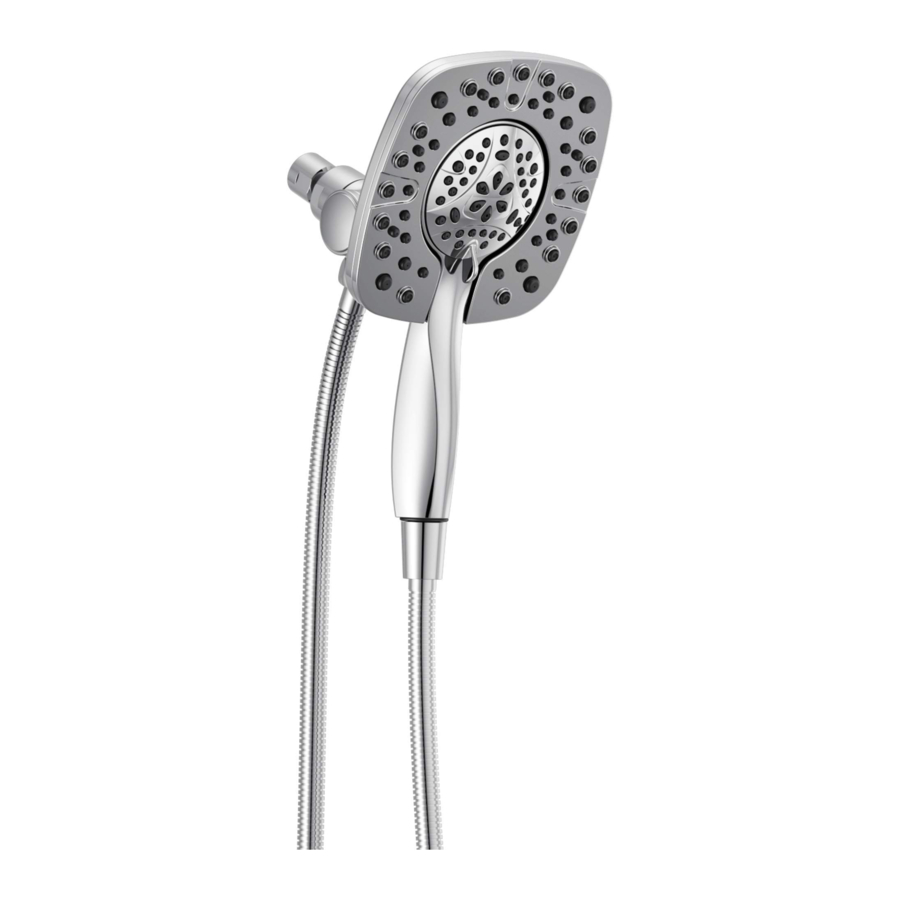

3. To combine the two showers, insert the top slot (1) on the hand shower into the tab (2) of the shower head. Push the hand shower into the shower head until the two parts snap together.
   If the shower head moves when removing the hand shower, hand tighten the connection between the shower head and the shower arm.
   To change hand shower spray modes, rotate spray face (3) to desired setting. To change between shower head only, shower head and hand shower, or hand shower only, rotate knob (4).
