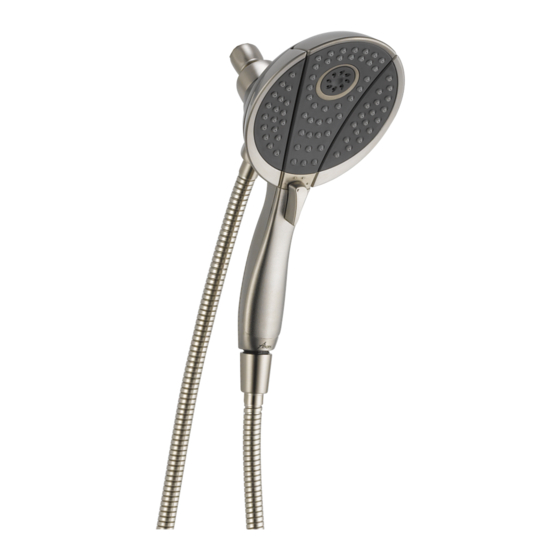

Delta In2ition 58467 Installation Instructions

Parts Included
Shower Head
Hand Shower Metal Hose
Hose Washer
(2)
Notice: Removal of or tampering with the flow restrictor may result in showerhead failure and will void the warranty.
Backflow Protection
If your product is not equipped with backflow prevention, in order to make your product backflow compliant, a vacuum breaker will need to be added.
WARNING: Plumbing Codes require that shower heads and hand showers provide a small but continuous flow of water (trickle) when in "PAUSE" mode. Because of this continuous flow, in certain circumstances
pressure variations in the water line and/or changes in the position of shower temperature control handle while in "PAUSE" mode could result in dramatic changes to the temperature of the water when the shower
head or hand shower is returned to the "ON" position.
ALWAYS point the shower head away from yourself when returning to the "ON" position and feel the water with your hand before resuming your shower to ensure the water flow is not too hot or too cold. DO NOT
allow children or others who might not understand this warning to use the "PAUSE" function.
07/03/2020

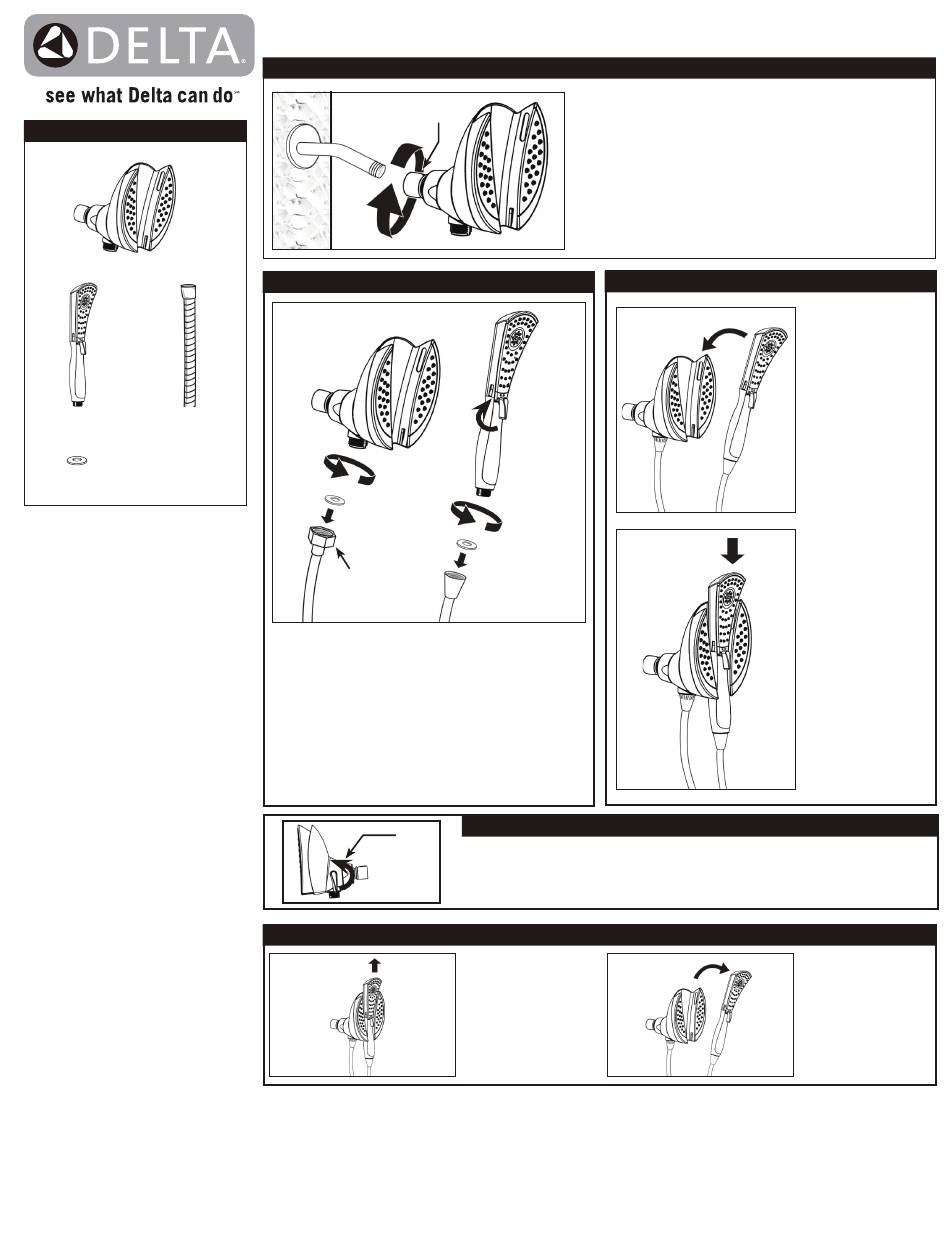

1. Install the Shower Head
Ball Connector
2. Install Hand Shower
Hex Nut
a. Place the hose washers into the hose nuts on each end
of the hose.
b. Attach the end of the hose with a hex nut to the
shower head. Connect the other end of the Metal Hose
to the Hand Shower. All connections should be able to
be made by hand tightening only.
c. To change spray modes, turn the lever (located on the
front of the Hand Shower) left or right to the desired
setting.
Control
Knob
4. Removing the Hand Shower from the Shower Head
a.
®
In2ition
a. Turn off water supply before installing the Shower Head.
b. Remove existing Shower Head from Shower Arm.
c. Apply plumber tape (not included) to Shower Arm, if necessary,
to stop or prevent leaks.
d. Hand tighten the Ball Connector of the Shower Head to the
Shower Arm.
3. Insert Hand Shower into Shower Head
a.
b.
2a. Changing Modes From Shower Head, to Hand Shower, or to Both
a. Turn knob on side of Shower Head to change between:
• Shower Head only
• Shower Head and Hand Shower
• Hand Shower only
a. Push the lower part
b.
of the Hand Shower
upwards, away from
the Shower Head.
Installation Instructions
a. Slide Hand Shower
b. Gently push the
• If the Shower
b. Pull the Hand
Shower away from
the slot in the
Shower Head.
into the top of the
Shower Head.
Hand Shower
down into the
Shower Head.
Head moves when
inserting or
removing the
Hand Shower,
hand tighten the
connection
between the
Shower Head and
the Ball Connector.
6467 Rev. C
