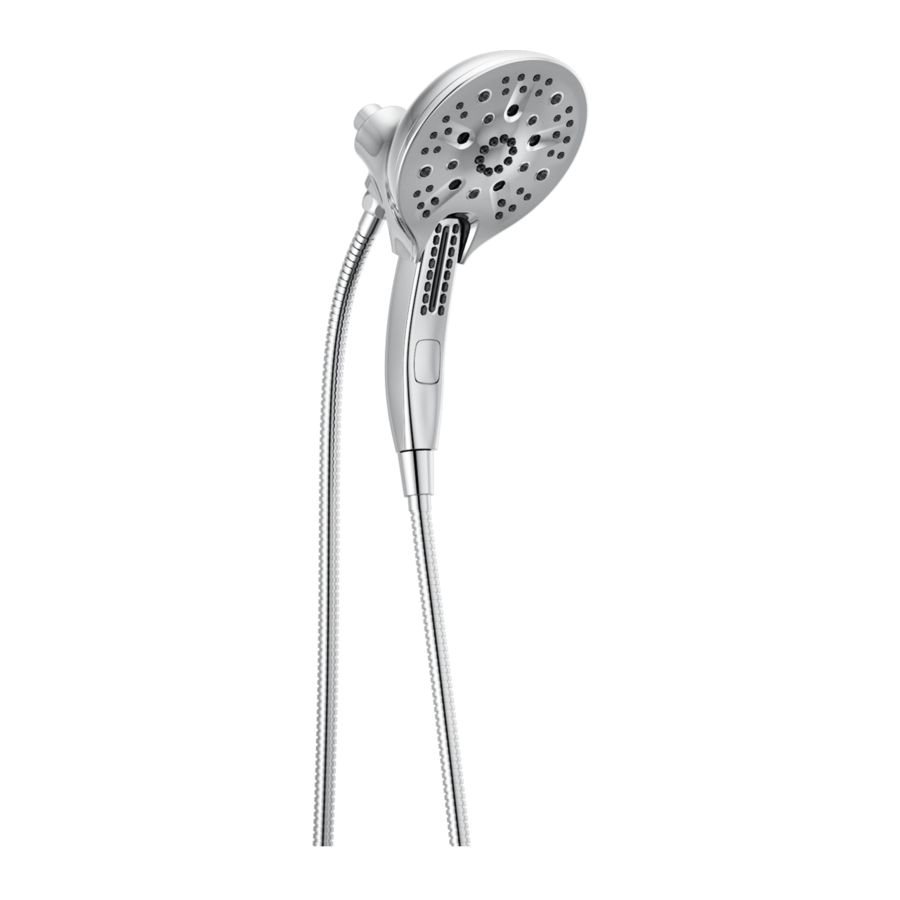

Delta In2ition 58620-PK Series - Shower Manual

Introduction

To reference replacement parts and access additional technical documents and product info, visit www.deltafaucet.com
1-800-345-DELTA (3358)
www.deltafaucet.com/service-parts
Read all instructions prior to installation.

Failure to read these instructions prior to installation may result in personal injury, property damage, or product failure. Manufacturer assumes no responsibility for product failure due to improper installation.

You may need:

Assemble

1. Verify there is a gasket (1) in shower head (2). Hand tighten the shower head onto the existing shower arm (3) (shower arm and flange sold separately).
   Notice: Removal of or tampering with the flow restrictor may result in shower head failure and will void the warranty.


2. Place the hose gaskets (1) into the hose nuts on each end of the hose (2). Connect one end of the hose to the shower head and the other end to the hand shower. All connections should be able to be made by hand tightening.


3. To combine the two showers, align the hand shower (1) with the recess in the bottom of the shower head (2). Dock the hand shower into the shower head until the two snap together. Rotate the lever (3) on the shower head to change spray modes of the shower head and to change between shower head only, shower head (full body spray) and hand shower, or hand shower only. To change spray modes of the hand shower, press the button (4) to cycle through to desired setting.
