Delta RP77991, 14 Series Manual
![]()
Installation

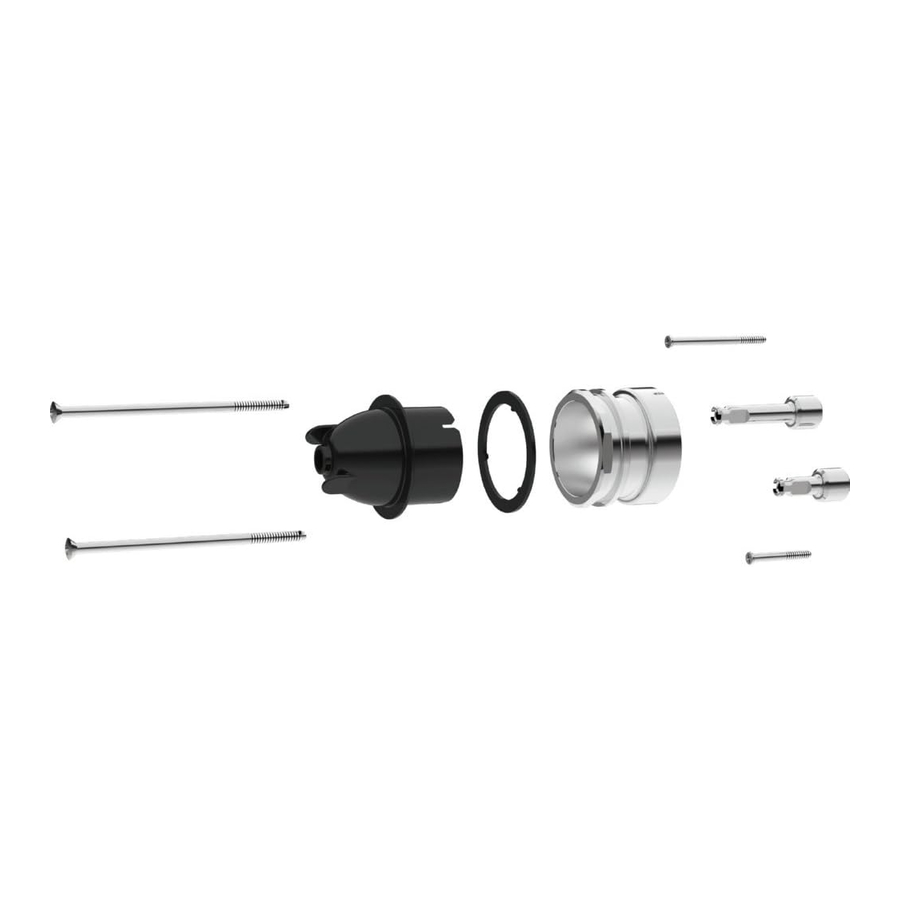

This kit can provide up to an additional 1 3/4" of wall thickness.
- Press cartridge (1) into rough and secure using provided bonnet nut (2). Slide O-ring (3) from trim kit into the narrow groove at the top of the bonnet.
![Delta - 14 Series - Installation - Step 1 - Press cartridge into rough Installation - Step 1 - Press cartridge into rough]()
- Decide if 1" extension (1) or 1 3/4" extension (2) is needed. Place extender onto cartridge stem and secure in place using appropriate screw (3) or (4).
![Delta - 14 Series - Installation - Step 2 Installation - Step 2]()
- If you are using the 1 3/4" stem extender (1), slide the adapter ring (2) into the grooves at the bottom of the guide (3). Slide the guide (3) over the stem until the ring rests on the bonnet. If you are using the 1" stem extender (4), you will not need the adapter ring.
![Delta - 14 Series - Installation - Step 3 Installation - Step 3]()
- Slide trim sleeve (1) over the guide so that it goes past the o-ring on the bonnet.
![Delta - 14 Series - Installation - Step 4 Installation - Step 4]()
- Place escutcheon (1) over sleeve, and secure to valve using long screws (2) provided. If escutcheon screws (2) are exposed and finish is not chrome you must order RP12630 with correct finish.
![Delta - 14 Series - Installation - Step 5 - Place escutcheon Installation - Step 5 - Place escutcheon]()
- If your model has a trim ring (1), slide it over the cartridge and sleeve and into the escutcheon.
![Delta - 14 Series - Installation - Step 6 Installation - Step 6]()
- Attach handle (1) to stem with set screw and adjust trim sleeve so that there is a minimal gap between the sleeve and the handle. And tighten set screw (2) and button (3) to secure handle.
![Delta - 14 Series - Installation - Step 7 - Attach handle to stem Installation - Step 7 - Attach handle to stem]()
