Fellowes Sola A4, Sola A3 Manual

LAMINATOR CONTROLS

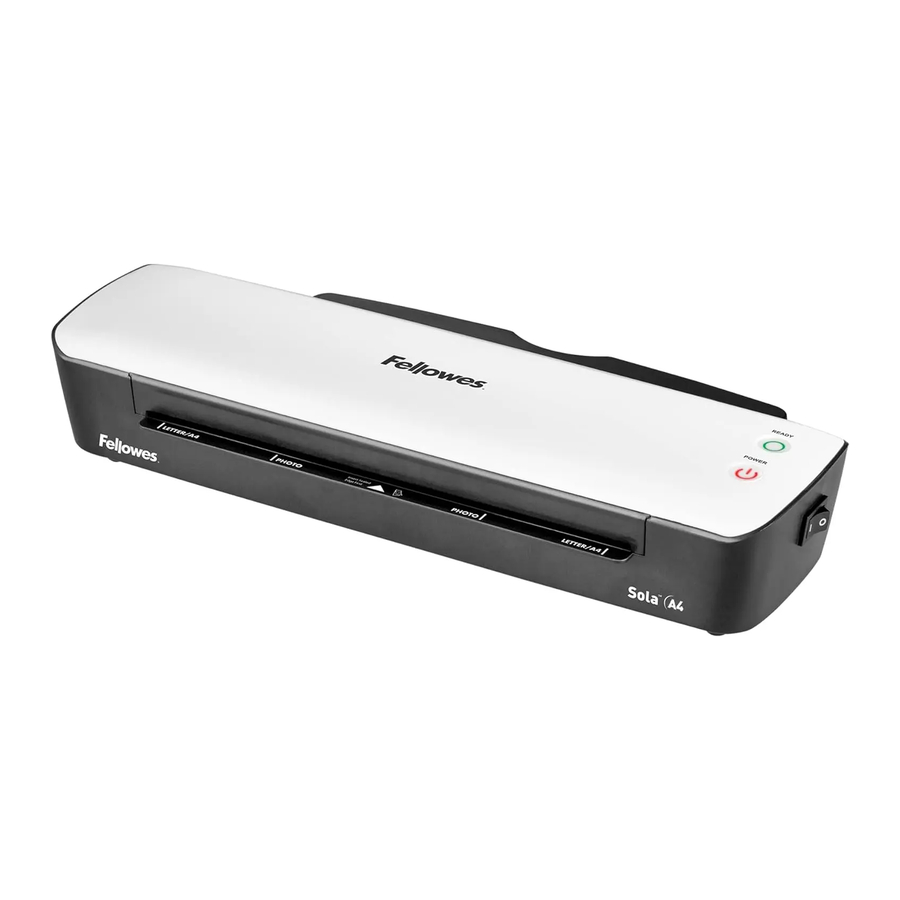

Controls Overview

  1. On/off switch
  2. Release lever ()
  3. Pouch/document entry slot
  4. Pouch/document exit
  5. *Ready LED (Green)
  6. *Power on LED (Red)
  7. Exit tray

*Not push buttons; indicator lights only.

CAPABILITIES

Performance

Entry width A4 = 240mm
A3 = 318mm
Pouch thickness (min) 75 microns
Pouch thickness (max) 125 microns
Warm up time (estimate) 4 minutes
Lamination speed
(+/- 5%)
approx. 30cm/min
(fixed speed)
Number of rollers 2
Ready indication Light (Green)
Release lever Yes
Auto Shut Off Yes

Technical Data

Voltage/Frequency/Current (Amps) 220-240V AC, 50/60Hz, 1.5A
Wattage 300 Watts
Dimensions (HxWxD): A4 62mm x 359mm x 113mm
A3 62mm x 459mm x 113mm
Net weight: A4 1,0 Kg
A3 1,5 Kg
Max document thickness
(laminating capacity)
0.02"/0.4mm

Maximum recommended usage: Light Use, 30 laminations per week. Heavier paper materials may have an effect on quoted usage.

FEATURES & TIPS


'Release' function
To remove or re-align a pouch during lamination, activate the release lever located on the back of the machine. The pouch can only be removed from the entry slot when the lever is activated.


Auto Shut Off
After 30 minutes, the machine will automatically go in to Auto Shut Off mode. The Power LED will flash red for 5 minutes and then turn off. The ready LED will turn off. To continue using the machine press the ON/OFF switch. The machine will reset itself.

  • For best results, use Fellowes® brand pouches: 80 - 125 micron.
  • This machine does not need a carrier to laminate. It is a carrier-free mechanism.
  • Always put the item to be laminated into the appropriate sized pouch.
  • Always test laminate with a similar size and thickness before final process.
  • Prepare pouch and item for lamination. Place item within pouch centred and touching the leading sealed edge. Ensure the pouch is not too large for the item.
  • If required, trim excess material from around the item after lamination and cooling.

SETTING UP THE LAMINATOR

  1. Ensure the machine is on a stable surface.
  2. Check there is enough clear space (min 50cm) behind the machine to allow items to pass through freely.
  3. Plug the machine into an easily accessible mains socket.

HOW TO LAMINATE

  1. Switch the power on (located at the side of the machine).
  2. The red 'Power on' lamp will light up. The machine is now heating up.
  3. When the machine is ready, the green 'Ready' lamp will remain on.
  4. Place the document into the open pouch. Ensure the document is centred against the sealed edge. Use the appropriate pouch size for the document.
  5. Ensure the pouch enters the machine sealed edge first. Keep the pouch straight and central within the slot, not on an angle. Use the entry markings as a guide.
  6. Upon exit, the laminated pouch may be hot and soft. To prevent jamming remove the pouch immediately. Place pouch on to a flat surface to cool. Take care when handling a hot pouch.

TROUBLESHOOTING

Problem Possible cause Solution
No 'power on' lamp (red LED) Machine not switched on Switch on machine at the side and at the wall socket
No 'ready' lamp after a long period (green LED) Machine is in a hot or humid area Move the machine to a cooler and dry area
The Power LED is flashing red and the Ready LED (green) has turned off The laminator has gone in to Auto Shut Off mode Press the ON/OFF switch. The machine will reset itself
The ready lamp (green) and the Power LED (red) have turned off The laminator is in Auto Shut Off mode Press the ON/OFF switch. The machine will reset itself
Pouch is lost in the machine Pouch is jammed Press release lever and pull out the item by hand
Jamming Pouch was used 'open end' first
Pouch was not centred on entry
Pouch was not straight upon entry
Empty pouch was used

STORAGE & CLEANING

Switch off the machine at the wall. Allow the machine to cool. The outside of the machine can be cleaned with a damp cloth. Do not use solvents or flammable materials to polish the machine. Cleaning sheets can be purchased for use with the machine. When the machine is warm – run the sheets through the machine to clean any residue off the rollers. For optimum performance, it is recommended that cleaning sheets are used with the machine regularly. (Cleaning sheet order code #5320604).

PRODUCT REGISTRATION
Thank you for purchasing a Fellowes product. Please visit www.fellowes.com/register to register your product and benefit from product news, feedback and offers. Product details can be found listed on the rating plate positioned on the rear side or underside of the machine.

IMPORTANT SAFETY INSTRUCTIONS

  • The machine is for indoor use only. Plug the machine into an easily accessible socket.
  • To prevent electrical shock - do not use the appliance close to water, do not spill water on to the appliance, power cord or wall socket.

DO ensure the machine is on a stable surface.
DO test laminate scrap sheets and set the machine before final laminations.
DO remove staples and other metal articles prior to laminating.
DO keep the machine away from heat and water sources.
DO turn off the machine after each use.
DO unplug the machine when not in use for an extended period.
DO use pouches designed for use at the appropriate settings.
DO keep away from pets, while in use.
DO NOT leave the power cord in contact with hot surfaces.
DO NOT leave power cord hanging from cupboards or shelves.
DO NOT use appliance if the power cord is damaged.
DO NOT attempt to open or otherwise repair the machine.
DO NOT exceed the machines quoted performance.
DO NOT allow children to use this machine without adult supervision.
DO NOT laminate sharp or metal objects (eg: staples, paper clips).
DO NOT laminate heat-sensitive documents (eg: tickets, ultrasounds etc) on hot settings.
DO NOT laminate with self-adhesive pouches on hot settings.
DO NOT laminate an empty pouch.

NEED HELP?
Let our experts help you with a solution.
Customer Service www.fellowes.com
Always call Fellowes before contacting your place of purchase, see the rear cover for contact details.

CUSTOMER SERVICE & SUPPORT
www.fellowes.com
Europe Freephone: 00800-1810-1810
Benelux: +31-(0)-13-458-0580
Deutschland: +49 (0)511 545489-0
France: +33 (0) 1 78 64 91 00
Italia: +39-071-730041
Polska: +48 (22) 205-21-10
España/Portugal: +34-91-748-05-01
United Kingdom: +44 (0) 1302 836836
Australia: 1800 33 11 77

1789 Norwood Avenue, Itasca, Illinois 60143
1-800-955-0959
www.fellowes.com
