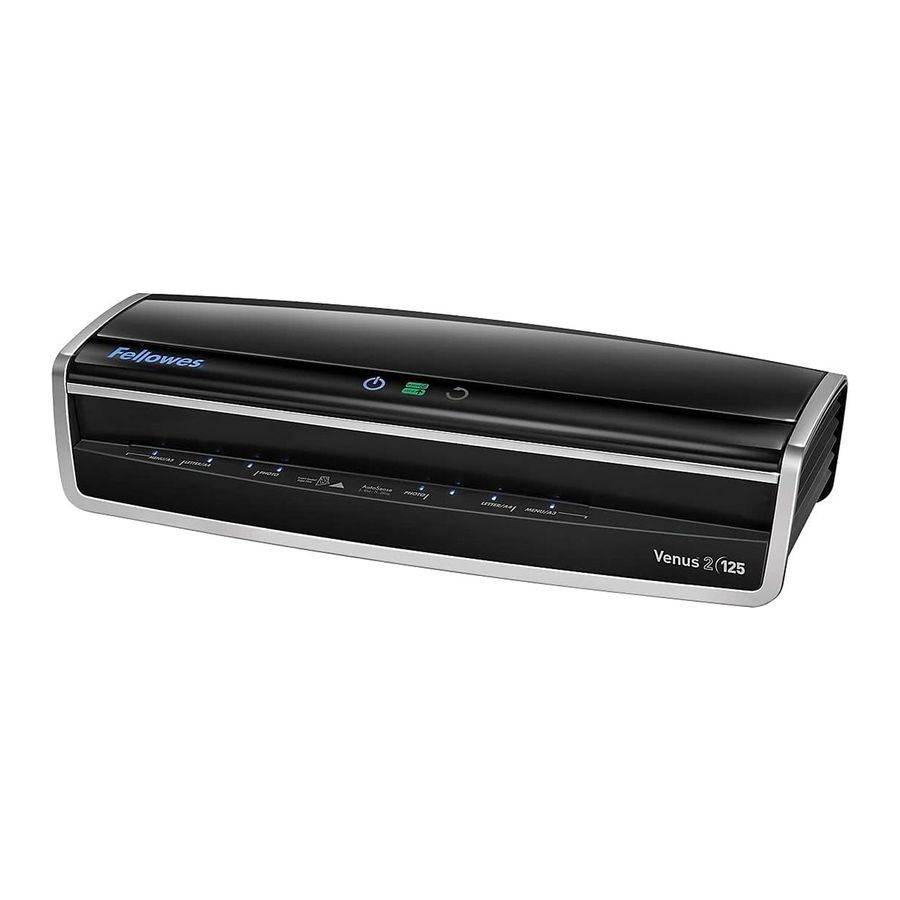

Fellowes Venus 2 125 Manual

PRODUCT REGISTRATION

Please visit www.fellowes.com/register to register your product and benefit from product news, feedback and offers. Product details can be found listed on the rating plate positioned on the rear side or underside of the machine.

PRODUCT CONTROLS

1. On / off switch
2. Standby / Power on button
3. Auto (hot)/cold button
4. Reverse button
5. Carry handles
6. Pouch / document entry slot
7. Entry shelf (illuminated)
8. Pouch / document exit
9. Illuminated user interface
10. Exit tray
11. Mil indicators

CAPABILITIES

FEATURES & TIPS

AutoSense
Unique system detects pouch thickness and self-adjusts to optimal lamination setting.

'Reverse' function
To eject the laminating pouch during use, press and hold down the reverse button until the pouch has ejected from the machine.

'Sleep Mode' function
If the machine is not active for 30 minutes, the 'Sleep Mode' function will place the machine into standby mode. To operate the machine, press the 'Power On' button on the control panel.

HeatGuard Technology
Keeps the laminator surface comfortable to the touch.

Auto (Hot)/Cold
The Auto (hot)/cold button is used to toggle back and forth between hot and cold laminating.

• For best results, use Fellowes brand pouches: 3, 5, 7 or 10 mil pouches.
• This machine does not need a carrier to laminate. It is a carrier-free mechanism.
• Always put the item to be laminated into the appropriate sized pouch.
• Always test laminate with a similar size and thickness before final process.
• Prepare pouch and item for lamination. Place item within pouch centered and touching the leading sealed edge. Ensure the pouch is not too large for the item.
• If required, trim excess material from around the item after lamination and cooling.

BEFORE LAMINATING

1. Ensure the machine is on a stable surface.

2. Check there is enough clear space (min 20") behind the machine to allow items to pass through freely.

3. Plug the machine into an easily accessible main outlet.

4. Fit the Exit Tray to the rear of the machine.


STEPS TO LAMINATE

5. Switch the power on (located at the rear right side of the machine).

6. The control panel buttons will flash once as part of a check light system to ensure proper function.

7. The Standby button will remain on with a soft blue glow.

8. Press the 'Standby' button on the control panel. The Auto (hot)/cold button and entry tray lights will flash. The auto display will turn solid and a beep will sound when the laminator is ready for 3 mil. Additional mil indicators will light up when the laminator is ready for thicker pouches.

9. The machine will automatically warm-up to the hot pouch (auto) setting.
   Note: the laminator features AutoSense which automatically recognizes the pouch thickness you insert into the laminator. The laminator automatically adjusts for hot pouches from 3 mil to 10 mil.

10. For cold lamination, press the Auto (hot)/cold button. The cold display and entry tray lights will flash. When the laminator is ready for cold lamination the cold display will turn solid and a beep will sound.
    Note: to use the cold setting after hot lamination you may have to wait for the laminator to cool down for 30 – 60 minutes.

11. To switch back to hot pouch laminating after cold laminating, press the Auto (hot)/cold button.

12. Place the pouch, sealed edge first, into the pouch / document entry. Keep the pouch straight and central within the document entry, not on an angle. Use the entry markings as a guide.

13. Upon exit, the laminated pouch is hot and soft. Remove the pouch immediately. Place pouch onto a flat surface to cool. This helps prevent any jamming.


TROUBLESHOOTING

STORAGE & CLEANING

Unplug the machine at the wall. Allow the machine to cool. The outside of the machine can be cleaned with a damp cloth. Do not use solvents or flammable materials to polish the machine. Cleaning sheets can be purchased for use with the machine. When the machine is warm – run the sheets through the machine to clean any residue off the rollers. For optimum performance, it is recommended that cleaning sheets are used with the machine regularly. (Cleaning sheet order code #5320603).

IMPORTANT SAFETY INSTRUCTIONS

KEEP FOR FUTURE USE

• The machine is for indoor use only. Plug the machine into an easily accessible outlet.
• To prevent electrical shock - do not use the appliance close to water, do not spill water on to the appliance, power cord or wall socket.

DO ensure the machine is on a stable surface.
DO test laminate scrap sheets and set the machine before final laminations.
DO remove staples and other metal articles prior to laminating.
DO keep the machine away from heat and water sources.
DO turn off the machine after each use.
DO unplug the machine when not in use for an extended period.
DO use pouches designed for use at the appropriate settings.
DO keep away from pets, while in use.
DO NOT leave the power cord in contact with hot surfaces.
DO NOT leave power cord hanging from cupboards or shelves.
DO NOT use appliance if the power cord is damaged.
DO NOT attempt to open or otherwise repair the machine.
DO NOT exceed the machines quoted performance.
DO NOT allow minors to use this machine.
DO NOT laminate sharp or metal objects (eg: staples, paper clips).
DO NOT laminate heat-sensitive documents (eg: tickets, ultrasounds etc) on hot settings.
DO NOT laminate an empty pouch.

NEED HELP?

Let our experts help you with a solution.
Customer Service www.fellowes.com
Always call Fellowes before contacting your place of purchase, see the rear cover for contact details.
Consider registering your machine at www.fellowes.com/register to receive updates and additional information.

Useful Phone Numbers

1789 Norwood Avenue, Itasca, Illinois 60143-1095 USA 630-893-1600
fellowes.com
