Medion E66050 (MD 43320) Manual

Information about this short manual

How do I contact the customer service team?
The contact details can be found in the full user manual.

Where can I find the full user manual?
The full user manual is available for viewing and downloading by scanning the QR code shown.

Explanation of symbols

If a block of text is marked with one of the warning symbols listed below, the hazard described in that text must be avoided to prevent the potential consequences described there from occurring.

Warning: risk of fatal injury!

Warning: risk of possible fatal injury and/or serious irreversible injuries!

Follow these instructions to prevent damage to the device!

More detailed information about using the device

IP54 Protection class specification

• Protection against harmful quantities of dust
• Protection against splashing water on all sides

Proper use

The site radio is used to play audio material which can be played via Bluetooth or AUX. In addition, radio stations can be played.
The specified reception frequency range represents the technical possibilities of the device. Information received outside this range may not be used or further distributed. The respective national laws must be observed.
Please note that we shall not be liable in cases of improper use.
Any other use is considered improper and can cause personal injury or property damage.

Package contents

Risk of choking and suffocation!
Packaging film can be swallowed or used improperly, creating a risk of choking and suffocation.

• Keep all packaging materials used (bags, pieces of polystyrene etc.) out of reach of children.
• Do not let children play with the packaging material.

• Remove the product from the packaging and remove all packaging materials.
• Check your purchase to ensure that all items are included and in perfect condition. If anything is missing or damaged, please contact us within 14 days of purchase. In the event of damage, only use the device after consultation with customer services.

The following items are supplied with your product:

• Site radio
• Audio cable (3.5 mm)
• Mains adapter
• Short manual

Device parts

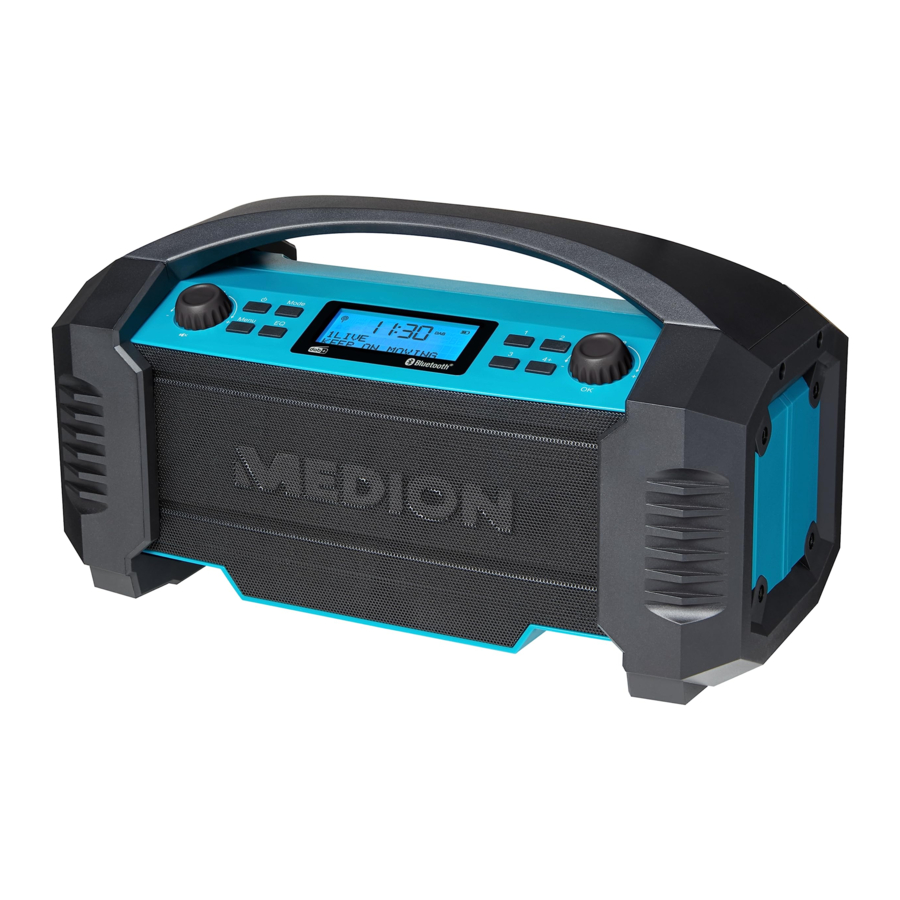

See Figs. 1-2

1. Cable spool
2. DAB/FM antenna
3. Handle
4. TUNE -/+ — Navigate in the menu, select track, select station, OK — Confirm settings
5. 1; 2; 3; 4+ — Station memory slot
6. Display
7. EQ — Select equaliser setting
8. MENU — Call up menu
9. VOL -/+ — Set volume,
10. MUTE — Mute
11. — Switch device on/off
12. MODE — Select operating mode

12. USB 5V 1A — USB charging port
13. AUX IN — Audio connector for external device
14. Mains cable
15. RESET — Reset opening

Getting started

Prepare and set up the device as described in the detailed user manual and put it into operation for the first time.

Connecting the mains cable

• Plug the mains adapter into an easily accessible 100-240V ~ 50-60 Hz mains socket.

If you do not need to use the device for a long period of time, please take it out of operation.
To do this, unplug the mains cable

Switching the device on/off

• Briefly press and hold the button to switch on the radio.
• Briefly press and hold the button to switch off the radio.

Setting the volume

• When the device is in use, turn the VOL. controller towards - to decrease the volume.
• When the device is in use, turn the VOL controller towards + to increase the volume.

The volume set is briefly shown on the display.
Press the controller to mute the device.

Radio mode

The detailed user manual contains in-depth information on how to use the device.

This device can receive both DAB and FM radio stations. Select the required radio mode:

• Fold up the antenna and align it for optimum reception.
• Switch the device on.
• Press the MODE button on the device repeatedly until you have reached radio mode. Dab or FM appears at the top of the display.

Setting the station manually (FM operating mode only)
Manually set the required frequency band here.

• Use the + TUNE - controller to select the required FM frequency.

The set frequency is now played.

Connecting devices via Bluetooth

• Switch on the device and select Bluetooth mode
• Press the MODE button several times until Bluetooth is shown on the display.

You will find more information about the Bluetooth function on your audio output device in its user manual.
The device name of the radio MD 43320 is displayed as soon as the signal is found.

The pairing of the two devices is complete when an acoustic signal is emitted and lights up continuously on the display.

Connecting an external playback device

You can use the AUX IN jack to connect an external playback device (for example a smartphone or MP3 player).

• Switch the site radio to standby mode.
• Switch off your external device.
• Open the protection against water spray for external devices.
• Plug the end of a 3.5 mm jack cable into the AUX IN socket on the side of the radio.
• Connect the other end of the cable to your external device.
• Switch on the site radio.
• If necessary, press the MODE button several times until Auxiliary Input is shown on the display.
• Switch on your external device.
• Start audio playback on your external device.

The audio signal from your external device will now be played back and controlled entirely via the external audio device.

Settings

The detailed user manual contains in-depth information on how to adjust the device settings.
The following operating options remain the same in the various settings menus:

• Press the MENU button to open the settings menu.
• Use the + TUNE - controller to select the System menu and press the OK controller to open the menu.
• Use the + TUNE - controller to select the setting you want to change.
• Press the OK controller to open the desired menu item.
• Use the controller to make the desired settings.
• Press the controller to confirm the setting.
• Press the MENU button to go back one menu item.

Cleaning and storage

For information on how to clean and look after the device, please refer to the detailed user manual.

Technical specifications

Rechargeable battery
Manufacturer	Shenzhen Zhouneng New Energy Corporation Limited
Model	INR18650S 3.6V
Output voltage	DC 7.2 V 2500 mAh, 18.0 Wh
Radio
Power supply	100-240V ~ 50/60 Hz, 15 W max.
Output power	15 W RMS
FM frequency band	87.5-108 MHz
DAB frequency band	174.928-239.200 MHz
Bluetooth version	V 5.0
Bluetooth operating frequency	2402-2480 MHz
Bluetooth max. transmission power	< 4.8 dBm
Environmental conditions	In operation: 10°C ~ +45°C < 90% humidity Not in operation: -10°C ~ +55°C < 90% humidity
Protection class	IP54
Dimensions (W x H x D)	Approx. 330 x 175 x 152 mm
Weight	Approx. 2.4 kg

General safety instructions

KEEP THIS USER MANUAL IN A SAFE PLACE

• Comply with all the information in this user manual, especially the safety instructions.
• Only use replacement parts or accessories that we have supplied or approved.
• Do not modify the device without our consent and do not use any auxiliary equipment that we have not approved or supplied.
• Unplug the device during a thunderstorm or if you are not going to use it for a long period of time.
• A battery-operated radio with integrated batteries may only be charged with the specified charger. A charger intended for a specific battery type can cause a fire if it is used for other batteries.
• Follow all charging instructions and do not charge the battery outside the specified temperature range. If you charge the battery incorrectly or outside the correct temperature, there is an increased risk of fire.
• The mains adapter is the separating device and must always be accessible.
• Do not use the product at high volumes for long periods of time. Select a moderate volume setting to avoid hearing damage.
• LCD screens contain liquid that can cause skin irritation and poisoning. If the liquid gets into your eyes, mouth or on your skin, rinse the affected areas with water and consult a doctor.
• Protect the product from rain or moisture. Water ingress can increase the risk of electric shock.
• This product is not suitable for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or have received instruction concerning use of the product by a person responsible for their safety. Children must be supervised to ensure that they do not play with the product. Store the product out of reach of children.
• Do not use the device in potentially explosive atmospheres. This includes petrol stations, fuel storage areas and areas where solvents are processed. This device must also not be used in areas with particle-laden air (for example, flour or wood dust).
• Protect the radio from heat and fire. Do not leave it in a hot place, e.g. in the immediate vicinity of a heat source, in direct sunlight or inside a vehicle parked in direct sunlight. Otherwise there is a risk of fire, explosion and injuries.
