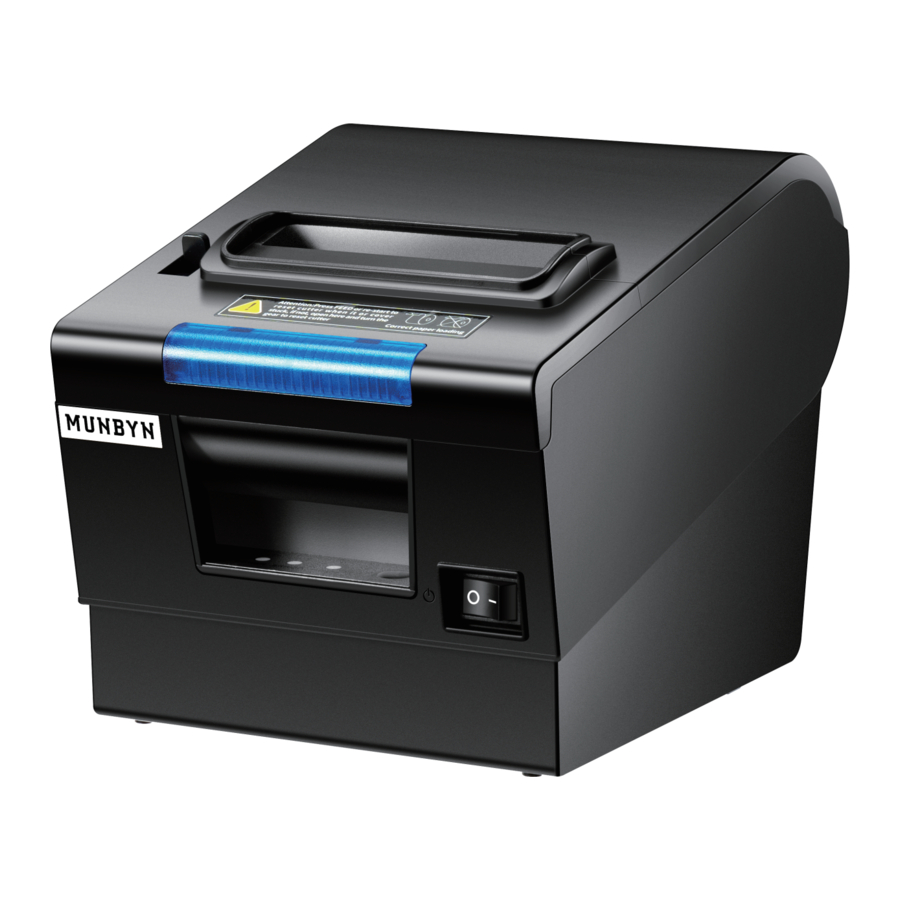

MUNBYN ITPP068 - Printer Manual

Introduction

These documents explain the setup procedure for the ITPP068. Please read the instructions before using the printer.

4. RS232 Cable
5. Power Adapter
6. Wire Arrangement Cover

If there is missing or damage of the packing list, please contact us via the contact details below

support@munbyn.com

+8617817881067

munbyn

Monday to Friday 24 hours

Paper Loading

1. Switch the cover opening button and then open the cover.
2. 1nsert a roll of paper in the direction shown in the illustration.

3. Pull the end of the paper out straight, and pushdown the printer cover to close

Initial Setup

Set Up The ITPP068 for First Use on Windows

Download Windows Driver

You can get the driver by clicking the link below to download the driver.

Driver download: http://u.pc.cd/P2citaIK

Setting tool download: http://u.pc.cd/eXe

Open the downloaded driver and install it.

Demo video:
https://www.youtube.com/watch?v=X6HDsj9_IWI

http://u.pc.cd/Xg50taIK

LAN Interface

1. Connect the printer router with a network cable.
   Please see the picture below


Open the downloaded setting tool and install it, then follow the demo video to configure the LAN.

2. Connect the printer to the router with a network cable. Please see the picture below.


Set Up The ITPP068 for First Use on MacBook

Download MacBook Driver

You can click the link below to download the driver. Driver download: http://u.pc.cd/10botaIK

USB Interface

1. Connect the printer to the power outlet via the power cord.
2. Connect the printer to your Windows computer via USB.
3. Place the thermal paper into the printer and power it on.


Open the downloaded driver and install it.

Demo video: http://u.pc.cd/7Eq7

LAN Interface

Connect your computer to the wireless router. Please see the picture below.

Open the downloaded driver and install it, then follow the demo video to configure the LAN.

Demo video: http://u.pc.cd/OvQotaIK

Set Up the ITPP068 for First Use on Linux

Download Linux Driver

You can click the link below to download the driver.

Driver download link: http://u.pc.cd/WwB7

USB Interface

1. Connect the printer to the power outlet via the power cord.
2. Connect the printer to your Windows computer via USB.
3. Place the thermal paper into the printer and power it on.

4. Open the downloaded driver and install it according to the video.
   Demo video: http://u.pc.cd/sJJ

LAN Interface

Connect your computer to the wireless router. Please see the picture below.

Set the IP address of the printer. Open your favorite web browser and navigate to [http://IocaIhost: 631/printers] to add the printer port according to the video.

Demo video: http://u.pc.cd/3xx

Set UP The ITPP068 for First Use Tablet or Phone

LAN Printer Installation

1. Need to change the printer IP to match your network by "Setting Tool" http://u.pc.cd/eXe

For example, if your local network IP address is 172.18.188.245, then you need to modify the printer's IP address to 172.18.188.100, the first three positions' digits must be the same, and the last positions' digits can be 0055, but not the same as the local network IP address.

Specific steps are as follows:

1. You need to connect the printer with a Windows computer (We currently only have a Windows version for the setting tool) by USB.


2. Power on the printer and load up the thermal paper.
3. Then, open the "Printer TEST" to start the IP setting, following the instruction below.


Notice:
When you hear a beep from the printer, it means that the IP modification is successful

2. Prepare a router and a network cable, and connect the printer to the router.

3. Use the IP address to connect the printer in the POS App. Take Loyverse App as an example.

App LAN Connection demo video: http://u.pc.cd/HpY7
