MUNBYN ITPP047 Manual

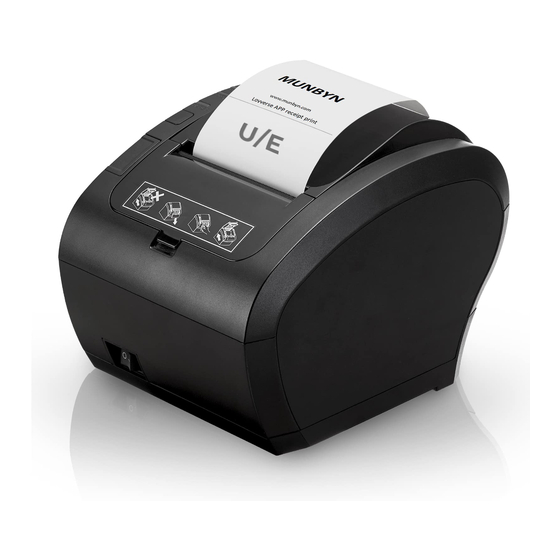

Pos receipt printer
Hide thumbs Also See for ITPP047:
Table of Contents

Advertisement

Quick Links

ITPP047
1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITPP047 and is the answer not in the manual?

Questions and answers

Related Manuals for MUNBYN ITPP047

Summary of Contents for MUNBYN ITPP047

  • Page 1 ITPP047 1.00...

  • Page 2: Table Of Contents

    Check the Packing List......................4 3.0. Paper Loading...........................5 4.0. Initial Setup..........................6 Set Up The ITPP047 for First Use on Windows..................6 4.1.1 Download Windows Driver........................6 4.1.2 USB Interface............................6 4.1.3 LAN Interface............................6 4.1.4 Bluetooth Printer Installation........................8 Set Up The ITPP047 for First Use on MacBook..................8 4.2.1 Download MacBook Driver........................

  • Page 3: Introduction

    1.0. Introduction This document explains the setup procedure for the ITPP047. Please read the instructions before using the printer. For further instructions, please refer to the ITPP047 software manual. https://munbyn.biz/ITPP047-SFmanual Page3of14 ITPP047 Easy Setup Guide Version 1.00...

  • Page 4: Check The Packing List

    2. Power Cord 3. Roller 4. User Manual 5. Roll Paper 6. USB Flash Drive 7. Power Adapter 8. USB Cable If contents are missed or damaged, please contact us through the following contact information. Page4of14 ITPP047 Easy Setup Guide Version 1.00...

  • Page 5: Paper Loading

    1. Press the cover opening button and then open the cover. 2. Insert a roll of paper in the direction shown in the illustration. 3. Pull the end of the paper out straight, and push down the printer cover to close. Page5of14 ITPP047 Easy Setup Guide Version 1.00...

  • Page 6: Initial Setup

    4.0. Initial Setup 4.1 Set Up The ITPP047 for First Use on Windows 4.1.1 Download Windows Driver You can get the driver from the included USB flash drive at this path: Driver CD → Driver → Windows Driver. Or click the link below to download the driver.
  • Page 7 2) The computer is connected to the wireless router. Please see the below picture. Figure 1- 3 LAN Connection Open the downloaded driver and install it, then follow the demo video to configure the LAN. Demo video: https://munbyn.biz/3p8Ar2m Page7of14 ITPP047 Easy Setup Guide Version 1.00...

  • Page 8: Bluetooth Printer Installation

    Open the downloaded driver and install it, then follow the demo video to configure Bluetooth. Demo video: https://munbyn.biz/33HaO0O 4.2 Set Up The ITPP047 for First Use on MacBook 4.2.1 Download MacBook Driver You can get the driver from the included USB flash drive at this path: Driver CD → Driver → Mac Driver.

  • Page 9: Lan Interface

    Figure 1- 4 USB Connection Open the downloaded driver and install it. Demo video: https://munbyn.biz/Mac-Install 4.2.3 LAN Interface The computer is connected to the wireless router. Please see the below picture. Page9of14 ITPP047 Easy Setup Guide Version 1.00...

  • Page 10: Set Up The Itpp047 For First Use On Linux

    Demo video: https://munbyn.biz/Mac-LAN 4.3 Set Up the ITPP047 for First Use on Linux You can get the driver from the included USB flash drive at this path: Driver CD → Driver → Linux Driver. You can also click the link below to download the driver.

  • Page 11: Set Up The Itpp047 For First Use On Chromebook

    Figure 1- 6 USB Connection Demo video: https://munbyn.biz/047Linux 4.4 Set Up The ITPP047 for First Use on Chromebook 1) Connect the printer to the power outlet via the power cord. 2) Connect the printer to your Windows computer via USB.
  • Page 12 Figure 1- 7 USB Connection Enter in Google Chrome: https://munbyn.biz/chromebookprint Figure 4 - 11 Settings Page Click "Add to Chrome" first, and then click "Add extension" to download and add the extension. Page12of14 ITPP047 Easy Setup Guide Version 1.00...

  • Page 13: Set Up The Itpp047 For First Use On Android

    Figure 4 - 12 Settings Page Follow the demo video to add the printer. Demo video: http://munbyn.biz/chromebookvideo 4.5 Set Up The ITPP047 for First Use on Android 4.5.1 Bluetooth Printer Installation To connect the printer using the EMlabel App on an Android device: https://munbyn.biz/047Android Use your Pos App to connect the printer on your Android device: https://munbyn.biz/047POS...
  • Page 14 Bluetooth Setup Tool (Android) Contact us MUNBYN provides 18 months warranty and lifetime free service. If you encounter any issues with the product, please contact the MUNBYN team to promptly receive troubleshooting tips or a replacement. Email: support@munbyn.com (24-7 online support) Website: www.munbyn.com...
  • Page 15 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
