Summary of Contents for MUNBYN IMP013

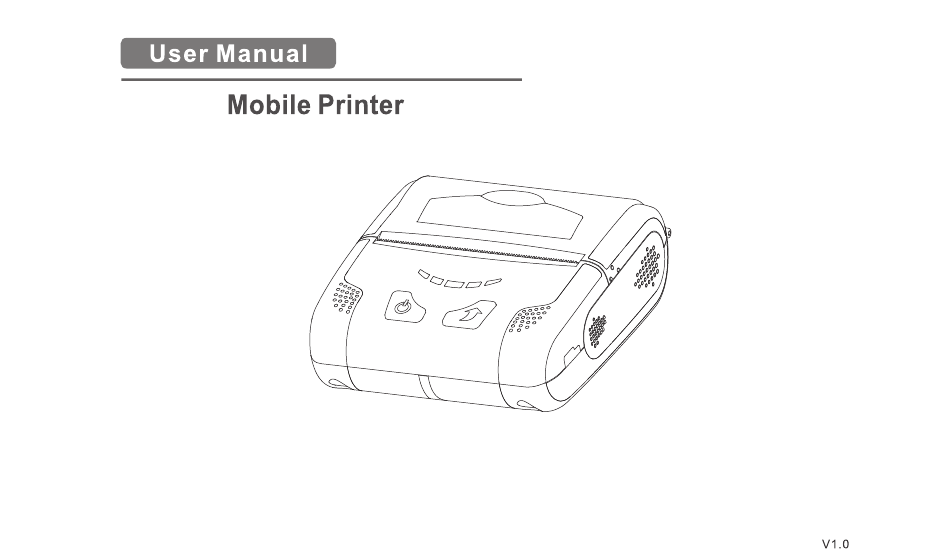

  • Page 1 IMP013 Please read this Manual carefully before using the printer and keep it for future reference...
  • Page 4: About This Manual

    About This Manual Thank you for purchasing the mobile printer. This manual can help you easily learn to use this product.Please read this Manual carefully before using the printer and keep it properly so that everyone who uses this product can read it. Icons and Practices For your convenience,this manual uses the following symbols(icons)and practices: warns that improper use may result in property damage, serious injury or death.
  • Page 5 Do not disassemble the printer by yourself. Please read this Manual carefully before use. Please turn off the power immediately in case of failure. When you notice smoke or odor coming from the printer or power adapter, please unplug the power adapter and remove the battery immediately. Please be careful not to get burnt.
  • Page 6 If the printer is to be stored for a long time, be sure to remove the battery from the printer and store it separately; otherwise, the battery may fail or even have leakage, which may damage the printer. Make sure the printer is turned off before replacing the battery. If a power adapter is used, make sure the power is cut off before replacing the battery.
  • Page 7 Please do not put the battery into water; otherwise, it may result in internal short circuit, which may cause the battery to heat up, emit smoke, deform, damage or even explode. Do not expose the battery to direct sunlight or put it in a place with excessive smoke and dust. Do not use the battery in a high humidity environment, such as a bathroom.
  • Page 8 Standard Accessories The pictures are for reference only. If any item is damaged or missing, please contact the supplier.
  • Page 9 Cover opening Rubber roll Thermal print head STATUS indicator button BATT indicator ERROR indicator Rubber roll gear Front cover Main body POWER button FEED button Battery Power DC interface USB interface...
  • Page 10: Battery Installation

    This chapter describes the steps to prepare the printer, including battery installation, battery charging, and printing paper loading. 3.1 Battery Installation The battery is installed in the printer before the product leaves factory. (1) Remove the protective film of battery contacts. (2) Install the battery as shown in the figure above.
  • Page 11: Battery Charging

    3.2 Battery Charging If you use a power adapter not provided or approved After the printer is used for a period of time, the battery will by us, the printer may be damaged. run out. When the printer battery is about to run out, all BATT indicators(Bluetooth) will go out, while the ERROR indica- tor(red) will be on.
  • Page 12 3.3 Printing Paper Loading 1.Remove the seal of the paper roll. 3.Put the paper roll into the paper bin as shown in the figure. 2.Open the paper bin cover. 4.Put the paper roll in place and close the cover. 1. Paper specification used by the printer: Paper width:79.5±0.5mm, paper roll diameter:40mm. 2.
  • Page 13: Power Off

    4.1 Power On 4.3 Self-test During power-off state, press and hold the power button for After getting the printer, the user can perform self-test 2 seconds to turn on the printer and enter working state. on the printer at any time to check the current settings At this time, the STATUS indicator(green) is always on.
  • Page 14: Indicator Description

    4.5 Indicator Description After getting the printer, the user can perform self-test on the printer at any time to check the current settings and status of the printer. STATUS indicator BATT indicator ERROR indicator...
  • Page 15 Ⅴ. Driver Installation Driver download link: https://bit.ly/IMP013-Driver 5.1 USB to Serial Driver Installation Open the file from the file: Driver CD. Double click the installation icon Then, it will show as below picture: Select “Next”, it will show as below picture:...
  • Page 16 Click “Finish”, the USB to Serial Driver is installed. Firstly, if you want to connect the Mobile Printer to computer, please connect the printer to computer by the USB Data Wire. Turn on the computer power. Then you can see the COM number from the lower right corner of the computer desktop.
  • Page 17: Windows Driver Installation

    5.2 Windows Driver Installation Double click the installation icon Then, it will show as below picture: Select the language, then click “OK”. Then, it will show as below picture: Then click “Install”.
  • Page 18 Then, it will show as below picture: Select the Printer Model and available computer port, such as "USB PORT" as the picture, then, click “Install”.
  • Page 19 And then, it will show as below picture: Select “OK”, and then click “Exit”. Wait until it shows the below picture, it means, the printer driver has been installed successfully.
  • Page 20 Then click “Finish” to finish driver installation.
  • Page 21 5.3 Printer Setup and Testing 5.3.1 Setup Printer Properties Click Start Menu, and then click “Devices and Printers”, just as above picture...
  • Page 22 Right-Click “58mm Series Printer” and then click “Printer properties” And then, it will show as below picture: On 58mm Series Printer Properties “General”, you could configure the printer communication port, such as Serial port. You also could set the paper specification, beeper etc. After all the setting, you could start to print the testing page.
  • Page 23 5.3.2 Serial Port Configuration On 58mm Series Printer Properties “Ports”, you could configure the Serial Port to communicate printer to computer, see the below picture: Select available computer COM port, such as "COM1" as the above picture, and then click "Configure Port"...
  • Page 24 "Bit per second" means Serial port baud rate, it must same as printer setting. For example, if printer baud rate is "19200bsp", then you must select "19200" on "Bit per second", just as above picture.(Factory default baud rate is 19200bps ) “Flow control”, we recommend select “Hardware”...
  • Page 25: Usb Communication

    6.1 USB Communication IMP013 provides Micro USB port, which is used to connect the printer to a PC as shown in the figure to charge the printer, set parameters, and transmit data, etc.
  • Page 26 6.2 Bluetooth Communication(Alternative) The mobile printer can provide dual-mode Bluetooth 4.0(SPP+BLE), which can communicate with Android system and IOS system terminals. Its effective communication distance is no more than 10m.
  • Page 27 7.1 Daily Maintenance of Printer 1. Cleaning of outside and paper bin: Wipe the surface of the printer and the inside of the paper bin gently with a wrung-out wet cloth. Make sure that the wet cloth is completely wrung out. 2.
  • Page 29: Printer Parameters

    9.1 Printer Parameters...
  • Page 30: Battery Recycling

    9.2 Battery Recycling This product uses a rechargeable lithium battery. To protect the environment, please do not dispose of used batteries at will. The supplier will provide you with battery recycling service.
