cecotec POWER TITANBLACK 1200 XL CREAM&CRUSH 04292 Manual

PARTS AND COMPONENTS

Fig. 0
Fix Plus accessories coupling system: makes it easy to attach and remove the blender and its accessories.

Blender main body (handle). Fig. 1

1. Speed knob
2. Power button
3. Turbo button
4. Housing

Blending arm. Fig. 2

5. Blade

Blender jug. Fig. 3

6. Blender jug for blades or whisks
7. Blending cup lid

Balloon whisk. Fig. 4

8. Balloon-whisk accessory
9. Balloon whisk

Food chopper Fig. 5

10. Chopper lid
11. Chopping blade
12. Chopper container

Fig. 5.1

13. IceBlade, special for crushing ice

NOTE
The graphics in this manual are schematic representations and may not exactly match the appliance.

BEFORE USE

• This hand blender has a packaging designed to protect it during transport. Unpack the appliance and keep the original packaging box and other packaging materials in a safe place. It will help you prevent any damage if the product needs to be transported in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or not in good condition, immediately contact the official Cecotec Technical Support Service.
• Before using this hand blender or any of its accessories, you must clean all parts that will touch food.

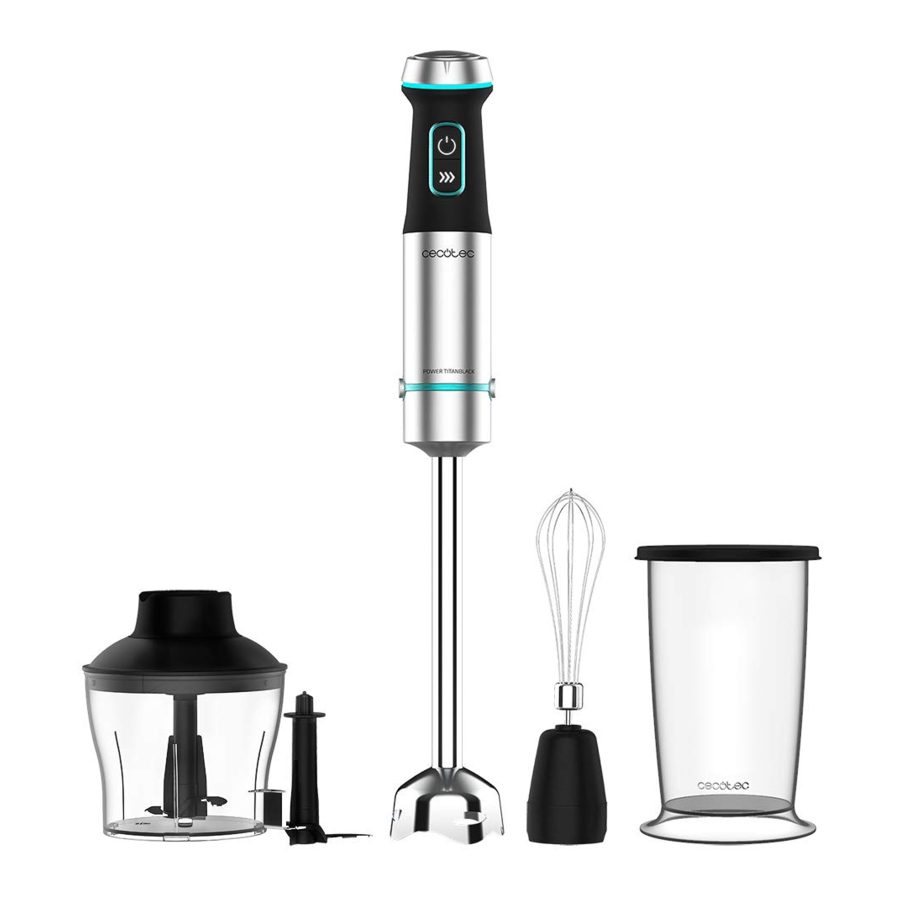

Box content

• Hand blender
• 800 ml jug with lid
• 600 ml chopper
• Blade for crushing ice
• Balloon whisk
• Instruction manual

OPERATION

Device

Fig. 0, 1, and 2
Suitable for preparing baby food, soups, sauces, shakes, and mayonnaise.

Use:

1. Unwind the power cable completely.
2. Place the handle inside the blending arm shaft and then lock it with a click.
3. Plug in the appliance. To avoid any splashing, place the blade inside the food before switching the appliance on.
4. Hold the handle firmly, press the power button and set the speed with the speed knob.
5. Blend food by moving the hand blender vertically.
6. When finished, switch off the blender and disconnect it from the mains.

NOTE:

• Do not exceed the maximum capacity of the jug.
• Do not use this hand blender in containers without a flat bottom or with protruding pieces.
• Do not use the blender with hot food.
• Make sure that the food does not go beyond the junction between the handle and the shaft of the blending arm.
• In the event of a blockage, disconnect the blender from the mains and clean it accordingly.

Accessories

Balloon whisk

• Approximate usage time: 15 seconds.
• Suitable for whipping soft ingredients such as egg whites, cream, instant desserts, eggs, and sugar.
• Do not try to whisk harder mixtures like margarine, as you may damage the balloon whisk.

Use:

1. Put the balloon whisk in its attachment.
2. Fit the blender handle inside the balloon whisk attachment, then lock it with a click.
3. Prepare the food in a suitable container. Do not whisk more than 6 egg whites or 1000 ml of cream at the same time. Make sure the liquid does not exceed the top of the whisks.
4. Plug the device in and press the power button.
5. When finished, switch off the blender and disconnect it from the mains.

Food chopper

• Suitable for chopping meat, cheese, vegetables, spices, bread, biscuits, and nuts.
• Remove any bone inside the ingredients to be processed and cut food into pieces with 1-2 cm thickness.

Use:

1. Assemble the chopping blade or the special IceBlade for crushing ice inside the container using the pin.
2. Place the food inside the container.
3. Fit the lid and twist to secure it.
4. Insert the handle and twist to secure it.
5. Hold the container firmly and connect the blender to a mains socket. Then, press the power button.
6. When finished, unplug the blender from the power socket and wash all parts thoroughly.

Turbo button

Press this button while using the device to run the device at maximum power and speed.

Note:
The blender may overheat if this function is used for a long time.

Speed knob

Turn the speed knob to change the blades speed and choose whichever suits you best.

Comparison table

These data are approximate and depend on many different factors.

CLEANING AND MAINTENANCE

Cleaning the blades

• To clean the blending shaft properly, place 300 ml of lukewarm water in the blender jug with a little dishwashing soap, insert the blending shaft into the soapy water up to the bottom of the blender jug, and run the blender in turbo mode in 10-second intervals. Empty the contents of the blender jug and refill it with 300 ml of clean water and repeat the same operation for rinsing. Repeat this process if necessary. Be cautious of splashes.
• Disconnect the appliance from the power supply and allow it to cool down before cleaning.
• After processing very salty food, rinse the blades with water immediately.
• Use a soft, damp cloth to clean the outside of the hand blender.
• The following parts are dishwasher safe: cup, stick, balloon whisks, mincer container, mincer blade and special IceBlade for crushing ice.
• Do not use too much cleaning agent or descaler in your dishwasher.
• Do not immerse the device in water or other liquids. Fig. 6.

  Fig. 6
• Do not use abrasive cleaners or scouring pads to clean the device.
• Please handle the blades carefully, they are very sharp.
• After processing food with colour, the plastic parts of the device may discolour. It is recommended to clean these parts with vegetable oil before washing or putting them in the dishwasher.

TECHNICAL SPECIFICATIONS

Product reference: 04292
Product: Power TitanBlack 1200 XL Cream&Crush
Rated power: 1200 W
Voltage: 220-240 V~
Frequency: 50 Hz

The appliance power consumption when off is 0,1 W, following the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. The appliance doesn't perform any function when connected to the mains.
Technical specifications may change without prior notification to improve product quality.

SAFETY INSTRUCTIONS

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
•
  incorrect or improper use can be dangerous for the user and damage the appliance. Use the appliance only for the purposes described in this manual.
• Be careful when handling the blender blades, especially when changing accessories, cleaning, and emptying the jug.
• The appliance is not intended to be used by children. Keep this appliance and its power cable out of their reach.
• The appliance can be used by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children must not play with the appliance.
• Ensure that the mains voltage matches the voltage specified on the device rating label and that the plug is earthed.
• Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.
• Unplug the appliance from the outlet when not in use, before assembling or disassembling parts, and before cleaning.
• Check the power cable regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the product outdoors, close to electric plates, gas, flames, or inside an oven.
• Do not twist, bend, pull, or damage the power cable. Protect it from sharp edges and heat sources. Do not allow the cable to touch hot surfaces. Do not let the cable hang over the edge of the working surface or worktop.
• Do not plug the appliance into the power supply until it is fully assembled and make sure it is unplugged before disassembling the appliance or handling its blade.
• Do not use the hand blender with hot food.
• Do not insert utensils into the product during operation to reduce the risk of splashing or injury. Please handle it with care.

TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.
It is recommended that repairs be carried out by qualified personnel.
If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at +34 96 321 07 28.
