Medion MD 14482 - Microwave with Grill Manual

If a block of text is marked with one of the warning symbols listed below, the hazard described in that text must be avoided to prevent the potential consequences described there from occurring.

Warning: risk of fatal injury!

Warning: risk of possible fatal injury and/or serious irreversible injuries!

Warning: risk of minor and/or moderate injuries!

NOTICE!
Follow these instructions to prevent damage to the appliance!

CAUTION!
Danger due to hot surfaces!

This symbol provides useful additional information for assembling or operating the appliance.

Follow the instructions in the user manual!

CE labelling
Products that feature this symbol meet the requirements of the EU directives.

Symbol for alternating current (AC)

Protective earthing symbol (for protection class I)
Electrical appliances in protection class I are electrical appliances that permanently have at least basic insulation and either have a plug with earth contact or a fixed power cable with protective earth.

The position numbers after the corresponding appliance components in the text refer to the illustration in section "Device overview".

Proper use

The microwave may only be used for heating up suitable food in suitable cooking containers and dishes. Do not use the appliance outdoors!

This appliance is designed for use in private households and similar household applications, such as

• in kitchens for staff in retail outlets, offices and other commer-cial areas
• on agricultural estates
• by customers in hotels, motels and other accommodation fa-cilities
• in bed-and-breakfast establishments.

The manufacturer accepts no liability for damages if the appliance is used for commercial purposes or for any purpose other than the purpose specified above.

• Please note that we shall not be liable in cases of improper use.
• Comply with all the information in this user manual, especially the safety instructions. Any other use is considered improper and can cause personal injury or property damage.

Safety instructions

IMPORTANT SAFETY INSTRUCTIONS – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE!

• Keep the appliance and its accessories out of the reach of children.
• This appliance may be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those with limited experience and/or knowledge, provided that they are supervised or have been instructed in the safe use of the appliance and have understood the associated risks.
• Children must not be allowed to play with the appliance.
• Cleaning and user maintenance must not be carried out by children unless they are supervised.
• Children younger than 8 must be kept away from the appliance and the mains cable.

Warning: risk of electric shock!

There is a risk of electric shock due to live parts.

• Before using for the first time and after each use, check the microwave and the mains cable for damage.
• Do not operate the microwave if there appears to be any damage to the microwave or to the mains cable.
• Make sure that the mains cable is not damaged and does not run underneath the microwave or over hot surfaces or sharp edges.
• Completely unwind the mains cable.
• Do not kink or crush the mains cable.
• Contact our Service team without delay if the appliance has been damaged during transport.
• Only connect the microwave to a properly installed, earthed and fused socket. The mains voltage must match the technical specifications for the appliance.
• The power socket must be easily accessible so that you can unplug the microwave appliance from the mains quickly if necessary.

Risk of injury!
There is a risk of injury as a result of microwave radiation.

• Microwave radiation may leak outside if the appliance is damaged. Damage to the mains cable may cause an electric shock.
•
  If the housing, covers, door, door seals or the door catch are damaged then do not use the microwave oven under any circumstances. Immediately remove the plug from the earthed mains socket in this case. Do not use the microwave again until it has been repaired by a person trained for this purpose.
•
  It is dangerous for untrained persons to carry out repair or maintenance work which requires the removal of a cover which is in place to prevent the escape of microwave radiation.
• Do not, under any circumstances, make any unauthorised modifications to the microwave or try to open a component and/or repair it yourself. Only allow the microwave and mains cable to be repaired by a professional workshop or contact the customer service team in order to avoid risks.
• Do not remove any of the microwave's internal covers or the inner coating of the viewing window as this could lead to microwave radiation leakage.
• Only use replacement parts or accessories that we have supplied or approved.

The microwave must not be submerged in water or other liquids, nor exposed to running water or used in damp rooms, as this may result in an electric shock.

• Pull the mains plug out of the socket
  • when you are cleaning or maintaining the appliance
  • when you are assembling or disassembling the appliance
  • if the appliance is damp or wet
  • if you are no longer using the appliance
  • when the appliance is unattended
  • during thunderstorms.
• Protect the microwave from water in droplet and spray form. Do not let the appliance come into contact with water or other liquids. Keep the appliance, the mains cable and the mains plug away from wash basins, sinks or similar. Should liquid ever penetrate into the appliance, disconnect the plug from the earthed mains socket immediately. Have the appliance checked by a qualified specialist workshop.
• Never touch the appliance or the mains cable with wet hands.

NOTICE!
Risk of damage!
Risk of damage to the appliance if installed incorrectly.

• Place the microwave on a level, stable surface which is able to carry the weight of the appliance as well as the maximum weight of the food which will be cooked in it.
• Do not place the microwave near heat sources. Chemical additives in furniture coatings may corrode the material of the appliance feet and cause residue on the furniture surface.
• Place the appliance on a heat-resistant surface if necessary.

Hot surfaces

Risk of explosion!
Mixtures of water and oil can ignite or even explode.

• Do not heat water mixed with oil or fat in the microwave.
• Do not defrost frozen fat or oil in the microwave.

WARNING!
Risk of injury!
The appliance and the parts you can touch are hot during use. There is a risk of injury due to burns caused by hot surfaces.

• Do not touch the housing.
• Avoid touching heating elements inside the oven.
• Keep children under the age of 8 away from the appliance unless they are continuously supervised.
• In combination mode or grill mode, children may only use the appliance if supervised by an adult, owing to the high temperatures.
• The turntable plate will become very hot after a cooking process with the grill! Always use a protective cloth or heatproof oven gloves when removing the turntable plate from the cooking compartment.

WARNING!
Risk of fire!
There is a risk of fire due to improper use at very high temperatures/hot appliance surfaces.

• Do not place objects on top of the microwave. To ensure adequate ventilation, a minimum safe clearance of 30 cm to the top and 20 cm on both sides must be observed. The base of the appliance should be at a height of at least 85 cm. Do not cover or obstruct the vents on the appliance.
• The appliance must be positioned with the rear panel against a wall.
• The microwave is designed as a free-standing appliance. Do not operate in fitted cabinets or a cupboard.
• Never leave the appliance unattended during operation.
• The microwave is not designed to be operated with an external timer or a separate remote control system.
• If heating or cooking food in flammable materials such as plastic or paper containers, check the microwave frequently on account of the risk of ignition.
• The appliance may only be used for heating up appropriate food in suitable containers and dishes. Do not use baking paper in grill or combination mode.
• Do not heat up or attempt to dry combustible objects in the appliance (food or clothes, little heating cushions, slippers, sponges, wet cleaning cloths, etc.).
• Do not prepare food containing alcohol. Do not use the appliance to deep-fry or to heat oil!
• To avoid sparks, load the turntable plate evenly ensuring that it does not touch the metal internal wall of the appliance when the appliance is in use.
• If smoke starts to emerge, keep the door closed in order to prevent fire from breaking out or to smother any flames. Immediately switch off the appliance by disconnecting the mains plug.
• Always use standard popcorn packaging that is designed for making popcorn in a microwave.
• Never exceed the cooking times specified by the manufacturer.
• Do not store any food or other objects in the microwave.

Safety instructions relating specifi cally to the use of microwaves

Risk of injury!
There is a risk of injury from exploding containers.

• Do not heat up food or liquids in sealed or tightly closed containers! These can explode in the appliance and cause injuries on opening. Remove the lids from containers which close, such as feeding bottles for babies.

Risk of injury!
There is a risk of burns.

• Food prepared in the microwave may heat up unevenly. Check the temperature of food before eating. When preparing baby food and bottles, always stir the food or shake the bottle before checking the temperature in order to avoid burns.
• Do not heat eggs in their shells or prepare whole hard-boiled eggs in the microwave as they can explode while cooking and even after removal. Eggs may only be cooked in microwave dishes designed specifically for this purpose.
• Prick or score food which has a tough skin, e.g. tomatoes, sausages, aubergines etc. before cooking in order to prevent it from bursting.
• Hot steam will escape when you open cooking containers (e.g. popcorn bags, food storage containers). Always hold the opening away from your body as you open the container.
• Hot steam will escape when you open the microwave door. Do not stand too close.
• The surfaces of the microwave, the accessory parts, as well as the dishes will become very hot during the cooking process.

Use oven gloves. Allow parts to cool down before cleaning.

NOTICE!
Risk of damage!
Risk of damage to the appliance due to improper use of the appliance.

• Never operate the appliance without the turntable plate and never operate it without food in the cooking compartment.
• Only use the accessories supplied or accessories which are described as suitable in this user manual.
• Never use dishes with metal trimmings or metal dishes in microwave mode, as this may lead to sparks that could damage the appliance and/or the dishes.
• Use microwave-safe dishes. Look for markings such as "Microwave-safe" or "For microwave appliances" when purchasing dishes.
• Do not move the appliance during operation.

Safety instructions on the heating of liquids

Risk of injury!
There is a risk of burns.

• When warming up liquids in the microwave, so-called "delayed boiling" can occur, i.e. the liquid has reached boiling temperature without beginning to bubble as boiling liquids normally do. Movements, such as those generated when removing the liquid from the microwave, can then cause a sudden reaction, causing boiling liquid to spurt out, which is why caution is required when handling the container.
• Do not use tall, narrow containers.
• Place a glass rod or ceramic rod in the container when heating liquids in order to prevent delayed boiling. After heating up, wait for a short while, carefully tap the container and stir the liquid before removing the container from the microwave.

Cleaning and maintaining the appliance

• Observe the instructions for cleaning when cleaning the cooking compartment as well as the adjacent parts, see "Cleaning and care".

Package contents

Risk of injury!
There is a risk of choking and suffocation due to swallowing or inhaling small parts or plastic wrap.

• Keep all packaging materials used (bag, pieces of polystyrene etc.) out of the reach of children.
• Do not allow children to play with the packaging material.

→ Remove the product from the packaging and remove all packaging material.

→ Check your purchase to ensure that all items are included. If anything is missing, please contact us within 14 days of purchase.

• Microwave MD 14482
• Turntable plate, incl. roller ring
• Grill rack
• Short manual

Cooking in the microwave

→ In order to correctly arrange the food to be cooked, place the thickest pieces on the outside.

→ Note the exact cooking or heating times.

→ Choose the shortest available cooking or heating time and extend it if necessary.

→ Cover food during cooking or heating with a microwave-safe cover. Covering the food helps avoid splashes; furthermore, the food is more evenly cooked.

→ Turn foods such as chicken pieces or hamburgers once when cooking in the microwave in order to speed up cooking. Larger pieces such as joints or roasting chickens must be turned at least once to ensure that the food is cooked evenly.

→ It is also important to reposition food, e.g. if cooking meatballs: After half of the cooking time has elapsed, reposition the food from top to bottom and from the inside to the outside.

→ After heating, stir the food thoroughly, if possible, to ensure even temperatures, otherwise let the food stand for a short time.

Size and shape of microwave-safe containers

Flat, broad containers are better than narrow, tall ones. "Flat" foods can be cooked more evenly.

Round or oval containers are more suitable than angular ones. There is a danger of local overheating in the corners.

Microwave-suitable materials

Use the following utensils in the microwave:

• Browning dishes
• Crockery
• Glass containers without a lid
• Oven-safe glassware
• Oven-safe cooking bags
• Paper bags and cups (only for brief warming up)
• Paper towel (only for covering foods and for soaking up grease)
• Microwave-safe plastic containers
• Microwave-safe plastic packaging
• Microwave-safe thermometer
• Wax paper (only for covering foods)

Always note the manufacturer's instructions.

NOTICE!
Possible material damage!
The use of unsuitable materials can cause damage to the appliance or the material itself.

• Never use metal dishes or dishes with metal trimmings.
• Do not use crystal or lead crystal glass. It can shatter, and coloured glass may become discoloured.
• Do not use materials that are not heat-proof. They may warp or may even catch fire.

In order to test whether a dish is suitable for use in the microwave, put some water in it and place it in the microwave.

→ Press the button twice. The appliance will now operate in microwave mode for 1 minute. If you ascertain that the container is hotter than the food, then it is not suitable for the microwave. Microwave-safe dishes are only warmed by the heat of the food.

Risk of fire!
There is a risk of fire due to improper use of the appliance.

• As soon as you notice sparks, flashes or even fire, turn off the microwave immediately by pressing the button and pull the power plug.

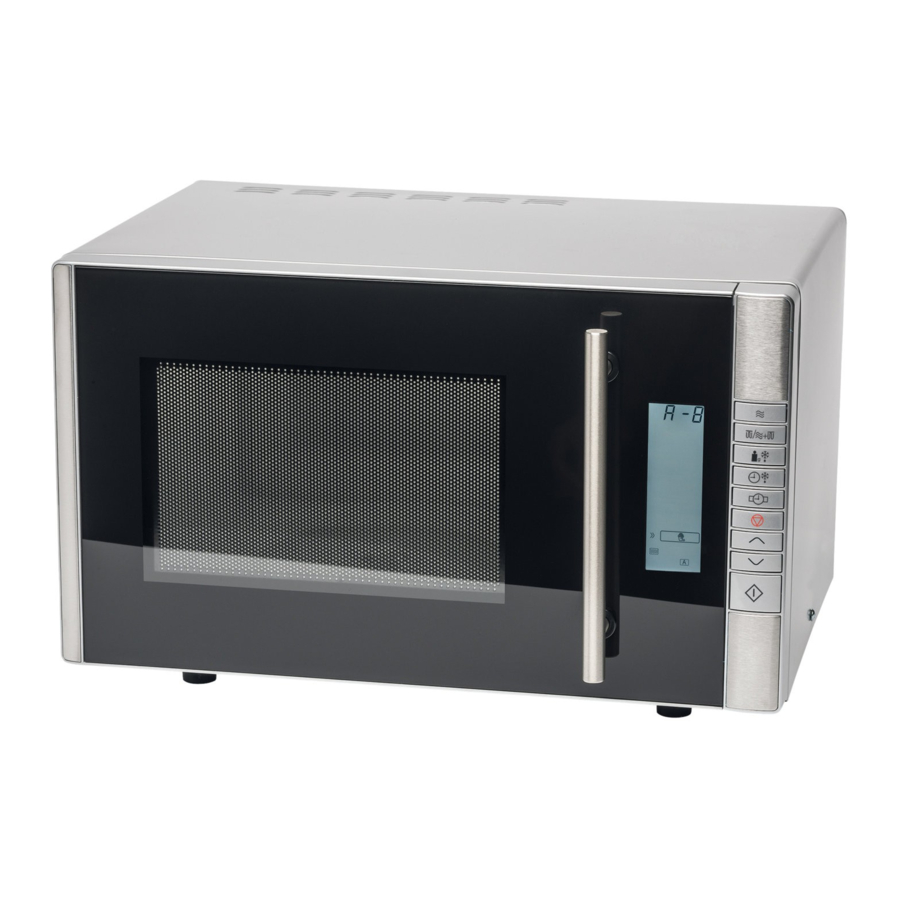

Device overview

Parts designation

1. Upper grill
2. Turntable plate
3. Magnetron cover: DO NOT REMOVE!
4. Control panel
5. Display
6. Door lock
7. Drive axis
8. Roller ring
9. Viewing window
10. Grill rack

Controls

1. Set microwave mode
2. Set combination microwave/grill mode
3. Set defrosting mode according to weight
4. Set defrosting mode according to time
5. Set time/time format/start of cooking time
6. Cancel input; press once: briefly interrupt the programme; press twice: end programme prematurely; press and hold: activate safety lock
7. Increase input value
8. Decrease input value
9. Start appliance; confirm input; start automatic programmes

Display

1. Display time/duration of cooking programme or weight
2. Automatic programme A-1: Pizza
3. Automatic programme A-2: Potatoes
4. Automatic programme A-3: Meat
5. Automatic programme A-4: Fish
6. Automatic programme A-5: Vegetables
7. Automatic programme A-6: Drinks
8. Automatic programme A-7: Noodles
9. Automatic programme A-8: Popcorn
10. Operating lights

Operating lights

Display	Function
	Microwave mode
	Grill mode
	Defrosting mode by time
	Defrosting mode by weight
	Weight is set
	Operating light
	Time is set
	Timer is activated
	Automatic programme mode
	Safety lock in operation

Before using the appliance for the fi rst time

Setting up the appliance

→ Ensure that all packaging materials have been removed from inside the appliance and the interior of the door.

NOTICE!
Risk of damage!
Risk of damage to the appliance due to improper use of the appliance.

• The cover (3) in the cooking compartment is not part of the packaging and must not be removed!
• The microwave has been designed for household use and may not be used outside.

→ Do not place the microwave:

• near sources of heat
• near radios or televisions
• in the immediate vicinity of inflammable materials
• in a location prone to wetness or high humidity.


→ To ensure adequate ventilation, the clearances shown in the illustration above must be maintained. The spacer at the back of the appliance must touch the wall. It ensures that the correct clearance is maintained when positioning the microwave.

→ Do not remove the feet.

→ Connect the microwave to a convenient and easily accessible, earthed mains socket.

Heating up the empty appliance

Before using the microwave, the appliance must be heated up so that residues left over from production can evaporate. To do this, switch on the appliance in grill mode without food or accessories inside as described below:

→ Open the door and remove any packaging or accessory parts from the cooking compartment. Close the door.

→ Press the button until is shown on the display.

→ Press the button and then the button repeatedly until the cooking time of 10 minutes is set.

→ Press the button again to start the heating process.

During this initial heating period you may notice faint odours. These smells are not dangerous and will disappear after a short time. Ensure adequate ventilation, e.g. by opening a window.

→ The appliance switches off automatically after 10 minutes. Wait until it has completely cooled down.

→Pull the mains plug out of the mains socket and then clean the appliance once again using a damp cloth from inside and dry the microwave carefully.

Using accessories

Once the microwave has been completely heated in an empty state as described above, it must not be operated without properly inserted turntable plate.

→ Check that the drive shaft (7) is correctly inserted in the recess on the base of the cooking compartment and that its wings rest flat on the base. If necessary, turn the drive shaft (7) until it sinks into its correct position.

→ Place the roller ring (8) in the recess in the cooking compartment and then place the glass turntable plate (2) centrally on the drive shaft (7) (see figure above) so that the webs of the glass turntable (2) lie between the wings of the drive shaft (7).

Operation

Risk of injury!
There is a risk of injury from electric shock or microwave radiation. Microwave radiation may leak outside if the appliance is damaged. Damage to the mains cable may cause an electric shock.

• If the housing, covers, door or the door catch are damaged, do not use the microwave under any circumstances. Immediately remove the plug from the earthed mains socket in this case.
• Do not operate the microwave if objects are jammed in the door or the door does not close properly.
• If you discover any damage, do not use the microwave. Instead, please contact the Service Centre.

Risk of injury!
As the food or containers may be very hot, there is a risk of scalding.

• Always use a protective cloth or heatproof oven gloves when removing food from the cooking compartment.

When the appliance is in use, condensation may form on the inner walls and microwave door. This is normal when cooking and does not indicate a malfunction. If condensation forms, wipe it off with a soft cloth.

→ Prepare the food:
Poultry, pork, minced meat and all types of fish are suitable for preparing in the microwave. In contrast, beef and game meats quickly become tough in the microwave and are therefore not suitable.
When preparing vegetables, meat and fish, cut the food into as evenly sized pieces as possible.

→ Pull the door handle to open the microwave door.

→ Place the food in a microwave-safe container in the centre of the glass turntable plate.

→ Cover food during cooking or heating with a microwave-safe cover. Covering the food helps avoid splashes; furthermore, the food is more evenly cooked.

→ Close the microwave door until you hear it click into place.

Every time a button is pressed you will hear a tone to confirm.

Setting the time

When the microwave is used for the first time or the power supply is interrupted, the display will show and the time (24-hour display) needs to be set.

→ Press the button once. The hour display flashes.

→ Press the or button to set the hour.

→ Press again.

→ Press the or button to set the minute.

→ Press again.

The time is now set.

Safety lock

→ In order to activate the child lock, press and hold the button for approximately 3 seconds. A beep sounds and the symbol is shown on the display. The microwave buttons will now not work.

→ In order to deactivate the child lock, press and hold the button for approximately 3 seconds again, until a beep sounds and the symbol goes out. All functions are available again.

Set the kitchen timer (countdown)

→ Press the button twice. The symbol is shown on the display.

→ Press the or button to set the desired time in minutes and seconds ().

• Multiple presses: setting in 5, 10, 30-second intervals or 1 or 5-minute intervals.
• Long press: quickly cycle through the setting options The longest time that can be set is 95 minutes.

→ Press the button. The countdown begins.

To interrupt the countdown briefly, press the button once, and to resume it, press the button. To end it, press the button twice.

End of the cooking process

At the end of each cooking process, acoustic signals sound and the time is displayed again. The cooking process is finished. After a short time, the display also goes out. The interior lighting of the microwave switches on and off automatically when the door is opened and closed.

CAUTION!
Risk of injury!
As the food or containers may be very hot, there is a risk of scalding.

• Always use a protective cloth or heatproof oven gloves when removing food from the cooking compartment.

Interrupting a programme

If you want to turn or stir the food, for instance midway through the cooking process, it is often necessary to interrupt the programme.

→ Open the door or press to interrupt the programme. The remaining running time is still shown on the display.

→Once you have closed the door again, press the button to resume the cooking process.

→ Press the button twice in order to prematurely stop the programme completely.

Cooking with microwave energy

To cook with microwave energy only, proceed as follows:

→ Press the button once or several times to select one of the power levels shown in the following table:

Press the button		Readout on display		Output in watts
1 x		P100		800
2 x		P80		640
3 x		P50		400
4 x		P30		240
5 x		P10		80

→ Press the button to confirm the selection.

→ Press the or button to set the desired cooking time in minutes and seconds ().

→ Start the cooking process by pressing the button.

Quick start

If you press the button without previously setting a power level, the cooking programme will start in microwave mode at maximum power (800 watts).

The longest cooking time is 95 minutes.

→Press the button several times until the desired cooking time is shown (the cooking time is increased by 30 seconds each time the button is pressed).

The cooking process starts immediately.

Grill mode

The grill function is especially suitable for thin slices of meat, steaks, minced meat, kebabs, sausages or chicken pieces. It is also suitable for grilled cheese sandwiches and other au gratin dishes.

You can use the rack provided in grill mode, as long as the food is suitable for this.

The longest grill time is 95 minutes.

Risk of fire!
There is a risk of fire due to improper use of the appliance.

• Do not place objects on top of the microwave. To ensure adequate ventilation, a minimum safe clearance of 30 cm to the top and 20 cm on both sides must be observed. Do not cover or obstruct the vents on the appliance.

→ Press the button once to select grill mode:

→ Press the button to confirm the selection.

→ Press the or button to set the desired cooking time in minutes and seconds ().

→Start the cooking process by pressing the button.

Halfway through the cooking time, you should turn the food to optimise cooking (see "Interrupting a programme" on).

→ Open the door and turn the food onto the other side.

→ Now press the button again to continue the programme.

Combination mode microwave and grill

The appliance allows you to use the microwave and grill together. All programmes have a maximum cooking time of 95 minutes.

→Press the button two or three times and select the programme variant. The following programme variants are available to you:

Press the button	Function/power in %	Display
2X	Microwave (55%) and grill (45%)
3X	Microwave (36%) and grill (64%)

→ Press the button to confirm the programme selection.

→ Press the or button to set the desired cooking time in minutes and seconds ().

→ Start the cooking process by pressing the button.

If necessary, open the door halfway through the set cooking time and turn the food onto the other side to ensure even cooking.

Weight defrost

You can set the defrosting programme based on the weight of the food. Weights from 100 g to 2000 g can be set.

→Place the frozen food in a suitable container in the cooking compartment and close the door.

→Then press the button to select the desired defrosting mode by weight.
The display shows , and .

→ Press the or button to set the weight of the food.

→Press the button. The programme starts.

If necessary, open the door after approximately half the time has elapsed and turn the food over to guarantee even defrosting.

Time defrost

You can set the duration of the defrosting programme. The longest defrosting time is 95 minutes.

→Place the frozen food in a suitable container in the cooking compartment and close the door.

→ Then press the button to select the desired defrosting mode by time. The display shows , and .

→ Press the or button to set the desired cooking time in minutes and seconds ().

→ Press the button. The programme starts.

If necessary, open the door after approximately half the time has elapsed and turn the food over to guarantee even defrosting.

Using multiple programmes

The appliance can carry out multiple cooking programmes consecutively. Two sequences can be programmed to run automatically.

Set each cooking programme as described and press the button when the last cooking programme has been set.

Example:
You would like to defrost some food using a defrosting programme and then start the grill programme.

→ Set the defrosting programme as described in "Weight defrost" without subsequently pressing the button.

→Then set the grill programme as described in "Grill mode".

→ Now press the button to start the programme.

Both programmes run one after another.

Automatic cooking

Risk of fire.
There is a risk of fire due to improper use of the appliance.

• For programmes that activate the grill function, do not use covers or non-heat-resistant dishes under any circumstances, as they may melt or catch fire!

CAUTION!
Risk of injury!
Since the turntable plate can get very hot after cooking with a grill, there is a risk of scalding.

• Therefore, make sure to use potholders or heat-resistant gloves when you remove the turntable plate from the cooking compartment.

Please note that the size, shape and types of food also determine the cooking result.

In automatic cooking, it is not necessary to enter the cooking time or power level. The microwave automatically determines the values depending on the food and weight entered.

In the table you can see an overview of the automatic programmes with their readout on the display as well as the respective operating stages activated.

Readout on display	Programme	Modes of operation
		Microwave	Grill
A-1	Pizza
A-2	Potatoes
A-3	Meat
A-4	Fish
A-5	Vegetables
A-6	Drinks
A-7	Noodles
A-8	Popcorn

Setting an automatic programme

→ In standby mode, press the button. A programme number (e. g. "A-1" for automatic programme 1) and the symbol for the corresponding cooking programme appears on the display.

Select automatic programme 1 to 8.

The corresponding symbol flashes.

→ Press the button to confirm the selection.

→ Now select the desired weight or volume. To do this, press the or button until the desired portion size is shown. The weight/quantity is shown on the display. The amount can be set according to the table:

Programme	Weight ranges
A-1 Pizza (g)	200	400
A-2 Potatoes (g)	200	400	600
A-3 Meat (g)	250	350	450
A-4 Fish (g)	250	350	450
A-5 Vegetables (g)	200	300	400
A-6 Drinks (120 ml container)	1 container	2 containers	3 containers
A-7 Pasta (g)	50 (+ 450 ml water)	100 (+ 800 ml water)
A-8 Popcorn (g)	50	85	100

→Then press the button to start the cooking process.

→ The cooking process ends automatically and five acoustic signals sound. If the food is not fully cooked through, cook it for a few minutes more with the microwave or the grill programme. Additional cooking with the grill function also increases the degree of browning of the food.

Energy-saving tips

→ Choose the shortest available cooking time and extend it as required.

→ Cook small portions at a time. When cooking large quantities of food, it is more energy-efficient to use a cooker/oven.

→ Distribute the food evenly in a microwave-safe cooking dish and stir and/or turn the food halfway through the cooking time.

Cleaning and care

Risk of electric shock!
There is a risk of electric shock due to live parts.

• Switch the microwave off and disconnect the plug from the mains socket before cleaning.

Failure to clean the appliance properly can damage the surfaces, which can in turn reduce the service life of the appliance and may lead to hazardous situations. Therefore, clean the microwave regularly and remove all food residues.

• Switch the microwave off and disconnect the plug from the mains socket before cleaning.
• Keep the interior of the microwave clean. Wipe away splashes or spilled liquids that are stuck to the inside walls with a damp cloth. A mild cleaning solution can be used for serious dirt. Do not use aggressive abrasive cleaners or sharp metal scrapers to clean the viewing window of the appliance door, as they can scratch the surface and destroy the glass.
• Do not use steam cleaners. The surfaces may be damaged.
• The external surfaces should be cleaned with a damp cloth. To prevent damage to the microwave's internal operating parts, avoid allowing water to penetrate into the ventilation openings.
• Gently clean parts of the door, the viewing window and the locking mechanism with a mild soap solution. Take great care not to damage these parts.
• The control panel must not become wet. Clean with a soft, damp cloth. When you clean the control panel, leave the microwave door open to prevent the appliance from being switched on accidentally.
• If steam accumulates inside or on the outside, wipe it off with a soft cloth.
• Steam can be present when the microwave is operated in high humidity; this is normal.
• The turntable plate must be removed occasionally for cleaning. Wash the turntable plate in warm water with a mild soap solution or in the dishwasher.
• Then dry the turntable plate thoroughly with a soft cloth.
• Simply wipe the floor of the microwave with a mild detergent.
• Lingering odours in the microwave can be removed by placing a glass of water with the juice and rind of a lemon into a deep container that is suitable for microwave use and heating for 5 minutes. Wipe out thoroughly and dry with a soft cloth.
• If you have to replace the light in the microwave, please contact a qualified specialist workshop or the customer service team.

Prolonged non-use and transport

• If you do not plan to use the microwave for a long period of time, disconnect the mains plug and store the microwave in a dry, clean and dust-free place.
• To avoid damaging the product during transport, we recommend that you use the original packaging.

Troubleshooting

Problem	Possible cause	Solution
The appliance will not start	The mains plug is not properly inserted.	Disconnect the mains plug, wait about 10 seconds and then plug it back in again.
	The fuse is blown or the power interruption is active.	Replace the fuse or reset the power interruption (contact our service).
	The mains socket is faulty.	Check the mains socket by connecting another appliance.
The appliance does not heat up	The door is not closed.	Close the door.

Technical specifi cations

Supplier's address: Model identifier:	MEDION AG Am Zehnthof 77 45307 Essen GERMANY MD 14482
Rated voltage	230 V~ 50 Hz
Microwave rated power:	1250 W
Grill rated power:	1000 W
Rated power output (microwave):	800 W
Microwave frequency:	2450 MHz
Appliance dimensions (W x H x D)	46 × 29 × 37 cm
Net weight:	13 kg

Service information

Please contact our Customer Service team if your device ever stops working the way you want or expect it to. There are several ways for you to contact us:

• In our Service-Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service-Community at community.medion.com.
• Alternatively, use our contact form at www.medion.com/contact.
• You can also contact our Service team via our hotline or by post.

Opening times	Hotline number UK
Mon – Fri: 08.00 – 20.00 Sat – Sun: 10.00 – 16.00	0333 3213106
Service address
MEDION Electronics Ltd. Faraday Park, Faraday Road, Dorcan Swindon SN3 5JF, Wiltshire United Kingdom

You can download this and many other sets of operating instructions from our service portal at www.medionservice.com.

We have stopped providing printed copies of our warranty terms and conditions as part of our commitment to sustainability, but you can access the warranty terms and conditions on our service portal.

You can also scan the QR code on the side of the screen, to download the operating instructions onto your mobile device from the service portal.
