ALLEN & HEATH DLive S3000, S5000, S7000 - MixRack Manual

Packed items

Check you have received the following:

• dLive Surface
• Getting Started Guide AP9899
• Safety Sheet
• IEC mains lead
• Dust cover

Introduction

dLive is a distributed digital mixing system providing a uniquely flexible solution for any live sound application. It separates the mix engine from the control surface, putting the audio and processing where it is needed, and offering a host of control and audio networking possibilities. Refer to the Allen & Heath website to find out more about dLive. The MixRack is the heart of any dLive system. It houses the XCVI processing core complete with audio I/O, control and audio networking ports. The Surface is effectively a network controller for the MixRack, with the addition of built-in audio I/O and audio networking ports. The system can be expanded by adding up to 3 DX32 modular racks, and is compatible with the ME personal mixing system.

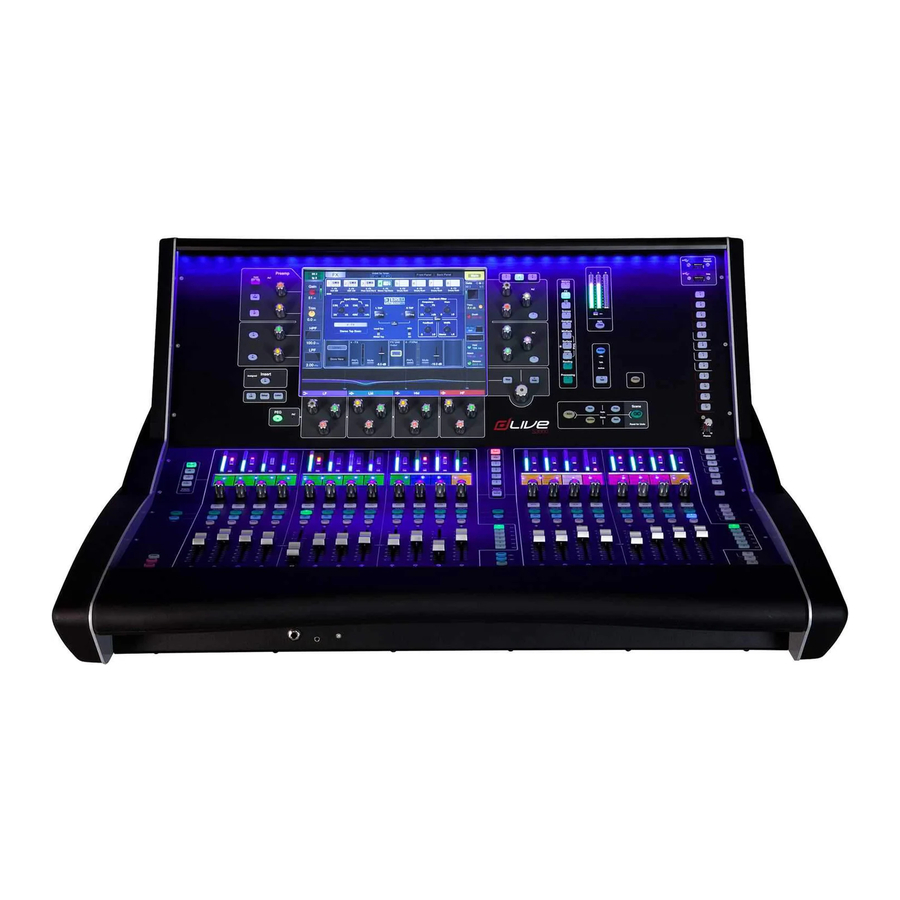

dLive Surfaces

There are 3 sizes of dLive Surface available. All feature the same I/O and differ only in the number of faders and touchscreens. dLive Surface features at a glance:

• Fully assignable layout
• Harmony UI – integrated screen and 'wrap-around' controls
• Single or twin 12" capacitive touchscreen
• Gesture control – pinch, swipe, drag 'n drop
• Configurable widget areas for Scenes, meters, FX and more
• 3 pages of assignable rotaries per screen
• 26 assignable SoftKeys
• Engineer's Wedge and IEM fader strips
• Comprehensive multipoint metering
• Daylight visibility
• USB stereo recording and playback
• Dual redundant, hot swappable power supply

Rear Panel

9. Network – 2 RJ45 Gigabit Ethernet ports. Connect a laptop or a wireless router to use with dLive Editor or iOS apps. All devices on the network must have compatible IP addresses.
10. gigaACE link – MixRack to Surface link over Gigabit Ethernet (IEEE 802.3 Layer 2 compliant). A single Cat5e (or higher) cable carries bidirectional 96kHz audio and control. Use two cables for redundancy – the system will seamlessly switch cable in case of failures, without any audio dropout.

11. DX links – Dual redundant EtherCon port for connection of a DX expander over Fast Ethernet (IEEE 802.3 Layer 2 compliant). A single Cat5e (or higher) cable carries 32x32 channels of 96kHz audio and control. Use two cables for redundancy.
    Use the I/O screen to patch signals from or to the DX expanders.
12. Word Clock I/O - BNC connectors for syncing from an external audio clock or providing a clock to other devices.
13. USB – USB A port for file transfer, archive and firmware update using standard USB drives.
14. Screen Out – VGA port for connection of an external monitor. The external monitor can mirror either of the touchscreen views. Use the Surface / Screen screen to configure.
    External touchscreens are not supported.

Front Panel

1. Channel Processing – Press a fader stripSel key to access the processing for the input or mix channel assigned to it. Read the Harmony UI paragraph below for further information.
2. Touchscreen – Single or twin 12" capacitive touchscreen with gesture control and daylight visibility. Read the Harmony UI paragraph below for further information.
3. Main / PAFL meters – LCR meters with PAFL active indicator. Press PAFL Clear to cancel any active PAFL.
4. USB ports – The upper port is dedicated to stereo WAV file recording and playback. The lower port is for data transfer of Show files, Libraries, event logs and firmware updates.

5. SoftKeys – 26 user assignable keys. Assign functions using the Surface / Control / SoftKeys screen.
6. Talkback – Press to Talk latching or momentary key and Talk Active indicator. Hold down Assign and press any masterMix key to assign.
7. Home – Press to restore a familiar state of the Surface. Home restores default active layers, screen modes, active Mix, strip rotary mode and channel LCD view.
   Home does not affect channel processing, strip layout, illumination or any other setting which is stored in Scenes.
8. Scene navigation – Press Go to recall the Next scene as indicated in the upper right corner of the system screen. This Scene is highlighted in green in the Scenes menu and Scenes widget. Use the Prev and Next keys to select the Next scene before recalling.
   Hold down Reset and press Go to Undo an accidental recall and restore previous settings.
   Store - Save current settings into the Current scene as indicated in the upper left corner of the system screen. This Scene is highlighted in yellow in the Scenes menu and Scenes widget.
   Auto Store automatically stores the current (last recalled) Scene any time another Scene is recalled. The LED lights to indicate this option is active.
   New - Save current settings into a new, empty Scene. The next available scene memory location will be populated with current settings.
   Update - Update one or more parameters or channels in a specific Scene (or range of Scenes) to current settings / values.
9. Strip rotary mode – Select the function of the fader strip rotary encoders.
   The fader strip rotaries can control preamp Gain, Pan, Sends to the active Mix, and 4 assignable functions. Assign these using the Surface / Control / Preferences screen. The colour of the rotary LED matches the active function e.g. red for Gain, yellow for Pad; it follows the colour of the active Mix when in Sends mode.
   The Sends function puts control of send levels to the active Mix on the strip rotaries, while the faders control the channel levels to the main mix i.e. it temporarily inhibits 'sends on faders'.
10. Layers – Navigate 6 layers of fader strips per each bank. The red peak indicators light up when any channel in the associated layer is within 3dB of clipping, so you can keep a check on signal activity across the layers.
    Banks can be linked using the Surface / Control / Preferences screen – the Layer keys will affect all linked banks. For example you might want all input strips across 2 banks to stay 'in sync' when changing layer.
11. Safes – Hold down and press a stripMix key to make the channel safe from Scene recall. To make only a selection of parameters safe, use the Scenes / Scene Safes screen.
    Freeze in Layers – Hold down and press a strip Mix key to lock a channel in place across all layers.
    GEQ on Faders – Presents the GEQ for a selected mix on the faders. Press to toggle between high and low frequencies (S3000, S5000) and exit. Frequency values are shown on the strip LCD displays and the strip meters show RTA activity of each frequency band and peak band indication. This is useful for ringing out monitors or identifying trouble frequencies.
    The mix master fader is presented on the right hand strip while in this mode.
12. Phones - Standard 1/4" and 1/8" jack sockets are located under the armrest.
    The S5000 and S7000 have 2 sets of headphone outputs.

13. Fader Strips – Provide control of Input channels, FX returns, Mix masters, DCAs, engineer's Wedge / IEM monitor, or MIDI. Read the Fader Strip paragraph below for further information.
    The strip layout is user assignable and stored in Scenes. Use the Surface / Control / Strip Assign screen to edit the strip layout.
14. Copy – Hold down and press:

• A strip Sel key to copy the channel processing.
• A strip Mix key to copy the mix assignments and send levels.
• Any highlighted area of the touchscreen to copy the settings of a specific processing block.

Paste - Hold down and press a Sel key, Mix key or highlighted area of the touchscreen to paste copied settings.
Reset - Hold down and press a Sel key, Mix key or highlighted area of the touchscreen to reset the related parameters to factory default.
Hold down Reset and nudge a fader up or down to quickly set it to 0dB or off.

15. Assign – Hold down and press a stripMix key to toggle its assignment to the active Mix on or off.
    Pre/Post – Hold down and press a strip Sel key to toggle sends to the active Mix pre or post fade.
    Toggle all channels on/off or pre/post by pressing a master Mix or Sel.
    Assignments and pre/post settings for the selected channel or Mix are also available in the Routing screen.
16. LCD Display mode – Select the information shown in the strip LCD Displays. Read the Fader Strip paragraph below for further information.

Harmony UI – processing screen

The left screen on the S5000 and S7000 is dedicated to channel processing. The S3000 incorporates this screen into the system screen.
dLive integrates the touchscreen with a set of 'wrap-around' controls colour-coded for intuitive and quick operation. Dedicated areas of the screen display values and status of the corresponding controls; some are configurable or user assignable (widget areas). Tapping on any of these areas will open the associated tab in the main screen area.

1. Preamp – Peak indicator and dedicated preamp controls for analogue Gain, Digital Trim, 48V, Pad and polarity.
2. Filters – HPF and LPF Frequency and In switch.
3. Insert – Insert In switch and Assigned indicator. The indicator is lit when any of the channel Insert points is assigned.
4. Lib – Press to access the preset Library for the channel or processing block in focus. A popup menu lets you Recall, Store, Overwrite or Delete libraries. Press Lib again to exit.
   Setup – Hold down and tap on any highlighted area of the screens to configure it. For example, touch a widget area to set up functions, views or controls. Touch on the main screen area to access options further to those displayed.
   Listen – Hold down and tap on any highlighted area of the screen to listen to that point in the signal path of the selected channel. The signal temporarily overwrites the PAFL bus and associated meters.
5. PEQ – In switch, peak indicator and Width, Frequency, Gain controls for the 4 bands of parametric EQ.
   A dedicated area of the screen displays the PEQ parameters and/or response curve, either individually for the 4 bands or full range. Hold down Setup and touch this area to configure. Press View to toggle between the configured views.
6. Touch & Turn – Touch a parameter or setting in the main screen area and adjust its value with the rotary control.
7. Help – Press to display a brief contextual help for the active screen.
8. Soft Rotaries – 2 blocks of 3 assignable rotaries over 3 layers, per screen.
   Each block has its own In switch and peak indicator.
   A dedicated area of the screen displays the parameters for the assigned controls and thumbnail indicators where available. Hold down Setup and touch this area to configure. Press the keys on top of the rotaries, or swipe within the widget area to toggle between the 3 layers.
   Note that the Soft Rotaries can be configured to follow channel selection, active Mix or to be locked to a specific channel.

Harmony UI – system screen

The system screen (right screen on the S5000 and S7000) displays status, system setup, memory management menus and more.

1. Left widget area – Can be configured for different functions, for example as a scrollable Scenes list. Hold down Setup and touch this area to configure.
   On the S3000 this area is dedicated to the channel processing.
2. Bottom widget area – Can be configured for different functions, for example as a scrollable meter-bridge. Hold down Setup and touch this area to configure. Press View to toggle between the configured views.
3. Rotary control – Adjusts the value of the parameter highlighted in yellow on the main screen area.
4. Help – Press to display a brief contextual help for the active screen.
5. Soft Rotaries – 2 blocks of 3 assignable rotaries over 3 layers, per screen.
   Each block has its own In switch and peak indicator.
   A dedicated area of the screen displays the parameters for the assigned controls and thumbnail indicators where available. Hold down Setup and touch this area to configure. Press the keys on top of the rotaries, or swipe within the widget area to toggle between the 3 layers.
   Note that the Soft Rotaries can be configured to follow channel selection, active Mix or to be locked to a specific channel.
6. Screen modes – Press to select the menus for the main screen area.
   Meters – Access to Input meters, FX meters, Mix meters, RTA, spectrogram, and 4 customisable meter views.
   FX – View, load and set up the 16 RackFX units. The Back Panel view lets you patch each unit as inserted or send/return.
   I/O – Patch system inputs and outputs by tapping on crosspoints.
   Scenes – Access to Scene Manager, Cue Lists and Scene Safes.
   Ganging – Create up to 16 gang groups to link selected parameters across multiple channels.
   MixRack Setup – Access to mixer bus configuration, Input stereo configuration, Network settings, User Profiles, Talkback assignments, Signal Generator, Audio Sync and I/O Ports options.
   Surface Setup – Assignments of fader strip layout, SoftKeys and custom rotary functions. Control of Surface illumination and USB Audio playback / recording. Access to PAFL options and Network settings.
   Press and hold the Surface Setup key to quickly access the Dimmer settings. Whilst holding the Surface Setup key, use the Rotary Control to change the Touchscreen brightness.
   Util/Shows – Access to Show Manager, Library Manager, system diagnostics, screen and fader calibration, firmware update and MIDI MMC.
   Routing – Access to routing and assignments for the selected channel.
   Processing (S3000) – Channel processing screen for the selected channel.
   When no screen mode is selected, a System Status dashboard is displayed. Touch Power Down in this screen to safely power down the Surface before switching off.

Fader strip

Meter – 22-segment signal meter and 6-segment gain reduction meter. The meter displays audio signal activity for the channel.
The red peak indicator lights to warn that the signal is within 3dB of clipping. It is multipoint sensing which means it detects peak activity at several points in the signal path. If it lights before the rest of the meter, check signal activity in the processing screen.
To set the global meter source point for Input channels and Mix masters, hold down Setup and touch the main screen area in the Meters / Inputs or Meters / Mix screen.
LCD Display – Displays information about the channel, including name and colour.

	Mute – Turns off the channel signal. Affects the main mix, pre-fade and post-fade sends. The Muted LED lights when the channel is muted by a DCA or Mute Group.
	Sel – Selects the channel for use with the Processing and Routing screens. The channel strip controls become active to control processing for the channel. The currently selected channel is displayed in the top left corner of the Processing screen.
	Mix – Puts the send levels and assignments of the associated channel or masters onto the fader strips (or strip rotaries when rotaries are in Sends mode). See the next paragraph for examples of use. The currently active Mix is displayed in the top right corner of the Processing screen. Press an active Mix key to return to the main mix.
	PAFL – Sends the channel signal PFL (pre-fade listen) or AFL (after-fade listen) to the headphones and monitoring system. Preferences for the PAFL system are set using the Surface / Audio / PAFL screen.

Working with the Mix

	Press a Main Mix master strip Mix key. This is the normal mixing mode. The Input strips present the channel faders. The Master strips present the master mix faders. Hold down the Assign key and press channel Mix keys to assign or unassign them from the main mix. Current ON status is displayed on the lower part of the strip LCDs.
	Press a Mix master strip Mix key. Use this to work with Aux and FX sends. The Input strips present all the send levels to the active Mix. The Master strips present the master mix faders. Hold down the Assign key and press channel Mix keys to assign or unassign them from the active Mix. Hold down the Pre/Post key and press channel Sel keys to toggle each source pre or post fader. Current PRE status is displayed on the lower part of the channel strip LCDs. You can quickly set all assignments on or off, or all sources pre or post fader by pressing the Master strip Mix or Sel key.
	Press an Input Channel strip Mix key. Use this to work with Aux and FX sends. The Input strips remain as Channel Faders. The Master strips present all sends from the Input channel. Hold down the Assign key and press master Mix keys to assign or unassign the channel from each mix. Hold down the Pre/Post key and press master Sel keys to toggle the channel pre or post fader to each mix. Current PRE status is displayed on the master strip LCDs.
	Press a Group Master strip Mix key. Use this to assign channels to the Audio and DCA groups. The Input and Master faders are not affected. Hold down the Assign key and press channel Mix keys to assign or unassign the channels from the group.

Connect and power up

MixRack connection

Plug a touring grade CAT5e (or higher specification) cable up to 100m long between the dLive Surface and MixRack gigaACE ports. Use two cables for redundancy if required.
Refer to www.allen-heath.com for cable requirements, recommendations, and a list of CAT5 cables available to order.

Switch on the MixRack first, then the Surface. The gigaACE Lnk/Err indicators flash at a steady rate when the link is established. The red error indicator lights if a communication error is detected. Check that the cables are correctly plugged in and are not faulty. It takes around 30s for the Surface to take control and the touchscreen to be responsive.

Recall a Template Show

dLive has a fully configurable audio architecture, control layout and socket patching. We have provided a set of Template Shows to give a choice of classic console formats to load as a quick starting point. These present the familiar architecture and logical layout of well-equipped analogue consoles.
To load a Template Show go to the Utility / Show Manager screen, select one of the available Template Shows, touch Recall and confirm.
Recalling a Show overwrites all the system settings including the bus configuration, control layout, current parameters, all Scenes and Library presets. If you want to save the current settings then first Store them as a User Show.
For more information please refer to the dLive Firmware Reference Guide available for download at www.allen-heath.com.

Expander connection

Plug a touring grade CAT5e (or higher specification) cable up to 100m long between the DX Expander and Surface DX port. Use two cables for redundancy if required.
Refer to www.allen-heath.com for cable requirements, recommendations, and a list of CAT5 cables available to order.

Switch on the DX Expander. The DX port Lnk/Err indicators flash at a steady rate when the link is established. The red error indicator lights if a communication error is detected. Check that the cables are correctly plugged in and are not faulty.

Connect a laptop or wireless router

Connect a laptop, router or access point to either of the Network ports to use with dLive Editor or iOS apps. Read the Release Notes and Help Files accompanying the software or apps for further information.
dLive communicates over TCP/IP. All devices on the network including the MixRack and Surface must have compatible IP addresses. Factory defaults are:

For direct, wired laptop connections, set your laptop to a static, compatible IP address, for example 192.168.1.10.
For wireless connections, set your router / access point to a compatible IP address, for example 192.168.1.254, and its DHCP range to a compatible range of addresses, for example 192.168.1.100 to 192.168.1.200. Set any wireless laptop or mobile device to DHCP / 'obtain an IP address automatically'.

System operating firmware
The function of the dLive Surface is determined by the firmware (operating software) that runs it. Firmware is updated regularly as new features are added and improvements made.
Check www.allen-heath.com for the latest version of dLive firmware.

Software licence agreement
By using this Allen & Heath product and the software within it you agree to be bound by the terms of the relevant End User Licence Agreement (EULA), a copy of which can be found at www.allenheath.com/legal. You agree to be bound by the terms of the EULA by installing, copying, or using the software.

Further information
Please refer to the Allen & Heath website for further information, knowledgebase and technical support. For more information on dLive setup and mixing functions please refer to the dLive Firmware Reference Guide available for download at www.allen-heath.com.
Check for the latest version of this Getting Started Guide. You can also join our Allen & Heath Digital Community to share knowledge and information with other dLive users.

General precautions

• Protect the equipment from damage through liquid or dust contamination. Cover the Surface when it is not being used for a long period.
• If the equipment has been stored in sub-zero temperatures allow time for it to reach normal operating temperature before use at the venue. Recommended operating temperature is 0 to 35 degrees Celsius.
• Avoid using the equipment in extreme heat and direct sunlight. Make sure the ventilation slots are not obstructed and that there is adequate air movement around the equipment.
• Clean the equipment with a soft brush and dry lint-free cloth. Do not use chemicals, abrasives or solvents.
• It is recommended that servicing is carried out only by an authorised Allen & Heath agent. Contact details for your local distributor can be found on the Allen & Heath website. Allen & Heath do not accept liability for damage caused by maintenance, repair or modification by unauthorised personnel.
• To prevent damage to the controls and cosmetics, avoid placing heavy objects on the control surface, scratching the surface or touchscreen with sharp objects, or rough handling and vibration.

Register your product
Register your product online at www.allen-heath.com/register.
