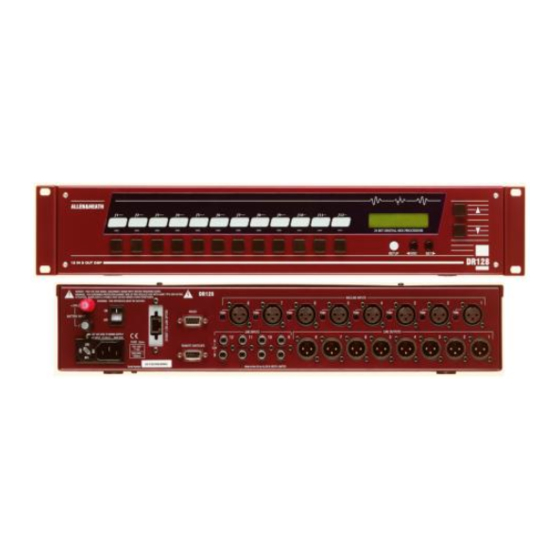

ALLEN & HEATH DR128 Fitting Instructions

3 DSPd Fitting Instructions
Do not use excessive force when fitting the card. If you have difficulty fitting the card check that the
orientation is correct. Check that the card is firmly seated into it's socket.
Step 3
Replace the top cover and power up the unit. Check the unit boots up correctly.
To verify that the DSPd is fully operational you will need to run WinDR.
Make sure that WinDR is connected on-line.

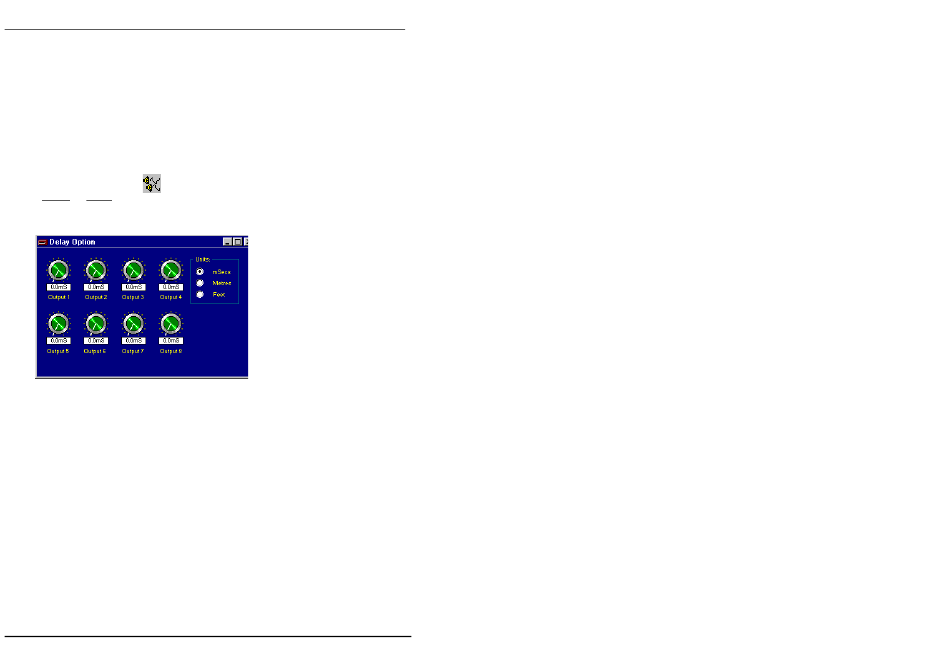

Click on the Delay option toolbar icon
or select DR128 (or DR66) from the main menu and then Delay Settings... from the sub-menu. The
following dialog box will appear as shown below:
Please note that only six output channels will be displayed on the DR66 version of WinDR.
If the delay option toolbar icon or the Delay Settings... text is greyed out, then the DSPd option has
not been recognized by either the unit or WinDR. Check your interconnection between the unit and
your computer.
Should you experience any difficulties in fitting the DSPd card or have any queries regarding your
DR128 or DR66, please contact your Allen & Heath agent. Include the serial numbers from the
DR128 or DR66 and DSPd Delay Option in any correspondence.
AP2976 I 2
SSUE
ALLEN&HEATH
DR
/DR
128
DSPd D
ELAY
F
ITTING
I
NSTRUCTIONS
P AP2976
UBLICATION
66
O
PTION
