ALLEN & HEATH Xone:43 - DJ Mixer Manual

PACKED ITEMS

Check that you have received the following:

Introduction

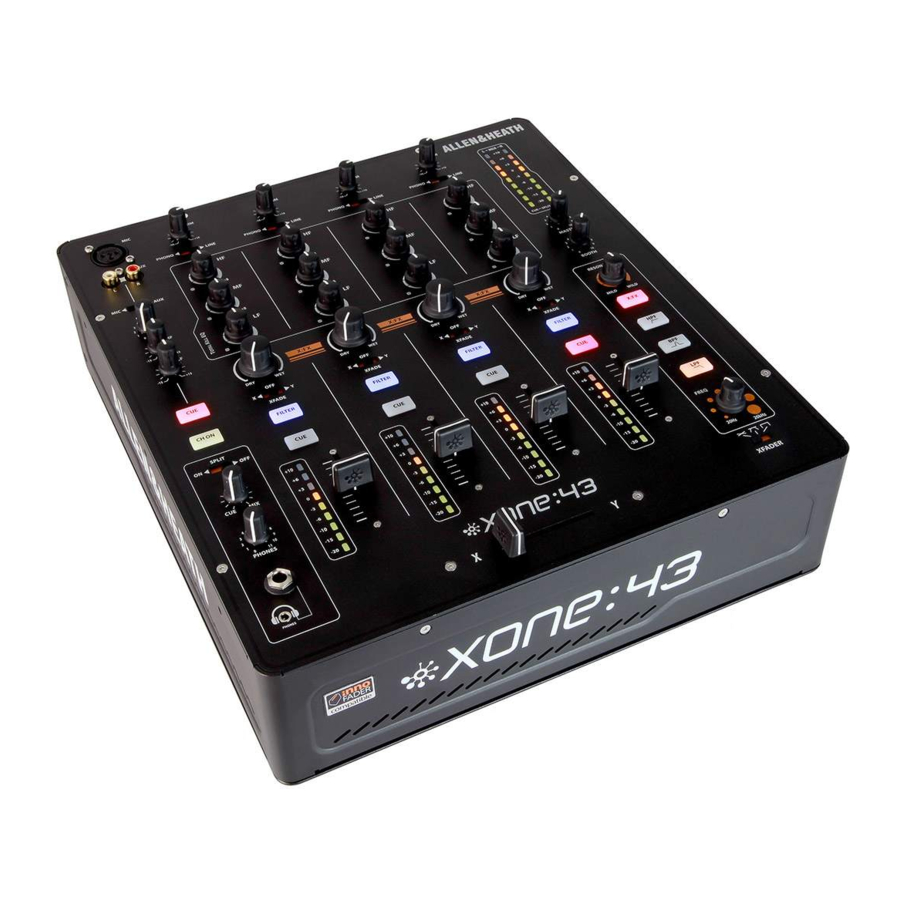

The Xone: 43 is a DJ mixer featuring four stereo dual input channels, a Mic/Aux input channel, 45mm linear VCA channel faders, Xone VCF filter, and X:FX external effects loop for send/return functionality with wet/dry control.
To ensure that you get the maximum benefit from the unit please spare a few minutes familiarizing yourself with the controls and setup procedures outlined in this user guide. For further information please refer to the additional information available on our website, or contact our product support team.
http://www.allen-heath.com

SETUP EXAMPLES

SETUP EXAMPLES

MIC / AUX INPUT CHANNEL

MIC / AUX INPUT CHANNEL

  1. Mic Input
    Standard 3-Pin XLR socket wired as Pin 1 = Ground, Pin 2 = hot (+), Pin 3 = cold (-).
  2. Aux Input
    Dual RCA sockets for connecting an external line level source.
  3. Mic / Aux Select Switch
    Selects either the XLR microphone input or the alternative Aux input.
  4. Channel Gain Control
    Adjusts the input sensitivity of the Mic / Aux channel to compensate for different source signal levels.
  5. Channel Equaliser
    The Mic / Aux input channel is equipped with a 2 band EQ stage providing +15dB of boost when fully clockwise and –15dB attenuation when fully anti-clockwise.
  6. Cue Switch
    Press the Cue switch to listen to the pre-channel on signal in the headphones and view its level on the main meters. Press the switch again to deselect cue.
  7. Channel On Switch
    Press the Channel On switch to send the channel audio to the main mix.

PHONO / LINE INPUT CHANNELS 1, 2, 3 and 4

PHONO / LINE INPUT CHANNELS 1, 2, 3 and 4 - Part 1

  1. Channel Level Control
    This control has a range from - 10dB to +10dB. Use it to adjust the signal level of an audio source to give a nominal 0dB reading on the channel meter, with the peak level at or below 6dB.
  2. Phono / Line Select Switch
    Selects either the RCA phono input or the alternative RCA stereo line input.
  3. Channel Equalizer / Isolator
    The Xone: 43 is equipped with a very powerful 3 band EQ providing a controlled +6dB of boost when fully clockwise, but dramatic cut of each band when fully anticlockwise. Centre frequencies are set at:
    HF = 3.8kHz (high frequency, treble)
    MF = 1kHz (mid frequency)
    LF = 310Hz (low frequency, bass)
  4. X:FX Dry / Wet Send
    Use this control to vary the amount of channel signal that is sent to an external effects device connected to the X:FX send / return on the rear panel. With this control set to 'dry', none of the signal is routed to the external effects loop. With the control in the central position, half of the signal is sent to external effects, while the other half is unaffected or, if filter is selected, only the dry part of signal is filtered. With the control set to fully 'wet', all of the signal is sent to external effects and the VCF filter is bypassed.
  5. XFade Assign Switch
    Used to assign the channel to either the X (left), Off (middle) or Y (right) side of the cross-fader.
  6. Filter Select
    Press to route the channel signal through the VCF filter. The switch will illuminate to indicate that the channel is being sent to the filter.

PHONO / LINE INPUT CHANNELS 1, 2, 3 and 4 - Part 2

  1. Cue Switch
    Press the Cue switch to listen to the channel pre-fade signal in the headphones and see its level on the main meters. Press the switch to deselect cue.
  2. Channel Meter
    Displays the channel signal level. It is pre-EQ and prefader, allowing the input level to be displayed even if the EQ is set to off on all bands.
    The channel level control should be set so that the meter averages around '0' with loudest peaks no higher than '+6'. Turn down the level control if the +10 indicator lights.
  3. Channel Fader
    A high quality, smooth travel fader adjusts the channel signal level from fully off to fully on.

FILTER SECTION

FILTER SECTION

  1. Resonance Control
    This produces the classic Xone VCF sound by feeding some of the filter output back to its input. The control ranges from 'mild' producing a very subtle effect, to 'wild' producing a dramatic phase effect with feedback just short of oscillation.
  2. X:FX Return to Filter
    Pressing this button routes the X:FX return to the VCF filter, instead of directly into the main mix buss. The effected channel signal can then be filtered as well, allowing extra versatility and creativity to be brought into the mix.
  3. HPF
    Turns on the high pass (bass cut) filter slope.
  4. BPF
    Turns on the band pass (bell shaped) filter slope.
  5. LPF
    Turns on the low pass (treble cut) filter slope.
  6. Frequency Sweep Control
    This control sets the –3dB cut-off frequency of the filter. It ranges from very low frequency (20Hz) to very high frequency (20kHz).

HEADPHONE SECTION

HEADPHONE SECTION

  1. Split Cue Switch
    Selects the way Cue operates. Normally, pressing a channel Cue switch overrides both left and right monitor program signals with the stereo Cue signal. With Split set to On, Cue overrides just the left channel leaving the program in the right channel. The left monitor meter displays the Cue signal, right displays program. This is very useful when beat mixing using headphones.
  2. Cue / Mix Control
    Allows the main mix output to be added to the Cue signal. Turned fully anticlockwise, only the active Cue is heard through the headphones when Cue is active. Gradually turning clockwise introduces the main mix output to the headphones, together with the active Cue. Selecting Split Cue will automatically override this control.
  3. Headphones Level Control
    Adjusts the level of the signal in the stereo headphones.
    This does not affect the level of the local booth monitor.
  4. Headphone Outputs
    Stereo 1/4" TRS jack and 3.5mm mini-jack sockets. Plug in good quality stereo headphones intended for DJ monitoring. Use closed-ear headphones that provide maximum acoustic isolation when cueing your sources.

MASTER SECTION

MASTER SECTION

  1. Mix / Monitor Meters
    The main meters follow the selected monitor source. The default display is the mix level, pre-master level, which is overridden with an input channel level if the channel cue switch is selected.
    In split cue mode, the left (L) mix meter will display the cued channel signal level and the right (R) mix meter will display the mix level. The cued mix audio is pre level to prevent mismatch due to the position of the master level control.
    The mixer should be operated with these meters averaging around '0' with loudest peaks no higher than '+6'.
  2. Master Level Control
    A rotary master control adjusts the level of the master mix XLR outputs feeding the house sound system. This does not affect the booth output or the meter reading.
  3. Booth Level Control
    Adjusts the level of the signal to the stereo booth RCA output. This does not affect the headphones. booth output could be used for a booth monitor, recording or an additional zone feed.

CROSSFADER

CROSSFADER

  1. Crossfader
    This lets you fade between signals routed to either side, typically to fade smoothly into a new music track or to creatively layer sounds when scratch or cut mixing.
    The crossfader is a VCA controller which affects the level of signals routed via the filters. Make sure the switches on the channels you wish to fade are set to X or Y as appropriate.
  2. Crossfader Curve Control
    This control adjusts the crossfader curve between dipped, dipless and fast-cut, better suited for scratch or cut mixing.

REAR CONNECTORS

REAR CONNECTORS - Part 1

  1. AC Mains Input
    IEC cable with moulded mains plug suitable for your local supply.

    Read the SAFETY INSTRUCTIONS sheet included with the Xone: 43 and printed on the rear panel.

    Check that the correct mains lead with moulded plug has been supplied with your console. The power supply accepts mains voltages within the range 100-240V without changing any fuses or settings. Ensure that the IEC mains plug is pressed fully into the rear panel socket before switching on.
    Note: It is standard practice to turn connected power amplifiers down or off before switching the console on or off. This prevents any potential damage to speaker systems due to switch-on transients.
  2. CH 1, 2, 3 and 4 Phono Input
    Plug in turntables with magnetic cartridges requiring RIAA equalisation. For non-RIAA turntables plug into the LINE input instead. Do not plug in line level sources to the phono inputs as these will overload the preamp and cause severe high level distortion.
  3. CH 1, 2, 3 and 4 Line Input
    RCA phono. Connect stereo line level music sources such as CD players. Do not connect turntables which require RIAA equalisation. Alternatively, you can connect to jack sources using a cable with RCA to jack adapters. Avoid using low grade cables such as those often supplied with domestic equipment as these can quickly prove unreliable in use.

REAR CONNECTORS - Part 2

  1. Master Output
    Balanced XLR. This is the main output that feeds the house PA system. Plug into the house processor/amplifier system using balanced cables. Use balanced cables and equipment. When the main meter LEDs are at "0dB" the output will nominally be at +4dBu. Do not unbalance this output by shorting one phase to ground—for unbalanced operation use pin 2 only.
  2. X:FX Send/Return
    RCA phono. Connect your external effects device and use the X:FX dry / wet control to send channel signals to the effects unit. The signal returns to the mix bus but can be routed to the VCF filter by pressing the 'X:FX' button on the front panel filter section. This allows the filter to be 'stacked' with an external effects device.
  3. Record Output
    RCA Phono, nominal 0dBu. Pre-level mix output for connection to external recording devices.
  1. Booth Output
    RCA phono, 0dBu. Provides a line level stereo feed to the DJ local monitor amplifier system. It is not affected by the master fader or cue system.

  2. Chassis Earth Terminal
    A screw terminal is provided for connecting the earth straps from turntables. This connection earths the metal parts of the turntable to reduce hum, buzz or similar audible noise getting into the system.

PANEL DRAWINGS

Rear Panel
PANEL DRAWINGS - Rear Panel

Front Panel
PANEL DRAWINGS - Front Panel

SPECIFICATIONS

Nom / max output levels Main Mix +4dBu +27dBu
Booth 0dBu +22dBu
X:FX Send 0dBu +20dBu
Record Out 0dBu +20dBu
Internal headroom Channels +20dB
Frequency response +/-0.5dB 20Hz - 20kHz
Distortion < 0.05% THD+noise @1kHz
Crosstalk < -83dB inter-channel
Residual noise Mix 1 -89dBu
Booth -93dBu
X:FX -77dBu
Rec -92dBu
Mix noise Mix 1 -82dBu
Booth -84dBu
X:FX -77dBu
Rec -87dBu
Channel meters Peak reading 9 LED -20dB to +10dB
Main meters Peak reading 9 LED -20dB to +10dB
Mic EQ 2-Band +/-12dB
Channel EQ 3-Band +6dB / total kill
Channel fader 45mm stereo VCA, < -85dB shutoff
Crossfader 45mm stereo VCA - replaceable
Filters Stereo VCF, analogue
Consumption 30W max

Dimensions and Weights
The console is fitted with rubber feet for desktop operation.

Mixer Width Height Depth Weight
320 mm 110mm 370mm 5.1 kg

BLOCK DIAGRAM

BLOCK DIAGRAM

FILTER REFERENCE

The VCF Filters
A voltage controlled filter is an audio filter where the cut-off frequency is altered by a DC control voltage rather than a variable resistor. This produces a much wider operating range and more control over the filter response to create unlimited combinations of tonal effect.

Filter Type Select
The filters are 'state variable'. This means that they provide three simultaneous filter types: high-pass, band-pass and low-pass. Three large illuminated switches select which type is active. You can press any combination together to create different response types such as 'notch' and an interesting 'all-pass' effect. The switches are 'soft switched' for live performance, meaning that the audio signal is ramped between filter states to prevent audible clicks.
Note that the last selected type is lost when power is removed from the console. The LPF is always selected when power is applied.
The graphs below show the effect on the audio frequency response for the three filter types. The range of sweep from low to high frequency is shown together with the effect of adjusting RESONANCE (one frequency with several resonance settings shown).
The vertical scale shows the amount of cut or boost around the normal 0dB operating level. The horizontal scale shows the change in frequency from low (bass) to high (treble).
FILTER REFERENCE

OPERATING LEVELS

It is most important that the system level settings are correctly set. It is well known that many DJs push the level to maximum with meters peaking hard in the belief that they are getting the best from the system. THIS IS NOT THE CASE! The best can only be achieved if the system levels are set within the normal operating range and not allowed to peak. Peaking simply results in signal distortion, not more volume. It is the specification of the amplifier / speaker system that sets the maximum volume that can be achieved, not the console. The human ear too can fool the operator into believing that more volume is needed. Be careful as this is in fact a warning that hearing damage will result if high listening levels are maintained. Remember that it is the QUALITY of the sound that pleases the ear, not the VOLUME.
The diagram below illustrates the operating range of the audio signal.
NORMAL OPERATING RANGE. For normal music the signal should range between –6 and +6 on the meters with average around 0dB. This allows enough HEADROOM for unexpected peaks before the signal hits its maximum CLIPPING voltage and distorts.
It also achieves the best SIGNAL-TO-NOISE-RATIO by keeping the signal well above the residual NOISE FLOOR (system hiss).
The DYNAMIC RANGE is the maximum signal swing available between the residual noise floor and clipping.
OPERATING LEVELS


An important note...

The human ear is a remarkable organ with the ability to compress or 'shut down' when sound levels become too high. Do not interpret this natural response as a reason to turn the system volume up further! As the session wears on ear fatigue may set in, and the speaker cones may become hot so reducing the effectiveness of the system and listeners to gain any benefit from increased volume.

EARTHING

The connection to earth (ground) in an audio system is important for two reasons:

SAFETY - To protect the operator from high voltage electric shock, and
AUDIO PERFORMANCE - To minimise the effect of earth (ground) loops which result in audible hum and buzz, and to shield the audio signals from interference.
For safety it is important that all equipment earths are connected to mains earth so that exposed metal parts are prevented from carrying high voltage which can injure or even kill the operator. It is recommended that a qualified system engineer check the continuity of the safety earth from all points in the system including microphone bodies, turntable chassis, equipment cases, and so on.
The same earth is also used to shield audio cables from external interference such as the hum fields associated with power transformers, lighting dimmer buzz, and computer radiation. Problems arise when the signal sees more than one path to mains earth. An 'earth loop' (ground loop) results causing current to flow between the different earth paths. This condition is usually detected as a mains frequency audible hum or buzz.
To ensure safe and trouble-free operation we recommend the following:
Have your mains system checked by a qualified electrician. If the supply earthing is solid to start with you are less likely to experience problems.
Do not remove the earth connection from the console mains plug. The console chassis is connected to mains earth through the power cable to ensure your safety. Audio 0V is connected to the console chassis internally. If problems are encountered with earth loops operate the audio 'ground lift' switches on connected equipment accordingly, or disconnect the cable screens at one end, usually at the destination.
Make sure that turntables are correctly earthed. A chassis earth terminal is provided on the console rear panel to connect to turntable earth straps.
Use low impedance sources such as microphones and line level equipment rated at 200 ohms or less to reduce susceptibility to interference. The console outputs are designed to operate at very low impedance to minimise interference problems.
Use balanced connections for microphones and mix output as these provide further immunity by cancelling out interference that may be picked up on long cable runs. To connect an unbalanced source to a balanced console input, link the cold input (XLR pin 3 or jack ring) to 0V earth (XLR pin 1 or jack sleeve) at the console. To connect a balanced XLR output to unbalanced equipment, link the cold output to 0V earth at the console.
Use good quality cables and connectors and check for correct wiring and reliable solder joints. Allow sufficient cable loop to prevent damage through stretching.
If you are not sure... Contact your service agent or local Allen & Heath dealer for advice.

REPLACING THE CROSSFADER

If the crossfader is subject to a lot of use it will, in time wear out and need replacing. Intermittent or noisy operation is an indication that it is becoming worn. Using a propriety fader cleaner such as CaigLube might temporarily restore use, but DO NOT use on a new fader as it will wash away the factory applied grease.
The standard fader can be ordered under A&H part number 004-632JIT The Innofader can be ordered under part number 004-504JIT

Dismantling your mixer could invalidate the warranty; if you are unsure of your ability to safely carry out this work then it is advised that you leave it to a qualified service technician.
Tools you will need:

  • T8 Torx screwdriver
  • A small container to keep screws in.

Have a clean flat work surface ready before starting work.
Ensure that the power to the unit has been turned off and disconnected completely from the mains.


  1. REPLACING THE CROSSFADER - Step 1
  • Remove and retain 2 screws from front panel.
  • Remove and retain 4 screws from rear panel upper phono sockets.

  • Remove and retain 4 screws from side panel of the mixer (2 each side).
  • Turn console over onto its front panel – take care not to scratch the unit.

  • Remove and retain 6 screws from base panel.
  • Note that the 2 nearest the rear connector remain in place.
  • Turn console over to be the correct way up.

  1. REPLACING THE CROSSFADER - Step 2
  • Gently slide the two halves of the console apart until the rear connector PCB is wholly visible.

  1. REPLACING THE CROSSFADER - Step 3
  • With care unplug the grey flat wireform from the connector PCB.
  • The console base and front panel can now be separated.

  1. REPLACING THE CROSSFADER - Step 4
  • Remove the crossfader cap.
  • Remove and retain 2 screws from crossfader front panel.

  1. REPLACING THE CROSSFADER - Step 5
  • With care unplug the white harness from the connector PCB.
  • The cross fader and plate can now be separated.

  1. REPLACING THE CROSSFADER - Step 6
  • Remove and retain 2 screws from crossfader plate.
  • Note that these 2 screws from the cross fader plate are a different size length, do not mix them up with the other screws.

  1. REPLACING THE CROSSFADER - Step 7
  • Fit the new replacement crossfader to the bracket as shown (slot 1).
  • The longer (slot 2) beneath is for mounting the optional Innofader (not supplied). The standard crossfader must be fitted to slot 1 and not slot 2.

  1. REPLACING THE CROSSFADER - Step 8
  • Screw the crossfader plate back to the console.
  • Replace the crossfader cap.
  • Connect the white harness from the connector PCB.
  • Re-assembly of the console is the reverse of steps 1-5. When re-assembling the console take great care to refit the wireform fully into the socket.
