ZTE Optus X Vista Z66210 - Mobile Phone Manual

Getting Started

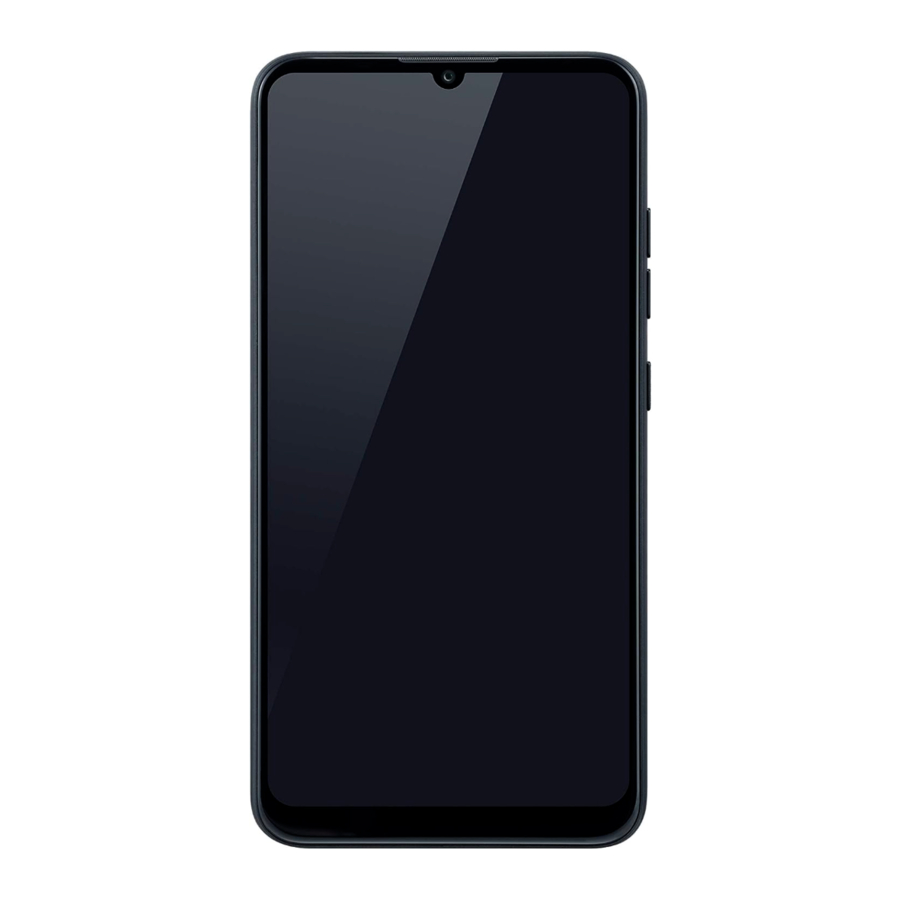

Getting to Know Your Phone

Knowing the Keys

Key	Function
Power key	Press to turn the display on or off. Long press for Power Off and Restart menu
Home key	Touch to return to the home screen from any application or screen. Long press to open the Google Assistant.
Back key	Touch to go to the previous screen.
Recent apps key	Touch to see recently used apps.
Volume key	Press or hold to turn the volume up or down.
Power and Vol Down	Press together to do screen capture
Hold the power key	Hold the power key for >10 seconds to restart the phone

NOTE:
The Back, Home and Recent apps buttons at the bottom of the screen can auto hide. Swipe up from the bottom of the screen to show these keys. The Back and Recent apps keys are interchangeable at Settings > Features > Navigation keys.
Touch to minimise the Back, Home and Apps buttons.

Installing the nano-SIM Card and the microSDXC™ Card

(Optional)

1. Insert the tip of the tray eject tool into the hole next to the card tray.

2. Pull out the card tray and place the nano-SIM card and the microSDXC card on the tray, as shown. Carefully slide the tray back into place.


Charging the Phone

Your phone's battery should have enough power for the phone to turn on, find a signal, and make a few calls. You should fully charge the battery as soon as possible.

Use only ZTE-approved chargers and USB cables. The use of unapproved accessories could damage your phone or cause the battery to explode.

The battery is not removable. Removal may cause fire or explosion.

1. Connect the adapter to the charging jack. Ensure that the adapter is inserted with the correct orientation. Do not force the connector into the charging jack.

2. Connect the charger to a standard AC power outlet. If the phone is on, you'll see a charging icon, such as or , appear on the status bar.
3. Disconnect the charger when the battery is fully charged.

NOTE:
If the battery is extremely low, you may be unable to power on the phone even when it is being charged. Put the phone on charge for at least 20 minutes then try again. Long press on the Power key to restart the handset.
NOTE:
If the phone freezes or takes too long to respond, press and hold the Power key for 10 seconds to restart the phone.

Powering On/Off

• Press and hold the Power key to turn on your phone.
• To power off, press and hold the Power key to open the options menu and touch Power off.

NOTE:
If the phone freezes or takes too long to respond, you can press and hold the Power key for about 10 seconds to restart the phone.

Setting Up for the First Time

When you first power on your phone after you purchase it or reset it to factory settings, you need to do some settings before using it.
Touch the language field to select the language. Then follow the prompts to set up Wi-Fi, name, protection, Google services, and other options.

Turn the Screen On and Off

If the screen is black press the power key to wake up the display.
If the screen is lit press the power key to turn off the display and lock the handset.
NOTE:
To save battery power, the phone automatically turns off the screen after some time of inactivity. You will still be able to receive messages and calls while the phone screen is off.

To unlock the screen and keys:

1. Press the Power key to turn the screen on.
2. Swipe up on the screen.
   or
   Swipe right from to open the Phone app, or swipe left from to open the camera.
   or
   Double tap any notifications to open the related app.

NOTE:
If you have set an unlock pattern, a PIN or a password for your phone (see Protecting Your Phone With Screen Locks), you'll need to draw the pattern or enter the PIN/password to unlock your screen.

Getting to Know the Home Screen

The home screen is the starting point for your phone's applications, functions, and menus. You can customize your home screen by adding folders, widgets, and more.

Extended Home Screen Panels
Your home screen is extendable, providing more space for app icons, widgets, and more. Simply swipe left or right on the home screen to see the extended panels. You can add or remove home screen panels, or adjust their order.

To add an application shortcut to a home screen panel:

1. Touch the Home key and slide up on the screen.
2. Touch and hold an application icon and drag it to the current home screen, or drag it to the right edge of the screen to create a new home screen panel. And then put the icon on it.

NOTE:
No empty home screen panel is allowed to exist. If the icon, widget or folder is the only item on the current home screen panel, the panel will be deleted as you remove the item.

To add a widget to a home screen panel:

1. Touch and hold an empty area of the home screen and select WIDGETS.
2. Touch and hold a widget and drag it to the current home screen or drag it to the right edge of the screen to create a new home screen panel. And then put the widget on it.

To adjust the order of a home screen panel:

1. Pinch on the home screen or touch and hold an empty area of the home screen, and then slide left or right to view the home screen thumbnails.
2. Touch and hold a thumbnail and drag it left or right to the place you need (the position of the main home screen cannot be changed).

Personalizing

Applying New Wallpapers

You can set the wallpaper for the home screen and lock screen.

1. Touch and hold an empty area on the home screen and then touch the WALLPAPERS.
2. Slide left or right to select an image as the wallpaper. You can also touch My photos to choose a picture as the wallpaper.
3. Touch Set wallpaper.

Using Do Not Disturb Mode

You can limit interruptions with Do not disturb mode. This mode silences your phone so that it doesn't make sounds or vibrate when you don't want it to.

To turn on Do not disturb mode:

1. Touch the Home key and slide up on the screen.
2. Touch Settings > Sound > Do not disturb.
3. Switch on Do not disturb.
4. Touch Do not disturb mode and select Priority only, Alarms only, or Total silence depending on whether you want to allow exceptions. You can customize the exceptions when Priority only is selected.

NOTES:

• Press and hold the Power key and touch to turn on Alarms only quickly, or touch to turn on vibration.
• Press the Volume key when no media application is active to show the volume bar. Drag the slider to the left or keep pressing the Volume down key to turn on vibration. Press the key again to turn on Alarms only.

To set exceptions for Do not disturb mode (Priority only):
You can set reminders, events, and callers that you specify as exceptions when Do not disturb mode is set to Priority only.

1. Touch the Home key and slide up on the screen.
2. Touch Settings > Sound > Do not disturb, and switch on Do not disturb. Touch Do not disturb mode and select Priority only.
3. Touch Sound allowed.
4. Turn on the switch next to the items you want to allow. Touch Messages or Incoming call and set who can alert you of their messages or calls.

NOTE:
When Repeat callers is switched on, you'll receive a notification if someone calls you a second time within a 15 minute period, regardless of whether notifications from that person receive priority status.

To block visual disturbances:
You can set to prevent notifications silenced by Do not disturb mode from visually interrupting you by "peeking" onto your screen.

1. Touch the Home key and slide up on the screen.
2. Touch Settings > Sound > Do not disturb.
3. Touch Block visual disturbances.
4. Touch the on/off switches to choose whether to block visual notifications when the screen is on or off.

To set a Do not disturb rule:
If you want to allow all notification alerts through most of the time, but want to limit alerts during certain times (like at night or on the weekends), you can set a rule for Do not disturb mode.

1. Touch the Home key and slide up on the screen.
2. Touch Settings > Sound > Do not disturb.
3. Touch Add rule and select Event rule or Time rule.
4. Enter the rule name and touch OK.
5. For a time rule, set the days, the start and end times, and set Do not disturb mode. You can also choose whether to allow the rule to stop at either the rule end time or by the next alarm you've set in the Clock app.
   For an event rule, select a Calendar account you want to make the rule for, select the type of reply you want to use, and set Do not disturb mode.

NOTE:
To turn on or off a rule, touch it to open its details screen and then touch the on/off switch.

Protecting Your Phone With Screen Locks

You can protect your phone by creating a screen lock. When it is enabled, you need to swipe up on the screen, draw a pattern or enter a numeric PIN or password to unlock the phone's screen and keys.

1. Touch the Home key and slide up on the screen.
2. Touch Settings > Security > Screen lock.
3. Touch Swipe, Pattern, PIN or Complex password.
   • Touch Swipe to enable screen lock and allow unlocking with a 'swipe' gesture.
   • Touch Pattern to draw and redraw a pattern that you must draw to unlock the screen.
   • Touch PIN or Complex password to set a numeric PIN or a password that you must enter to unlock the screen.
4. For Pattern, PIN, or password lock, select whether to protect your phone by requiring your pattern, PIN or password before it starts up.

Knowing the Basics

Status and Notification Icons

Opening and Switching Apps

Open an App

1. Touch the Home key to access the home screen.
2. Slide left or right on the screen and touch an app to open it.

Switch Between Recently Opened Apps

1. Touch the Recent apps key. The apps you've used recently are displayed in a series of tabs. Slide up and down to see all the tabs.
2. Touch a tab to open that app.

NOTE:
Double-tap the Recent apps key to quickly switch between two most recently opened apps.

Using Two Apps in Split-Screen Mode

You can work with two apps at the same time in split-screen mode.
NOTE:
Some apps may not support split-screen mode.

1. Touch the Recent apps key to view your recently used apps. Touch and hold the tab of the app you want to use and drag it to the Drag here to use split screen area.
2. You can do one of the following.
   • If the app you need is in the recent apps list, touch it to set it as the second app.
   • Touch the Home key to find the app you need and open it as the second app.

To turn off split-screen mode, touch and hold the Recent apps key, or drag the handle on the screen to the edge of the screen.

Connecting to Networks and Devices

Connecting to Mobile Networks

Control Mobile Data Use

1. Touch the Home key and slide up on the screen. Touch Settings > Mobile networks.
2. Touch the Data enabled switch to enable or disable mobile data use.

Set Access Point Names

To connect to the Internet you can use the default Access Point Names (APN). And if you want to add a new APN, please contact the service provider to get the necessary information.

1. Touch the Home key and slide up on the screen. Touch Settings > Mobile networks.
2. Touch Access point names and then touch .
3. Touch each item to enter the information you get from your service provider.
4. Touch > Save to complete.

NOTE:
To set the APN to default settings, touch > Reset to default.

Connecting to Wi-Fi

Wi-Fi is a wireless networking technology that can provide Internet access at distances of up to 100 meters, depending on the Wi-Fi router and your surroundings.

1. Touch the Home key and slide up on the screen. Touch Settings > Wi-Fi.
2. Switch on Wi-Fi.
3. Touch a network name to connect to it.
4. If the network is secured, enter the password and touch Connect.

NOTE:
Your phone automatically connects to previously used Wi-Fi networks when they are in range.

Connecting to Bluetooth Devices

Bluetooth is a short-range wireless communication technology. Phones or other devices with Bluetooth capabilities can exchange information wirelessly within a distance of about 10 meters (32.8 feet). The Bluetooth devices must be paired before the communication is performed.

1. Touch the Home key and slide up on the screen. Touch Settings > Bluetooth.
2. Switch on Bluetooth.
   Your phone automatically scans for and displays the IDs of all available Bluetooth devices in range.
3. Touch the device you want to pair with.
4. Confirm that the Bluetooth passkeys are the same between the two devices and touch Pair. Alternatively, enter a Bluetooth passkey and touch Pair.
   Pairing is successfully completed when the other device accepts the connection or the same passkey is entered.

NOTE:
The Bluetooth passkey may be fixed for certain devices, such as headsets and hands-free car kits. You can try entering 0000 or 1234 (the most common passkeys), or refer to the documents for that device.

Sharing Your Mobile Data Connection

You can share your phone's data capabilities through tethering or by activating the Wi-Fi hotspot feature to create a mobile hotspot.

Share Your Mobile Data Connection via USB

You can access the Internet on your computer via the USB tethering feature of your phone. The feature needs data connection on a mobile network and may result in data charges.
NOTE:
You cannot transfer files between your phone and your computer when the phone is USB tethered.

1. Connect your phone to your computer with a USB cable.
2. Touch the Home key and slide up on the screen. Touch Settings > More.
3. Switch on USB tethering. A new network connection will be created on your computer.

NOTE:
To stop sharing your data connection, switch off USB tethering or disconnect the USB cable.

Share Your Mobile Data Connection via Bluetooth

If your computer can obtain an Internet connection via Bluetooth, you can configure your phone to share its mobile data connection with your computer.

1. Pair your phone with your computer via Bluetooth.
2. Configure your computer to obtain its network connection via Bluetooth. For more information, please see your computer's documentation.
3. Touch the Home key and slide up on the screen. Touch Settings > More.
4. Switch on Bluetooth tethering. Your computer is now sharing your phone's data connection.

NOTE:
To stop sharing your data connection, switch off Bluetooth tethering.

Share Your Mobile Data Connection as a Wi-Fi Hotspot

You can share your phone's data connection with other devices by turning your phone into a portable Wi-Fi hotspot. The feature needs data connection on a mobile network and may result in data charges.
NOTE:
When the portable Wi-Fi hotspot feature is enabled, you cannot use your phone's Wi-Fi capability to access the Internet. You still remain connected to the Internet via your mobile data network.

1. Touch the Home key and slide up on the screen. Touch Settings > Wi-Fi hotspot.
2. Switch on Wi-Fi hotspot.
   After a moment, the phone starts broadcasting its Wi-Fi network name (SSID). Your hotspot password is shown below.
3. On another device, locate your phone via Wi-Fi and connect with it to start using the phone's mobile data.

NOTE:
To stop sharing your data connection, switch off Wi-Fi hotspot.

Phone Calls

Placing Calls

Place a Call by Dialing

1. Touch the Home key > Phone and touch the Phone tab.
2. Touch to open the dialer and enter the phone number or the contact name with the dialpad. Touch to delete incorrect digits.
   NOTE:
   As you enter the phone number or the contact name, your phone searches for matching information in your contacts. If you see the number and contact you want to call, touch it to place the call immediately.
3. Touch below the keypad to dial.

NOTE:
To make an international call, touch and hold the 0 key to enter the plus (+) symbol. Next, enter the country code, followed by the city/area code and then the phone number.

Make a Call from Call History

The call history is a list of all the calls you've placed, received, or missed. It provides a convenient way to redial a number, return a call, or add a number to your contacts.

1. Touch the Home key > Phone to open the Phone app. Call history is shown in the middle tab.
2. Touch a listing to call back.

Call Your Contacts

1. Touch the Home key > Phone and touch the Contacts tab to view all your contacts.
2. Touch on a contact to make a call.

Answering or Rejecting Calls

Answer a Call

When you receive a phone call, slide down to answer the call.
or
If the screen is unlocked, touch to answer the call.
NOTE:
To silence the ringer before answering the call, press either end of the Volume key.

Reject a Call

When you receive a phone call, you can:
Slide up to reject the call. You can touch to decline the call with a preset text message or touch Write your own... to edit one and send to the caller.
or
If the screen is unlocked, touch to reject the call. You can touch to reject the call and select a preset text message or touch Write your own... to edit one and send to the caller.

Using Options During a Call

During a call, you will see a number of onscreen options. Touch an option to select it.

• Touch to turn on or off the speaker.
• Touch to mute or unmute your microphone.
• Touch to switch to the keypad when you need to enter a code (for example, the PIN for your voicemail or bank account) during the call.
• Touch to put the call on hold.
• Touch to make another call separately from the first call, which is put on hold.
• Touch to end the current call.

Because of higher volume levels, do not place the phone near your ear during speakerphone use.

Contacts

You can add contacts on your phone and synchronize them with the contacts in your Google account or other accounts that support contact syncing.
To see your contacts, touch the Home key > Contacts.

Adding a New Contact

1. Touch the Home key > Contacts.
2. Touch to add a new contact.
3. Touch Phone contact to choose where to save the contact. If a sync account is selected, the contacts will be synced automatically with your account online.
4. Enter the contact name, phone numbers, email addresses, and other information.
5. Touch Save.

Searching for a Contact

1. Touch the Home key > Contacts and touch the Contacts tab.
2. Touch at the top of the contact list.
3. Input the contact name or any information the contact has to search for it. The contacts matched will be listed.

Messaging

You can use Messaging to exchange text messages (SMS) and multimedia messages (MMS).

Sending a Message

1. Touch the Home key > Messaging.
2. Touch at the bottom right corner.
3. Add recipients by one of the following ways.
   • Touch the To field and manually enter the recipient's number or the contact name. If the phone presents a few suggestions, touch the one you want to add.
   • Slide up and down to select recipients from your contacts.
4. Touch the Type message field and enter the message text.
5. If you want to send a multimedia message, touch to add a pictures, audios, videos or other files to the message.
6. Touch .

NOTE:
You can also include email addresses as recipients for a multimedia message.
NOTE:
Do not add any attachment if you want to send a text message. Otherwise you may be charged for a multimedia message.

Changing Message Settings

Touch > Settings in the Messaging screen to change the message settings.

Connect to a computer to transfer files

Plug the handset into a PC or MAC using the USB lead provided. On the handset screen pull your finger down from the top of the display and touch the USB options notification on the screen. Select File Transfer mode. The handset will show up as an external drive on the computer.
MAC users need to download and install Android File Transfer from Android.com

Web Browser

Opening the Browser

Touch the Home key and slide up on the screen. Touch Chrome to launch the web browser.
The browser also opens when you touch a web link - for example, in an email or a text message.

1. Open the Chrome app.
2. Touch the address box at the top of the web page.
3. Enter the address (URL) of a web page or enter terms you want to search for.
4. Touch a URL or search suggestion or touch to open the web page or search results.

Using Multiple Browser Windows

You can open several web pages at the same time (one page in each window) and switch between them freely.

To open a new browser window:
Touch at the top of the screen and then touch New tab. A new browser window opens and the homepage is loaded.

To switch between browser windows:

1. Touch the icon at the top of the screen. The number in the icon indicates the number of currently active browser windows.
2. Swipe vertically to scroll through the list of opened web pages.
3. Touch the one you want to open.

NOTE:
Swipe a web page horizontally or touch its to close the browser window. Touch at the top of the screen and then touch Close all tabs to close all windows.

Changing Browser Settings

You can configure a number of settings to customize the way you browse the web, including several that you can use to control your privacy.
To open the Browser settings screen, touch > Settings in the browser screen.

Camera

Capturing a Photo

1. Touch the Home key and slide up on the screen. Touch Camera.
2. Aim the camera at the subject and make any necessary adjustment.

   Keep a safe distance when using the flash. Do not point the flash towards the eyes of people or animals.
3. Touch the area where you want the camera to focus, or leave the camera to autofocus on the centre of the image.
4. Lightly touch .

Recording a Video

1. Touch the Home key and slide up on the screen. Touch Camera > VIDEO.
2. Aim the camera at the subject. You can touch any area on the screen that you want the camcorder to focus on before and during recording.
3. Touch to start recording a video clip.
   NOTE:
   While the recording is in progress, touch to pause the recording or touch to save the frame as a separate photo.
4. Touch to stop recording.

Using BEAUTIFY Mode

Use BEAUTIFY mode to take a beautified selfie or portrait. BEAUTIFY mode is available for both the front camera and the back camera.

1. Open Camera. Touch BEAUTIFY.
2. Switch to the front camera to take a beautified selfie. Or switch to the back camera to take a beautified portrait. Slide left or right to make adjustments on the slider at the bottom of the viewfinder as you desire.
3. Touch .

Using Other Camera Modes

Besides capturing photos and videos in the traditional way, your camera app offers other powerful and interesting camera modes. Touch in the viewfinder screen to find them all.
MULTI EXPOSURE: Capture two pictures for collage.
TIME-LAPSE: Set the time interval between each frame when you shot time lapse videos with the back camera.
MANUAL: Use manual camera mode to adjust more camera options for your photo such as ISO, white balance, exposure, etc.

Gallery

Opening Gallery

Touch the Home key and slide up on the screen. Touch Gallery to view albums of your pictures and videos.

Working With Albums

When you open the Gallery, all pictures and videos on your phone are displayed in a number of albums. Touch Camera/Others or slide left or right to switch between the Camera album and other albums.

To view album contents:
Touch an album to view the pictures and videos it contains.

To share albums, pictures, or videos:

1. Touch and hold an album to select it or touch and hold an item after you open an album to select a picture or a video.
2. Touch more items that you want to share.
3. Touch and select how you want to share the items.

To delete albums, pictures, or videos:

1. Touch and hold an album to select it or touch and hold an item after you open an album to select a picture or a video.
2. Touch more items that you want to delete.
3. Touch > OK.

Music

Touch the Home key and slide up on the screen. Touch Music to play audio files stored on your phone. Music supports a wide variety of audio formats, so it can play music you purchase from online stores, music you copy from your CD collection, and so on.

Viewing Your Music Library

Open Music. There you can touch All songs to view all your audio files or by categorized lists of artists, albums, and genres. You can also touch Favorites, Recently played or Folders to find songs, or view all your playlists in My playlist section.
NOTE:
If an audio file is being played, its name and player controls are displayed at the bottom of the screen. Touch the area to open the playback screen.

Playing Music

Touch a song in the music library to listen to it. Touch the bottom of the screen to open the playback screen and control the playing.

FM Radio

Scanning and Saving Channels

1. Plug in a wired headset.
2. Touch the Home key and slide up on the screen. Touch FM Radio.
3. Your phone automatically scans for all available channels and saves them to the All channels list for the first time you use it. Or you can touch > Scan in the FM Radio screen to scan for the channels again.

Listening to FM Radio

1. Open FM Radio while the headset is connected.
2. Touch > All channels and select a channel.

You can also drag the red line along the frequency panel or touch or to switch to other channels.
NOTES:

• Touch to add the channel to favorites.
• Touch to listen to the radio through the phone speaker.

Recorder

Recording a Voice Memo

1. Touch the Home key and slide up on the screen. Touch Recorder.
2. Touch to start recording. During recording, you can do the following:
   • Touch to pause or continue the recording.
   • Touch to add time tags to the recording.
3. Touch Done to stop recording.
4. Edit the file name and touch Done to save the recording.

If you don't want to save the memo after recording it, touch Delete > OK to delete it.

Playing a Voice Memo

1. Touch at the top right of the screen to see all recordings.
2. Touch the title of a memo to play it.

Settings

Touch the Home key and slide up on the screen. Touch Settings. The Settings app contains most of the tools for customizing and configuring your phone.

Wi-Fi

Open Settings and touch Wi-Fi. You can turn Wi-Fi on or off and configure your Wi-Fi connections.

Bluetooth

Open Settings and touch Bluetooth. You can turn Bluetooth on or off and configure your Bluetooth connections.

Wi-Fi Hotspot

Open Settings and touch Wi-Fi hotspot to share your phone's mobile data connection with PCs or other devices via Wi-Fi.

Mobile Networks

Open Settings and touch Mobile networks to control mobile data use, set access point names, or select mobile network or network types.

Flight Mode

Open Settings and touch More and slide the switch beside Flight mode to turn it on or off. All the phone's radios that transmit voice or data are turned off when flight mode is on.

Data Usage

Open Settings and touch More > Data usage to check and manage mobile data use. You can view and restrict Wi-Fi data usage as well.
NOTE:
The data usage is measured by your phone, and your carrier's data usage accounting may differ.

VPN

Open Settings and touch More > VPN to set up and connect to virtual private networks.

USB Tethering

While the phone is connected to a computer via the USB cable, you can open Settings and touch More > USB tethering to share your phone's mobile data with the computer.

Bluetooth Tethering

Open Settings and touch More > Bluetooth tethering to share your phone's mobile data with the connected Bluetooth device.

Network Settings Reset

Open Settings and touch More > Network settings reset > Reset settings to reset all network settings, including Wi-Fi, mobile networks, and Bluetooth.

Display

Open Settings and touch Display to configure the display options, including font size, screen sleep time, brightness level, auto-rotate screen and more.

Sound

Open Settings and touch Sound. You can adjust different types of volume, set sound mode, set Do not disturb options, set up ringtone and notification sound and select system sounds.

Notifications

Open Settings and touch Notifications. You can set the common notification options and different options for individual apps. Touch an app to block or mute its notifications, select its notification content to display on the lock screen, or let its notifications override your Do No Disturb settings.

Navigation Keys

Open Settings and touch Features > Navigation keys to swap the positions of the Back key and the Recent apps key. Select an option to make the switch.

Apps

Open Settings and touch Apps to see apps installed on your phone and manage them. Touch an app to see its information and options.

Default Apps

Open Settings and touch Default apps to set the default application for certain operation. For example, you can set Email or Gmail as the default email app.

Power Manager

Open Settings and touch Power manager. You can view the battery level, make a comprehensive power usage detection, enable different battery saving modes, configure power management for apps, check the battery usage and the apps that consume battery power improperly, and cool down the battery by disabling running apps.

Security

Open Settings and touch Security to configure options that help keep your phone and data safe. You can lock the screen with pattern, PIN, or password, activate the PIN lock for the nanoSIM card, or set the device administration, credential storage, and other advanced options.

Accounts

Open Settings and touch Accounts to manage your web accounts and synchronisation. Touch Add account to sign in to or create accounts on your phone.
Touch an account type to see that type of accounts you have added and adjust the accounts settings.

Languages and Input

Open Settings and touch Advanced settings > Languages & input to configure options related to system language, keyboard and input methods, speech input and output as well as mouse/trackpad input.

Date and Time

Open Settings and touch Advanced settings >Date & time to set date, time, time zone, and the time format, or display dual clocks on the lock screen.

Backup and Reset

Open Settings and touch Advanced settings > Backup & reset to manage data backup and restoration options, and to reset the phone to factory status.

Memory

Open Settings and touch Advanced settings > Memory to monitor the average memory use and performance of your phone. You can also check which apps use the most memory.

Storage

Open Settings and touch Advanced settings > Storage to view the memory information of the internal phone storage and the microSDXC card.
You can choose the default location for new data, such as photos captured and voice recorded. Touch Saving location setting and select to store items in the phone storage or the installed microSDXC card.

Connect to PC

Open Settings and touch Advanced settings > Connect to PC to select your USB connection type between your phone and PC.

Scheduled Power On/Off

Open Settings and touch Advanced settings > Scheduled power on/off to set the day and time when the phone automatically powers on or off. You can also touch the switches on the right to turn the features on or off.

Location

Open Settings and touch Advanced settings > Location to manage location mode and services, which help your phone and apps determine your location. To use location-related applications, such as finding your location on Google Maps, you must have location services enabled on your phone.

Accessibility

Open Settings and touch Advanced settings > Accessibility to configure the system accessibility options and accessibility plug-ins on your phone.

Printing

Open Settings and touch Advanced settings > Printing to manage Google Cloud Print service or other printer plug-ins installed from the Google Play Store or your printer manufacturer.

System Update

Open Settings and touch System Update to check, download and install system updates.

Google

Open Settings and touch Google to manage settings for Google apps and services that are installed on your device.

About Phone

Open Settings and touch About phone to view the phone status and other information.

For Your Safety

General Safety

	Don't make or receive handheld calls while driving. Never text while driving.
	Keep your phone at least 5 mm away from your body while making calls.
	Small parts may cause choking.
	Your phone can produce a loud sound.
	Don't use at gas stations.
	Your phone may produce a bright or flashing light.
	Don't dispose of your phone in fire.
	To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the speaker is in use.
	Avoid contact with anything magnetic.
	Keep away from pacemakers and other electronic medical devices.
	Turn off when asked to in hospitals and medical facilities.
	Turn off when told to in aircrafts and airports.
	Turn off when near explosive materials or liquids.
	Avoid extreme temperatures.
	Avoid contact with liquids. Keep your phone dry.
	Do not attempt to disassemble your phone.
	Only use approved accessories.
	Don't rely on your phone as a primary device for emergency communications.

Distraction

Driving
Full attention must be given to driving at all times in order to reduce the risk of an accident. Using a phone while driving (even with a hands-free kit) can cause distraction and lead to an accident. You must comply with local laws and regulations restricting the use of wireless devices while driving.

Operating Machinery
Full attention must be given to operating the machinery in order to reduce the risk of an accident.

Product Handling

General Statement on Handling and Use
You alone are responsible for how you use your phone and any consequences of the use.
You must always switch off your phone wherever the use of a phone is prohibited. Use of your phone is subject to safety measures designed to protect users and their environment.

• Always treat your phone and its accessories with care and keep them in a clean place.
• Keep the screen and camera lens clean. Unclean screen or camera lens may slow down the phone's reaction to your operations or lower image quality.
• Clean your phone and its accessories with a soft material such as cleaning cloth for eyeglass lenses. Do not use alcohol or other corrosive substances for cleaning or allow them to get inside.
• Do not expose your phone or its accessories to open flames or lit tobacco products.
• Do not expose your phone or its accessories to liquid, moisture or high humidity.
• Do not drop, throw or try to bend your phone or its accessories.
• Do not use harsh chemicals, cleaning solvents, or aerosols to clean the device or its accessories.
• Do not paint your phone or its accessories.
• Do not attempt to disassemble your phone or its accessories, only authorized personnel can do so.
• Do not expose or use your phone or its accessories in an environment with or that can reach extreme temperatures, minimum 23°F (-5°C) and maximum 122°F (+50°C).
• Do not place your phone inside or near heating equipment or high pressure containers, such as water heaters, microwave ovens, or hot cooking utensils. Otherwise, your phone may be damaged.
• Please check local regulations for disposal of electronic products.
• Do not carry your phone in your back pocket as it could break when you sit down.

Small Children
Do not leave your phone and its accessories within the reach of small children or allow them to play with it.
They could hurt themselves or others, or could accidentally damage the phone.
Your phone contains small parts with sharp edges that may cause an injury or may become detached and create a choking hazard.

Demagnetization
To avoid the risk of demagnetization, do not allow electronic devices or magnetic media close to your phone for a long time.

Electrostatic Discharge (ESD)
Do not touch the metallic connectors of the nano-SIM card.

Antenna
Do not touch the antenna unnecessarily.

Normal Use Position
When placing or receiving a phone call, hold your phone to your ear, with the bottom toward your mouth.

Air Bags
Do not place your phone in the area over an air bag or in the air bag deployment area as an airbag inflates with great force and serious injury could occur.
Place your phone safely before driving your vehicle.

Seizures/Blackouts
Your phone can produce a bright or flashing light. A small percentage of people may be susceptible to blackouts or seizures (even if they have never had one before) when exposed to flashing lights or light patterns such as when playing games or watching videos. If you have experienced seizures or blackouts or have a family history of such occurrences, please consult a physician. To reduce the risk of blackouts or seizures, you can use your phone in a well-lit room and take frequent breaks.

Repetitive Strain Injuries
To minimize the risk of Repetitive Strain Injury (RSI) when texting or playing games with your phone:

• Do not grip the phone too tightly.
• Press the buttons lightly.
• Use the special features which are designed to minimize the times of pressing buttons, such as Message Templates and Predictive Text.
• Take frequent breaks to stretch and relax.

Emergency Calls
This phone, like any other wireless phone, operates using radio signals, which cannot guarantee connection in all conditions.
Therefore, you should not rely solely on any wireless phone for emergency communications.

Loud Noise
This phone is capable of producing loud noises, which may damage your hearing. Turn down the volume before using headphones, Bluetooth headsets or other audio devices.

Phone Heating
Your phone may become warm during charging and normal use.

Electrical Safety

Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch metallic objects, such as coins or key rings, or allow them to contact or short-circuit the charging jack.
Never puncture the surface of the phone with sharp objects.

Connection to a Car
Seek professional advice when connecting a phone interface to the vehicle electrical system.

Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessories.
Only qualified personnel can service or repair the phone or its accessories.
If your phone (or its accessories) has been submerged in water, punctured, or subjected to a severe fall, do not use it until you have taken it to be checked at an authorized service center.

Technical Specifications

Networks		4G LTE Bands 1, 3, 7, 8, 28, 40 LTE Data Rates: 150M Down / 50M Up 3G UMTS 900, 2100MHz. 42Mbps data 2G 900, 1800MHz.
Display		6.26" HD 720 x 1520 Capacitive touch.
Camera		13+2MP Rear, 8.0MP Front
CPU & Memory		Octo-core CPU with 2GB RAM. 16GB ROM with approx 10GB user space. Expandable external storage microSD(HC)™ up to 128GB
Operating system		Android 9
Battery	Capacity	3200mAh Li-ion not user replaceable.
	Charge Time	3-4 hrs with AC Charger
	Standby time	Up to 320 hours (subject to network)
	Voice talk time	Up to 9 hours (subject to network)
Connectivity		Bluetooth 4.1, Wi-fi 802.11b/g/n, 3.5mm jack NAHJ with Hi-Fi mode, micro USB
SIM Card		NANO SIM, 4FF format. This handset is locked to the Optus network and is only suitable for use on that network.

Troubleshooting

Symptom	Solution
How do I check the software version?	Settings > About phone > Build number
How do I reset to factory defaults?	Settings > Backup & reset > Factory data reset
How do I check the SMS service centre number?	Messages > Options > Settings
How do I configure the MMS Settings?	Messages > Options > Settings
How do I configure Email settings?	Apps > Email, or Menu > Settings > Accounts
How do I copy Contacts to or from my SIM card?	Contacts > Options > Import/Export > Follow the directions on screen
How do I select Network mode?	Settings > More > Mobile Networks > Preferred network type
How do I manually select a carrier?	Settings > More > Mobile Networks > Network operators > Search networks
How do I enable	Settings > More > Tethering and Portable
USB tethering?	hotspot > USB tethering. (Connect as CDROM to install drivers)
How do I configure APN's	Settings > More > Mobile Networks > Access Point Names > Select + to add new APN
How do I enable Flight Mode?	Long press on the power key > Flight Mode
How do I clear my Browser?	Chrome > Options > History> Clear Browsing Data
How do I check Call forwarding etc	Calls > Options > Settings > Call Settings > Call forwarding
How do I check for Software Updates?	Apps > System updates
How do I get more technical support?	Call 1300 789 475 during office hours AEST, search for ZTE Australia on Facebook or email support@zte.com.au
How do I change the Ringtone?	Settings > Sound & notifications > Phone ringtone
The battery discharges quickly	Possible network coverage issue. Check the signal level. With only 1 or 2 bars, the battery has to work harder to maintain network contact. Limit multi-media to save power. The battery may be worn out.
The handset turns on by itself.	An alarm or calendar event switches the handset on automatically.
No incoming ring or alarm tone	Hold the power key to check the phone is not in silent mode . Check the ringtone and ring volume settings.
The handset switches off after charging.	The handset is charging in the off state. Press and hold the power key to switch the handset ON.
I cannot charge the phone	Confirm the charger is properly inserted. Remove the battery, clean the contacts and check it is inserted correctly. The battery may be worn out. You can charge your handset from any standard USB port. Try another lead if you have access to one.
I cannot connect to other Bluetooth devices	Turn Bluetooth on. Set visibility to Show. Make sure the pass-code is correct. Possible compatibility issues. Not all functionality is supported between different Bluetooth devices and standards.
My data usage is excessive	Check Settings > Data usage to determine which apps are consuming your data. Google+ can use large amounts of backup data. Review under Google+ > Options > Settings

Error Messages

Error Messages	Solution
No SIM Card	Check a valid SIM card is inserted. See the Getting Started section
Enter PIN code	You have set a SIM PIN. Please enter your SIM PIN code.
Enter PUK code	Contact your Service Provider to get the PUK code
Enter Unlock Code	Contact your Service Provider to obtain the network unlocking code (fees may apply to unlock your device)

ZTE Australia provides dedicated support with a local call centre and social media outreach. Search 'ZTE Australia' on Facebook, Google+ and Twitter to keep in touch.

www.ztemobiles.com.au
