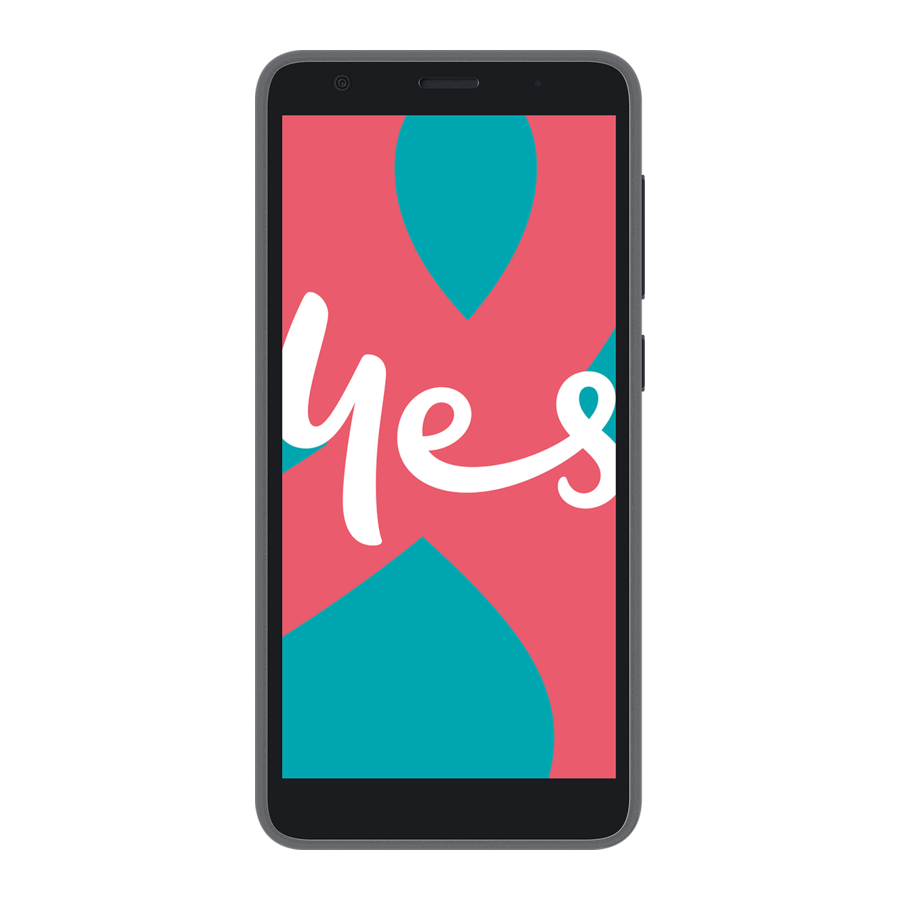

ZTE Optus P500 - Mobile Phone Manual

Getting Started

Getting to Know Your Phone

Installing the SIM Card and the microSDXC™ Card

(Optional)
The SIM card can be installed or removed while the phone is turned on. Power off your phone before removing or replacing the battery.

To avoid damage to the phone, do not use any other kind of SIM cards, or any non-standard nano-SIM card cut from a SIM card. You can get a standard nanoSIM card from your service provider.

1. Place your finger into the slot at the bottom of the back cover, and gently lift and remove the cover.

2. Install the nano-SIM card and the microSDXC card as shown.

3. Insert the battery, making sure the connectors align. Gently push down on the battery until it clicks into place.

4. Replace the back cover.

Charging the Phone

Your phone's battery should have enough power for the phone to turn on, find a signal, and make a few calls. You should fully charge the battery as soon as possible.

Use only ZTE-approved chargers and USB cables. The use of unapproved accessories could damage your phone or cause the battery to explode.

NOTE:
If the battery is extremely low, you may be unable to power on the phone even when it is being charged. In this case, try again after charging the phone for at least 20 minutes. Contact the customer service if you still cannot power on the phone after prolonged charging.

Waking Up Your Phone

Your phone automatically goes into sleep mode when it is not in use for some time. The display is turned off to save power and the keys are locked to prevent accidental operations.
You can wake up your phone by turning on the display and unlocking the keys.

1. Press the Power key to turn the screen on.
2. Swipe up on the screen.

NOTE:
If you have set an unlock pattern, a PIN, or a password for your phone, you'll need to draw the pattern, or enter the PIN/password to unlock the phone.

Key	Function
Power key	Press and hold to turn Flight mode On or Off, Switch between vibration / silent / ring, Restart the phone or Power off. Press to turn the screen display On or Off.
Home key	Touch to return to the home screen from any application or screen. Touch and hold to open Google Assistant.
Back key	Touch to go to the previous screen.
Recent apps key	Touch to see recently used apps.
Volume key	Press or hold either end of the key to turn the volume up or down.

Powering On/Off

• Press and hold the Power key to turn on your phone.
• To power off, press and hold the Power key to open the options menu and touch Power off.
• NOTE:
  If the battery is extremely low, you may be unable to power on the phone even when it is being charged. In this case, try again after charging the phone for at least 20 minutes. Contact Customer Service if you still cannot power on the phone after prolonged charging.

NOTE:
If the phone freezes or takes too long to respond, you can press and hold the Power key for about 10 seconds to restart the phone.

Setting Up for the First Time

When you first power on your phone after you purchase it or reset it to factory settings, you need to do some settings before using it.
Touch the language field to select the language. Then follow the prompts to set up Wi-Fi, name, protection, Google services, and other options.

Locking/Unlocking the Screen and Keys

Your phone allows you to quickly lock the screen and keys (put the phone to sleep mode) when not in use and to turn the screen back on and unlock it when you need it.

To lock the screen and keys:
To quickly turn the screen off and lock the keys, press the Power key.
NOTE:
To save battery power, the phone automatically turns off the screen after some time of inactivity. You will still be able to receive messages and calls while the phone screen is off.

To unlock the screen and keys:

1. Press the Power key to turn the screen on.
   Swipe up on the screen.
   or Swipe right from to open the Phone app, or swipe left from to open the camera.
   or Touch a notification twice consecutively to open the related app.

NOTE:
If you have set a screen lock Pattern, PIN or Password for your phone (see Protecting Your Phone With Screen Locks), you'll need to draw the pattern or enter the PIN/Password to unlock your screen.

Getting to Know the Home Screen

The home screen is the starting point for your phone's applications, functions, and menus. You can customise your home screen by adding folders, widgets, and more.

Extra Screens
Extra screens can be added providing more space for app icons, widgets, and more. Drag an app icon from the Apps lsit to the home screen, if you wish to create an alternate or extra home screen then drag the tile to the right to create a new page.

To add an application shortcut to a screen:

1. Slide up on any screen.
2. Touch and hold an application icon and drag it to the current screen, or drag it to the right edge of the screen to go to the next screen. If you go beyond the last existing screen a new screen will be created. Place the icon by releasing pressure.

Personalising

Applying New Wallpapers

You can set the wallpaper for the home screen and lock screen.

1. Touch and hold an empty area on the screen and then touch the WALLPAPERS icon.
2. Slide left or right to view available images. You can also touch My photos to choose a picture as the wallpaper.
3. Touch the HOME button to set the Home screen wallpaper or the LOCK button to set the Lock screen wallpaper.

Using Do Not Disturb Mode

You can limit interruptions with Do not disturb mode. This mode silences your phone so that it doesn't make sounds or vibrate when you don't want it to.

To turn on Do not disturb mode:
Swipe down from the top of the screen with two fingers to access the Quick Settings or swipe down twice with one finger. Then swipe left to show the second page of options.
Find and touch the option Do not disturb. Touching once turns Do not disturb mode On or Off. Long press displays the settings or you can go to the settings by swiping up from the screen and touch Settings > Sound > Do not disturb.

Settings for Do not disturb mode:

1. Behaviour
   • Sound & vibration
     Turn On or Off Alarms, Media and Touch sounds
   • Notifications
     Set 'No sound for notifications'
     Set 'No sound for notifications and Visuals'
     Set specific rules with Custom
2. Exceptions
   • Calls
     Allows or limits what calls are accepted
   • Messages
     Allows or limits what messages are accepted
3. Schedule
   • Duration
     Sets how long Do not disturb is active
   • Turn on automatically
     Sets rules for when Do not disturb is active

Protecting Your Phone With Screen Locks

You can protect your phone by creating a screen lock. When it is enabled, you need to swipe up on the screen, draw a pattern or enter a numeric PIN or password to unlock the phone's screen and keys.

1. Touch the Home key and slide up on the screen.
2. Touch Settings > Security & location > Screen lock.
3. Touch Swipe, Pattern, PIN or Password.
   • Touch Swipe to enable screen lock and allow unlocking with a 'swipe' gesture. This disables a secure screen lock.
   • Touch Pattern to draw and redraw a pattern that you must draw to unlock the screen.
   • Touch PIN to set a numeric PIN that you must enter to unlock the screen.
   • Touch Password to set an alphanumeric password that you must enter to unlock the screen.

Knowing the Basics

Status and Notification Icons

Opening and Switching Apps

Open an App

1. Slide up from the screen to access all Apps.
2. Touch an App to open it, or
3. Slide left or right to access other screens and touch an App to open it.

Switch Between Recently Opened Apps

1. Touch the Recent apps key. The apps you've used recently are displayed in a series of tabs. Slide up and down to see all the tabs.
2. Touch a tab to open that app.

NOTE:
Double-tap the Recent apps key to quickly switch between two most recently opened apps.

Connecting to Mobile Networks

Control Mobile Data Use

1. Slide up on the screen. Touch Settings > Network & internet > Mobile network.
2. Touch the Mobile Data switch to enable or disable mobile data use.

Set Access Point Names

To connect to the Internet you can use the default Access Point Names (APN). If you want to add a new APN, please contact the service provider to get the necessary information.

1. Slide up on the screen. Touch Settings > Network & internet > Mobile network > Advanced.
2. Touch Access point names and then touch +.
   Touch each item to enter the information you got from your service provider.
   Touch > Save to complete or Discard to cancel.

NOTE:
To set the APN to default settings, touch > Reset to default.

Connecting to Wi-Fi

Wi-Fi is a wireless networking technology that can provide Internet access at distances of up to 100 meters, depending on the Wi-Fi router and your surroundings.

1. Slide up on the screen. Touch Settings > Network & internet.

Switch on Wi-Fi and touch Wi-Fi to scan for available networks. Touch a network name to connect to it.
If the network is secured, enter the password and touch Connect.
NOTE:
Your phone automatically connects to previously used Wi-Fi networks when they are in range.

Connecting to Bluetooth Devices

Bluetooth is a short-range wireless communication technology. Phones or other devices with Bluetooth capabilities can exchange information wirelessly within a distance of about 10 meters (about 33 feet). The Bluetooth devices must be paired before the communication is performed.

1. Slide up on the screen. Touch Settings > Connected devices.
2. Touch Pair new device to scan for and display the Ids of all available Bluetooth devices in range.
3. Touch the device you want to pair with.
4. Confirm that the Bluetooth passkeys are the same between the two devices and touch Pair. Alternatively, enter a Bluetooth passkey and touch Pair.

Pairing is successfully completed when the other device accepts the connection or the same passkey is entered.
NOTE:
The Bluetooth passkey may be fixed for certain devices, such as headsets and hands-free car kits. You can try entering 0000 or 1234 (the most common passkeys), or refer to the documents for that device.

Sharing Your Mobile Data Connection

You can share your phone's data capabilities through tethering or by activating the Wi-Fi hotspot feature to create a mobile hotspot.

Share Your Mobile Data Connection via USB
You can access the Internet on your computer via the USB tethering feature of your phone. The feature needs data connection on a mobile network and may result in data charges.
NOTE:
You cannot transfer files between your phone and your computer when the phone is USB tethered.

1. Connect your phone to your computer with a USB cable. If a Use USB to options panel pops up select cancel. These options are for transferring files to/from the computer.
2. Slide up on the screen. Touch Settings > Network & internet > Hotspot & tethering.
3. Switch on USB tethering. A new network connection will be created on your computer.

NOTE:
To stop sharing your data connection, switch off USB tethering or disconnect the USB cable.

Share Your Mobile Data Connection via Bluetooth
If your computer can obtain an Internet connection via Bluetooth, you can configure your phone to share its mobile data connection with your computer.

1. Pair your phone with your computer via Bluetooth.
2. Configure your computer to obtain its network connection via Bluetooth. For more information, please see your computer's documentation.
3. Slide up on the screen. Touch Settings > Network & internet > Hotspot & tethering.
4. Switch on Bluetooth tethering. Your computer is now sharing your phone's data connection.

NOTE:
To stop sharing your data connection, switch off Bluetooth tethering.

Share Your Mobile Data Connection as a WiFi Hotspot
You can share your phone's data connection with other devices by turning your phone into a portable Wi-Fi hotspot. The feature needs data connection on a mobile network and may result in data charges.
NOTE:
When the portable Wi-Fi hotspot feature is enabled, you cannot use your phone's Wi-Fi capability to access the Internet. You still remain connected to the Internet via your mobile data network.

1. Slide up on the screen. Touch Settings > Network & internet > Wi-Fi Hotspot.
2. Switch on Wi-Fi Hotspot.
   After a moment, the phone starts broadcasting its Wi-Fi network name (SSID). Touch Security to check or change your hotspot password. Touch Advanced to check other WiFi settings.
3. On another device, locate your phone via Wi-Fi and connect with it to start using the phone's mobile data.

NOTE:
To stop sharing your data connection, switch off Wi-Fi hotspot.

Phone Calls

Touch the phone icon to launch the Phone application. This will open in the same state it was last used, this can be the Dial Pad view or the Favorites / Recents / Contacts view.

1. Touch to open the dialer and enter the phone number or the contact name with the dial pad. Touch to delete incorrect digits.
   NOTE:
   As you enter the phone number your phone searches for matching information in your contacts. If you see the number and contact you want to call, touch it to place the call immediately.
2. Touch below the keypad to dial.

NOTE:
To make an international call, touch and hold the 0 key to enter the plus (+) symbol. Next, enter the country code, followed by the city/area code and then the phone number.

Place a Call from your Contacts

From Contacts

1. From a screen touch to open the Contacts list.
2. Touch at the right of contact name to place the call.

From the Dialler

3. From a screen touch to open the dialler.
   If in Dial pad view touch the Back button.
4. Touch the Contacts icon at the bottom right of the screen to view your contacts
5. Touch at the right of contact name to place the call.

Place a Call from the Call History

The call history is a list of all calls you have placed, received or missed. It provides a convenient way to redial a number, return a call or add a number to your contacts.

1. From a screen touch to open the dialler. If in Dial pad view touch the Back button.
2. Touch at the bottom of the screen to view your call history.
3. Touch at the right of call item to place the call.

Place a Call from a Text Message

While viewing a text message, you can call the sender or phone numbers contained in the message.

1. From a screen touch to open the Text messages.
2. Touch a conversation
3. To call the message sender, touch at the top.

To call a number in the message text, touch the number.

Answering or Rejecting Calls

Answer a Call

When you receive a phone call:
If the screen is locked, slide up to answer the call.
If the screen is unlocked, touch to answer the call.
NOTE:
To silence the ringer before answering the call, press either end of the Volume key. You will still be able to answer the call.

Reject a Call

When you receive a phone call:
If the screen is locked, slide down to reject the call.
If the screen is unlocked, touch to reject the call.
You can touch to reject the call and select a preset text message or touch Write your own... to edit one and send to the caller.

Options During a Call

During a call, you will see a number of onscreen options. Touch an option to select it.
Touch to put the current call on hold and call a third party.
Touch to put the call on hold.
Touch to make a call from the Contacts list.
Touch to mute or enable your microphone.
Touch to switch to the keypad when you need to enter a code (for example, the PIN for your voicemail or bank account) during the call.
Touch to turn the speaker ON or Off.
Touch to end the current call.

Because of higher volume levels, do not place the phone near your ear during speakerphone use.

Contacts

You can add contacts on your phone and synchronise them with the contacts in your Google account or other accounts that support contact syncing.
To see your contacts, touch the Home key > Contacts icon.

Adding a New Contact

1. Touch the Home key >
2. Touch to add a new contact.
3. Touch Saving to to choose where to save the contact. If a sync account is selected, the contacts will be synced automatically with your account online.
4. Enter the contact name, phone numbers, email addresses, and other information.
5. Touch Save.

Searching for a Contact

1. Touch the Home key >
2. Touch at the top of the contact list.
3. Input the contact name or any information the contact has to search for it. The contacts matched will be listed.

Messaging

You can use Messaging to exchange text messages (SMS) and multimedia messages (MMS).

Sending a Message

1. Touch the Home key >
2. Touch at the bottom right corner.
3. Add recipients by one of the following ways.
   • Touch the To field and manually enter the recipient's number or the contact name. If the phone presents a few suggestions, touch the one you want to add.
   • Slide up and down to select recipients from your contacts.
4. Touch the Type message field and enter the message text.
5. If you want to send a multimedia message, touch to add pictures, audios, videos or other files to the message.
6. Touch .
   NOTE:
   You can also include email addresses as recipients for a multimedia message.
   NOTE:
   Do not add any attachment if you want to send a text message. Otherwise you may be charged for a multimedia message.

Changing Message Settings

Touch > Settings in the Messaging screen to change the message settings.

Web Browser

Opening the Browser

1. Touch or the Google Search bar
2. Touch the address box at the top of the web page.
3. Enter the address (URL) of a web page or enter terms you want to search for.
   Touch to use speech recognition. Speak your request clearly into the handset microphone.
4. Touch a URL or search suggestion or touch the arrow to open the web page or search results.

Using Multiple Browser Windows

You can open several web pages at the same time (one page in each window) and switch between them freely.

To open a new browser window:
Touch at the top of the screen and then touch New tab. A new browser window opens and the homepage is loaded. To switch between browser windows:

1. Touch the icon at the top of the screen. The number in the icon indicates the number of currently active browser windows.
2. Swipe vertically to scroll through the list of opened web pages.
3. Touch the one you want to open.

NOTE:
Swipe a web page horizontally or touch its to close the browser window. Touch at the top of the screen and then touch Close all tabs to close all windows.

Changing Browser Settings

You can configure a number of settings to customise the way you browse the web, including several that you can use to control your privacy.
To open the Browser settings screen, touch > Settings in the browser screen.

Camera

Capturing a Photo

1. Touch the Home key and slide up on the screen. Touch the Camera App .
2. Aim the camera at the subject and make any necessary adjustment.

   Keep a safe distance when using the flash. Do not point the flash towards the eyes of people or animals.
3. Touch the area where you want the camera to focus, or leave the camera to autofocus on the centre of the image.
4. Touch the Camera icon to take a shot.

Recording a Video

1. Touch the Home key and slide up on the screen. Touch the Camera App, then touch VIDEO.
2. Aim the camera at the subject. You can touch any area on the screen that you want the camcorder to focus on before and during recording.
3. Touch the video camera icon to start recording a video clip.

Camera Mode

Slide Left on the camera screen to change Camera Mode:
Auto – normal mode
Manual – Allows some manual control of ISO, Contrast and White Balance
Panorama – take a continuous panorama shot
Filters: Choose preset colour balance filters

Camera Settings

Change the storage location
Configure the volume key to be the Shutter, Volume or Zoom
Switch the shutter sound on or off
Enable Location saving (Geo-tagging)
Change the picture size (resolution)
Countdown timer
Composition line
Anti-banding

Gallery

Touch the Home key and slide up on the screen. Touch the Gallery to view albums of your pictures and videos.
Open the Gallery app all pictures and videos on your phone are displayed.
Touch Folders to view different folders on your handset or memory card.

To share albums, pictures, or videos:
Touch the picture to open it, touch and select how you want to share the items.

To delete albums, pictures, or videos:
Touch the picture to open it, touch > OK to delete the image.

Music

You can use You Tube music which is a built in app or you can download alternate music players from Play Store.

FM Radio

Scanning and Saving Channels

1. Plug in a wired headset.
2. Touch the Home key and slide up on the screen. Touch FM Radio icon.
3. Your phone automatically scans for all available channels and saves them to the All channels list for the first time you use it. Or you can touch > Scan in the FM Radio screen to scan for the channels again.

Listening to FM Radio

1. OpenFM Radio while the headset is connected.
2. Skip channels using the tune up or down buttons.
3. Touch to listen to the radio through the phone speaker.

Recorder

Recording a Voice Memo

1. Touch the Home key and slide up on the screen. Touch Voice recorder.
2. Touch to start recording. During recording, you can do the following:
   • Touch to pause or continue the recording.
   • Touch to add time tags to the recording.
3. Touch Done to stop recording.
4. Edit the file name and touch Save to save the recording.

If you don't want to save the memo after recording it, touch Delete > Delete to delete it.

Playing a Voice Memo

1. Touch at the top right of the screen to see all recordings.
2. Touch the title of a memo to play it.

Settings

Touch the Home key and slide up on the screen. Touch Settings. The Settings app contains most of the tools for customising and configuring your phone.

Settings

Network & Internet

Wi-FI
Open Settings > Network & internet and touch Wi-Fi. You can turn Wi-Fi on or off and configure your Wi-Fi connections.

Mobile Network
Open Settings > Network & internet and touch Mobile network to control mobile data use, set access point names, or select mobile network or network types.

Data usage
Open Settings > Network & internet and touch Data usage to check and manage mobile data use. You can view and restrict Wi-Fi data usage as well.
NOTE:
The data usage is measured by your phone, and your carrier's data usage accounting may differ.

Hotspot & tethering
Open Settings > Network & internet and touch Hotspot & tethering to share your phone's mobile data connection with PCs or other devices via Wi-Fi.

Flight Mode
Open Settings > Network & internet and touch the switch beside Flight mode to turn it on or off. All the phone's radios that transmit voice or data are turned off when flight mode is on.

Advanced
Call Settings – Control call forwarding (voicecmail) and hide my number settings under Additional settings

USB tethering
While the phone is connected to a computer via the USB cable, you can open Settings > Network & internet > Hotspot & tethering and touch USB tethering to share your phone's mobile data with the computer.

Bluetooth Tethering
Open Settings > Network & internet > Hotspot & tethering and touch Bluetooth tethering to share your phone's mobile data with the connected Bluetooth device.

Connected devices

Bluetooth

Open Settings > Connected devices and touch Bluetooth. You can turn Bluetooth on or off and configure your Bluetooth connections.

Apps & notifications

Open Settings and touch Apps & Notifications. You can set the common notification options and different options for individual apps. Touch an app to block or mute its notifications, select its notification content to display on the lock screen, or let its notifications override your Do not disturb settings.

Apps

Open Settings and touch Apps & notifications to see apps installed on your phone and manage them. Touch an app to see its information and options.

Default Apps

Open Settings-> Apps & notifications and touch Default apps to set the default application for certain operation. For example, you can set Email or Gmail as the default email app.

Battery

Open Settings and touch Battery to view the battery level and enable Power-saver mode. Touch App Power-saver manager to configure power management for apps, check the battery usage and the apps that consume battery power improperly, and cool down the battery by disabling running apps.

Display

Open Settings and touch Display to configure the display options, including font size, screen sleep time, brightness level, auto-rotate screen and more.

Scheduled Power On/Off

Open Setting > Features and touch Scheduled power on/off to set the day and time when the phone automatically powers on or off. You can also touch the switches on the right to turn the features on or off.

Audio Profiles

Open Settings and touch Audio profiles. You can adjust different types of volume, set sound mode options, set up ringtone and notification sound and select system sounds.

Storage

Open Settings > Storage to view the memory information of the internal phone storage and the microSDXC card. You can also check which apps use the most memory.
You can choose the default location for new data, such as photos captured and voice recorded. Touch Saving location setting and select to store items in the phone storage or the installed microSDXC card.

Security & location

Open Settings and touch Security & location to configure options that help keep your phone and data safe. You can lock the screen with a Pattern, PIN or Password, activate the PIN lock for the nano-SIM card, or set the device administration, credential storage, and other advanced options.
Open Setting > Security & location to manage location mode and services, which help your phone and apps determine your location. To use location-related applications, such as finding your location on Google Maps, you must have location services enabled on your phone.

Accounts

Open Settings and touch Accounts to manage your web accounts and synchronisation. Touch Add account to sign in to or create accounts on your phone.

Accessibility

Open Settings and touch Accessibility to configure the system accessibility options and accessibility plug-ins on your phone.

System

Open Settings > System and touch Languages & input to configure options related to system language, keyboard and input methods, speech input and output as well as mouse/trackpad input.

Date and Time

Open Settings > System and touch Date & time to set date, time, time zone, and the time format, or display dual clocks on the lock screen.

Backup and Reset

Open Settings > System and touch Backup to manage data backup and restoration options. Touch Reset options to reset the phone to factory status.

For Your Safety

General Safety

	Don't make or receive handheld calls while driving. Never text while driving.
	Keep your phone at least 5 mm away from your body while making calls.
	Small parts may cause choking.
	Your phone can produce a loud sound.
	Avoid contact with anything magnetic.
	Keep away from pacemakers and other electronic medical devices.
	Turn off when asked to in hospitals and medical facilities.
	Turn off when told to in aircrafts and airports.
	Turn off when near explosive materials or liquids.
	Don't use at gas stations.
	Your phone may produce a bright or flashing light.
	Don't dispose of your phone in fire.
	To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the speaker is in use.
	Avoid extreme temperatures.
	Avoid contact with liquids. Keep your phone dry.
	Do not attempt to disassemble your phone.
	Only use approved accessories.
	Don't rely on your phone as a primary device for emergency communications.

Distraction

Driving
Full attention must be given to driving at all times in order to reduce the risk of an accident. Using a phone while driving (even with a hands-free kit) can cause distraction and lead to an accident. You must comply with local laws and regulations restricting the use of wireless devices while driving.

Operating
Machinery Full attention must be given to operating the machinery in order to reduce the risk of an accident.

Product Handling

General Statement on Handling and Use
You alone are responsible for how you use your phone and any consequences of the use.
You must always switch off your phone wherever the use of a phone is prohibited. Use of your phone is subject to safety measures designed to protect users and their environment.

• Always treat your phone and its accessories with care and keep them in a clean place.
• Keep the screen and camera lens clean. Unclean screen or camera lens may slow down the phone's reaction to your operations or lower image quality.
• Clean your phone and its accessories with a soft material such as cleaning cloth for eyeglass lenses. Do not use alcohol or other corrosive substances for cleaning or allow them to get inside.
• Do not expose your phone or its accessories to open flames or lit tobacco products.
• Do not expose your phone or its accessories to liquid, moisture or high humidity.
• Do not drop, throw or try to bend your phone or its accessories.
• Do not use harsh chemicals, cleaning solvents, or aerosols to clean the device or its accessories.
• Do not paint your phone or its accessories.
• Do not attempt to disassemble your phone or its accessories, only authorised personnel can do so.
• Do not expose or use your phone or its accessories in an environment with or that can reach extreme temperatures, minimum 23°F (-5°C) and maximum 122°F (+50°C).
• Do not place your phone inside or near heating equipment or high pressure containers, such as water heaters, microwave ovens, or hot cooking utensils. Otherwise, your phone may be damaged.
• Please check local regulations for disposal of electronic products.
• Do not carry your phone in your back pocket as it could break when you sit down.

Small Children
Do not leave your phone and its accessories within the reach of small children or allow them to play with it.
They could hurt themselves or others, or could accidentally damage the phone.
Your phone contains small parts with sharp edges that may cause an injury or may become detached and create a choking hazard.

Demagnetisation
To avoid the risk of demagnetisation, do not allow electronic devices or magnetic media close to your phone for a long time.

Electrostatic Discharge (ESD)
Do not touch the metallic connectors of the nano-SIM card.

Antenna
Do not touch the antenna unnecessarily.

Normal Use Position
When placing or receiving a phone call, hold your phone to your ear, with the bottom toward your mouth.

Air Bags
Do not place your phone in the area over an air bag or in the air bag deployment area as an airbag inflates with great force and serious injury could occur.
Place your phone safely before driving your vehicle.

Seizures/Blackouts
Your phone can produce a bright or flashing light. A small percentage of people may be susceptible to blackouts or seizures (even if they have never had one before) when exposed to flashing lights or light patterns such as when playing games or watching videos. If you have experienced seizures or blackouts or have a family history of such occurrences, please consult a physician. To reduce the risk of blackouts or seizures, you can use your phone in a well-lit room and take frequent breaks.

Repetitive Strain Injuries
To minimise the risk of Repetitive Strain Injury (RSI) when texting or playing games with your phone:

• Do not grip the phone too tightly.
• Press the buttons lightly.
• Use the special features which are designed to minimise the times of pressing buttons, such as Message Templates and Predictive Text.

Take frequent breaks to stretch and relax.

Emergency Calls
This phone, like any other wireless phone, operates using radio signals, which cannot guarantee connection in all conditions. Therefore, you should not rely solely on any wireless phone for emergency communications.

Loud Noise
This phone is capable of producing loud noises, which may damage your hearing. Turn down the volume before using headphones, Bluetooth headsets or other audio devices.

Phone Heating
Your phone may become warm during charging and normal use.

Electrical Safety

Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories. Take care not to touch metallic objects, such as coins or key rings, or allow them to contact or short-circuit the charging jack.
Never puncture the surface of the phone with sharp objects.

Connection to a Car
Seek professional advice when connecting a phone interface to the vehicle electrical system.

Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessories.
Only qualified personnel can service or repair the phone or its accessories.
If your phone (or its accessories) has been submerged in water, punctured, or subjected to a severe fall, do not use it until you have taken it to be checked at an authorised service centre.

Technical Specifications

Size and Weight	137.35 x 67.5 x 10.55 mm. 144g with battery
Networks	4G LTE Bands 1, 3, 7, 8, 28, 40 LTE Data Rates: 150M Downlink 3G UMTS 900, 2100 MHz. HSPA+ 42Mbps data
Display	5.0" FWVGA, 960 x 480 capacitive touch.
Camera	5 MP Rear, 2 MP Front autofocus
CPU & Memory	1.4GHz quad core CPU with1GB RAM 16GB ROM with approx 9.5GB user space. Expandable external storage microSD(HC)™ up to 256GB
Operating system	Android Pie (Go Edition)
Battery Capacity	2000mAh Li-Ion, user replaceable
Connectivity	Bluetooth 4.1, Wi-Fi 802.11b/g/n,
	3.5mm jack NAHJ, micro USB
SIM Card	NANO SIM, 4FF format. This handset is locked to the Optus network and is only suitable for use on that network.

FAQs

FAQs	Solution
How do I check the software version?	Settings > System > About phone > Build number
How do I reset to factory defaults?	Settings > System > Advanced > Reset options > Erase all data (factory reset)
How do I configure the MMS Settings?	Messages > three dots for Options > Settings
How do I configure Email settings?	Settings > Accounts > Add account
How do I copy Contacts to or from my SIM card?	Contacts > Options > Settings > Import. Follow the directions on screen
How do I select a Network mode?	Settings > Network & internet > Mobile Network > Advanced > Preferred network type
How do I manually select a carrier?	Settings > Network & internet > Mobile Network – Turn off "Automatically select network" to search for available networks
How do I enable USB tethering?	Settings > Network & internet > Hotspot & tethering > USB tethering (Needs to be connected)
How do I configure APN's	Settings > Mobile network > Advanced > Access point names - Touch + to add a new APN
How do I enable Flight Mode?	Long press on the power key > Flight Mode
How do I clear my Browser?	Chrome > Options > History> Clear Browsing Data
How do I check Call forwarding etc	Calls > Options > Settings > Call Settings > Call forwarding. Also, Settings > Network & internet > Advanced > Call Settings
How do I check for Software Updates?	Settings > System > Advanced > System Updates
How do I get more technical support?	Call 1300 789 475 during office hours AEST, search for ZTE Australia on Facebook
How do I change the Ringtone?	Settings > Audio profiles > (General, Edit) > Phone ringtone

Troubleshooting

Symptom	Solution
The battery discharges quickly	Possible network coverage issue. Check the signal level. With only 1 or 2 bars, the battery has to work harder to maintain network contact. Limit multi-media to save power. The battery may be worn out.
The handset turns on by itself.	An alarm or calendar event switches the handset on automatically.
No incoming ring or alarm tone	Hold the power key to check the phone is not in silent mode. Check the ringtone and ring volume settings.
The handset switches off after charging.	The handset is charging in the off state. Press and hold the power key to switch the handset ON.

Error Messages

Error Messages	Solution
No SIM Card	Check a valid SIM card is inserted. See the Getting Started section
Enter PIN code	You have set a SIM PIN. Please enter your SIM PIN code.
Enter PUK code	Contact your Service Provider to get the PUK code
Enter Unlock Code	Contact your Service Provider to obtain the network unlocking code (fees may apply to unlock your device)

ZTE Australia provides dedicated support with a local call centre and social media outreach. Search 'ZTE Australia' on Facebook, and Twitter to keep in touch.

www.ztemobiles.com.au
