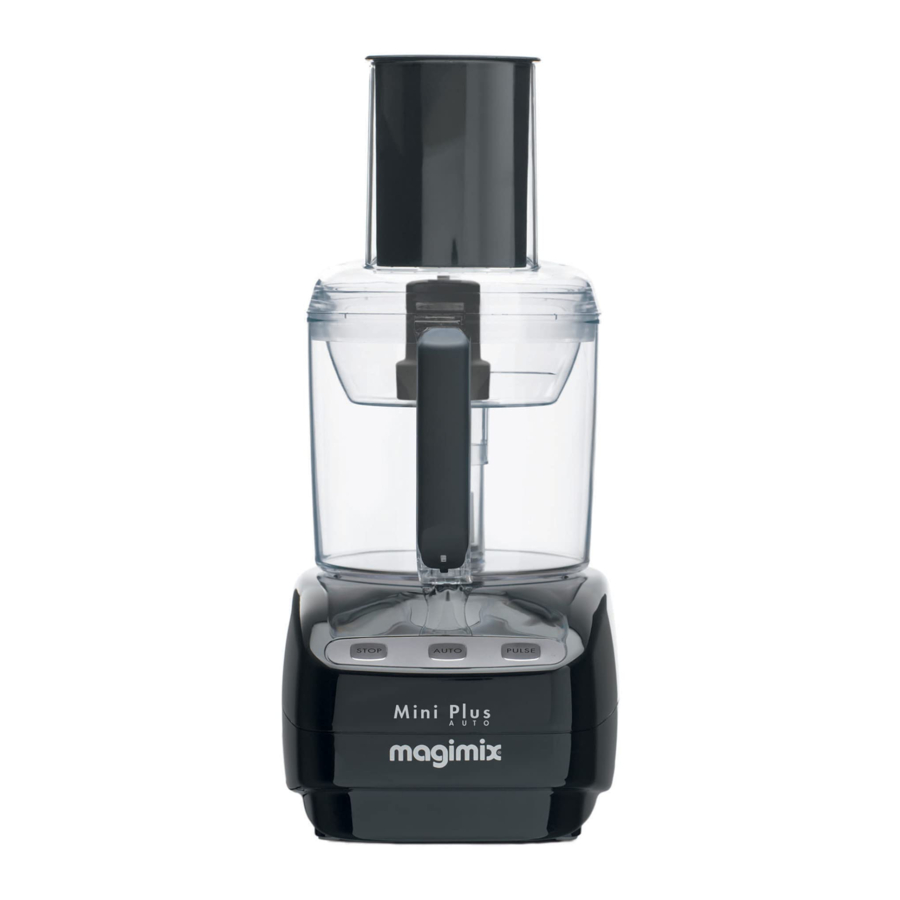

Magimix Mini Plus - Food Processor Manual

DESCRIPTION

*to be used with the support

CONTROL PANEL

STOP: press this button to switch the machine off.
AUTO: press this button to process in continuous mode and achieve an even texture. Ideal for chopping, processing and blending finely, as well as for whisking, slicing and grating.
PULSE: press this button for intermittent processing. The machine automatically switches itself off as soon as you release this button, giving you complete control of the task from start to finish. Ideal for rough chopping or processing. For preparations such as soups and purées, start by pressing the PULSE button, then switch to continuous mode. This way, you will achieve a smoother consistency.
We recommend you hold the pulse button for 2 seconds and then release.

Never unlock the lid without pressing the STOP button first.
Your food processor is fitted with a thermal failsafe that automatically switches the motor off if it is overloaded or has been running for too long. If this happens, press the STOP button and wait until your appliance has cooled down completely before switching it on again.

MAXIMUM PROCESSING CAPACITIES

Total weight amounts calculated for the main bowl.

FITTING THE BOWL

Wash all the parts thoroughly (except the motor unit) before using for the first time.

1. Place the bowl on the motor unit with the handle to the left hand side.

2. Turn the bowl anti-clockwise making sure it firmly locks into position. The handle will now be at the centre of the motor unit.

3. Place the chosen attachment in the bowl (see details on following page).

4. Place the lid on top of the main bowl, placing the feed tube to the left of the handle.

5. Turn the lid anti-clockwise until locks into place. The feed tube will now be in the centre, in line with the handle.


Double failsafe: the machine will only work if both the bowl and the lid are correctly locked into position

FITTING THE ACCESSORIES

STAINLESS STEEL MAIN BLADE: place the blade directly in the main bowl, over the motor shaft. Put the lid on, and lock into position.

Please be careful when handling the blades and disc as they are extremely sharp.

• EGG WHISK: make sure to assemble the 4 parts correctly. Check that the metal shaft is correctly locked.

• Place the egg whisk directly in the main bowl on the motor shaft. Put the lid on, lock it into position and remove the pusher.


Please be careful when handling the blades and disc as they are extremely sharp.

USING THE CITRUS PRESS

When juicing grapefruit, release the pressure very slightly from time to time, to extract the maximum amount of juice.

REMOVING THE BOWLS AND THE ACCESSORIES

CLEANING

Always unplug your appliance before cleaning it.

To preserve the appearance of all removable parts and ensure they last as long as possible, make sure you follow these recommendations:

• Dishwasher: Put transparent bowls in the top rack of the dishwasher to prevent warping due to high temperatures and/or pressure from other utensils. Select the minimum temperature (ideally < 50°C) and remove before the drying cycle begins (usually > 60°C).
• Washing by hand: do not leave the parts submerged in detergent for too long. Avoid abrasive products (e.g. stainless-steel scrubbers).
• Detergents: read the manufacturer's instructions to check their compatibility with plastic items. For the best long-term results we recommend washing by hand. Whilst you can use the dishwasher, do so sparingly, as today's washing detergents can be very strong and cause damage over time.

Motor base: never immerse in water or wash under running water.
Blades and discs: always handle with care.
Lid and bowls: never use abrasive products to clean them.

Discs and blades: never let them soak. Wipe after washing to prevent oxidation marks (although they will not affect the quality of the blades).
Staining: some foods, such as carrots, can stain plastics. Rub with kitchen paper soaked in vegetable oil to reduce staining.
Citrus fruits: rinse the bowl and lid immediately after contact with citrus fruits.

FUNDAMENTAL RULES

Never use your hand to push the food down the feed tube.

When using the Main Bowl or the Mini Bowl you can add either liquids or other ingredients via the feed tube.

USEFUL HINTS & TIPS

SIMPLE

• AUTO button: the motor adapts its speed to the task at hand.
• PULSE button: for more control over the end result.
  This is the setting you need for precision chopping or blending.
• Pop soft foods (e.g. meat, fish or soft cheeses) into the freezer for a few minutes to firm them up before chopping, grating or slicing them in your food processor. NB. they should be firm, not frozen!

PRACTICAL

• If you are carrying out several tasks in a row and do not want to spend your whole time washing up, begin your processing in the mini bowl, then move on to the large one. Start with the hard, dry ingredients and end with the liquid ones.
• If your appliance starts to vibrate, carefully wash and dry the feet, and check that you have not exceeded the maximum capacities.

MINI BOWL

• The mini bowl is ideal for processing small amounts. Use it to chop onions or herbs, mince meat, or whizz up dips, salad dressings and mayonnaise.
• Before chopping fresh herbs, check that both the herbs and the bowl are perfectly clean and dry. This will ensure that you get the very best results. The herbs will also keep for longer.
• You can use the mini bowl directly as a serving dish, providing you remember to remove the metal blade first!

MAIN BOWL

• Liquid ingredients: never fill the bowl more than a third full.
• Solid ingredients: never fill the bowl more than two-thirds full.

METAL BLADE

• When processing large amounts of meat or vegetables, cut the food into 2-cm pieces.
• If your are chopping meat or fish, use the pulse setting to control the end result.
• For vegetable purées, cut the cooked vegetables into large pieces before putting them in the bowl with the metal blade. Use the pulse setting first, then switch to continuous mode (AUTO) until the vegetables reach the desired consistency.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.
2. To protect against risk of electrical shock do not put the food processor in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
5. Avoid contacting moving parts.
6. If the supply cord is damaged, or if the appliance is damaged in any manner, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard
7. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter or touch hot surfaces.
10. Be careful if hot liquid is poured into the food processor as it can be ejected out of the appliance due to a sudden steaming.
11. To prevent a serious injury and avoid damaging your appliance, never insert your hands - or a utensil - in the feed tube whilst the disc, blades or juicing attachments are moving.

13. The spatula should only be used when the appliance is not running.
14. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
15. Blades are sharp. Handle carefully.
16. To reduce the risk of injury, never place cutting blade or discs on base without first putting bowl properly in place.
17. Be certain cover is securely locked in place before operating appliance.
18. Never feed food by hand. Always use food pusher.
19. Do not attempt to defeat the cover interlock mechanism.
20. This product is designed for household use only.
21. Sharp blade - Always use food pusher.
22. Moving Parts - Keep fingers out of feed and discharge openings.
23. Sharp Blade - Never use slicer unless completely assembled.
24. Do not place on or near a hot gas or electric burner or in a heated oven.
25. Always attach plug to appliance and check that the control is STOP before plugging cord into wall outlet. To disconnect, turn the control to STOP, then remove plug from wall outlet.
26. Do not use appliance for other than intended use.
27. Never add to container while appliance is operating.
28. Unplug before cleaning and before assembling or removing parts and if the appliance is left unattended.
29. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or hazards involved
30. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Children shall not play with the appliance.
31. The following usages are not covered by the warranty: in kitchen areas reserved for personnel in shops, offices and other workplace environments, on farms, by the patrons of hotels, motels and other commercial environments of a residential nature, and in bed and breakfast-type environments.
32. Only for citrus press use: this appliance can be used by children aged 8 years and above, if they have been given supervision or instruction regarding the use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance should not be done by children unless they are aged 8 years and above and are supervised. Keep the appliance and its cord out of reach of children under 8 years old.

SAVE THESE INSTRUCTIONS

ELECTRICAL REQUIREMENTS
FOR USA AND CANADA ONLY
For chrome plated models only:

To ensure continued protection against risk of electric shock connect to properly earthed outlets only
For all other models: To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only in one way. If the plug does not fit fully in the outlet, reverse the plug. Do not change the plug in any way. If it still does not fit, contact a qualified electrician.
The electrical rating listed on the unit is based on the attachment that draws the greatest load.
Other attachments might draw significantly less power or current.
