  Summary of Contents for MAGIMIX COMPACT 3150

  • Page 2: Introduction

    INTRODUCTION Magimix, invented the food processor more than thirty years ago, and now proudly presents the latest generation. Magimix food processors are the domestic version of appliances designed for professional use. They are all manufactured in France and equipped with a powerful, ultra-quiet, commercial grade induction motor.
  • Page 3: Table Of Contents

    CONTENTS Instructions for use Introduction Description Control panel Fitting the bowls Removing the bowls Standard accessories Using the metal blade Using the dough blade Using the egg whisk Using the grating/slicing discs Optional accessories Using the citrus press Using the juicer Using the optional discs Using the extra large feed tube (XL models only) Cleaning...
  • Page 4: Description

    DESCRIPTION Graduated pusher Metal blade Feed tube Dough blade Mini bowl Egg whisk Midi bowl Grating disc Main bowl Slicing disc Motor shaft Storage box Safety mechanism Extension Motor unit Spatula * Only on the XL models. (1) For greater stability, thread the power cord through the special notches on the underside of the motor unit.
  • Page 5: Control Panel

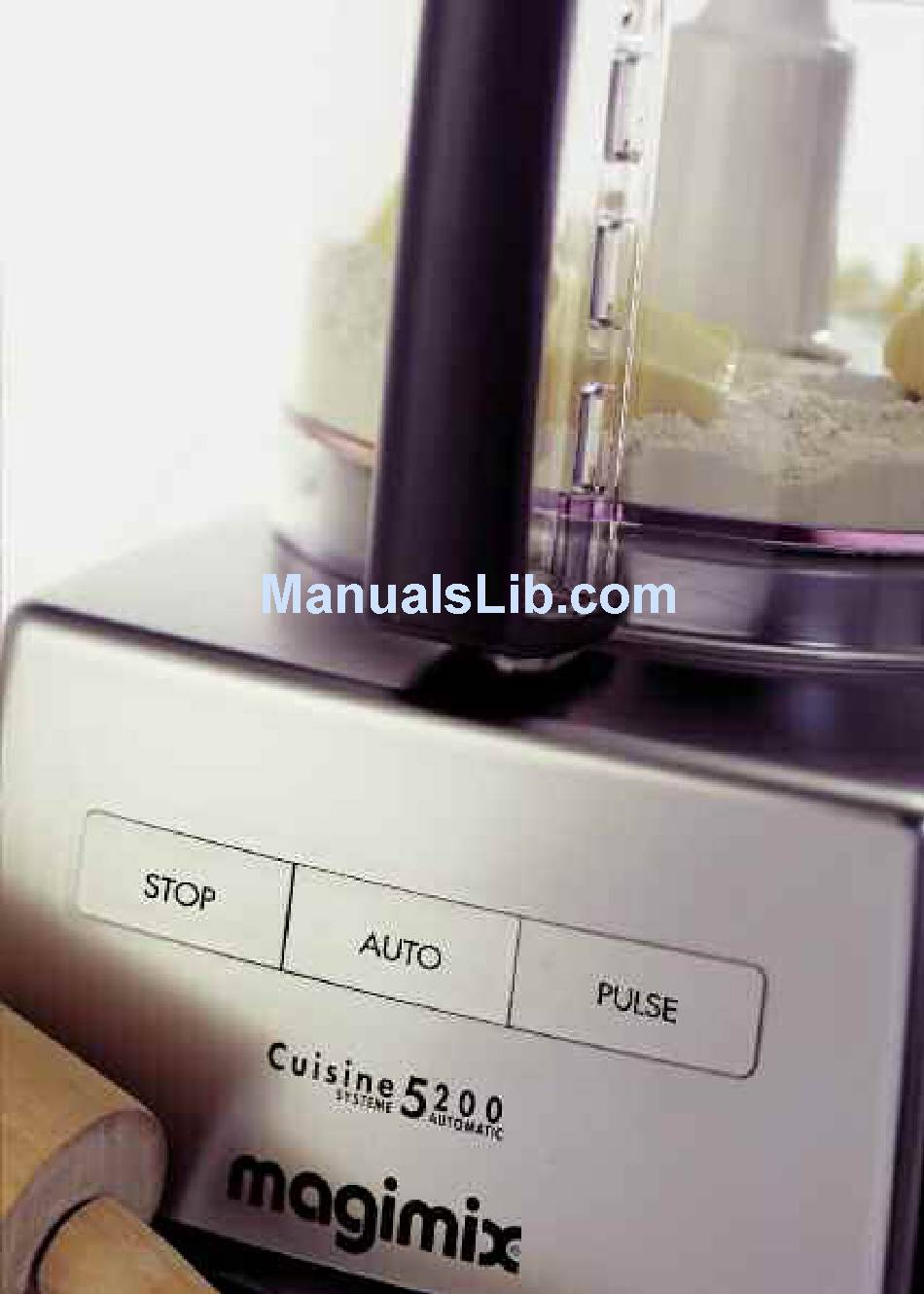

    CONTROL PANEL STOP AUTO PULSE STOP: press this button to switch the machine off. AUTO: press this button to process in continuous mode and achieve an even texture. Ideal for chopping, processing and blending finely, as well as for kneading, beating egg whites, slicing and grating.
  • Page 6: Fitting The Bowls

    FITTING THE BOWLS Before using your appliance for the first time, wash all the parts thoroughly (except the motor unit). Place the bowl on top of the motor unit and Slide the Midi bowl onto the motor shaft, turn anti-clockwise to lock it into position. inside the Main bowl.
  • Page 7: Removing The Bowls

    REMOVING THE BOWLS Unlock the lid by turning clockwise and lift Remove the blade from the Mini bowl. it off. Remove the Midi bowl, holding it by its Remove the Mini bowl. sides to lift it out. W A R N I N G •...
  • Page 8: Standard Accessories

    STANDARD ACCESSORIES Mini bowl fitted with a metal blade Midi bowl : both practical and easy to for chopping, processing and blending clean. Specially designed for grating or small quantities. slicing cheese, fruit and vegetables. Metal blade : used in the Main bowl for Dough blade : used in the Main bowl for kneading leavened and unleavened dough.
  • Page 9: Using The Metal Blade

    USING THE METAL BLADE Fit the metal blade onto the motor shaft. It Place the ingredients in the bowl. Put the needs to be at the bottom of the bowl. lid on and turn anti-clockwise until it locks into position. Chopping meat, fish and herbs in either Liquidizing soups, purées and pancake pulse or continuous mode.
  • Page 10: Using The Dough Blade

    USING THE DOUGH BLADE Fit the dough blade onto the motor shaft. It Put the lid on and turn anti-clockwise until needs to be at the bottom of the Main it locks into position. bowl. Recommendations : put the solid ingredients You can also use the dough blade to stir in in the bowl first.
  • Page 11: Using The Egg Whisk

    Whisk continuously for the whipping cream into the bowl. Remove at least 5-10 minutes. the pusher. Whisk continuously for 2-3 minutes. Featuring an exclusive Magimix design, the whisk beats the egg whites more gradually, making them stiffer and giving them greater volume.
  • Page 12: Using The Grating/Slicing Discs

    USING THE GRATING/SLICING DISCS We recommend that you use the discs in the Midi bowl. Slide the extension over the motor shaft. Slicing/grating disc : each side is engraved with a reference code, e.g. R/G4 = 4-mm grater, E/S 2 = 2-mm slicer. Place the chosen disc with the relevant Slide the disc onto the extension.
  • Page 13 USING THE GRATING/SLICING DISCS Fill the feed tube with upright pieces of Grating : for longer shreds, lay the fruit gruyère cheese. and vegetables horizontally in the feed tube. If necessary, cut round fruit and vegetables Slicing : Place long fruit and vegetables (e.g.
  • Page 14: Optional Accessories

    OPTIONAL ACCESSORIES The list of accessories supplied with the appliance will vary from one model to another. Citrus press with lever arm and 2 cones : Juicer made from stainless steel : can extract almost instant juice with no pips and just a clear juice from most types of fruit and the right amount of pulp.
  • Page 15: Using The Citrus Press

    USING THE CITRUS PRESS Fit the citrus press basket onto the bowl and Select the cone according to the size of turn anti-clockwise until it locks into posi- your citrus fruit. The large cone should tion. always be slotted onto the small one. Slide the cone onto the motor shaft.
  • Page 16: Using The Juicer

    USING THE JUICER These instructions do not apply to the extra large feed tube (XL models). Slide the juicer basket onto the motor shaft. Introduce the pusher into the feed tube. Check that the tabs are correctly fixed to the feed tube. Place the lid on the bowl and turn until it Wash the fruit and vegetables and cut into locks into position.
  • Page 17: Using The Optional Discs

    USING THE OPTIONAL DISCS To find out how to fit the discs, read the instructions on p.12. Shredding disc : for finely shredded To make fruit or vegetable sticks, lay them vegetables, lay them horizontally in the horizontally in the feed tube. feed tube.
  • Page 18: Using The Extra Large Feed Tube (Xl Models Only)

    USING THE EXTRA LARGE FEED TUBE Place the lid on the bowl and turn The feed tube has two openings : an extra large opening for grating and slicing fruit anti-clockwise until it locks into position. and vegetables, either left whole or cut into large pieces, to professional standards.
  • Page 19: Cleaning

    CLEANING Always unplug your appliance before cleaning it. Always clean it immediately after use Accessories : use a bottle brush to clean (water + washing-up liquid). out the base of the accessories. Dough blade : take off the removable cap* for a more thorough clean.
  • Page 20: Maximum Processing Capacities

    MAXIMUM PROCESSING CAPACITIES* C 3200 CS 4200 CS 5200 Bread 600 g 1 kg 1.3 kg Shortcrust pastry 1 kg 1.4 kg 1.7 kg Brioche 500 g 850 g 1.1 kg Minced meat 750 g 1 kg 1.4 kg Grated / 800 g 1 kg 1.4 kg...
  • Page 21 Mashed potatoes: process your peeled, boiled potatoes using the 4-mm grater. The reversible discs should be stored in the middle of the storage box. As for the non-reversible ones, make sure you arrange them with the Magimix name facing outwards.
  • Page 22: Vitamins And Mineral Salts

    VITAMINS AND MINERAL SALTS Vitamins Vegetables Fruit B1/B6 Apple Asparagus Apricot Cabbage Blackberry Carrot Blackcurrant Celeriac Cherry Celery Grape Chicory Grapefruit Courgette Kiwi fruit Cucumber Lemon Fennel Melon Lettuce Orange Onion Peach Parsley Pear Spinach Pineapple Sweet pepper Plum Tomato Raspberry Turnip Redcurrant...
  • Page 23: Safety Instructions

    • If the supply cord is damaged, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard. • The use of parts that are not recommended or sold by Magimix could result in injury or electric shocks.
  • Page 24: How To Read The Recipes

    For instance, the maximum capacity of the C3200 is 4 servings. Serves Food Processor • • Compact 3150/3200 • • • Cuisine Système 4200 • •...
