Included in your box

Tools you will need

Tools you may need

Removing your old unit

  1. Turn power OFF.
    Removing your old unit - Step 1

warning To protect yourself and your equipment, turn off the power at the breaker box or the switch that controls your heating/cooling system.

  1. Check that your system is off.
    Change the temperature on your old thermostat to be above room temperature in heat mode or below it in cool mode. If you don't hear the system turn on within 5 minutes, the power is off.
    Note: If you have a digital thermostat that has a blank display, skip this step.
  2. Remove the old thermostat's faceplate.
    On most thermostats, you can take off the faceplate by grasping and gently pulling. Some thermostats may have screws, buttons, or clasps.

warning Do not remove any wires from your thermostat at this time!

  1. Make sure there are no 120/240V wires.
    Removing your old unit - Step 2

warning Do you have thick black wires with wire nuts?

warning Is your thermostat 120V or higher?
If you answered yes to either of these questions, you have a line voltage system and the thermostat will not work.

  1. Take a picture of how your wiring looks right now.
    Be sure to include the letters next to the terminals where the wires are inserted. This will be a helpful reference when wiring your new thermostat.
    Tip: If the color of your wires has faded or if 2 terminals have the same wire color, use the wire labels provided in the package to label each wire.
  2. Record which R-wire(s) you have and write down the color of the wire(s).
    Note: Do not include jumpers as a part of your count. The thermostat does not need jumpers.

    Removing your old unit - Step 3
  3. Record the remaining wires and write down the color of the wires.
    Check mark the wires that are connected to terminals. Next to the check mark, write down the color of the wire. Do not include jumpers as a part of your count.
    Check all that apply (Not all will apply):

    Removing your old unit - Step 4

NOTES:

  • C does not power the thermostat display or operations; batteries are always required.
  • If K was used on old thermostat you have a wire-saver at the equipment. Re-wiring would need to be done so that Y and G are used instead of K.
  • The RTH5160 thermostat does not support L/A, S, or U terminals.
  • If there are wires in terminals that are not listed, you will need additional wiring support. Visit yourhome.honeywell.com/support to find out if the thermostat will work for you.
  1. Disconnect the wires and remove the old wall plate.
    Use a screwdriver to release wires from terminals. Then, use a wire label to identify each wire as it's disconnected. The letter on the wire label should match the letter on the terminal.
    Tip: To prevent wires from falling back into the wall, wrap the wires around a pencil.
    Removing your old unit - Step 5

Wiring Labels
Wiring Labels
Apply these wiring labels to each wire with the appropriate terminal designation as you remove it from the existing thermostat.

Installing your device

Installing your device

  1. Bundle and insert wires through the UWP. Pull open the UWP and insert the bundle of wires through the back of the UWP.
    Make sure at least 1/4 inch of each wire is exposed for easy insertion into the wire terminals.
    Installing your device - Step 1
  2. Insert the wall anchors.
    It is recommended that you use the wall anchors included in the box to mount your thermostat.
    You can use the UWP to mark where you want to place the wall anchors.
    1. Level the wall plate.
    2. Mark the location of the wall anchors using a pencil.
    3. Drill the holes.
    4. Insert wall anchors.
    5. Make sure anchors are flush with wall.

Tip: Use a 7/32 drill bit.

  1. Set R-switch position and insert R-wire(s).
    Set the R-switch up or down based on your wiring notes in Step 6.

warning Insert wires into the inner holes of the terminals on the UWP. The tabs will stay down once the wire is inserted.

NOTE: Alternate wiring options are shown in "Wiring" section.

If you have 1 R-wire (R, Rh, or Rc)

  1. Set R-switch to the up position.
  2. Insert your R-wire (R, Rh or Rc) into R-terminal.

or
If you have 2 R-wires (R or Rh, and Rc)

  1. Set R-switch to the down position.
  2. Insert your Rc wire into Rc-terminal
    Installing your device - Step 2
  3. Insert your R or Rh wire into R-Terminal.
  1. Connect remaining wires.
    Depress the tabs to put the wires into the inner holes of the corresponding terminals on the UWP (one wire per terminal) until it is firmly in place.
    Gently tug on the wires to verify they are secure.
    Tip: If you need to release a wire again, push down the corresponding terminal tab on the side of the UWP.
    NOTE: Alternate wiring options are shown in "Wiring" section.

    This wiring is just an example, yours may vary.
  2. Confirm wiring matches snapshot.
    Please confirm wiring matches terminals from the photo you took in Step 5.
  3. Mount the UWP and close the door.
    Mount the UWP using the provided screws. Install all three screws for a secure fit on your wall. Close the door after you're finished.
    Installing your device - Step 3 - Mount the UWP
  4. Install batteries.
    Insert two AA alkaline batteries in the back of the thermostat as shown.
    Installing your device - Step 4
  5. Attach your thermostat.
    Align the thermostat onto the UWP and firmly snap it into place.
    Installing your device - Step 5
  6. Turn your power ON.
    Turn on the power at the breaker box
    Installing your device - Step 6 - Turn power on

System Setup

Now that you have installed your thermostat, please follow the steps below to setup your system and personalize your thermostat.

  1. Select System Setup options.
    Press Edit (-) to change values or select from available options. Then press Next (+) to save changes and advance to the next System Setup number.
    See "System Setup options" below for a full list of System Setup numbers and options.
    Repeat until all of the System Setup options have been set, and then press Done. The thermostat will save and exit to the home screen.
    System Setup - Selecting System Setup options
  2. Continue to "System operation settings".

warning NOTE: To re-enter the System Setup from the Home Screen, press and hold the Menu button for approximately 5 seconds.

System Setup options

System Setup Number and Description Options (factory default in bold)
125 = Temperature Indication Scale 0 = Fahrenheit
1 = Celsius
200 = Heating System Type 1 = Conventional Forced Air Heat
2 = Heat Pump
3 = Radiant Heat (Boiler)
5 = None (Cool Only)
Note: This option selects the basic system type your thermostat will control.
205 = Heating Equipment Type

Conventional Forced Air Heat:
1 = Standard Efficiency Gas Forced Air
2 = High Efficiency Gas Forced Air
3 = Oil Forced Air
4 = Electric Forced Air
5 = Hot Water Fan Coil

Heat Pump:
7 = Air to Air Heat Pump

Radiant Heat:
9 = Hot Water Radiant Heat
12 = Steam

Note: This option selects the equipment type your thermostat will control. This feature is NOT displayed if feature 200 is set to Cool Only.
218 = Reversing Valve O/B 0 = O (O/B in Cool)
1 = B (O/B in Heat)
Note: This option is only displayed if the Heat Pump configured. Select whether reversing valve O/B should energize in cool or in heat.
220 = Cool Stages / Compressor Stages
(200=Conv / 200=HP)
0, 1, 2
Note: Select how many Cool or Compressor stages of your equipment the thermostat will control. Maximum of 2 Cool stages or 1 Compressor stage. Set value to 0 if you do not have Cool Stage/Compressor Stage.
221 = Heat Stages / Backup Heat Stages Heat Stages: 1, 2
Backup Heat Stages: 0, 1
Note: Select how many Heat or Aux/E stages of your equipment the thermostat will control. Maximum of 2 Heat Stages for conventional systems. Maximum of 1 Aux/E stage for systems with more than 1 heating equipment type. Set value to 0 if you do not have Heat Stage/ Backup Heat Stage.
300 = System Changeover 0 = Manual
1 = Automatic
Note: Thermostat can automatically control both heating and cooling to maintain the desired indoor temperature. To be able to select "automatic" system mode on thermostat home screen, turn this feature ON. Turn OFF if you want to control heating or cooling manually.

NOTE: Once you have cycled through all of the System Setup numbers, press Done to save and exit to the home screen.

Setup Complete
You have now finished installing and setting up your thermostat.

System operation settings

System Setup - Setting System operation settings

  1. Press Menu, and then press the Mode (+) button to cycle to the next available System mode.
  2. Cycle through the modes until the required System mode is displayed, and then press Done.

NOTE: Available System modes vary by model and system settings.

System modes:

  • Auto: Thermostat selects heating or cooling as needed.
  • Heat: Thermostat controls only the heating system.
  • Cool: Thermostat controls only the cooling system.
  • Em Heat (only for heat pumps with auxiliary heat): Thermostat controls Auxiliary Heat. Compressor is not used.
  • Off: Heating and cooling system is off. Fan will still operate if fan is set to On.

NOTE: Heat On/Cool On may flash for 5 minutes due to compressor protection.

Fan operation settings

System Setup - Setting Fan operation settings

  1. Press Menu, and then press the Fan (-) button to cycle to the next available Fan mode.
  2. Cycle through the modes until the required Fan mode is displayed, then press Done.

NOTE: Available Fan modes vary with system settings.

Fan modes:

  • Auto: Fan runs only when the heating or cooling system is on.
  • On: Fan is always on.

Wiring

Conventional systems

Wiring - Alternate wiring for conventional systems
Alternate wiring (conventional systems)
If labels do not match terminals, connect wires as shown (see notes, below).

NOTES:

  1. If you must connect both R and Rc wires, set the R Slider Tab to the down position (2 wires).
  2. If your old thermostat had both R and RH wires, set the R Slider Tab to the down position (2 wires). Then connect the R wire to the Rc terminal, and the RH wire to the R terminal.
  3. If your old thermostat had only 1C or C1 wire, connect it to the C terminal. If your old thermostat had 2 C or C1 wires, wrap each separately with electrical tape and do not connect them.
  4. C does not power the thermostat display or operations; batteries are always required.

Heat pump

Connect wires: heat pump

  1. Match each labeled wire with same letter on new thermostat.
  2. Insert the wires into the matching terminal.
    NOTE: If you have difficulty inserting wires, you may have to press down the terminal push button next to the corresponding terminal.
    Labels don't match?
    If labels do not match letters on thermostat, see "Alternate wiring (conventional systems)" above.

Wiring - Alternate wiring for heat pumps only
Alternate wiring (for heat pumps only)
NOTES:

  1. Keep R Slider Tab in the up position (1 wire).
  2. If your old thermostat had both V and VR wires, stop now and contact a qualified contractor for help.
  3. If your old thermostat had separate O and B wires, attach the B wire to the C terminal. If another wire is attached to the C terminal, stop now and contact a qualified contractor for help.
  4. If your old thermostat had Y1, W1 and W2 wires, stop now and contact a qualified contractor for help.
  5. C does not power the thermostat display or operations; batteries are always required.
  6. This model doesn't support the heat pump fault alert (L/A terminal). If this is desired, please contact a contractor for replacement model.

Battery replacement

Batteries are required to provide power. Install fresh batteries immediately when the low battery icon appears. The icon appears about two months before the batteries are depleted.

Even if the low battery icon does not appear, you should replace batteries once a year, or before leaving home for more than a month.

If batteries are inserted within two minutes, the time and day will not have to be reset. All other settings are permanently stored in memory, and do not require battery power.

NOTE: When replacing batteries, alkaline batteries are recommended.

Alerts screen

  1. You will see the alert icon and the alert number on the screen.
    Checking the alerts - Step 1
  2. Press Next (+) to see additional alerts, if any. Then press Done to go back to the home screen.
    Checking the alerts - Step 2

NOTE: If the alert is a critical alert, you may not be able to access the home screen and should call a HVAC professional.

Alerts codes

Number Alert/Reminder Definition
170 Internal Memory Error The memory of the thermostat has encountered an error. Please replace the thermostat.
173 Thermostat Temperature Sensor Error The sensor of the thermostat has encountered an error. Please replace the thermostat.
405 Low Battery Alert The batteries are getting low. Replace them within two months.
407 Critical Low Battery The batteries are almost depleted and should be replaced as soon as possible.

Troubleshooting

If you have difficulty with your thermostat, please try the following suggestions. Most problems can be corrected quickly and easily.

Display is blank

Make sure fresh AA alkaline batteries are properly installed (see "Installing your device").

Cannot change system setting to Cool

Check System Setup Option 220 to make sure the options are set to either 1 or 2 (see "System Setup Options").

Fan does not turn on when heat is required

Check System Setup Option 205 to make sure it is set to match your heating equipment (see "System Setup Options").

Heating system is running in cool mode

Check System Setup Option 200 or 218 to make sure it is set to match your heating and cooling equipment (see "System Setup Options").

Heating or cooling system does not respond

Press Menu and then Mode to set system to Heat. Make sure the temperature is set higher than the Inside temperature.
Press Menu and then Mode to set system to Cool. Make sure the temperature is set lower than the Inside temperature.
Check circuit breaker and reset if necessary.
Make sure power switch at heating & cooling system is on.
Make sure furnace door is closed securely.
Wait 5 minutes for the system to respond.

Heat On / Cool On flashing on the screen

Compressor protection feature is engaged. Wait 5 minutes for the system to restart safely, without damage to the compressor.
Heat pump issues cool air in heat mode, or warm air in cool mode Check System Setup Option 200 or 218 to make sure it is set to match your heating and cooling equipment (see "System Setup Options").

1-year limited warranty

Honeywell warrants this product, excluding battery, to be free from defects in the workmanship or materials, under normal use and service, for a period of one (1) year from the date of purchase by the consumer. If at any time during the warranty period the product is determined to be defective or malfunctions, Honeywell shall repair or replace it (at Honeywell's option).

If the product is defective,

  1. call Honeywell Customer Care at 1-800-468-1502. Customer Care will make the determination whether the product should be returned to the following address: Honeywell Return Goods, Dock 4 MN10-3860, 1985 Douglas Dr. N., Golden Valley, MN 55422, or whether a replacement product can be sent to you.

If you have any questions concerning this warranty, please write Honeywell Customer Relations, 1985 Douglas Dr, Golden Valley, MN 55422 or call 1-800468-1502. In Canada, write Retail Products ON15-02H, Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive, Toronto, Ontario M1V4Z9.


ELECTRICAL HAZARD
Can cause electrical shock or equipment damage. Disconnect power before beginning installation.


MERCURY NOTICE
If this product is replacing a control that contains mercury in a sealed tube, do not place the old control in the trash. Contact your local waste management authority for instructions regarding recycling and proper disposal.

Customer assistance

For assistance with this product, please visit
http://yourhome.honeywell.com.
Or call Honeywell Customer Care toll-free at 1-800-468-1502.

Removing the thermostat from the UWP
Pull to remove the thermostat from the UWP.

Home and Building Technologies
In the U.S.:
Honeywell
1985 Douglas Drive North
Golden Valley, MN 55422-3992
customer.honeywell.com

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

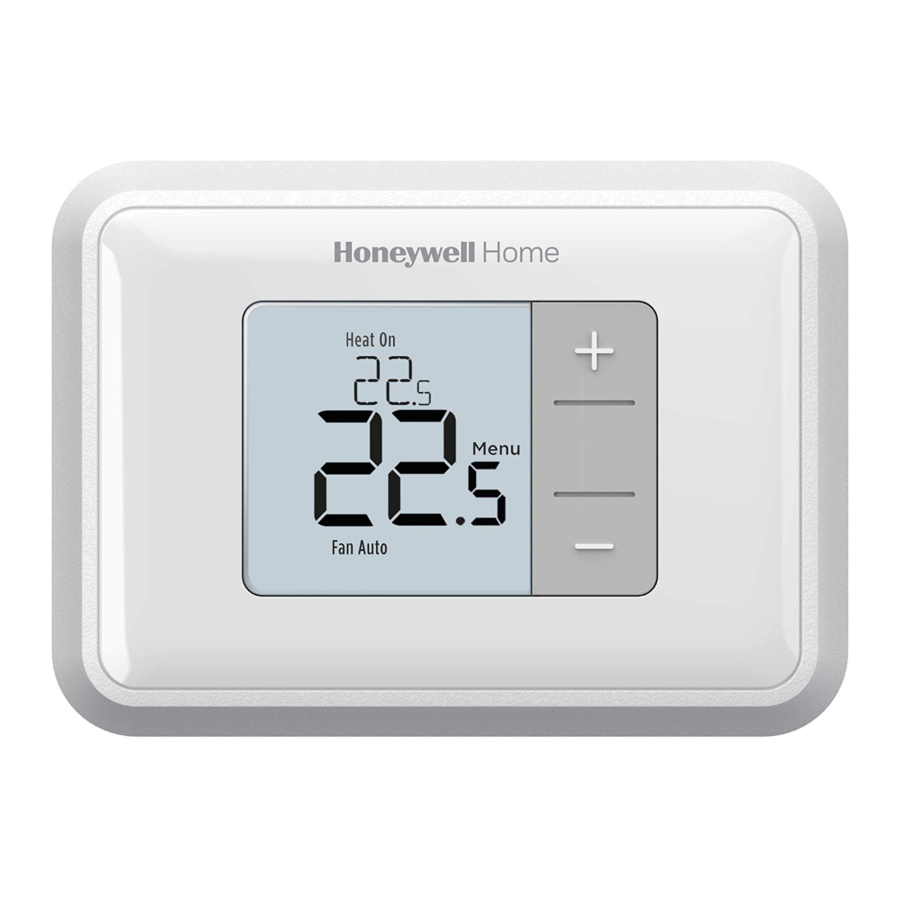

Download Honeywell Home RTH5160 Series, RTH5160D1016/E, RLV3120A1005 - Thermostat Manual

Advertisement

Need help?

Need help?

Do you have a question about the RTH5160 Series and is the answer not in the manual?

Questions and answers

Table of Contents
