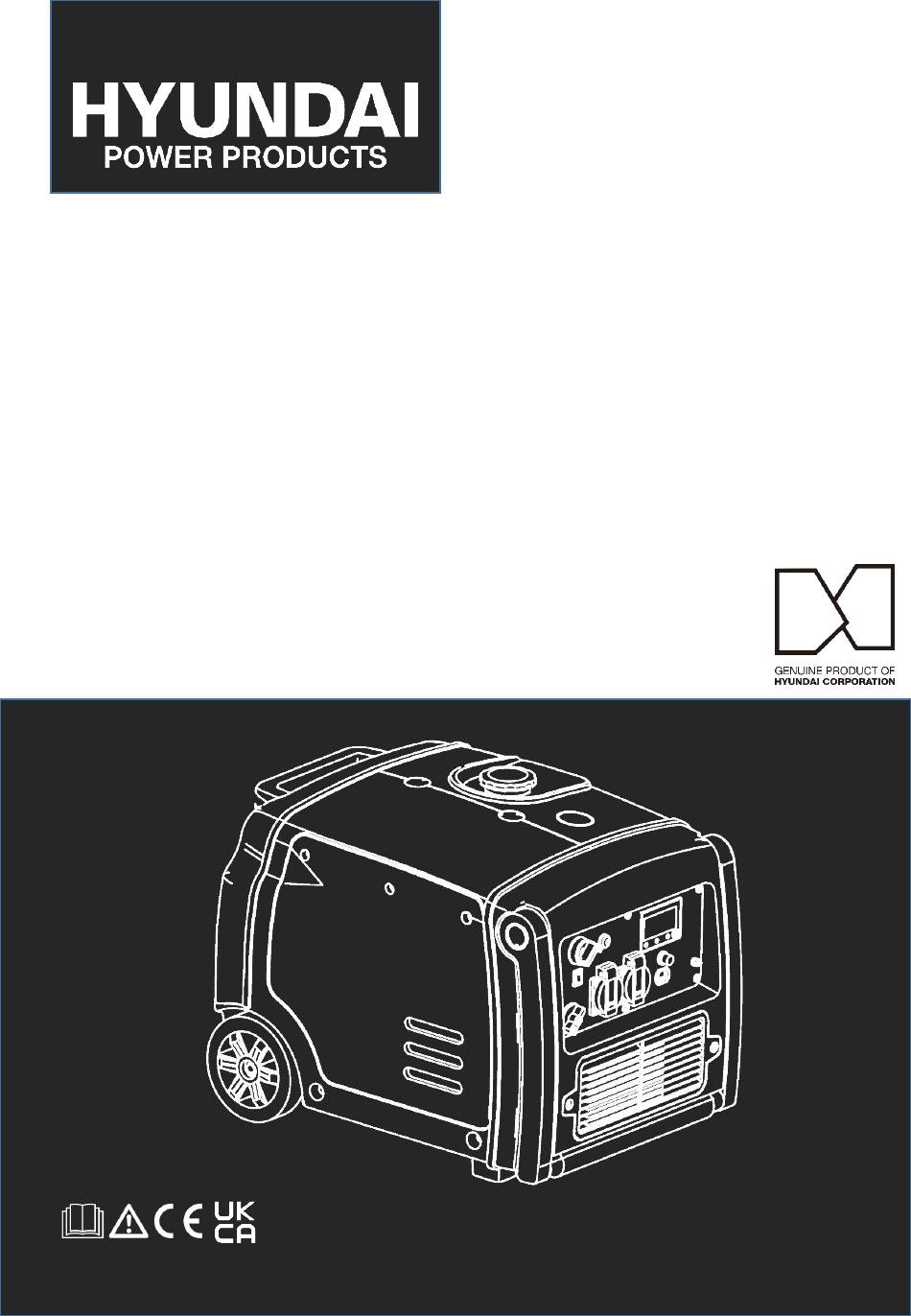

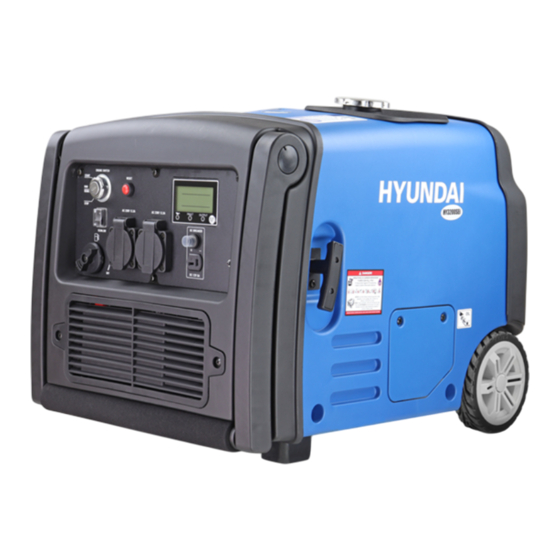

- Page 1 PETROL INVERTER GENERATOR HY3200SEi Instruction Manual WARNING: Read the instructions carefully before use.
-
Page 2: Table Of Contents
Safety Information. CONTENTS To protect yourself and your property, please carefully read the following instructions. Safety Information Safety Label Location DANGER! Component Identification Control Panel ECON Switch BREATHING IN CARBON MONOXIDE Reset/Hours run Meter FUMES CAN KILL YOU! • To help protect against CO poisoning Pre-operation Checks install a Carbon Monoxide detector. - Page 4 Control Panel. NOTE 1. Hours run meter 2. DC terminal 3. DC protector 4. Indicator lights When a high load electrical appliance is connected and in order to reduce voltage change, turn 5. ECON Switch 6. Fuel switch 7. Engine switch 8.
-
Page 5: Pre-Operation Checks
Pre-Operation Checks. Oil Level Check. NOTE IMYMtJWH€1) If the engine oil falls below the safety margin the low oil alert system will automatically shut Make sure that the generator has been stopped and is on a level surface. DO NOT tilt the off the engine. -
Page 6: Starting The Engine
Air Filter Check. Starting the Engine. This generator can be started by three methods, 1) recoil starter, 2) local electrical starting and 3) Check the air cleaner element to make sure that it is clean and in good condition. wireless remote electrical starting. a) Undo and remove the maintenance cover screws, and remove the cover. -
Page 7: Generator Use
a. Manual starting If the generator always operates at altitude above 1,000 meters, contact your dealer to modify Pull the starter grip slowly until it is engaged, then pull it quickly. the carburetor. Generator output power should be modified according to the altitude and ambient temperature. - Page 8 lbYM,Hmtal lti!Mid�li:131 For continuous operation, do not exceed the rated output power of the generator. To avoid producing the sparks at the terminals of battery, connect the charging cables firstly to the battery terminals, and then to the generator. When disconnecting the cables do so first DO NOT make parallel connection with mains electrical installations or other generators.
- Page 9 If the overload indicator light (RED) is on, disconnect the electrical appliances first, then press 6.2 AC Applications. and hold the reset button for 1 second. If the overload indicator light (RED) is off and the OVERLOAD INDICATOR output indicator light (GREEN) is on, reconnect the electrical appliances. Otherwise stop the 6.2.1 Start engine and make sure the output indicator light (GREEN) is on.
-
Page 10: Stopping The Engine
AC sockets. Stop the engine before performing any maintenance. If the engine must run, be sure the area is well ventilated. The exhaust contains poisonous carbon monoxide gas. Only use genuine Hyundai spares to replace worn components. Maintenance Schedule. Lift... - Page 11 8.1.3 Place oil collection pan under oil drain plug. Drain dirty oil into a container thoroughly. 8.1.4 Refill the recommended oil and check the oil level. Do not use petrol or low ignition paint solvents for cleaning. They are flammable and explosive 8.1.5 Reinstall the oil filler cap.
- Page 12 8.2.5 Refit the air cleaner element and cover. 8.3.6 Measure the spark plug gap with a feeler gauge. The normal value: 0.6-0.7mm (0.024- 8.2.6 Refit the maintenance cover, and tighten the screws. 0.028in). Adjust the gap by bending the electrode carefully. 8.3.7 Refit the spark plug carefully, by hand, to avoid cross-threading.
-
Page 13: Transporting/Storage
Transporting/Storage. 8.4.2 Once the engine cools down remove the spark arrester from the exhaust. Avoid fuel spillages during transportation or temporary storage, both the engine switch and the fuel cap vent lever should be turned to "OFF' position, and the generator should be turned off. -
Page 14: Troubleshooting
b. Turn the engine switch to "ON" position, and loosen the carburetor float bowl drain screw to discharge 10.0 Troubleshooting. from inside of carburetor float bowl. Engine does not start Connected appliance does not work Is the output indicator Is there fuel in the tank? t----� Refill the fuel light ON? Contact your Turn the fuel switch ON... -
Page 15: Technical Specifications
Recoil-Key-Wireless Start methods Noise@l7m 54--59dBA remote Dimensions Fuel type�capadty Unleaded petrol-7.SL 579mm'42Smm'.«3mm type-capacity SAE1SW-40-0. 6 L Net weight 42kg HY3200SEi Model Rated frequency SOHz Rated volt•ge 230V Max current 13 . 9 A :;:o Rated speed 3600rpm � Continuous output 2800W :;:o... -
Page 16: Appendix
For tile following machinery: Ambient temper1ture•c Altit d ( ) " e m Prohct 1111111e: INVERTER GENERATOR 0,98 0,90 0.96 0.93 Moul: HY3200SEi 0.93 0.89 0Jl7 0,84 0.91 is llcrcwitll confirmed to fulfill all Ilic relevant pro.-isions of Machinery Directive o.es 0,87... -
Page 17: Consumer Information
80% P=Pn *(C-0.02) = 2.8*(0.82-0.02) = 2.24kVA 13.3 Noise and Access. Noise emission measure according to ISO 8528-10, EN ISO 3744, European Directive 2000/14/EC with amendment 2005/88/EC Model of Generator Set: HY3200SEi Guaranteed Power level: Sound 96dB(A) Measurement Uncertainty K: 1.7dB(A) - Page 18 01646 687 880 E-Mail address: aftersales@genpower.co.uk declare that the DoC is issued under our sole responsibility and belongs to the following product: Model/Product: HY3200SEi Description Inverter Generator Batch/ Date Code Object of the declaration (identification of apparatus allowing traceability; it may include a colour image of sufficient...
