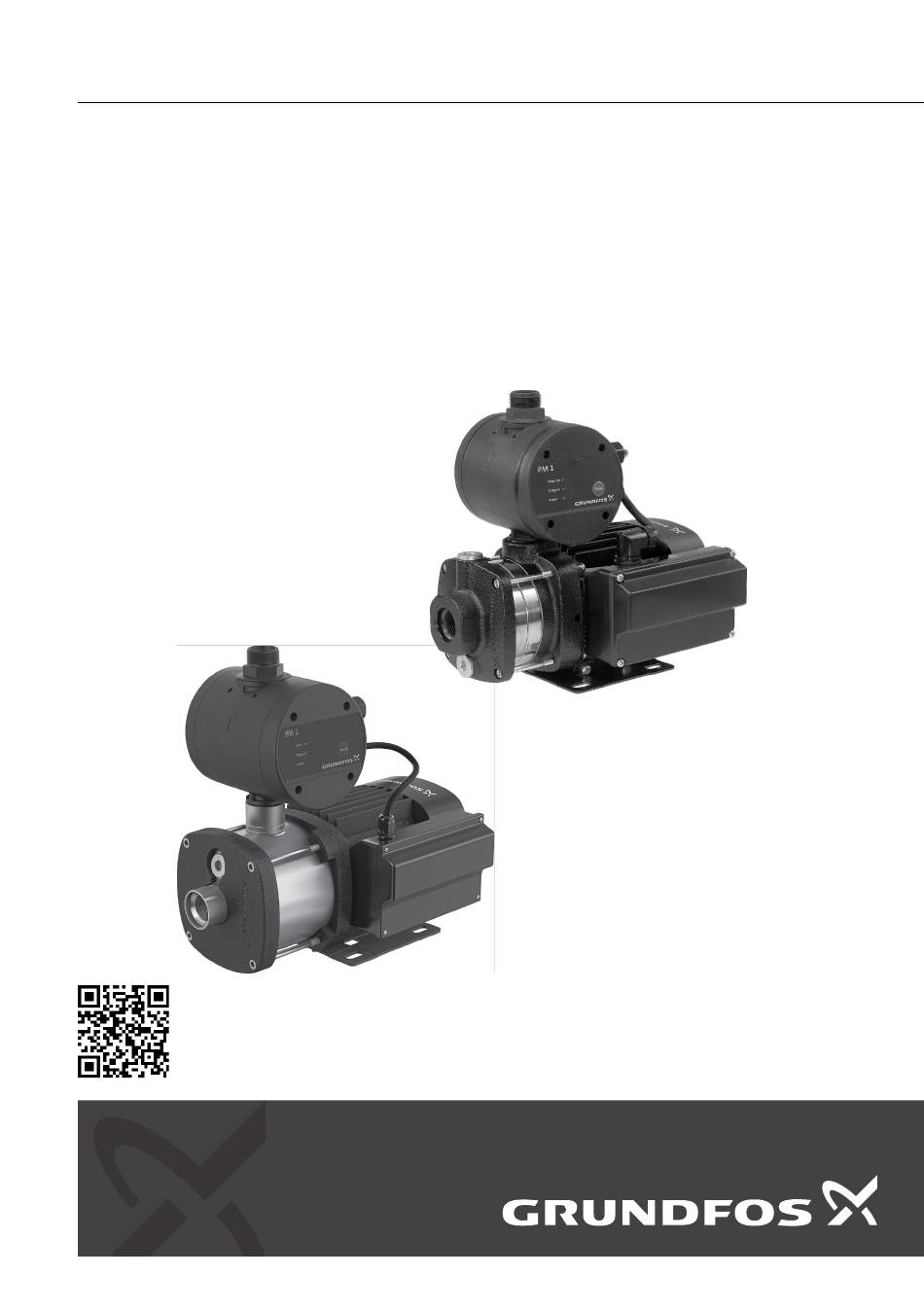

- Page 1 GRUNDFOS INSTRUCTIONS CMB, CMB-SP Booster PM1, PM2 Installation and operating instructions CM Booster PM1 QG Installation and operating instructions (all available languages) http://net.grundfos.com/qr/i/96984345...
- Page 3 CMB, CMB-SP Booster PM1, PM2 English (GB) Installation and operating instructions ........4 China RoHS .
-
Page 4: Table Of Contents
The symbols and hazard statements below may Maintenance and service ..9 appear in Grundfos installation and operating instructions, safety instructions and service Fault finding ....10 instructions. -
Page 5: Notes
1.2 Notes 2. Safety instructions The symbols and notes below may appear in System sizing Grundfos installation and operating instructions, safety instructions and service instructions. DANGER Electric shock Death or serious personal injury Observe these instructions for explosion- ‐ In case of an insulation fault, the fault proof products. - Page 6 Make sure that the power supply plug To avoid migration of hazardous delivered with the product is in substances, use only original spare compliance with local regulations. parts from Grundfos. ‐ The protective earth of the power outlet WARNING must be connected to the protective Electric shock earth of the product.
-
Page 7: Product Description
The booster sets can be supplied with either Grundfos PM1 or PM2 pressure manager. The default setting causes the pump not to stop until it reaches its maximum pressure. -
Page 8: Electrical Connection
Grundfos pressure booster systems are functionally WARNING tested by running water through the system. During Electric shock the test, Grundfos continuously surveys the quality of Death or serious personal injury the test water. Since it is not possible to completely ‐... -
Page 9: Alarms
Pump on is off when the To avoid migration of hazardous function is disabled. Pump on is on when the substances, use only original spare parts from Grundfos. function is enabled. 3. Press Reset for 3 seconds to return to operation. WARNING... -
Page 10: Fault Finding
9. Fault finding WARNING Electric shock Death or serious personal injury ‐ Switch off the power supply before you start any work on the product. Make sure that the power supply cannot be switched on accidentally. 9.1 The green "Power on" indicator light is 9.3 The pump does not start when water is consumed, and the "Pump on"... -
Page 11: The Pump Does Not Stop
9.5 The pump does not stop 9.7 The red "Alarm" indicator light is flashing Cause Remedy Cause Remedy The pump cannot • Replace the pump. deliver the necessary Cycling. A tap has not • Check that all taps outlet pressure. been closed entirely have been closed. -
Page 12: Fault Finding For Self-Priming Pumps
10. Fault finding for self-priming 10.4 Unstable pump performance pumps Cause Remedy The pump inlet pressure • Check the inlet 10.1 The pump performance is unstable, is too low. conditions of the pump. and the pump is noisy The inlet pipe is partly •... -
Page 13: Technical Data
1. Use the public or private waste collection service. Temperature [°C (°F)] 2. If this is not possible, contact the nearest Max. ambient temperature 50 (122) Grundfos company or service workshop. Max. liquid temperature 40 (104) The crossed-out wheelie bin symbol on a product means Pump pressure... -
Page 14: China Rohs
China RoHS 1. China ROHS CMB, CMB-SP Booster PM1, PM2 Chinese version table for adding into I&O 产品中有害物质的名称及含量 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴联苯醚 (Pb) (Hg) (Cd) (Cr6+) (PBB) (PBDE) 泵壳 紧固件 管件 定子 转子 本表格依据 SJ/T 11364 的规定编制 O：表示该有害物质在该部件所有均质材料中的含量均在... -
Page 15: Declaration Of Conformity
Declaration of conformity GB: EU declaration of conformity CN: 欧盟符合性声明 We, Grundfos, declare under our sole responsibility 我们，格兰富，在我们的全权责任下声明，产品 CM that the products CM Booster PM1, CM Booster-SP Booster PM1, CM Booster-SP PM1, CM Booster PM1, CM Booster PM2, CM Booster-SP PM1, to PM2, CM Booster-SP PM1 系列，其制造和性能完全... - Page 16 Argentina Columbia Hong Kong Bombas GRUNDFOS de Argentina S.A. GRUNDFOS Colombia S.A.S. GRUNDFOS Pumps (Hong Kong) Ltd. Ruta Panamericana km. 37.500industin Km 1.5 vía Siberia-Cota Conj. Potrero Unit 1, Ground floor, Siu Wai industrial 1619 - Garín Pcia. de B.A.
- Page 17 Lithuania Serbia Turkey GRUNDFOS Pumps UAB Grundfos Srbija d.o.o. GRUNDFOS POMPA San. ve Tic. Ltd. Smolensko g. 6 Omladinskih brigada 90b Sti. LT-03201 Vilnius 11070 Novi Beograd Gebze Organize Sanayi Bölgesi Tel.: + 370 52 395 430 Tel.: +381 11 2258 740...
- Page 18 93129076 03.2024 ECM: 1388453 www.grundfos.com...
