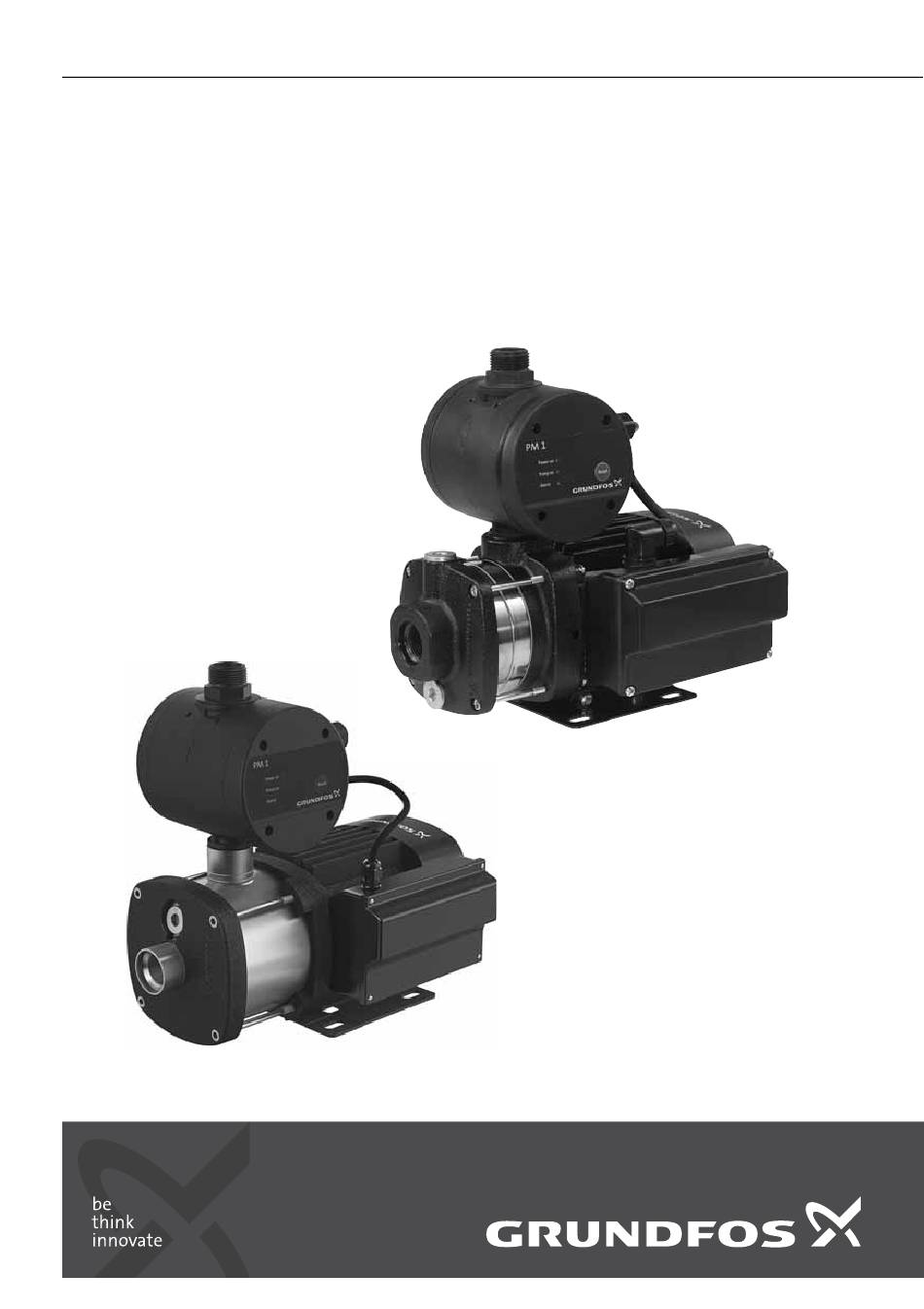

  • Page 1 GRUNDFOS INSTRUCTIONS CMB, CMB-SP Booster PM1 Supplement to Quick Guide...
  • Page 2: Table Of Contents

    English (GB) Safety instructions and other important information Original installation and operating instructions This appliance can be CONTENTS used by children aged Page from 8 years and above General information and persons with 1.1 Hazard statements 1.2 Notes reduced physical, System sizing sensory or mental Mechanical installation...
  • Page 3: General Information

    The symbols and notes below may appear in 1.1 Hazard statements Grundfos installation and operating instructions, safety instructions and service instructions. The symbols and hazard statements below may appear in Grundfos installation and operating Observe these instructions, safety instructions and service instructions. instructions for...
  • Page 4: System Sizing

    2. System sizing 3. Mechanical installation WARNING The system in which the CM Booster is incorporated must be designed for the Electric shock maximum pump pressure. Death or serious The default setting causes the pump not to personal injury stop until it reaches its maximum pressure. - Switch off the power DANGER supply before you start...
  • Page 5: Electrical Connection

    4. Electrical connection WARNING WARNING Electric shock Electric shock Death or serious Death or serious personal injury personal injury - Make sure that the - Switch off the power power supply plug supply before you start delivered with the any work on the product is in product.
  • Page 6: Startup

    WARNING WARNING Electric shock Overpressure in the tank Death or serious personal injury Death or serious - Power cables without a personal injury plug must be - Never exceed the connected to a supply maximum operating disconnecting device pressure of the tank. incorporated in the See the nameplate of fixed wiring according...
  • Page 7: Maintenance And Service

    - To avoid migration of - Switch off the power hazardous substances, supply before you start use only original spare any work on the parts from Grundfos. product. WARNING - Make sure that the Electric shock power supply cannot Death or serious...
  • Page 8: Fault Finding

    8. Fault finding CAUTION WARNING Impurities in water Electric shock Minor or moderate Death or serious personal injury personal injury - Before the pump is - Switch off the power used for supplying supply before you start drinking water, flush any work on the the pump thoroughly product.
  • Page 9 Fault Cause Remedy The pump does not The pump cannot deliver the Replace the pump. stop. necessary outlet pressure. A PM unit with too high start Select a PM unit with a lower start pressure is installed. pressure. The PM unit is defective. Repair or replace the PM unit.
  • Page 10: Disposing Of The Product

    1. Use the public or private waste collection service. 2. If this is not possible, contact the nearest Grundfos company or service workshop. The crossed-out wheelie bin symbol on a product means that it must be disposed of separately from household waste.
