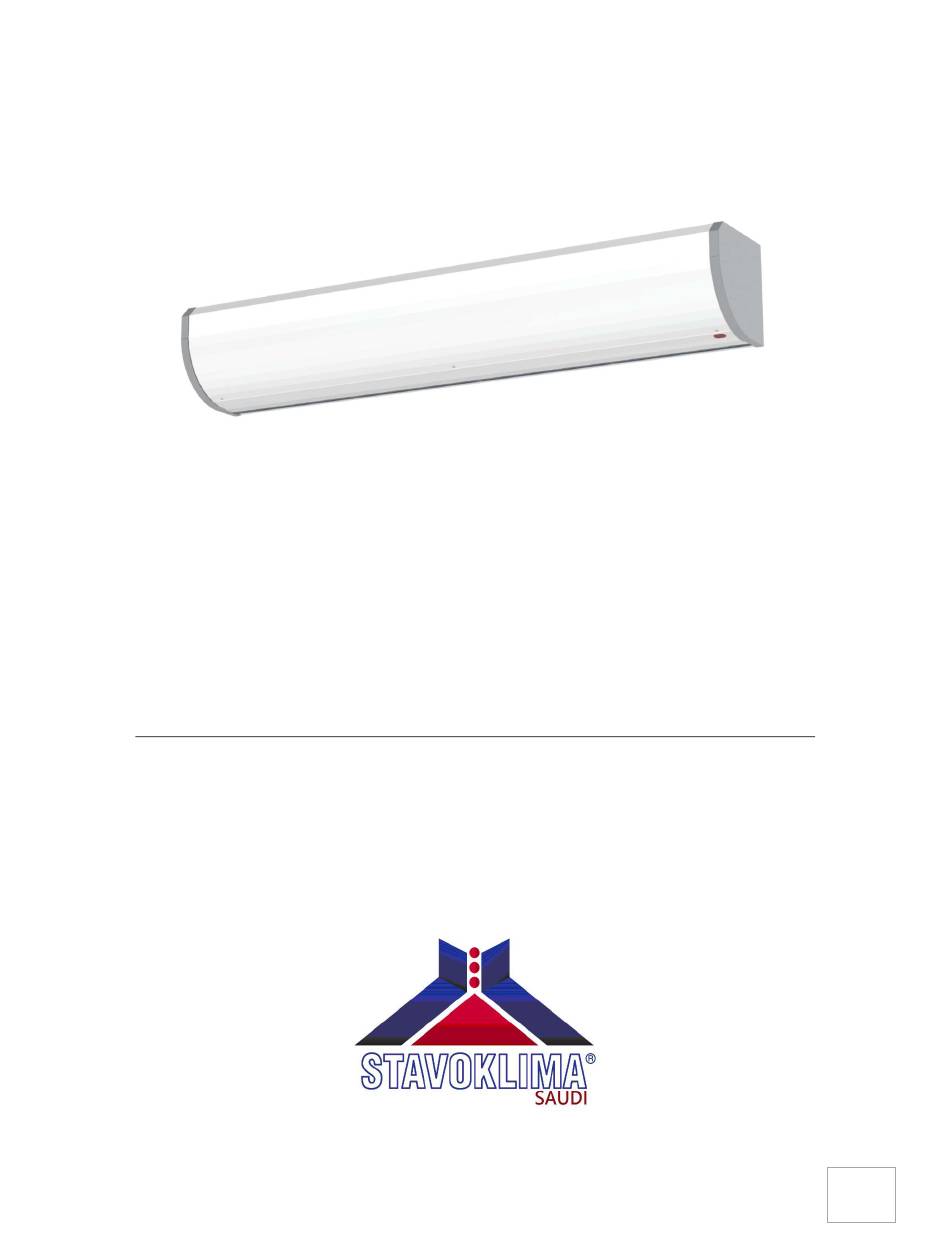

- Page 1 Easy 2 Turbo 100/150/200/250 S USER’S MANUAL Air Curtain EASY 2 TURBO 100/150/200/250 S USER'S MANUAL...
-
Page 2: Table Of Contents
Easy 2 Turbo 100/150/200/250 S USER’S MANUAL 1.0 Contents Contents .......................... 2 Foreword ......................... 3 Introduction ........................4 Dimensions ........................5 Product info ......................... 6 Technical parameters ....................6 Package contents ......................7 Unboxing .......................... 8 Safety precautions ......................9 Fire Safety ........................ -
Page 3: Foreword
Customer’s satisfaction is our highest priority. The core component of every air curtain are the fans. Inside every Stavoklima unit you will find long-lasting maintenance-free fans from the World fan industry leader – German company Ziehl-Abegg. -
Page 4: Introduction
Easy 2 Turbo 100/150/200/250 S USER’S MANUAL 3.0 Introduction The Easy 2 Turbo air curtain is an ideal solution for shops, boutiques, restaurants, households, banks and hotels where compact and effective protection of inner climate is required. The Easy 2 Turbo air curtain is designed for wall mounting over the door with alternative ceiling mounting options (accessory for ceiling mounting not part of the standard delivery) and offering wide variety of control options. -
Page 5: Dimensions
Easy 2 Turbo 100/150/200/250 S USER’S MANUAL 3.1 Dimensions... -
Page 6: Product Info
Easy 2 Turbo 100/150/200/250 S USER’S MANUAL 3.2 Product info Easy 2 Turbo air curtain is designed for standard door size not higher than 3.5 meters. Despite its compact dimensions, it is equipped with radial fans with outstanding performance. The air volume is being equally distributed across the entire width of the outlet thanks to specifically angled air chamber (plenum). -
Page 7: Package Contents
Easy 2 Turbo 100/150/200/250 S USER’S MANUAL 4.0 Package contents Every unit is packed in a paper box made of recycled cardboard protected by polystyrene foam. The air curtain itself is wrapped around in a LDPE bag for additional moisture protection. -
Page 8: Unboxing
Easy 2 Turbo 100/150/200/250 S USER’S MANUAL 5.0 Unboxing Before unboxing, please check the integrity of the packaging itself. If you spot any visible damage (dents, creases, deformations, bent corners, etc.) do not continue the unboxing process and report these to the supplier. Unboxing a damaged packaging without reporting back to the supplier passes the responsibility for the condition of the contents of the packaging onto the end user. -
Page 9: Safety Precautions
Easy 2 Turbo 100/150/200/250 S USER’S MANUAL 6.0 Safety precautions Observe the generally applicable country-specific regulations, in particular CSN 12 2002 and other related regulations. The unit must be disconnected from the mains when performing any service. Connections and grounding of the unit or its parts must comply especially with CSN 332190, 332000-5-51, 33 2000-5-54. -
Page 10: Unit Description
Easy 2 Turbo 100/150/200/250 S USER’S MANUAL 7.0 Unit description The description of the individual parts of the unit is for informative purposes only. Disassembly of the unit should be performed by authorized personnel only! Front cover with inlet grill Manually positionable outlet louvres Radial fans with condenser and connection rack Control unit cabinet with IR receiver... -
Page 11: Installation
Easy 2 Turbo 100/150/200/250 S USER’S MANUAL 8.0 Installation The air curtain is suspended at four suspension points located on both sides of the unit ‒ two on top right and two on the top left side. Connection is performed using screws with standard M8 threads. -
Page 12: Required Tools
Easy 2 Turbo 100/150/200/250 S USER’S MANUAL 8.1 Required tools In order to successfully install the air curtain, additional tools are needed. Make sure the selection of the tools corresponds to the material of the wall. If not, alter the required tools list accordingly. -
Page 13: Wall Mounting
Easy 2 Turbo 100/150/200/250 S USER’S MANUAL 8.2 Wall mounting Please follow these steps in order to mount the air curtain on the wall: 1. Using the meter measure and water level, mark the drilling points for the wall brackets on the wall. - Page 14 Easy 2 Turbo 100/150/200/250 S USER’S MANUAL The supplied wall brackets offer two mounting options depending on the desired distance from the wall. Select the closest set of mounting holes to minimize the offset of the unit. The unit should be supported for the entire time until all four screws are properly fastened.
-
Page 15: Mounting Options
Easy 2 Turbo 100/150/200/250 S USER’S MANUAL 8.3 Mounting options The wall brackets have two sets of mounting holes. One set allow mounting in 3 cm distance from the wall. The other set moves the unit 5 cm from the wall:... - Page 16 Easy 2 Turbo 100/150/200/250 S USER’S MANUAL There are two alternative mounting options for the supplied wall brackets: Standard mounting Reverse mounting...
-
Page 17: Connecting The Unit
Easy 2 Turbo 100/150/200/250 S USER’S MANUAL Respect the minimal distances from the ceiling and the wall in order to use the full potential of the unit: 8.4 Connecting the unit The air curtain requires connection to electrical network of 220 V (AC) at 60 Hz using TYPE G electrical connector (UK plug) with circuit breaker rated to 13 A. - Page 18 Easy 2 Turbo 100/150/200/250 S USER’S MANUAL Connecting points are located on the top of the unit. Please use only supplied power cable and door contact. Connection points (Power + door contact) POWER ON-OFF BUTTON WARNING: Connecting is performed at one's own risk. Prior to connecting the air curtain to the electrical network, check the integrity of all supplied cables.
- Page 19 Easy 2 Turbo 100/150/200/250 S USER’S MANUAL Installation spots on sliding and standard door Magnetic Door contact OPTIMAL MOUNTING: Use self-tapping screws for mounting the door contact into position. If the situation doesn't allow solid fastening method, use heavy duty glue to secure the door contact in place. Prior to permanent mounting, tape the door contact to the door and test the functionality.
-
Page 20: Commission
Easy 2 Turbo 100/150/200/250 S USER’S MANUAL 8.5 Commission Prior to the first startup of the unit, check the following: integrity of the unit’s covers and chassis stability of mechanical mounting and anchoring of the unit proper connection of the power cable and the door contact ... -
Page 21: Remote Controller
The air curtain reacts to successful reception of a command with a blink of a red LED indicator. The controller is universal and can be used to control any Stavoklima air curtain equipped with IR receiver. 9.1 Buttons The command is repeated as long as a button is pressed. -
Page 22: Control Range
Easy 2 Turbo 100/150/200/250 S USER’S MANUAL 9.2 Control Range For optimal use, make sure the remote controller has direct line of sight with the receiver of the air curtain (the red rounded-shaped plastic window) and no obstacles are located in the way. -
Page 23: Fan Speed Regulation
Easy 2 Turbo 100/150/200/250 S USER’S MANUAL 9.3 Fan Speed Regulation Four different fan speed levels can be selected using the IR remote controller. Higher fan speed levels entail decreased sound comfort and vice versa. Changing fan speed levels with door contact enabled does not require the door to be opened. -
Page 24: Batteries
USER’S MANUAL 9.6 Batteries Stavoklima remote controller is powered by standard 1,5V AAA batteries. Batteries are not part of the packaging. The use of rechargeable AAA batteries is not recommended for their lower voltage of 1.2 V. The controller doesn’t indicate low batteries. Exchange batteries when control of the unit becomes suboptimal from within the active zone. -
Page 25: Maintenance
Easy 2 Turbo 100/150/200/250 S USER’S MANUAL 10.0 Maintenance All the units are always factory-checked and tested carefully prior to dispatch. The most frequent errors stem from misunderstanding the function of the unit or from incorrect connection. Therefore, observe carefully the manufacturer’s instructions to avoid complicated troubleshooting. -
Page 26: Troubleshooting
Easy 2 Turbo 100/150/200/250 S USER’S MANUAL Every three Intake cleaning months Complete cleaning of the intake grill and tighten it, if needed. Battery change Once a month Exchange the batteries in the remote controller for a pair of fresh ones. WARNING: Disregarding the maintenance schedule may result into irreversible damage to the unit. - Page 27 Easy 2 Turbo 100/150/200/250 S USER’S MANUAL 1) Control position check Make sure the remote controller has got visual contact with the receiver of the unit (red oval plastic cover in the bottom right corner of the front mask) and it is pointing directly at it.
-
Page 28: Important Warnings
WARNING: Do not try to insert paper or foreign objects through air inlet or discharge opening as this may block the air movement and damage the air curtain. 13.0 Contact Info STAVOKLIMA Saudi Email: sales@stavoklima.com.sa Tel: + 966 500577504 Fax: + 966 (011) 22 77 339 Ext. 116...
