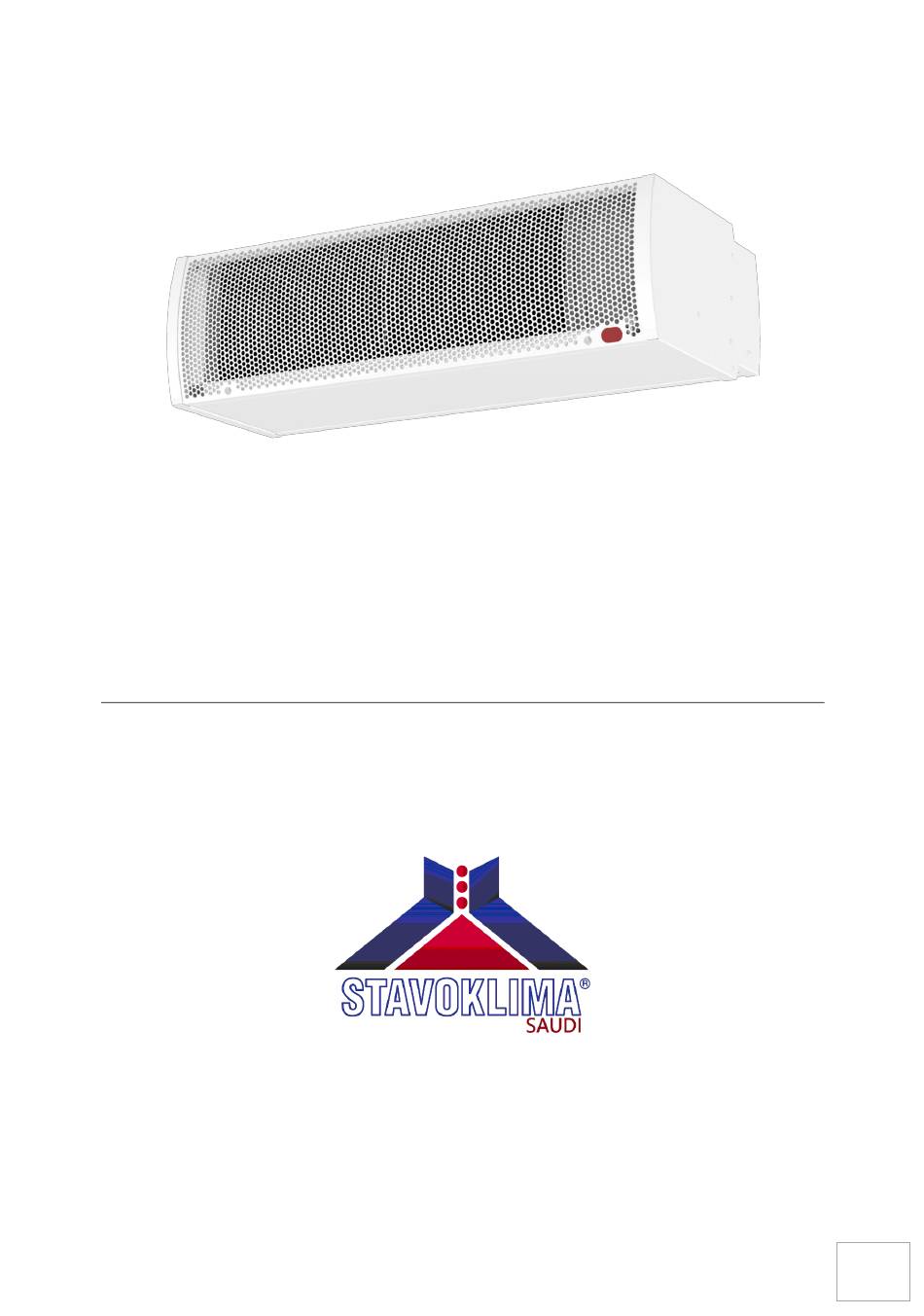

- Page 1 Li0 light 100/150/200/250 S IR USER’S MANUAL Air Curtain Li0 light 100/150/200/250 S IR USER'S MANUAL Email: sales@stavoklima.com.sa Tel: + 966 (011) 22 00 313 Fax: + 966 (011) 22 00 313 Ext. 116 www.stavoklima.com.sa STAVOKLIMA Saudi Li0-light...
-
Page 2: Table Of Contents
Cold Saving mode ......................26 Power ..........................26 Batteries .......................... 26 10.0 Maintenance ........................27 10.1 Filter maintenance ......................27 10.2 Maintenance schedule ....................29 11.0 Troubleshooting ......................... 30 12.0 Important Warnings ......................32 13.0 Contact Info ........................32 STAVOKLIMA Saudi Li0-light... -
Page 3: Foreword
Customer’s satisfaction is our highest priority. The core component of every air curtain are the fans. Inside every Stavoklima unit you will find long-lasting maintenance-free fans from the World fan industry leader – German company Ziehl-Abegg. -
Page 4: Introduction
(2) accelerating fans, (3) a plenum, and (4) the outlet louvre. Available lengths 1, 1.5, 2 & 2.5 meters. The unit is fully capable of running 24/7. The default paint is RAL 9006 (silver metallic). Custom build is available with different RAL colors targeting all decoration criteria. ‘’Going above and beyond customer expectations.” STAVOKLIMA Saudi Li0-light... -
Page 5: Dimensions
Li0 light 100/150/200/250 S IR USER’S MANUAL 3.1 Dimensions STAVOKLIMA Saudi Li0-light... -
Page 6: Product Info
The air volume is being equally distributed across the entire width of the outlet thanks to specifically angled air chamber (plenum). Selected product 3.3 Technical parameters Technical specifications Li0 light IR 100 Li0 light IR 150 Li0 light IR 200 1989 3073 4176... -
Page 7: Package Contents
The air curtain housing is wrapped around in a LDPE bag for additional moisture protection. The contents of the packaging are the following: Li0 light air curtain (1x) Remote controller (1x) Allen key (2x) Wall suspension(2x) with screws (4x) Power cord (1x) Door contact (1x) User’s manual (1x) STAVOKLIMA Saudi Li0-light... -
Page 8: Unboxing
RECYCLING: Please recycle the packaging in compliance with your local environmental standards. STORAGE: Storage conditions for unopened packaging is temperature range from -10 °C to+50 °C, humidity50-85% non-condensing. STAVOKLIMA Saudi Li0-light... -
Page 9: Safety Precautions
Install the unit 150 mm from combustible materials of classes B, C1, C2, 400 mm from easily combustible materials (class C3), and 1000 mm in the direction of radiation (air outlet of the unit). STAVOKLIMA Saudi Li0-light... -
Page 10: Unit Description
Inlet grill and IR receiver plastic cover Positionable outlet louvre with a pull bar linked to actuator Radial fans with condenser and connection rack Control unit cabinet with IR receiver Wall-mounting bracket Filter bracket with removable filter STAVOKLIMA Saudi Li0-light... -
Page 11: Installation
10) The air stream barrier must not be obstructed with upper door frame or sliding doors for all automated air flow vector (normal operation, windy mode and cold saving mode). Please apply these installation instructions for later re-installation, to be available throughout the life of the unit. STAVOKLIMA Saudi Li0-light... - Page 12 Li0 light 100/150/200/250 S IR USER’S MANUAL For proper performance, do not install the unit any higher than 2,7 meters. WARNING: Installation is performed at one's own risk. Any damage resulting from inappropriate handling is not covered by the warranty. STAVOKLIMA Saudi Li0-light...
-
Page 13: Required Tools
Not part of the packaging Screwdriver (1x) or multi-purpose tool Not part of the packaging Meter measure (1x) WARNING: Any damage resulting from the use of unsuitable tools or inadequate fasteners is not covered by the warranty. STAVOKLIMA Saudi Li0-light... -
Page 14: Wall Mounting
9) Lift the air curtain using appropriate handling tools. 10) Use supplied screws to attach the air curtain to the wall bracket and tighten all the screws using the supplied Allen key. Drilling spacing and recommended mounting STAVOKLIMA Saudi Li0-light... - Page 15 In order to achieve the best performance, make sure the unit is centered above the door, it covers the entire width of the door and it is mounted in proximity of the top of the door. The offset of the door should be minimal. STAVOKLIMA Saudi Li0-light...
-
Page 16: Mounting Options
The wall brackets have two sets of mounting holes. One set allow mounting in 5 cm distance from the wall. The other set moves the unit 8 cm from the wall: 5 cm offset 8 cm offset STAVOKLIMA Saudi Li0-light... - Page 17 Li0 light 100/150/200/250 S IR USER’S MANUAL There are two alternative mounting options for the supplied wall brackets: Standard mounting Reverse mounting STAVOKLIMA Saudi Li0-light...
-
Page 18: Suspended Mounting
7) Mount and level the air curtain by screwing four suspension rods into the threaded inserts located at the top corners of the unit. 8) The unit should be supported and secured for the entire time of installation. STAVOKLIMA Saudi Li0-light... -
Page 19: Connecting The Unit
Connection to a higher voltage will result in fire, electric shocks, and damages. Power failure during operation will stop the unit completely, the unit will resume operation according to the last sets prior to power failure. STAVOKLIMA Saudi Li0-light... - Page 20 If you detect any damage, do not connect the unit and contact the supplier. Any damage resulting from inadequate handling is not covered by the warranty. STAVOKLIMA Saudi Li0-light...
- Page 21 The distance of magnet and the sensor should be as close as conditions allow. Installation spots on sliding and standard door Magnetic Door contact STAVOKLIMA Saudi Li0-light...
-
Page 22: Commission
From this point the fans of the unit should be working and air should be coming out of the unit’s outlet. STARTUP ISSUES: If you encounter difficulties commissioning the unit, refer to the Troubleshooting chapter (11.0) prior to contacting the supplier. Follow the steps! STAVOKLIMA Saudi Li0-light... -
Page 23: Remote Controller
Pointing the remote controller at the air curtain is an important factor of a successful control. The air curtain reacts to successful reception of a command with a blink of a red LED indicator. The controller is universal and can be used to control any Stavoklima air curtain equipped with IR receiver. -
Page 24: Control Range
WARNING: The range of the remote controller can be decreased by many factors (low battery, room layout, insufficient visual contact, not pointing the remote controller directly at the IR receiver, etc.). Suboptimal control range do not establish a legitimate argument to raise a claim. STAVOKLIMA Saudi Li0-light... -
Page 25: Fan Speed Regulation
The outlet moves to +15° position and fan speed level 4 is selected Windy mode deactivated The outlet moves to default position and fan speed level is changed Windy mode deactivated and Cold mode activated The outlet moves to -15° position and last fan setting is restored STAVOKLIMA Saudi Li0-light... -
Page 26: Cold Saving Mode
The air curtain is turned OFF, the last used setting is stored 9.8 Batteries Stavoklima remote controller is powered by standard 1,5V AAA batteries. Batteries are not part of the packaging. The use of rechargeable AAA batteries is not recommended for their lower voltage of 1.2 V. -
Page 27: Maintenance
Use only original filters. Any damage resulting from use of non-original filter or no filter at all, is not covered by the warranty. STAVOKLIMA Saudi Li0-light... - Page 28 The filter is fixed inside the filter bracket. It is held in place by four screws that need to be loosened prior to removing the filter. After cleaning/changing the filter, return it into its original position and tighten the screws. STAVOKLIMA Saudi Li0-light...
-
Page 29: Maintenance Schedule
Exchange the batteries in the remote controller for a pair of fresh ones. Filter change Every 12 months Replace the filter. WARNING: Disregarding the maintenance schedule may result into poor performance or irreversible damage to the unit. Such damage is not covered by the warranty. STAVOKLIMA Saudi Li0-light... -
Page 30: Troubleshooting
Check whether the power cable is plugged in the power socket and make sure it is controller connected to the connector on the top of the unit. 4) Circuit breaker check Check the circuit breaker inside the electrical cabinet and make sure it matches the minimal requirements for operating the air curtain. STAVOKLIMA Saudi Li0-light... - Page 31 The power shortage 1) Restore the power supply occurred and Once the power supply is restored, the unit will continue operation with last active setting loaded in the memory before the power down. the stopped working STAVOKLIMA Saudi Li0-light...
-
Page 32: Important Warnings
WARNING: Do not try to insert paper or foreign objects through air inlet or discharge opening as this may block the air movement and damage the air curtain 13.0 Contact Info STAVOKLIMA Saudi Email: sales@stavoklima.com.sa Tel: + 966 (011) 22 00 313 Fax: + 966 (011) 22 00 313 Ext.
