- Page 1 C O M F O R T A I R C U R T A I N S T A V O K L I M A Installation and operation manual Li model www.stavoklima.cz version B...
-
Page 2: Table Of Contents
Installation and operation manual Table of Contents Table of Contents ................................2 Unpacking, check after transport or warehousing ......................3 2.1. Unpacking and check .............................. 3 2.2. Storing of the curtain, additional transport recommendations ................4 Safety measures ................................4 Basic information about the curtain and its use ....................... -
Page 3: Unpacking, Check After Transport Or Warehousing
Comfort Li air curtain Unpacking, check after transport or warehousing 2.1. Unpacking and check Carefully check the delivery note attached to the delivery. For components identified as extra accessories in the delivery note (not included in the curtain or installed therein), please check completeness to the parcel and perfect condition (usually delivered in a separate box). -
Page 4: Storing Of The Curtain, Additional Transport Recommendations
Installation and operation manual 2.2. Storing of the curtain, additional transport recommendations Observe packaging decals on the curtain. The device in its packaging must not be turned or placed in transport positions other than those supplied and recommended by the manufacturer. Packaging also contains production number and curtain type for easy curtain type identification. -
Page 5: Basic Information About The Curtain And Its Use
Comfort Li air curtain Basic information about the curtain and its use An air curtain is a device, which produces a natural air barrier against penetration of cold air into heat environment (in summer, it operates as a protection against penetration of hot summer air to the spaces being either cooled or air conditioned). These devices are suitable for basic and non-aggressive environments. -
Page 6: Dimensions Of The Curtain
Installation and operation manual Dimensions of the curtain Dimensions (mm) Model Exhaust height max THCP-100-4-Li0N/E 2500 THCP-150-4-Li0N/E 2500 THCP-200-4-Li0N/E 2500 THCP-250-4-Li0N/E 2500 THCP-100-4-Li1N/E 2800 THCP-150-4-Li1N/E 2800 THCP-200-4-Li1N/E 2800 THCP-250-4-Li1N/E 2800 THCP-100-4-Li2N/E 3500 THCP-150-4-Li2N/E 3500 THCP-200-4-Li2N/E 3500 THCP-250-4-Li2N/E 3500 Technical changes reserved... -
Page 7: Curtain Installation - Wall-Mounting Or Anchoring
Comfort Li air curtain Curtain installation - wall-mounting or anchoring Horizontal installation Vertical installation 6.1. Additionally arrested ZSA suspensions under ceiling The door curtain is suspended in four (or five for the curtain of the length of 2,500mm) M10 anchor suspension points on the curtain casing. -
Page 8: U" Under-Ceiling Suspension
Installation and operation manual 6.2. “U” under-ceiling suspension The door curtain is suspended in four suspension points on the curtain casing. The suspension points are accessible from outside and rivet nuts (M10 threads) are installed on the curtain from production plant. Upon special purchase order, the following is supplied as accessories to the U under-ceiling suspensions:... -
Page 9: N" Wall-Mounting Suspension
Comfort Li air curtain Pay attention to correct fitting of all nuts to all assembly components. Pay attention to the end position of the threads to avoid loosening and falling the curtain by rotation. 6.4. “N” wall-mounting suspension The door curtain is suspended in four suspension points on the curtain casing. The suspension points are accessible from outside and rivet nuts (M10 threads) are installed on the curtain from production plant. -
Page 10: Sps-4-Li Connection Kit
Installation and operation manual Measure out the position of the curtain and the wall-mount. Mark the anchoring points and drill holes for installation of wall plugs to the wall. Connect the wall-mounted hanger to the wall using the attached connection material. Install the wall-mounted hanger to the curtain using the Allen bolts and washers in the supply. -
Page 11: Connection Of The Curtain To Heating System
Comfort Li air curtain Connection of the curtain to heating system Please check all hot water connections for readiness and perfect condition before connecting media to the curtain. Furthermore, please check the hot distribution for components or other measures to ensure zero transmission of static, dynamic, and dilatation forces at the input and output neck connections. -
Page 12: Heat Exchanger Control Using A Valve With Thermostatic Head
Installation and operation manual 7.1. Heat exchanger control using a valve with thermostatic head The thermostatic head for 2-way (TV) and 3-way (TVT) valves is always supplied with the sensor separated (temperature range25–65 °C) – exhaust air temperature control. Setting of the required closing temperature is made on the head scale (1–5). -
Page 13: Types Of Controllers And Options For Controlling

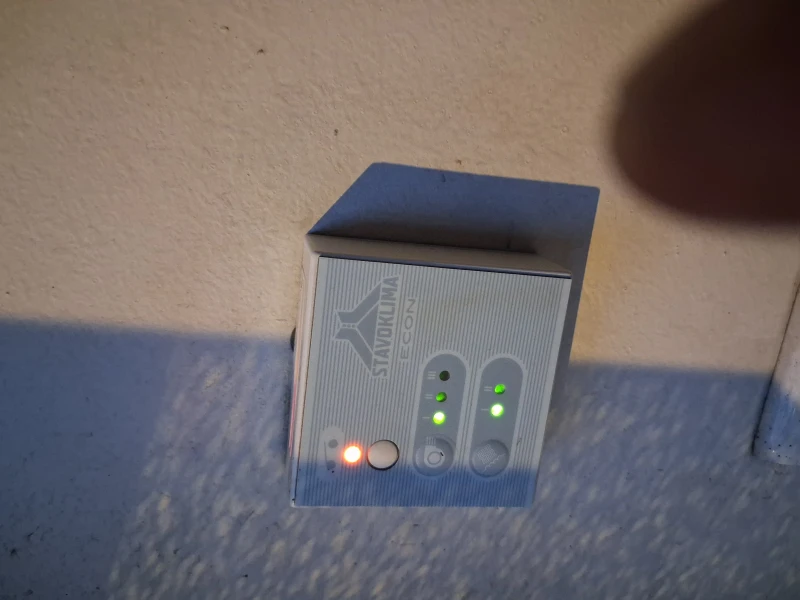

Comfort Li air curtain Types of controllers and options for controlling 8.1. ECON controller The ECON controllers are intended for control of the fan and electric heater (hot water and electric) with possible connection of external components (door contact, room or exhaust thermostat). These types of basic controls do not allow linking of the controllers (except for Econ DUAL). -
Page 14: Electric Connection Of The Curtain
Installation and operation manual Electric connection of the curtain The curtain must be protected by a suitable circuit breaker according to its electric parameters – refer to attached electric wiring. Connect the ready-to-install cables to the terminals following the attached electric wiring schemes, make connection check, equipotential bonding, and finally turn the power supply on. -
Page 15: Commissioning, Starting Of The Curtain
Comfort Li air curtain Commissioning, starting of the curtain Before commissioning make and check: • covers and shell of the curtain are in perfect condition, • mechanic fixing and anchoring of the curtain, • ability to remove the filter and its cleanliness,*/** •... -
Page 16: Troubleshooting
Installation and operation manual Quarterly checks: Curtain hanging and tightening of all bolt connections. Check tightening of bolts of exhaust splines - accessible from internal side wall of the curtain, tighten the central splines by turning the splines (by tightening of the internal thread pin). ... -
Page 17: Cleaning/Replacement Of The Filter
Comfort Li air curtain Cleaning/replacement of the filter Hot-water curtains are fitted with an air filter. The filter must be cleaned regularly to ensure the efficiency of the curtain and its performance levels. The frequency of cleaning depends on local conditions under which the curtain operates – checking of the filter and cleaning thereof is recommended at least monthly. - Page 18 Installation and operation manual Technical changes reserved...
- Page 19 Comfort Li air curtain Technical changes reserved...
- Page 20 Installation and operation manual STAVOKLIMA s.r.o. Budějovická 450, 370 01 Homole Phone: +420 387 001 931 e-mail: info@stavoklima.cz www.stavoklima.cz Technical changes reserved...
