Omega PRTXI Series User Manual

Rtd temperature transmitter with io-link/switch and 4 to 20 ma

Advertisement

Quick Links

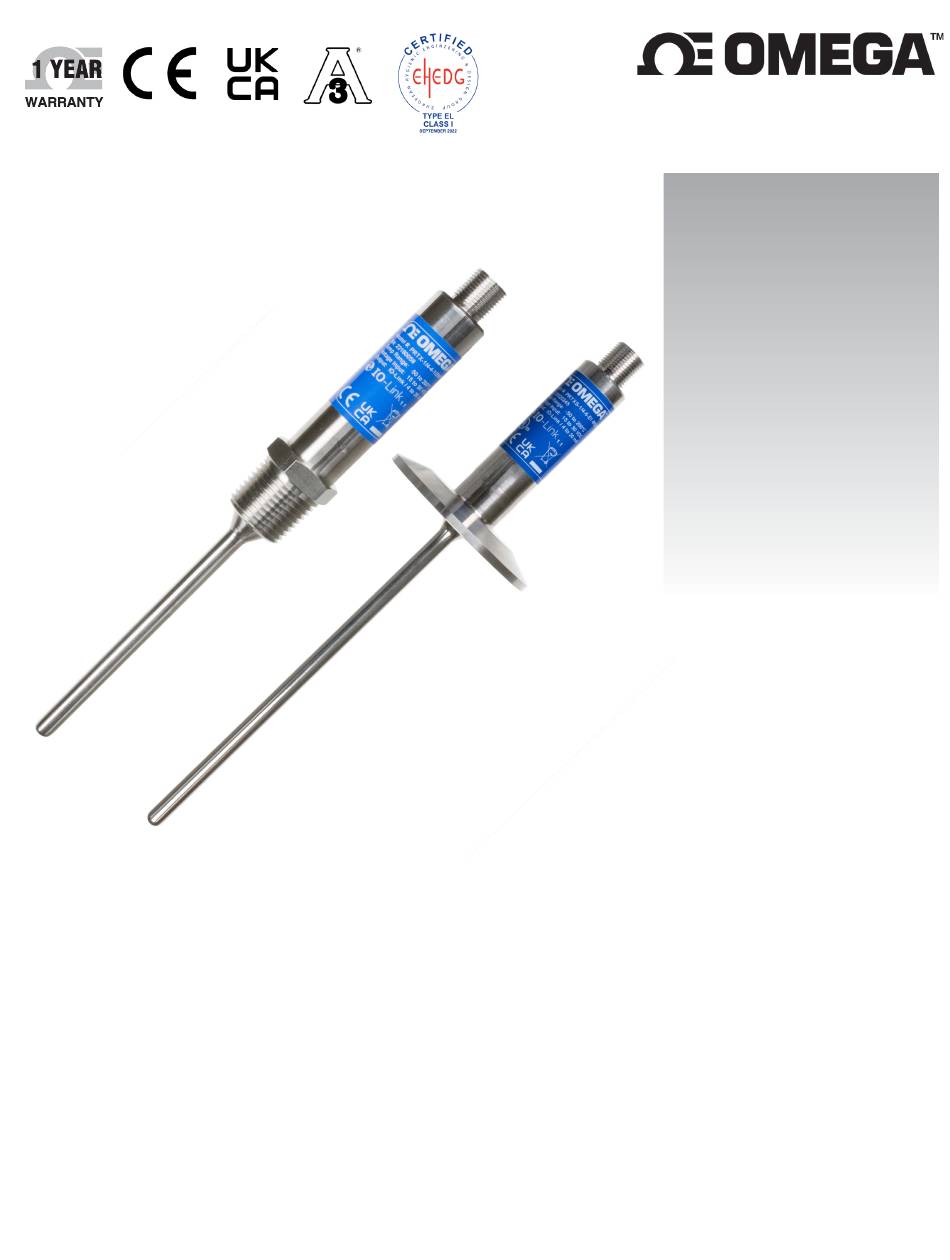

User' s Gui d e
TM
PRTXS 3-A
EHEDG Certified:
Authorized
Sanitary PRTXS
Equipment
Models Only
PRTXI model
PRTXS model
PRTXI and PRTXS Series
RTD Temperature Transmitter with
IO-Link/Switch and 4 to 20 mA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRTXI Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Omega PRTXI Series

  • Page 1 User’ s Gui d e PRTXS 3-A EHEDG Certified: Authorized Sanitary PRTXS Equipment Models Only PRTXI model PRTXS model PRTXI and PRTXS Series RTD Temperature Transmitter with IO-Link/Switch and 4 to 20 mA...
  • Page 2 Irlam Manchester M44 5BD United Kingdom The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains and reserves the right to alter specifications without notice. M 5 7 9 2...
  • Page 3: Table Of Contents

    Table of Contents Table of Contents ............................. 3 Notes, Cautions, and Warnings ........................4 Requirements for Personnel ..........................4 Designated Use ..............................4 Operational Safety ............................4 Product Safety ..............................4 Specifications ............................5 PRTX Hardware Overview .......................... 9 Installation Instructions ..........................10 3.1.1 Orientation .................................
  • Page 4: Notes, Cautions, And Warnings

    1 Notes, Cautions, and Warnings If the equipment is used in a manner not specified in this manual, protection of the equipment may be impaired. Do not operate the equipment in flammable or explosive environments. It is important to read and follow all precautions and instructions in this manual before operating or commissioning this device as it contains important information relating to safety and EMC.
  • Page 5: Specifications

    2 Specifications Measurement Range: -50 to 200°C (-58 to 392°F) Output Signal 4 to 20 mA (Analog): 4 to 20 mA; measuring range -50 to 200°C (-58 to 392°F) IO-Link (Digital): C/Q (IO-Link or switch output) Note: For additional information regarding the IO-Link and 4 to 20 mA wiring, refer to Section 4 Electrical Connection.
  • Page 6 Reference Operating Conditions Adjustment Temperature (Ice Bath): 0°C (32°F) for sensor Ambient Temperature: (25°C ± 3°C (77°F ± 5°F) for electronics Supply Voltage: 24 V DC ± 10% Relative Humidity: <95% Maximum Measured Error: When in accordance with the reference operating conditions listed above, the measured error data corresponds to ±2 σ...
  • Page 7 Operating Influences: The measured error data corresponds to ± 2 ρσ (Gaussian distribution). Ambient Temperature Influence (+-) per 1 °C (1.8 Standard Designation Supply Voltage Influence (+-) per 1 V Change °F) Change Digital Digital Based on measured Based on Maximum Maximum value...
  • Page 8 Response Time T : Test in water at 0.4 m/s (1.3 ft/s) according to IEC 60751; temperature changes in increments of 10 K. Design 1/8” diameter probe 3/16” diameter probe 1/4” diameter probe Environment Ambient Temperature Range: -40 to 85°C (-40 to 185°F) Storage Temperature: -40 to 85°C (-40 to 185°F) Operating Altitude: Up to 2000 m (6600 ft) above sea level Climate Class: As per IEC/EN 60654-1, Class Dx...
  • Page 9: Prtx Hardware Overview

    3 PRTX Hardware Overview Figure 1: PRTX probe diagram Description M12 threaded connector Transmitter housing Process connection Sensor Probe Figure 2: Installation visual diagram guide Description Perpendicular to flow direction, installed at a minimum angle of 3° to ensure self-draining Perpendicular to flow direction, installed at a minimum angle of 3°...
  • Page 10: Installation Instructions

    Installation Instructions The immersion length of the RTD temperature sensor can considerably influence the accuracy of the device. If the immersion length is too short, measurement errors can occur. When installing the device in a pipe, the immersion length should penetrate halfway into the pipe diameter and ideally also be at least 15 times the diameter of the probe.
  • Page 11: Orientation

    61 Nm (45 ft/lbs) ” 75 Nm (55 ft/lbs) G ½” 81 Nm (60 ft/lbs) If new sealing washers are required, they can be purchased from Omega Engineering in the following sizes: Process Connection Omega Part Number G ¼” CSW-1/4 ”...
  • Page 12: Tapered Threads

    3.1.4 Tapered Threads The operator must verify if additional sealing is necessary in the case of NPT threads or other tapered threads. Process Connection Tightening Torque [Nm] ¼” NPT Hand-tighten, then, 2-3 full turns ⅜” NPT Hand-tighten, then, 2-3 full turns ½”...
  • Page 13: Electrical Connection

    4 Electrical Connection The Omega PRTX offers two operating modes. Refer to the wiring diagrams below outlining the two different options. Important: Do not overtighten the M12 plug, as this may damage the device. The maximum torque of the M12 knurl is 0.4 Nm.
  • Page 14: To 20 Ma Operating Mode

    4 to 20 mA Operating Mode Description + Power supply 10 to 30 V DC - Power supply 0 V DC Not used Not used Figure 4: 4 to 20 mA wiring diagram Load: R = (U – 10 V) / 0.023 A (current output) b max b max Figure 5: Maximum allowable load resistance...
  • Page 15: System Integration

    5 System Integration Device and Vendor Identification Device ID 8585472 Vendor ID 1590 Process Data When the PRTX is in Digital Mode, the state of the switch output and the temperature value are transmitted in the form of process data via IO-Link. The signal is initially transmitted in the SIO-Mode (Standard IO-Mode). Digital IO-Link communication starts as soon as the IO-Link master sends the Wake-Up command.
  • Page 16: Reading And Writing Device Data

    Meaning Process value Values 0 = Bad Measured value cannot be used Measured value can only be used to a 1 = Uncertain limited extent, e.g.: device temperature is Measured value outside the permitted range (S825) status [bit 4 - 3] Measured value can only be used to a 2 = Manual/Fixed limited extent, e.g.: simulation of the...
  • Page 17 Index Index Size Data Identifier Data Type Access Default Value Value Range (dec) (hex) (byte) Storage Switch Point 2051 0x0803 Float 100 °C (212 °F) -1E+20 to 1E+20 Value Switchback Point Value 2052 0x0804 Float 90 °C (194 °F) -1E+20 to 1E+20 Switch Delay 2053 0x0805...
  • Page 18 Index Index Size Data Identifier Data Type Access Default Value Value Range (dec) (hex) (byte) Storage Previous 6220 0x184C UInteger16 – – – Diagnostics 4 Timestamp 4 6207 0x183F UInteger32 – – – Previous 6222 0x184E UInteger16 – – – Diagnostics 5 Timestamp 5 6208...
  • Page 19: Io-Link Specific Device Data

    String PRTXI-PRTXS Product Name 0x0012 String PRTX RTD Temperature Sensor Product Text 0x0014 String PRTXI-PRTXS Vendor Name 0x0010 String Omega Engineering Vendor Text 0x0011 String Sensing Incredible Things Hardware Version 0x0016 String – Firmware version 0x0017 String – Device Access Locks...
  • Page 20: Diagnostics And Troubleshooting

    6 Diagnostics and Troubleshooting Follow these instructions to resolve general troubleshooting issues. Error Possible Cause Solution Supply voltage does not match the Apply correct voltage. value indicated in the specifications. Device is not responding. The polarity of the supply voltage is Correct the polarity of the wrong.
  • Page 21: Diagnostic Overview

    Diagnostic Overview IO-Link IO-Link Diagnostic Diagnostic Event Event Event Text Reason Corrective Measure Message Behavior Qualifier Code 1: Restart the device. F001 Alarm IO-Link Error 0x1817 Device failure Device fault 2: Replace device. The sensor is defective F004 Alarm IO-Link Error 0x1818 Sensor defective (e.g.: sensor failure or Replace device.
  • Page 22: Device Behavior During An Event Fault

    IO-Link Diagnostic Diagnostic IO-Link Event Event Text Reason Corrective Measure Message Behavior Event Qualifier Code 1: Check process Process value out Process value is outside value. S844 Warning of specification the specification 2: Check application. 3: Check sensor. 1) Diagnostic only possible in SIO mode 2) Diagnostic only possible in the 4 to 20 mA mode 6.2.1 Device Behavior During an Event Fault...
  • Page 23: Diagnostic List

    RTD elements may drift depending on the application. Regular recalibration to verify accuracy is Calibration recommended. The calibration can be performed by Omega Engineering. Calibration: Factory calibration is available upon request. Customers may request Cal-3 for standard 3-point calibration, or Cal-4 for user-specified temperature points. All calibrations are NIST traceable.
  • Page 24: Certifications And Approvals

    8 Certifications and Approvals CE Mark: The product meets the requirements of the harmonized European standards. As such, it complies with the legal specifications of the EC directives. The manufacturer confirms successful testing of the product by affixing the CE-mark. UKCA Mark: The product meets the requirements of UK designated standards.
  • Page 25 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
  • Page 26 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE M U Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies M U Wire: Thermocouple, RTD & Thermistor M U Calibrators & Ice Point References M U Recorders, Controllers &...
