Quick Installation Guide

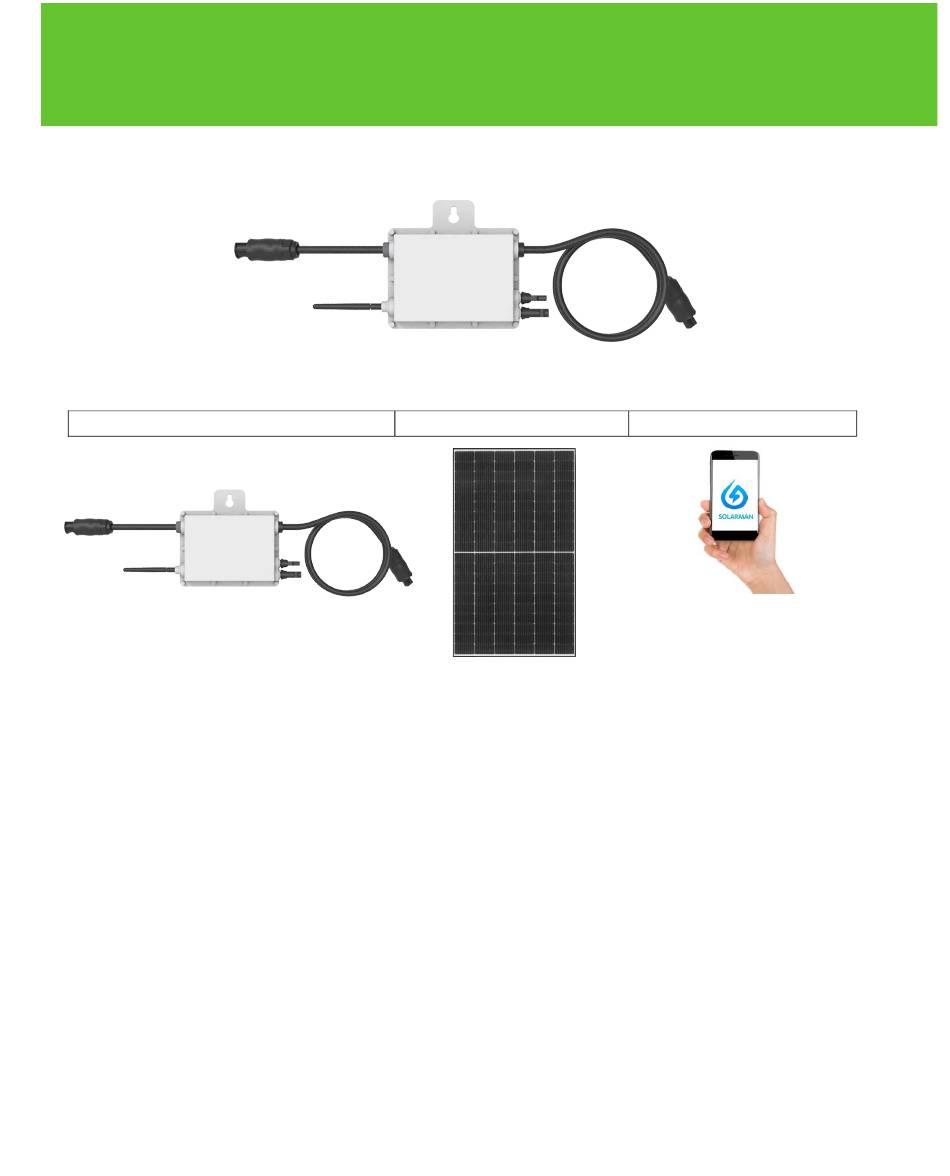

Components

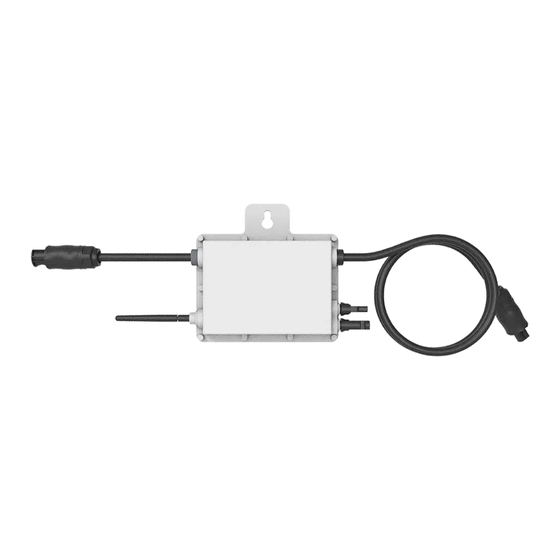

Microinverter
Installation and configuration
Install the microinverter and the PV module.
Screw the WiFi antenna to the microinverter.
Start up the microinverter by connecting the PV module and the AC connection cable.
The status LED signals the start-up of the microinverter.
-
Start procedure: 3-fold fast red flashing intervals
-
Test procedure: 2-fold slow red flashing intervals
-
Feeding process: blue flashing intervals (slow = low output power / fast = high output
power)
After the start-up and test procedure (about 15 seconds), the inverter starts feeding, provided
that the PV module generates the start-up voltage of 20V required by the inverter (under load!).
PV Module
Solarman App
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for V-TAC 11614
Summary of Contents for V-TAC 11614
- Page 1 Quick Installation Guide Components PV Module Microinverter Solarman App Installation and configuration Install the microinverter and the PV module. Screw the WiFi antenna to the microinverter. Start up the microinverter by connecting the PV module and the AC connection cable. The status LED signals the start-up of the microinverter.
-
Page 2: Installation
1. Installation 2. monitoring device 1) Download and install the Solarman Smart smartphone app. https://apps.apple.com/app/solarman-smart/id1469487897 https://play.google.com/store/apps/details?id=com.igen.xiaomaizhidian&hl=de&gl=US NOTE: All app permissions must be granted for proper function (notifications, Bluetooth, location services, etc.). - Page 3 2) Start the smartphone app and create a new profile by selecting „Register a new account“. 3) Enter your email address and press the "Send" button under Verification Code. You will now find a message with a 6-digit code in your e-mail inbox. Enter this code in the app under "Verification Code".
- Page 4 6) Now fill in all information of your PV system and press "Done": Plant Name Time Zone Plant Type System Type: PV plant type -All on Grid: the generated power is fed directly into the public power grid. -Self-consumption: the generated power is used by yourself and a surplus is fed into the public power grid.
- Page 5 8) After you have added the WiFi interface via "Add" and "Done", go to "Go to Configure". Select your WiFi network and enter the corresponding password. Finally, go to "Start to configure". IYour network speed is checked and a prompt appears to switch to the WiFi settings of your smartphone and connect to the WiFi interface of the inverter.
- Page 6 10) The logger will be added to your PV system and after about 10 minutes the data will be displayed in the Solarman Smart App. Note: The illustrations of the monitoring device refer to the IOS version of the Solarman Smart App.
- Page 7 DEYE Mikroinverter SUN Installation Annex 1 - Disclaimer The warranty does not apply under the following conditions: Damage is caused by improper use or an unsuitable environment. Damage is caused by improper use or an unsuitable environment. Damage due to exceeding the operating temperature. ...
