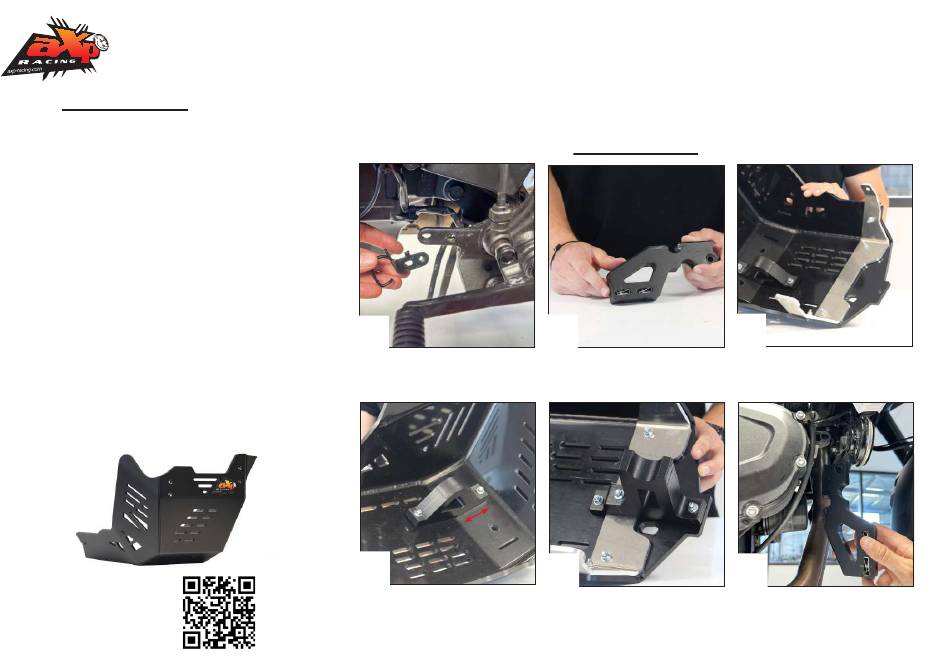

aXp RACING AX1727 Assembling Instructions

AX1727
Skid plate
Honda XL750 Transalp
What's in the box ?
1 PM03-05-002 - Rear alloy fixation
1 PM01-10-029 - Rear plastic block 30mm
1 PM01-10-030 - Center plastic block 30mm
1 PM01-04-285 - Right front fixation
1 PM01-04-286 - Left front fixation
1 NE04-01-271 - Sticker
2 NE01-01-006 - TBHC 8x40mm screws
8 NE01-03-002 - M8 washers
4 NE01-02-004 - TFHC 6x30mm screws
10 NE01-03-001 - M6 washers
10 NE01-04-003 - EM6F bolts
1 NE01-02-008 - TFHC 6x50mm screw
4 NE01-02-003 - TFHC 6x25mm screws
2 NE01-01-004 - TBHC 8x25mm screws
4 NE01-04-001 - EM8F bolts
1 NE01-01-008 - TBHC 6x25mm screws
4 NE01-02-005 - TFHC 6x35mm screws
1 NE13-01-001 - Foam
4 NE01-04-002 - Clamped bolts
The paper instructions may
be limitless, scan the QR
code to watch the tutorial
video online.
Assembling instructions
Approximate time of assembly: 30 minutes.
A skid plate is made to protect the vital components of your bike and does not have a « life warranty ».
However, production default may happen and we cover it during the first year of use.
In case of premature breakage, please write to contact@axpracing.com
1
Remove the hose holder.
4
Place the center plastic block
using 2 TFHC 6x30mm screws +
washers and bolts then tighten.
The smallest side must be
towards the front.
Follow the steps
2
Place 2 clamped bolts in each
front fixation.
5
Place the rear plastic block using
one TFHC 6x50mm screw in the
biggest hole and 2 TFHC 6x30mm
screws + washers and bolts.
3
Place the rear alu fixation using 4
TFHC 6x25mm screws + washers
and bolts.
6
Put the front fixations in place,
the clamped bolts must face the
outside.
