Source SEM-BL-EXB Installation Instructions

Emergency Installation and Inspection
Serial/ Luminaire Number:
Installation / Test
Installed By:
Record
Commissioned By:
Year 1
Monthly test
Signed Date
1
2
3
ase check here, if there is screw, please
4
se them firstly
5
6
7
8
9
Product Code:[AWLED/LI/3M/ST]
10
11
12
DISASSEMBLY INSTRUCTIONS
Product end of life instruction.
This Lighting product is in the scope of EU 2019/2020 directive on Waste Electrical and Electronic Equipment (WEEE). This
product must be disposed of, according to the legislation. This document is intended for use by end of life recyclers or treatment
facilities. It provides the basic information to assure an appropriate end of life treatment for the components and materials of the
product.

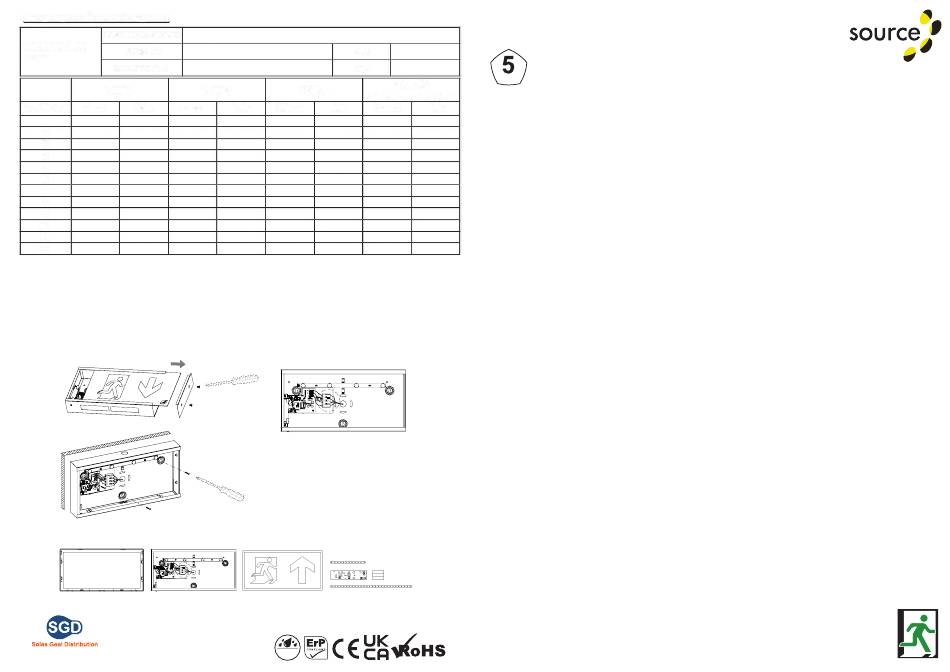

Please follow pictured diagram on the back of this manual showing how to dismantle the product into different components which
T]
should be disposed of correctly. These components consist of plastic, metal and electronic materials.
Product Code:[AWLED/LI/3M/ST]
It is the responsibility of the end user to dispose of this product correctly. Contact www.weeeireland.ie or your local council for
further information.
Unswitched Line
Earth
Line
Neutral
Dismantle Driver/LED, Plate/Battery
ine For more information contact:
Unit 7/8 Ashbourne Business Centre, Ballybin Road, Ashbourne, Co. Meath, Ireland, A84 YP58,
Phone: 00353 1 835 7447
Ansell Electrical Products
Unit 6B, Stonecross Industrial Park,
Yew Tree Way,
Unit 32 Junction One Business Park, Valley Road, Birkenhead, Merseyside, UK, CH41 7ED,
Warrington,
Ansell Electrical Products Ansell (Sales & Distribution WA3 3JD
Unit 6B, Stonecross Industrial Park, Unit 2, M2 Business Park, Warrington Tel: +44 (0)1942 433333
0330 551 7000
UK Ph:
Yew Tree Way, Duncrue Street,
Warrington, Belfast,
WA3 3JD BT3 9AQ
Website:
Warrington Tel: +44 (0)1942 433333 Belfast Tel: +44 (0)2890 773750
Date:
Product Code:[AWLED/LI/3M/ST]
Date:
Year 2*
Year 3*
*Recommended Battery Change NiCd *Recommended Battery Change LiFe P04
Signed Date Signed Date
Dismantle driver/LED
plate/battery
Loosen screws with
screwdriver
Slide block to open
Dismantle Legend and Led Plate
Ansell Electrical Products Ansell (Sales & Distribution
Unit 6B, Stonecross Industrial Park, Unit 2, M2 Business Park,
Yew Tree Way, Duncrue Street,
Warrington, Belfast,
WA3 3JD BT3 9AQ
Warrington Tel: +44 (0)1942 433333 Belfast Tel: +44 (0)2890 773750
Unswitched Line
Earth
Line
Neutral
Ansell (Sales & Distribution
Unit 2, M2 Business Park,
Duncrue Street,
Belfast,
BT3 9AQ
Belfast Tel: +44 (0)2890 773750 International Tel: +44 (0)1942 433343 Spain Tel: 00 34 938 005642
Issue Number: [1]
www.sgd.ie IP20
International Tel: +44 (0)1942 433343 Spain Tel: 00 34 938 005642
Issue Number: [1]
years
Quality
Assurance
Year 4
Signed Date
INSTALLATION
Slide the block to 1. Remove the front legend by removing the two crosshead screws retaining the end plate and sliding the
legend plate out.
"Open"
2. Fix the main exit sign body to the wall having cleared an access hole in the body for the incoming cables.
3. Wire up the luminaire in accordance with wiring regulations. An unswitched 240V A.C. supply must be
connected to the Live (L), Earth (E) and Neutral (N) terminals on the PCB. For Maintained operation,
connect an additional switched to the 'L1' terminal.
4. Plug battery leads onto the connector on PCB .
5. Slide the legend panel back into the frame and refit the end plate with the two screws.
6. Check operation – restore A.C. supply. For emergency versions check the indicator LED is 'on'. Leave for
30 minutes, remove power and the LED's should illuminate for a few seconds.
7. Restore the A.C. supply and check the LED's operate on mains for maintained operation.
NON-MAINTAINED (No switched supply connected)
LED's normally off and battery on automatic charge (green LED 'on') when the A.C. supply is healthy. Solid
state circuitry automatically switches the emergency LED's on when the A.C. supply is interrupted.
Unswitched Line MAINTAINED
Earth
The LED's are normally on. The battery is on automatic charge (green LED 'on'). LED's may be switched by
Line
independent switched live and will switch on (remain on) to emergency operation when the permanent A.C.
Neutral
supply is interrupted.
MONITORING
Green indicator lamp (LED) normally continuously 'on'. Indicator goes out if permanent A.C. supply or charger
fails.
TEMPERATURE Performance figures measured at 25 degrees C.
FAULT FINDING AND CORRECTIVE ACTION
MONITORING LED NOT ILLUMINATED A.C. supply not healthy. Battery not connected. Charger failed.
UNIT NOT MEETING REQUIRED EMERGENCY PERIOD
May need cycling: discharge then recharge for full 24 hours. Retest. Battery pack may need replacing if
emergency duration is still not met.
LEDS NOT FULLY ILLUMINATED
Dismantle legend and Led
If one or more of the LED's do not illuminate the printed circuit board may be damaged and will require
replacing.
International Tel: +44 (0)1942 433343 Spain Tel: 00 34 938 005642
plate
RECOMMENDED ROUTINE TEST PROCEDURE
Recommended routine test procedures in line with BS 5266 & BS EN 50172 & I.S3217:2013-A1:2017
The following test is designed to ensure the continued protection of your premises and occupants. Because of
the possibility of a failure of the normal lighting supply occurring shortly after a period of testing, all tests should
whenever possible, be undertaken at times of least risk, e.g. during daylight hours.
ONCE A DAY
Visual inspection of battery charge LED.
ONCE A MONTH
Each unit should be energised from its battery for about 15 minutes by simulation of a failure of the normal
lighting supply to ensure the LED's operate in the emergency condition.
ONCE A YEAR
Each unit should be energised from its battery for the full rated duration. Inspect the LED's and
ensure that they all operate with similar light output. The LED's have a life expectancy of over 10
syears but it is recommended that the LED PCB is replaced at after 10 years in order to retain the
design photometric characteristics.
COMPLIANT
Installation &
Self Test Instructions
EMERGENCY EXIT BOX
PRODUCT CODE: SEM-BL-EXB
LUMINAIRE INSTRUCTIONS AND TEST PROCEDURES
EMERGENCY OPERATION
Issue Number: [1]
