Source SEM-CH-EXSIGN Quick Start Manual

285 45
DISASSEMBLY INSTRUCTIONS
Product end of life instruction.
This Lighting product is in the scope of EU 2019/2020 directive on Waste Electrical and Electronic Equipment
(WEEE). This product must be disposed of, according to the legislation. This document is intended for use by
end of life recyclers or treatment facilities. It provides the basic information to assure an appropriate end of life
treatment for the components and materials of the product.

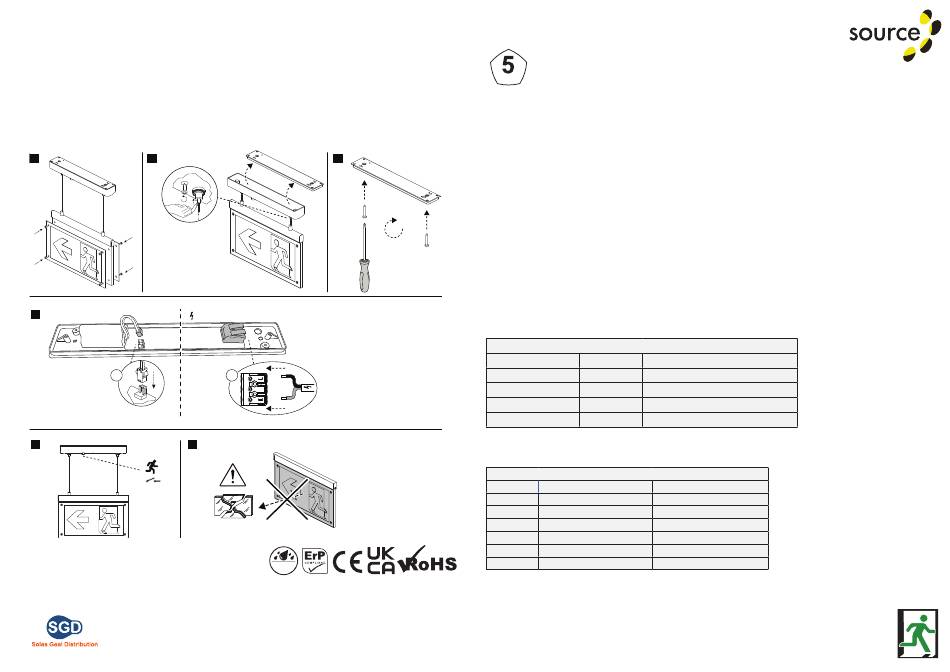

Please follow pictured diagram on the back of this manual showing how to dismantle the product into different
components which should be disposed correctly. These components would consist of plastic, metal and
electronic materials.
300
It is the responsibility of the end user to dispose of this product correctly. www.weeeireland.ie or contact your
local council for further information.
1 1 2
4
1
5
Test
Unit 7/8 Ashbourne Business Centre, Ballybin Road, Ashbourne, Co. Meath, Ireland, A84 YP58,
For more information contact:
Phone: 00353 1 835 7447
Unit 32 Junction One Business Park, Valley Road, Birkenhead, Merseyside, UK, CH41 7ED,
0330 551 7000
UK Ph:
www.sgd.ie
Website:
x1 x1
x1 x1
3
AC 220-240V
2
L
N
!
IP20
x1
years
Quality
Assurance
Self-Test
Self-Test fittings perform a self-commissioning test at first power on. After charging for 24 hours a full duration test (3 hours) is
performed. Initial function and duration tests are randomly generated.
They are then performed in accordance with standard requirements (every 30 days for function tests and every 52 weeks for
duration tests).
A single bi-colour indicator LED is fitted in all Self-Test products. This LED is clearly visible for manual inspection. It indicates the
module status.
The LED shows permanent green or flashing green when conditions are normal and flashing red if a fault condition is present.
Function test
A function test is a 2 minutes test that simulates a mains failure and checks the operation of the emergency light source from the
x2
battery supply.
The local indicator LED slow flashes green whilst the 2 minutes function test is in progress.
If there is a failure during a function test the local indicator LED changes to a flashing red.
Duration test
A duration test simulates a mains failure. It also checks the operation of the emergency light source from the battery supply for
the rated duration of the module.
The local indicator LED fast flashes green whilst the duration test is in progress.
If there is a failure during a duration test the local indicator LED either changes to flashing red.
The battery is required to be fully charged before a duration test can be started.
The test button of the unit has the following functions
Test Button
Press for about 1s
Press for about 5s
Press for about 7s
Press for about 10s
Please refer to this chart for more complete description / fault indication
Test Button
Green LED Constant
Slow Flash
Green LED
Fast Flash
Green LED
1 Flash
Red LED
2 Flash
Red LED
3 Flash
Red LED
COMPLIANT
Installation &
Self Test Instructions
EMERGENCY HANGING BLADE
PRODUCT CODE: SEM-CH-EXSIGN
Green LED Status
Off Emergency mode for 1 second
Slow flash Function for 30 seconds
Fast flash 3 hour duration test
End the duration test
Status
Mains On / No Fault
Function for 2 minutes
3 hour duration Test
Battery Fault
Lamp Fault
Duration Test Fault
