Source SEM-REDL Installation Instructions

Led emergency surface downlight

Advertisement

Quick Links

DISASSEMBLY INSTRUCTIONS
Product end of life instruction.
This Lighting product is in the scope of EU 2019/2020 directive on Waste Electrical and Electronic Equipment
(WEEE). This product must be disposed of, according to the legislation. This document is intended for use by
end of life recyclers or treatment facilities. It provides the basic information to assure an appropriate end of life
treatment for the components and materials of the product.

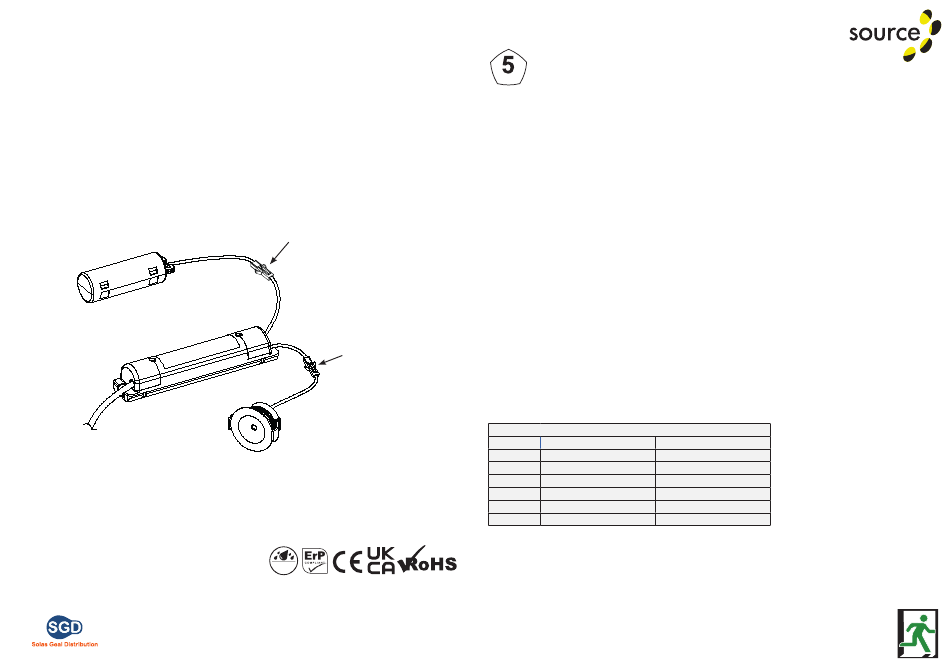

Please follow pictured diagram on the back of this manual showing how to dismantle the product into different
components which should be disposed correctly. These components would consist of plastic, metal and
electronic materials.
It is the responsibility of the end user to dispose of this product correctly. www.weeeireland.ie or contact your
local council for further information.
Unit 7/8 Ashbourne Business Centre, Ballybin Road, Ashbourne, Co. Meath, Ireland, A84 YP58,
For more information contact:
Phone:
00353 1 835 7447
Unit 32 Junction One Business Park, Valley Road, Birkenhead, Merseyside, UK, CH41 7ED,
UK Ph:
0330 551 7000
www.sgd.ie
Website:
Unclip battery from driver in
order to recycle both items
correctly
Unclip downlight in
order to recycle
IP20
COMPLIANT
Installation &
Self Test Instructions
LED EMERGENCY SURFACE DOWNLIGHT
years
Quality
Assurance
PRODUCT CODE: SEM-REDL
Self-Test
Self-Test fittings perform a self-commissioning test at first power on. After charging for 24 hours a full duration test (3 hours) is
performed. Initial function and duration tests are randomly generated.
They are then performed in accordance with standard requirements (every 30 days for function tests and every 52 weeks for
duration tests).
A single bi-colour indicator LED is fitted in all Self-Test products. This LED is clearly visible for manual inspection. It indicates the
module status.
The LED shows permanent green or flashing green when conditions are normal and flashing red if a fault condition is present.
Function test
A function test is a 2 minutes test that simulates a mains failure and checks the operation of the emergency light source from the
battery supply.
The local indicator LED slow flashes green whilst the 2 minutes function test is in progress.
If there is a failure during a function test the local indicator LED changes to a flashing red.
Duration test
A duration test simulates a mains failure. It also checks the operation of the emergency light source from the battery supply for
the rated duration of the module.
The local indicator LED fast flashes green whilst the duration test is in progress.
If there is a failure during a duration test the local indicator LED either changes to flashing red.
The battery is required to be fully charged before a duration test can be started.
Please refer to this chart for more complete description / fault indication
Test Button
Status
Mains On / No Fault
Green LED
Constant
Slow Flash
Function for 2 minutes
Green LED
Fast Flash
3 hour duration Test
Green LED
1 Flash
Battery Fault
Red LED
2 Flash
Lamp Fault
Red LED
Red LED
3 Flash
Duration Test Fault
